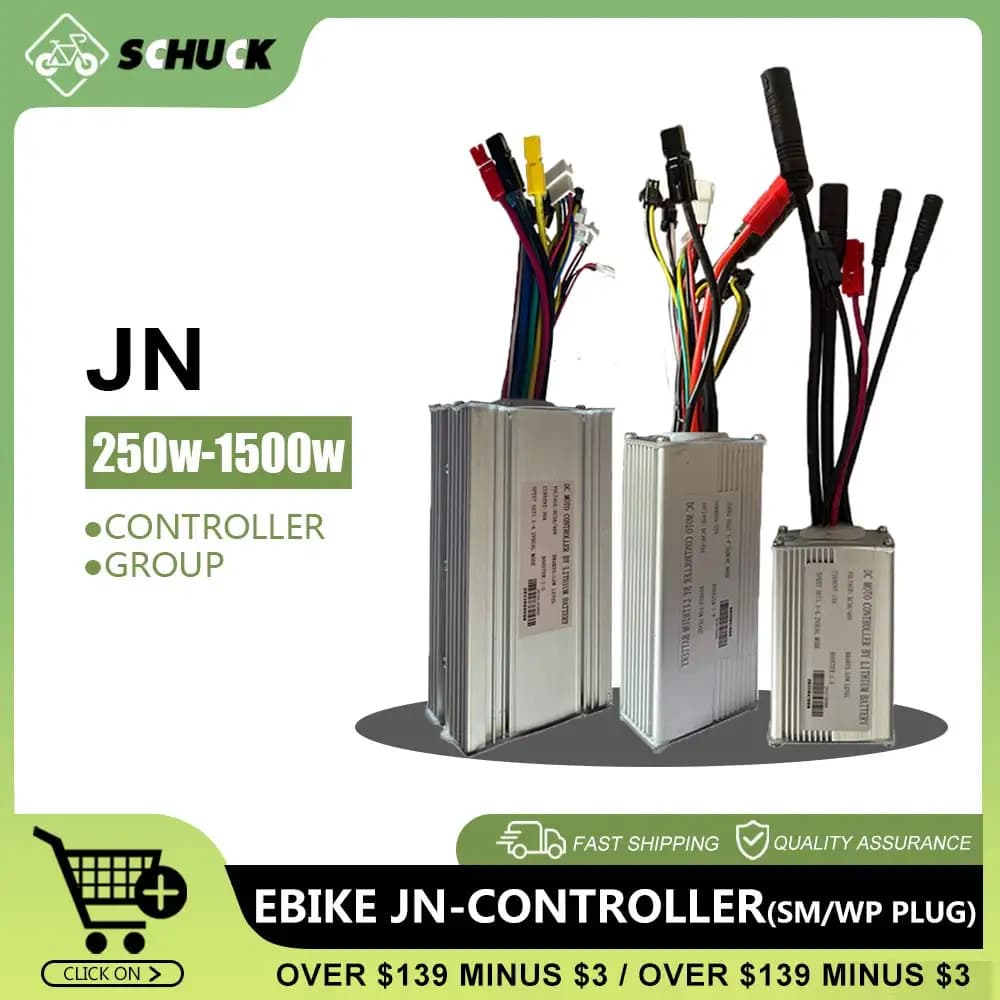

JN Ebike Controller 36V 48V 15A 17A 22A 25A 30A 35A Control System with 6 9 12 Mosfets for Electric Scooter Conversion Parts

JN Ebike Controller 36V 48V 15A 17A 22A 25A 30A 35A Control System with 6 9 12 Mosfets for Electric Scooter Conversion Parts

  Attention

●Bullet Battery Connector,If you need to change the connector , please contact customer service

  Notice

● JN Controller only applies to JN system, please confirm whether you are using JN system, such as JN display.

● Please contact us if you are not sure which is right for you or have further questions by Aliexpress message.

  15A Controller Parameter

Size(L*W*H):50*30*83mm

Rated Power:250W/350W

Speed Set:1.1-4.2V

Mosfet:6 Mosfet

Booster:1:5

Brakes: Low-L evel

Rated Voltage: DC36/48V

  17A Controller Parameter

Size(L*W*H):50*30*92mm

Rated Power: 250W/350W

Speed Set: 1.1-4.2V

Mosfet: 6 Mosfet

Booster:1:5

Brakes: Low-L evel

Rated Voltage:DC36/48V

  22A Controller Parameter

Size(L*W*H): 52*32*113mm

Rated Power: 500W

Speed Set:1.1-4.2V

Mosfet: 9 Mosfet

Booster:1:5

Brakes:Low-Level

Rated Voltage:DC36/48V

  25A Controller Parameter

Size(L*W*H):52*30*118mm

Rated Power: 750W

Speed Set:1.1-4.2V

Mosfet: 9 Mosfet

Booster:1:5

Brakes:Low-Level

Rated Voltage:DC36/48V

  30A Controller Parameter

Size(L*W*H): 82*43*146mm

Rated Power: 1000W

Speed Set:1.1-4.2V

Mosfet: 12 Mosfet

Booster:1:5

Brakes: Low-Level

Rated Voltage: DC36/48V

  35A Controller Parameter

Size(L*W*H): 82*45*183mm

Rated Power: 1500W

Speed Set: 1.1-4.2V

Mosfet: 12 Mosfet

Booster: 1:5

Brakes: Low-Level

Rated Voltage: DC36/48V
