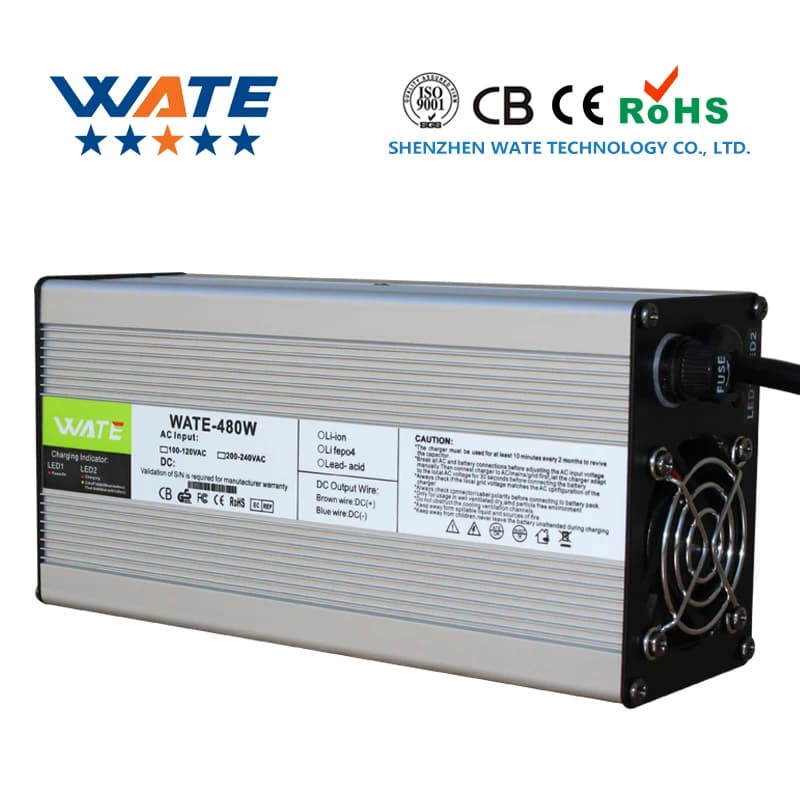

72V 5A Charger intelligent Aluminum Shell is Suitable for 72V outdoor Lead acid Battery Machine Tricycle intelligent Charging

Features

1.AC input: 110V AC&260VAC, 47 to 63Hz

2.Output power:480W

3.DC output voltage:72V 5A

4.LED indicator light logo: red and green, double color instructions, red charging green finished or standby

5.Efficiency: >85%

6.MTBF: 30000 hours

7.Main export markets: Asia/Eastern Europe/Mid East/Africa/Australasia/North America/Central/South America/Western Europe

Protect Characteristic

1.Short-circuit protection

2.Over-current protection

3.Over-voltage protection

4.Reverse Polarity Protection

5.Over-temperature protection

Work Conditions:

Ambient temperature: -5 - 40℃

RH: 5 - 95%

Max. altitude: 10000  meter

Cooling: chargers use of forced air cooling system. Under dustless and ventilated conditions, the full load temperature rise not exceeding 40℃.

Storage conditions

Ambient temperature: -40 - 70℃

RH: 0 - 95%

Max. altitude: 20000 meters.
