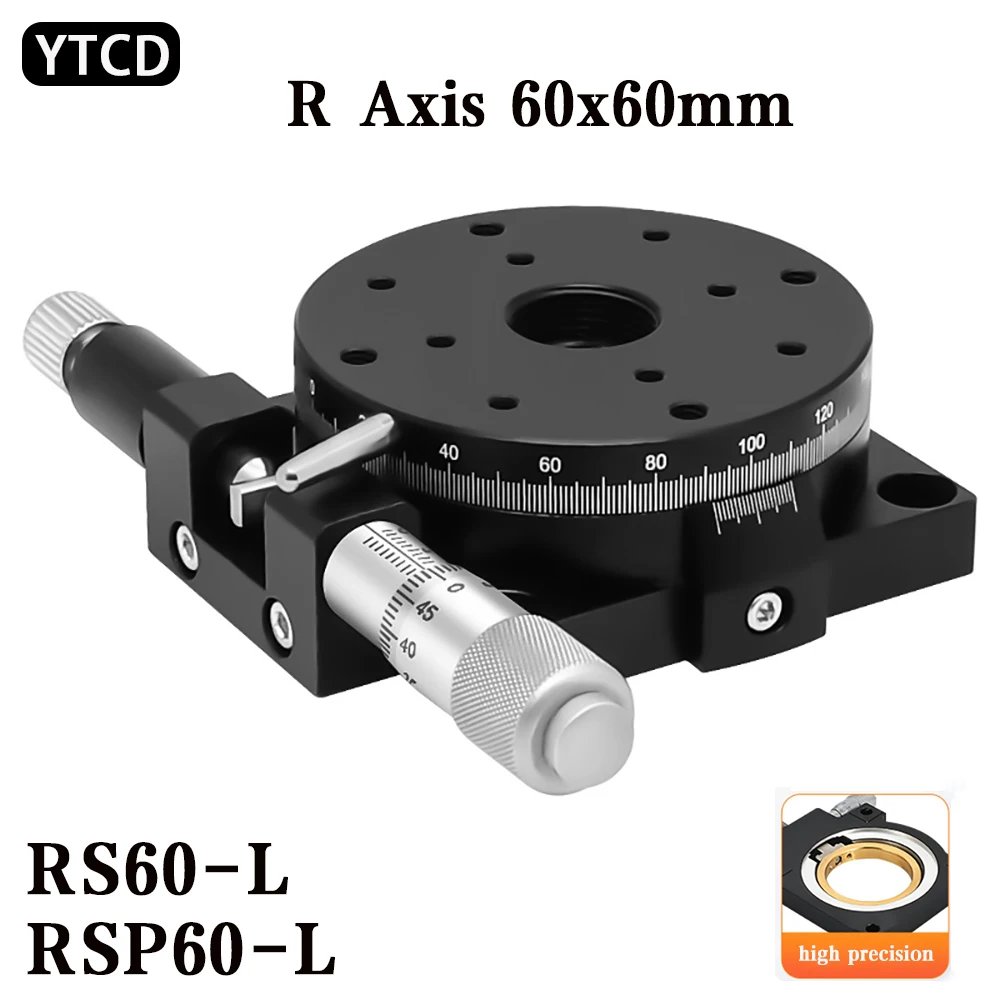

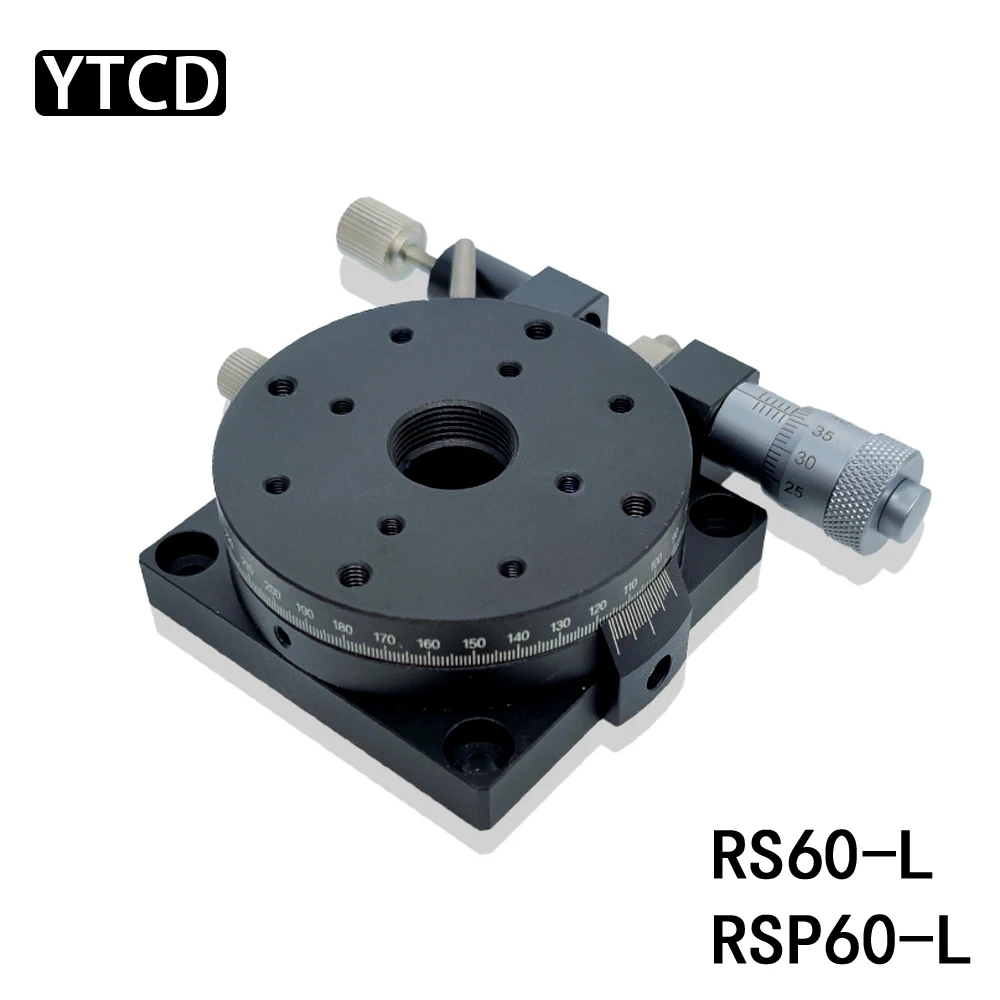

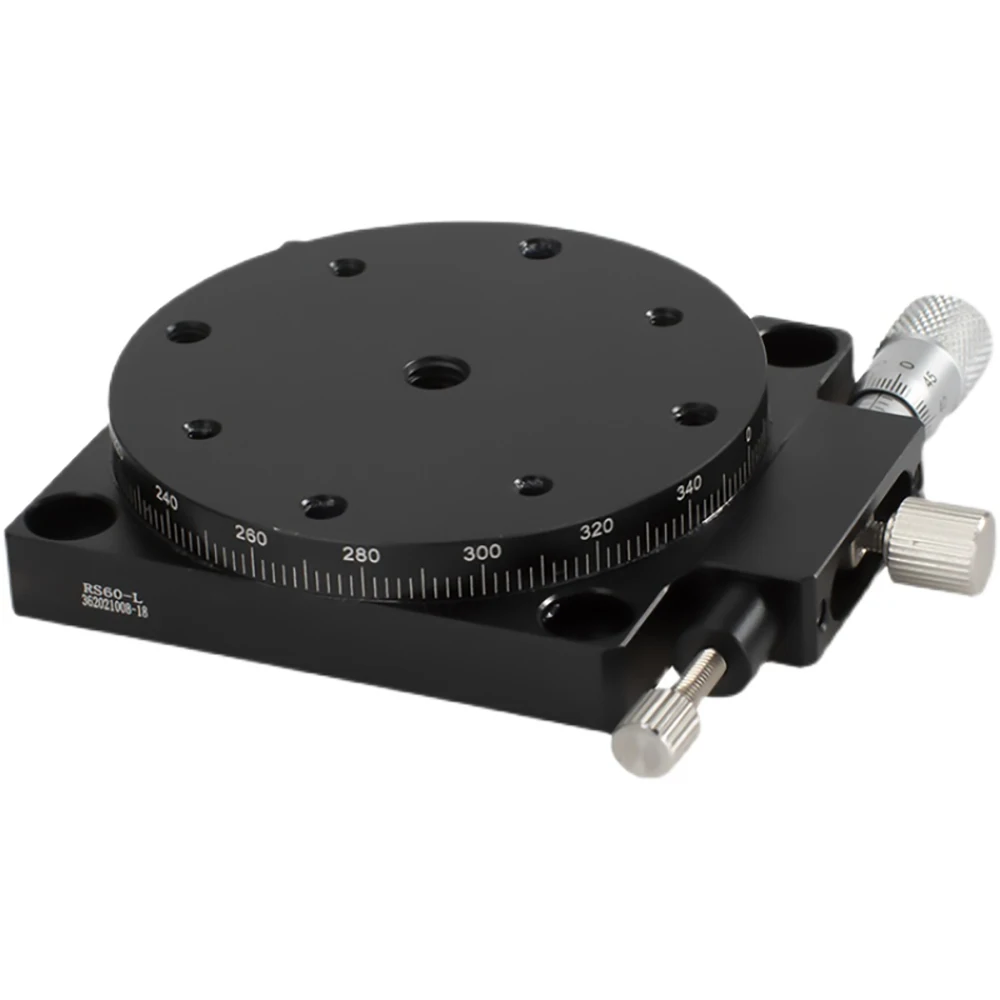

60mm R Axis Rotary Stage High Precision Manual Rotation Platform with Micrometer Fine Tuning Optical Positioning Slide RS60-L RS

Welcome to our store ,Have a nice day！

Feature:

Rotating platform enables fine adjustment of the angle of the platform to the approximate location, using the thickness adjusting switch screws, can be fine-tuned using a micrometer

RSP60-L (Precision type):

1. Direction of rotation: R axis of rotation

2. Material: Aluminum

3. Table size: 60mm

4. Stroke: 360 ° (coarse), ± 5 ° (fine-tuning)

5. Load: 29.4N (3kgf)

6. Minimum scale: 5'

7. Parallelism: 0.02mm

8. Weight: 0.3kg

RS60-L (standard type):

1. Direction of rotation: R axis of rotation

2. Material: Aluminum

3. Table size: 60mm

4. Stroke: 360 ° (coarse), ± 5 ° (fine-tuning)

5. Load: 29.4N (3kgf)

6. Minimum scale: 10'

7. Parallelism: 0.05mm

8. Weight: 0.16kg
