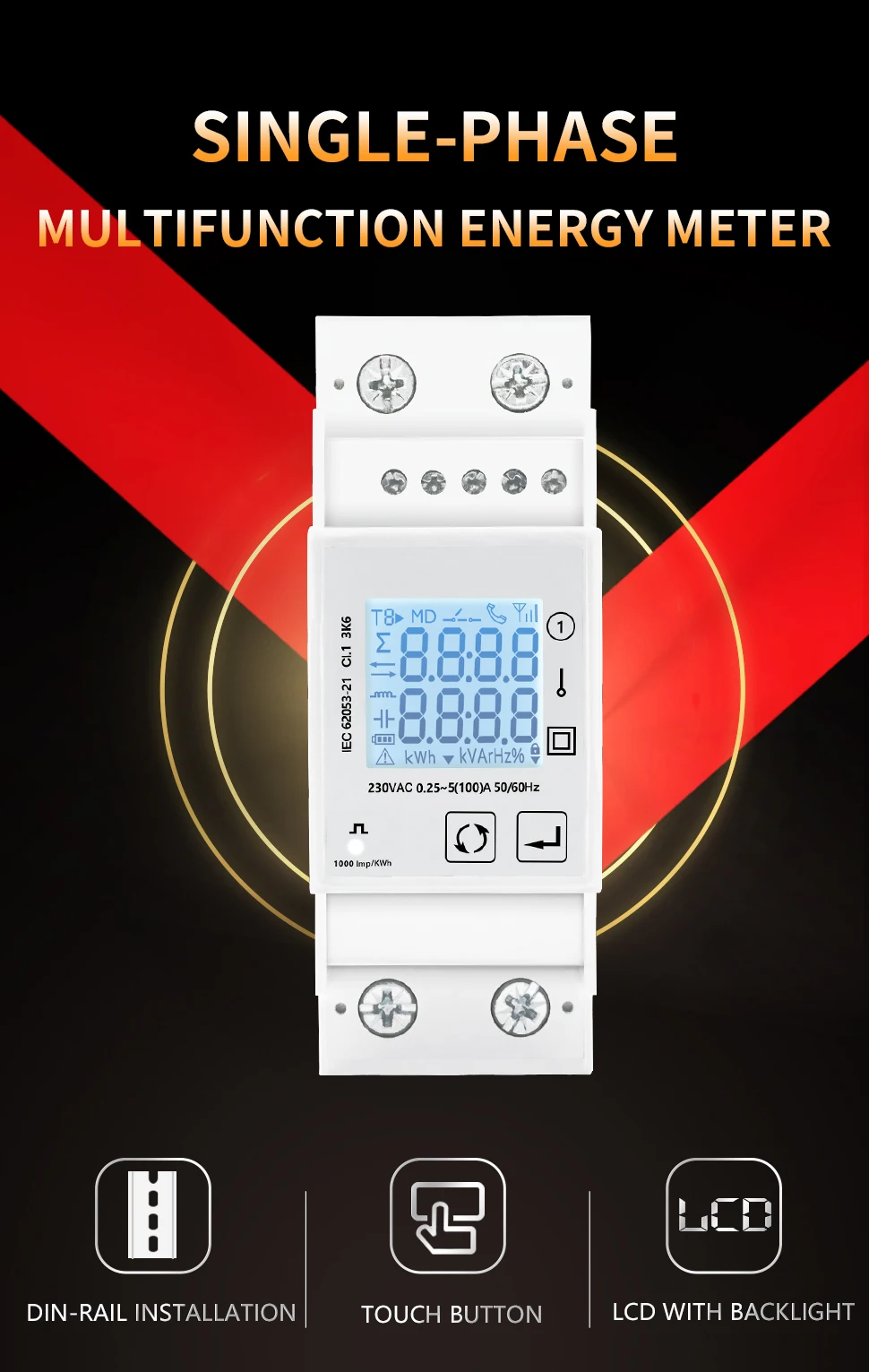

220v Power Single Phase Digital Din Rail Wattmeter Ammeter Voltmeter KwH RS485 MODBUS Electric Consumption Meter TAC2100

Please note that some functions of all products of this series are limited to be displayed on the screen or tuya APP. It is impossible to display them all. If there is no display on the meter, there will be a display on modbus. Please set modbus to view the functions you want to view！！！

Description

TAC2100 series energy meter supports single phase two wires direct connect 100A load , measuring two - way power , voltage , current , active power , reactive power , apparent power , phase factor , and providing various measurement parameters for power monitoring , with multi - function , multi - purpose , high stability and long life This series products with RS485 communication interface , supporting Modbus ,DLT645 protocols . It can read the data remotely , and the design of large - screen LCD , touch - sensi - tive key , can easily check the local view and set operation of various parameters. The passwordprotection function ensures the data security of the product.

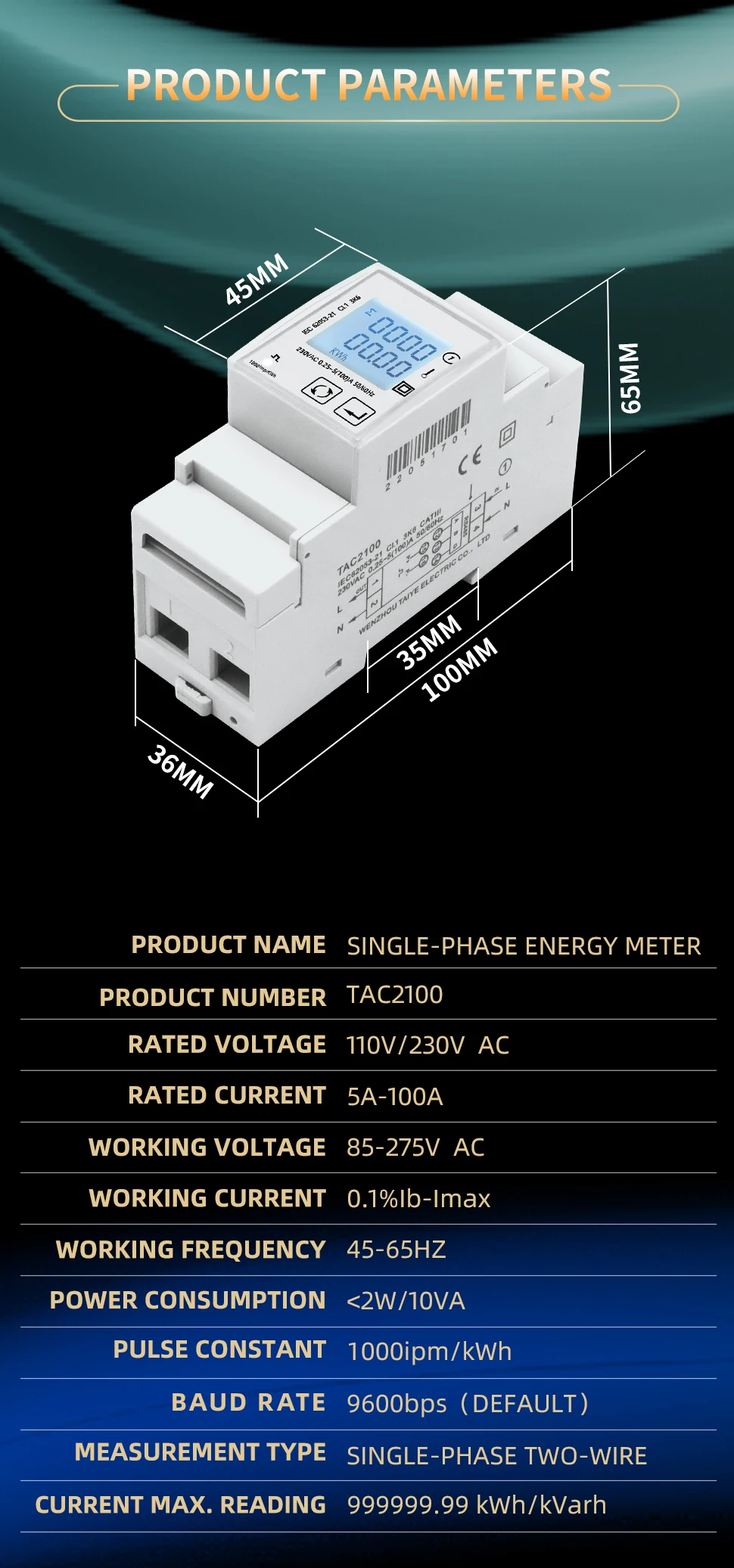

Specification

Rated voltage: 110V/230VAC compatible

Working voltage: 85~275VAC

Voltage overload capacity: 2 times the rated value for 1 second

Rated current: 5A

Maximum current: 100A

Working current: 0.1%Ib~Imax

Current overload capacity: 30 times the maximum current for 0.01 seconds

Working frequency: 45~65Hz

Power consumption: <2W/10VA

Pulse constant: 1000imp/Kwh

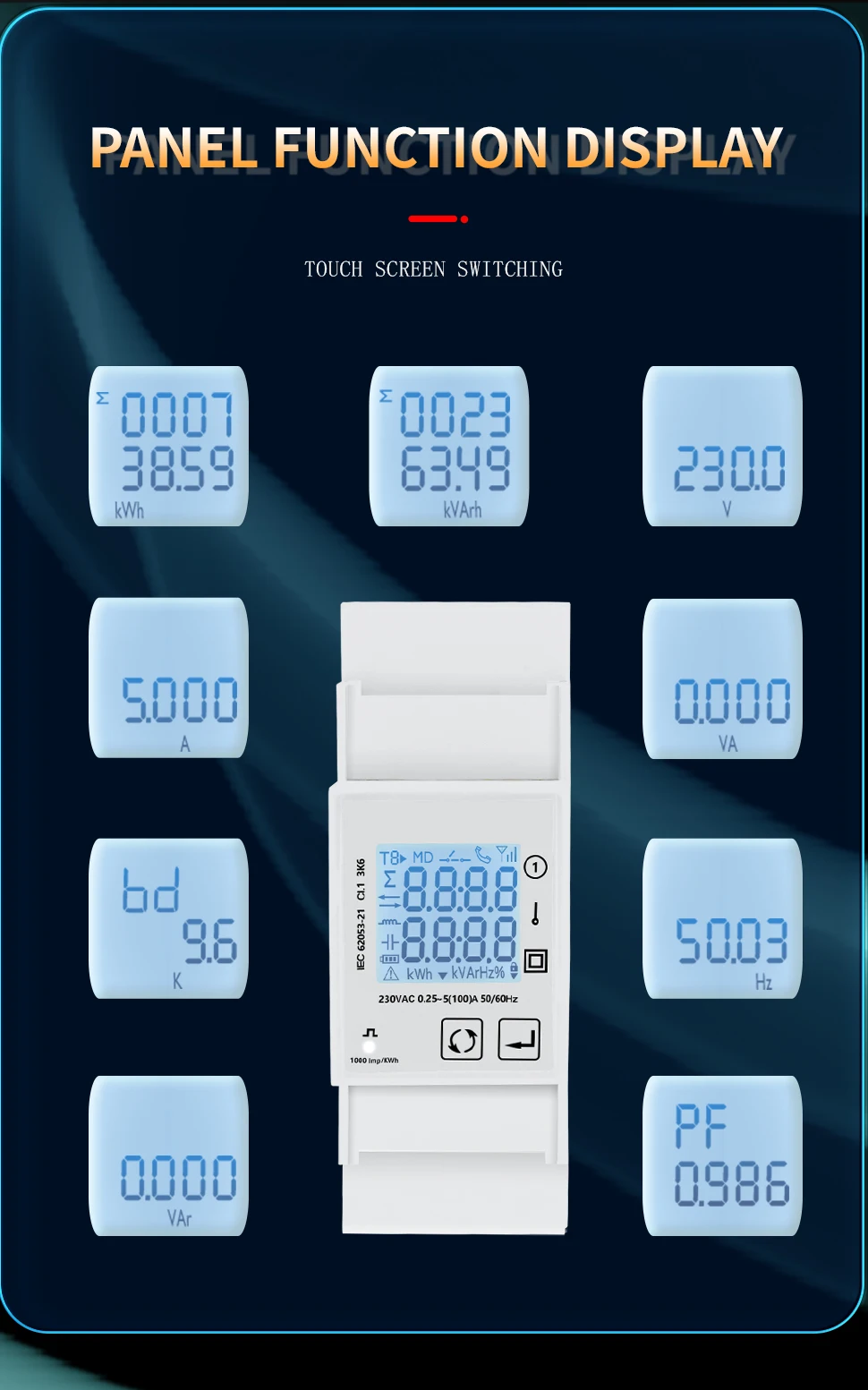

Display: LCD with backlight

Maximum battery reading: 999999.99Kwh/Kvarh

Measurement type: single-phase two-wire

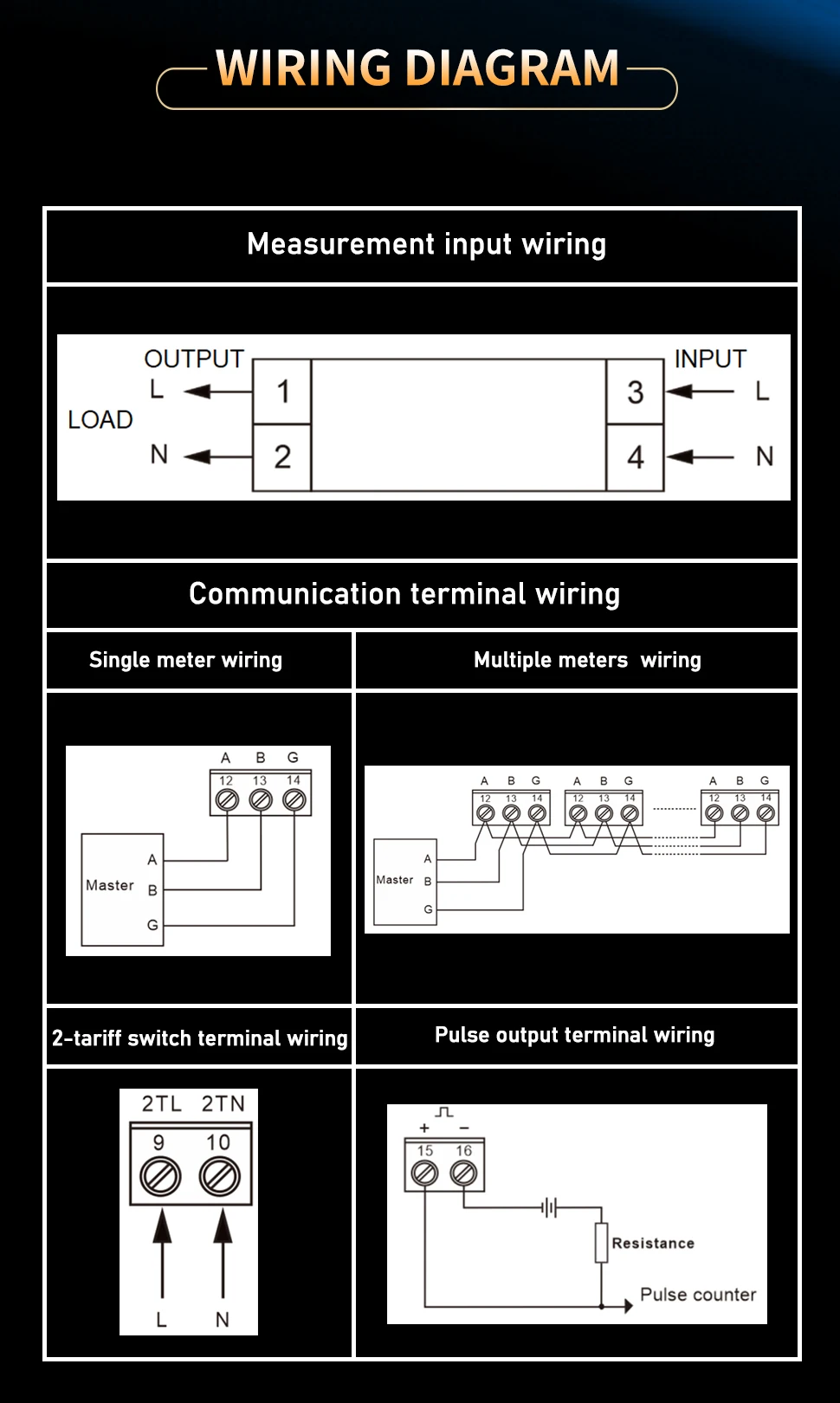

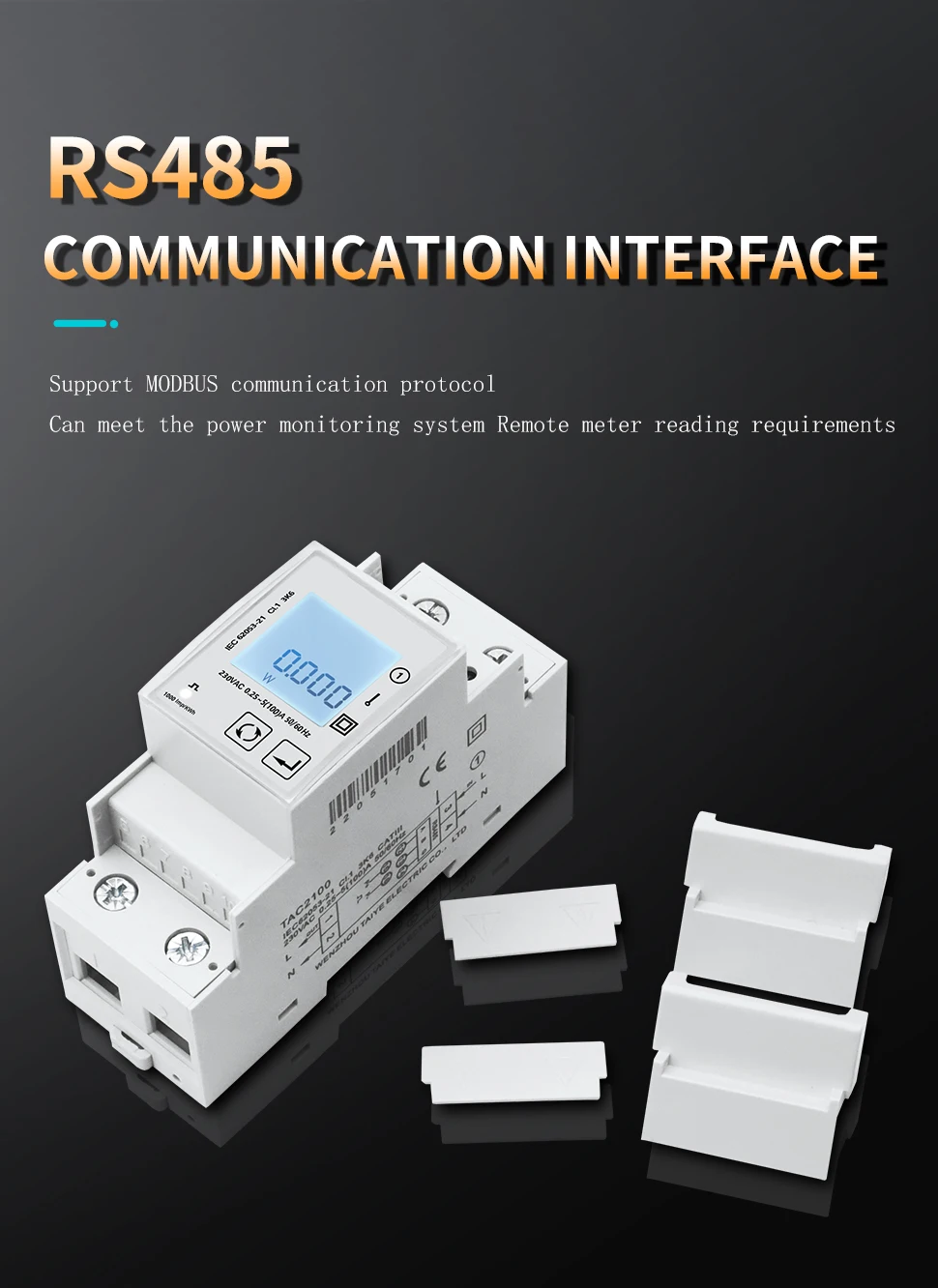

Communication interface and protocol: two-wire RS485; Modbus RTU (default), DL/T645-2007

Operating temperature: -25 - +55℃

Measurement type: single-phase two-wire

Package Included

1 × energy meter
