8mm Width COB LED Strip Black PCB DC12V 24V 320LEDs/m 3000K 4500K 6000K High Density Uniform Light CRI 90+ Indoor Decor 1M-20M

Note:

- 6-10m of 12V and 11-20m of 24V strips needs to power supply both two side so that it will not make the voltage drop .

-1-5m of 12V and 1-10m of 24V strip  power supply at one side is ok.

12V 10M=2pcs 5M

24V 10M=1pcs 10M

Specification:

Name:320LEDs/M Black Board COB LED Strip Light

Type:2Pin Wire/DC plug

Working VoltageDC12V/24V

LED Quantity：320Leds/m

Emit Color: Warm White 3000-3500K , Natural White4000-4500K , White 6000-6500K

Waterproof Rate:  IP30 No waterproof

Strip size：W8mm x H1.8mm

Power:  8-22W/M

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180

Self-adhesive：YES

Lifespan :650,000 H

CRI :Ra>90

Length:

12V 0.5M, 1M, 2M, 3M, 4M, 5M, 10M (2pcs 5M)

24V 0.5M, 1M, 2M, 3M, 4M, 5M, 10M,11M,12M,13M,14M,15M,16M,17M,18M,19M,20M

Can the light strip be dimmed: YES (no dimmer)

12V strip cutting every 25mm at cuttable remark

24V strip cutting every 50mm at cuttable remark

Features：

【Ultra Bright and Uniform】

DC12V 24V 320LEDs/m Warm 3000K White 6000K Natural 4500K FCOB COB LED Strip.

Flip Chip On Board LED strip(FCOB).Adopting high brightness LED as the light source

to ensure the brightness while maintaining color consistency.Compared with traditional

5050SMD 3528SMD light strips, FCOB COB LED strip dense light-emitting units create a

brighter, softer, spotless and more uniform light, avoiding black in the middle area. CRI 90+

【Shopping With Confidence】

Adopting real double-layer copper PCB board, better

electronic conductivity and heat dissipation.More than 65,000 hours lifespan.We also

provide 24/7 customer service.For troubleshooting and replacement, or any questions about

purchase or installation, please feel free to contact us.

【Cuttable and Linkable】

Our FCOB light strip is soft and flexible.The Spots to solder can be cut.

【Wide Application】

Our FCOB LED light is perfect for various interior decoration.Such as

living room, hallway, bedroom, kitchen, accent lighting, cabinet lighting, stair, mirror, corridor,

DIY backlight, DIY lighting, special use and other commercial and residential lighting projects.

Come with a strong self adhesive backing.Tips:Before installation, please thoroughly clean and dry the installation surface

【Power calculation】

The actual power FCOB COB LED strip will be affected by the voltage drop.

For example, the power of DC12V 16.4FT 320LEDs /m is 18W, not 9W/mx5m= 45W .

The calculation method of 45W is wrong, and the voltage drop should be considered.

Advantages :

1.  Higher safety: due to the use of low-voltage power supply, safety hazards such as electric shock are reduced.

2. FOB Chip:is the upgrade process of COB, which uses flip chip technology to shorten the heat conduction path, improve the chip heat dissipation efficiency, and extend the service life.

3.  Greater flexibility: It can be cut and adjusted as needed to adapt to different installation environments.

Imitation high-voltage light strips are often used in low-power demand places such as indoor decoration and building outlines.

4. Suitable for high-end commercial lighting (such as exhibition halls, jewelry cabinets), or intensive installation environments with limited heat dissipation

Package Included:

1 x FCOB led Strip With 2Pin Wire/DC Plug(power supply not included)

Kindly Note:

- DC wire/2Pin Wire  is not waterproof, it needs to be protected well from water.

-Every 0.5m segment is welded, which is standard in electronics.

Very suitable for DIY handmade production, light boxes, kitchen cabinet lights, etc., and also suitable for home decoration, commercial lighting and other scenarios

-Good heat dissipation and long life

 advantage

-No Dark Spot

-180-Degree Beam Angle

-320Leds/m

White 6000K

Natural 4500K

Warm 3000K

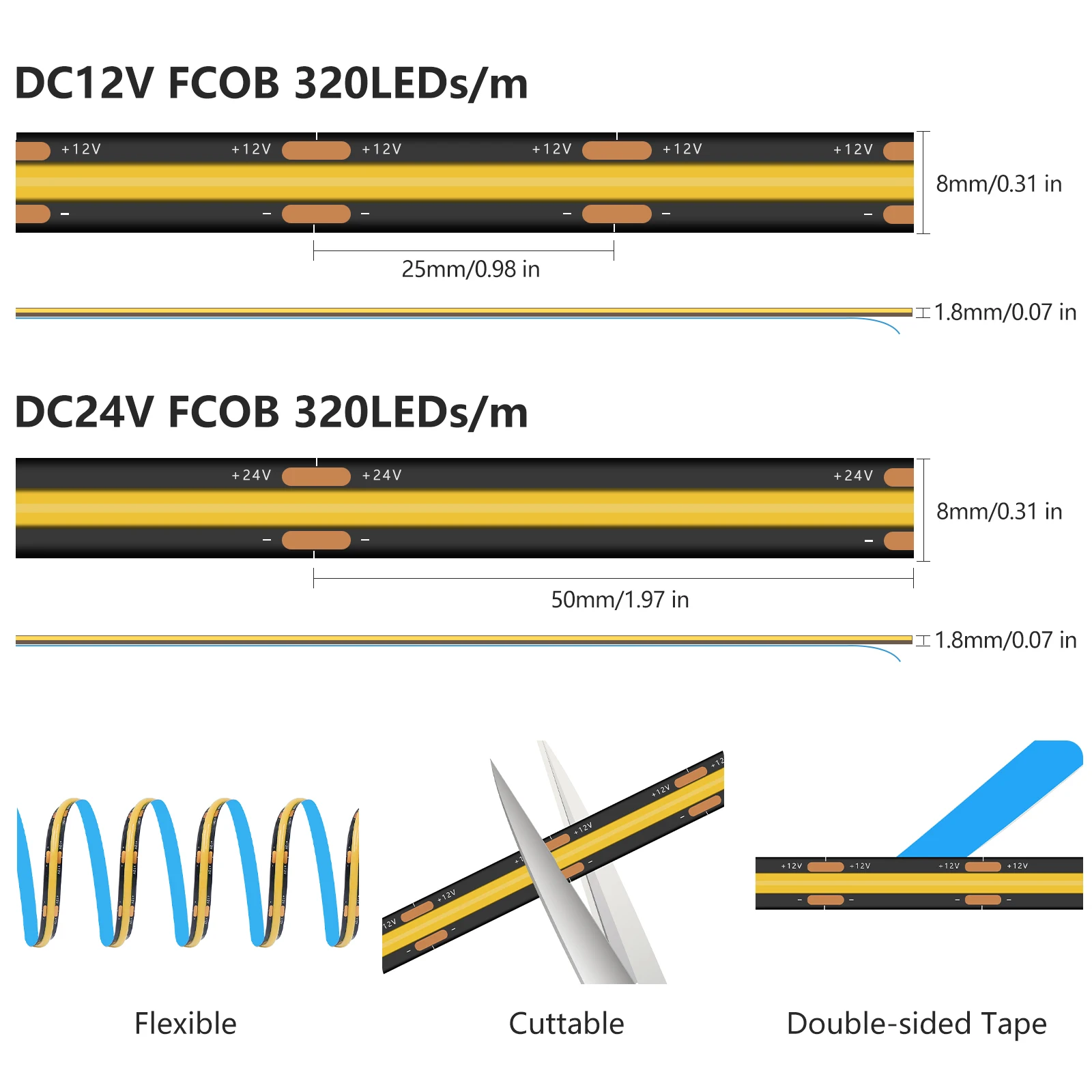

Strip size：W8mm/0.31in x H1.8mm/0.07in

Cut size：DC 12V 25MM/0.98in

Cut size：DC 24V 50MM/1.97in

Strong double-sided adhesive

With crop mark

BETTER CONDUCITNITY

-Double-layer Copper PCB Board

ULTRAL BRIGHT EFFICIENT

-Flip Chip-on-board(FCOB)Technology

SEAMLESS GLOW

-Spot-free illumination

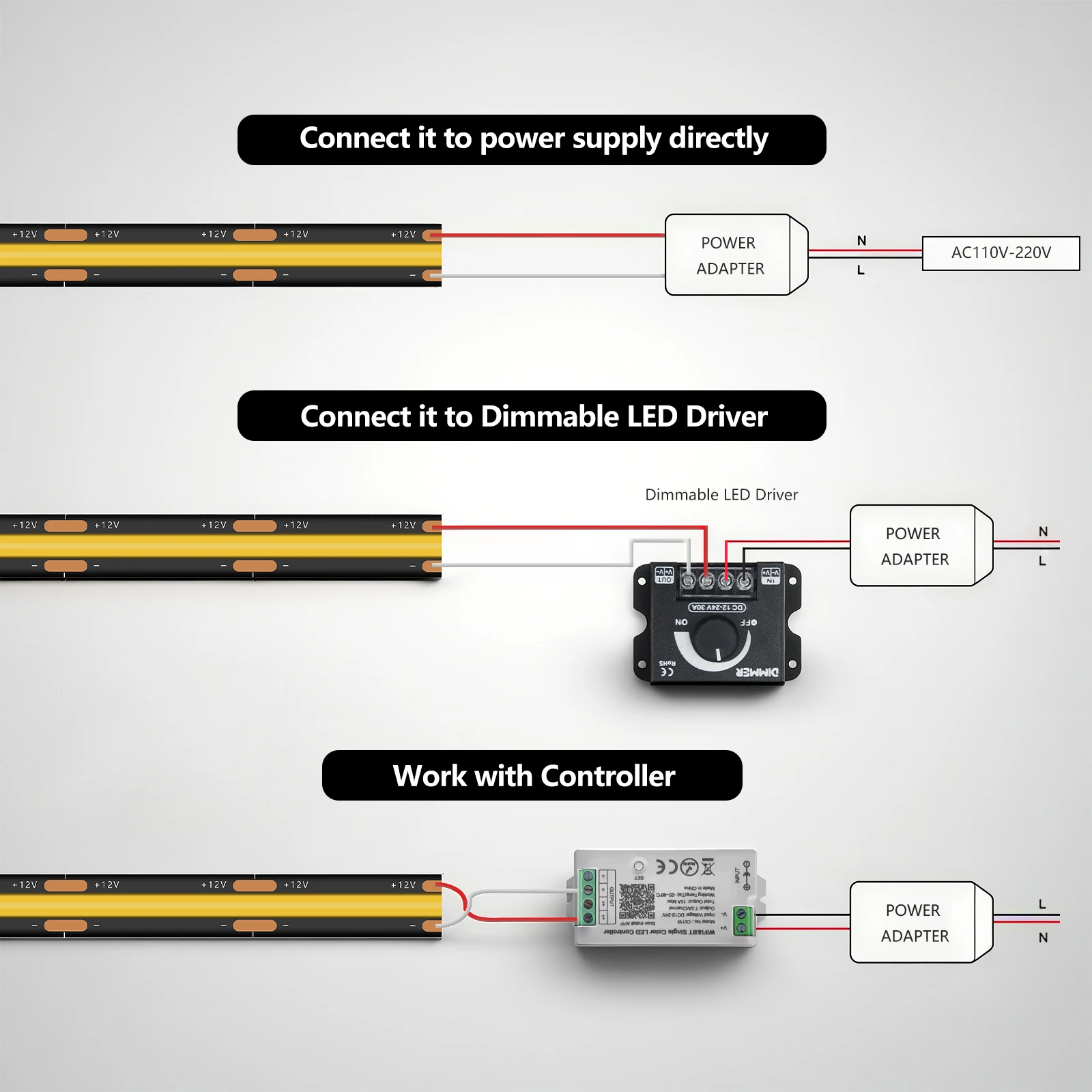

-FOB light strip can be connected to a 12V/24V power cord (please strictly follow the purchase voltage light strip to use the corresponding equipment)

-FOB light strip can be connected to 12V/24V dimmer

-FOB light strip can be connected to 12V/24V controller

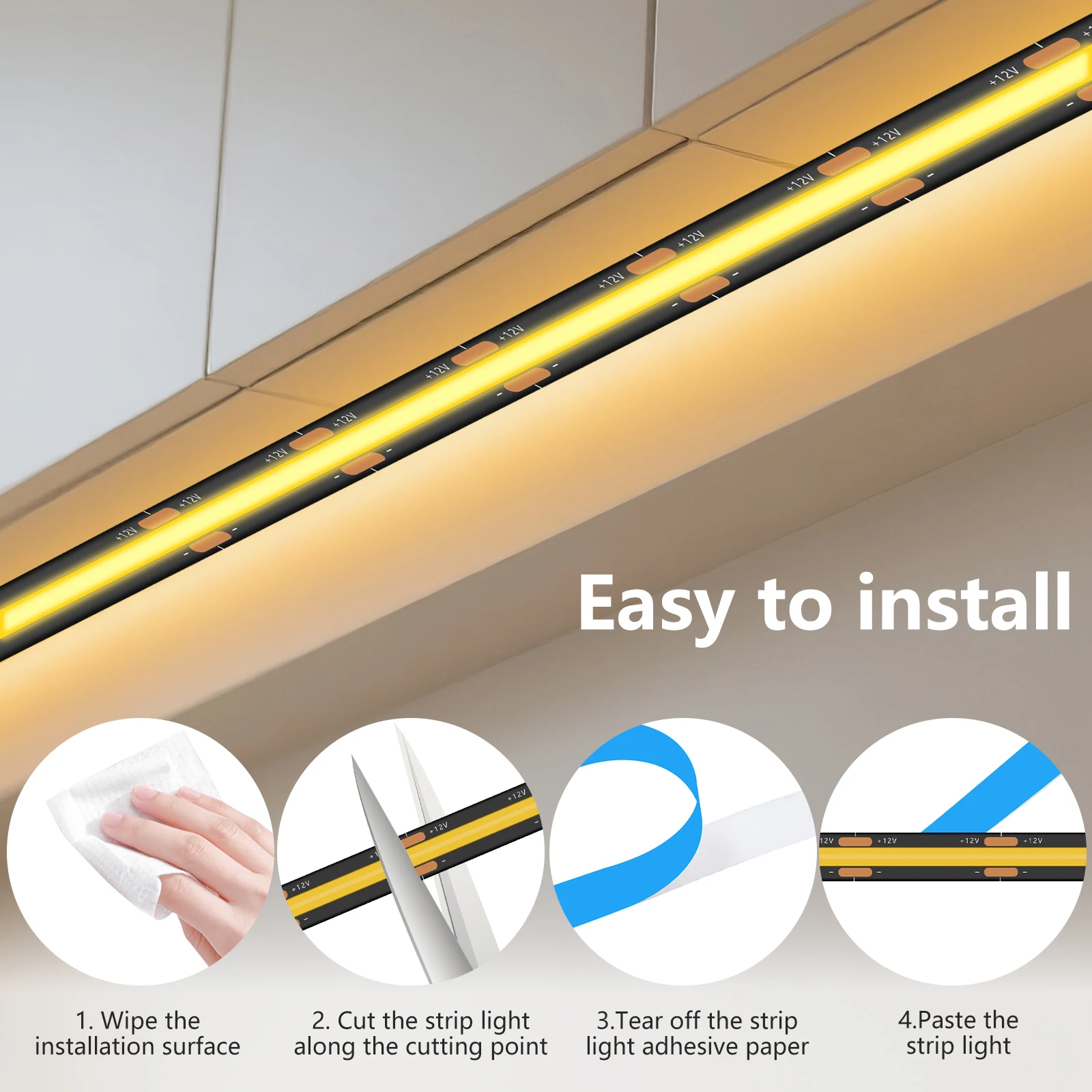

Steps to Use Light Strip

-Wipe the installation surface

-Cut the strip light along the cutting point

-Tear off the strip light adhesive paper

-Paste the strip light

DC Plug

2Pin Wire

Warm 3000-3500K

Natural 4000-4500K

White 6000-6500K
