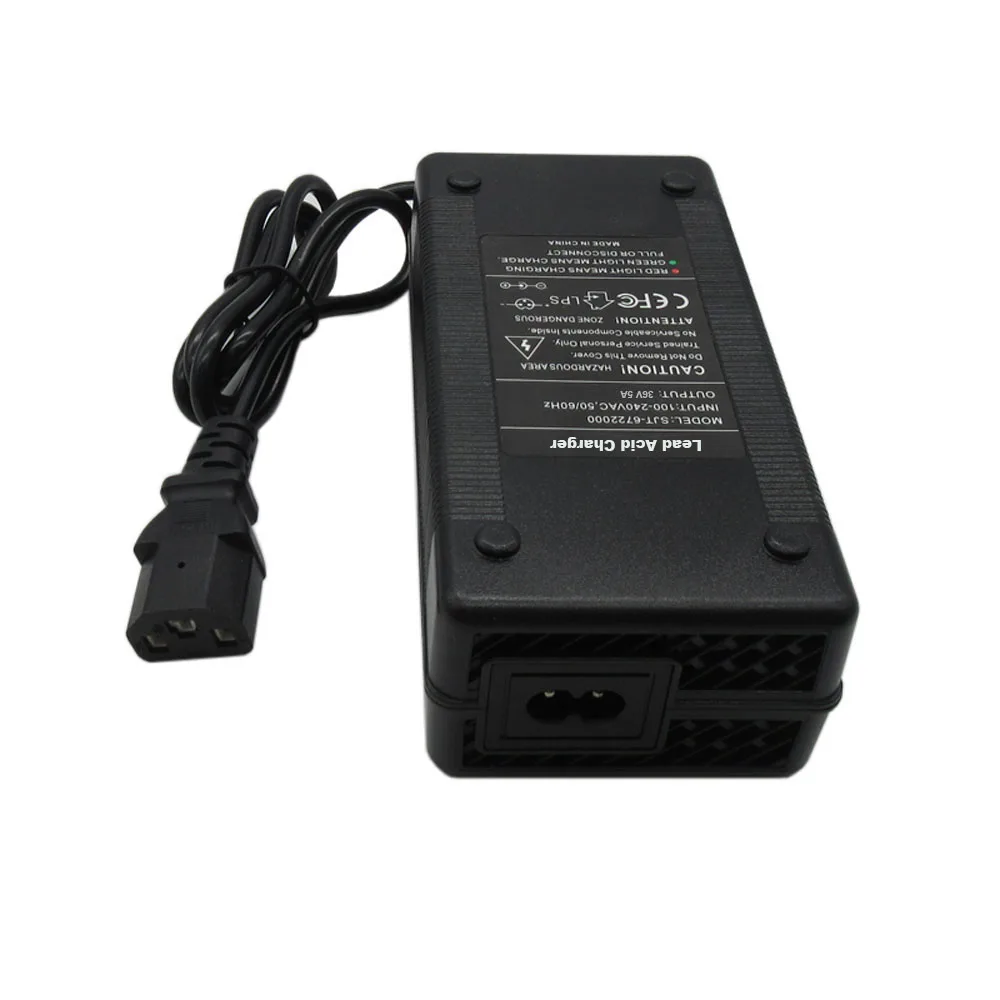

36V 5A Lead Acid Charger 36 Volt 5A 30AH 50AH Battery Fast Chargers 43.2V IEC 3Pin XLRM GX16 Connector

36V 5A Lead Acid Charger 36 Volt 5A Chargers 43.2V T/PC/IEC 3Pin Connector

Charger description

Input Voltage:100-240V AC 50/60HZ
Output Voltage:43.2V
Output Current:5A
Charger size:151*74*47mm
Working Temperature: -10℃~40℃
Charging Plug:US/EU/UK/AU plug we can offer

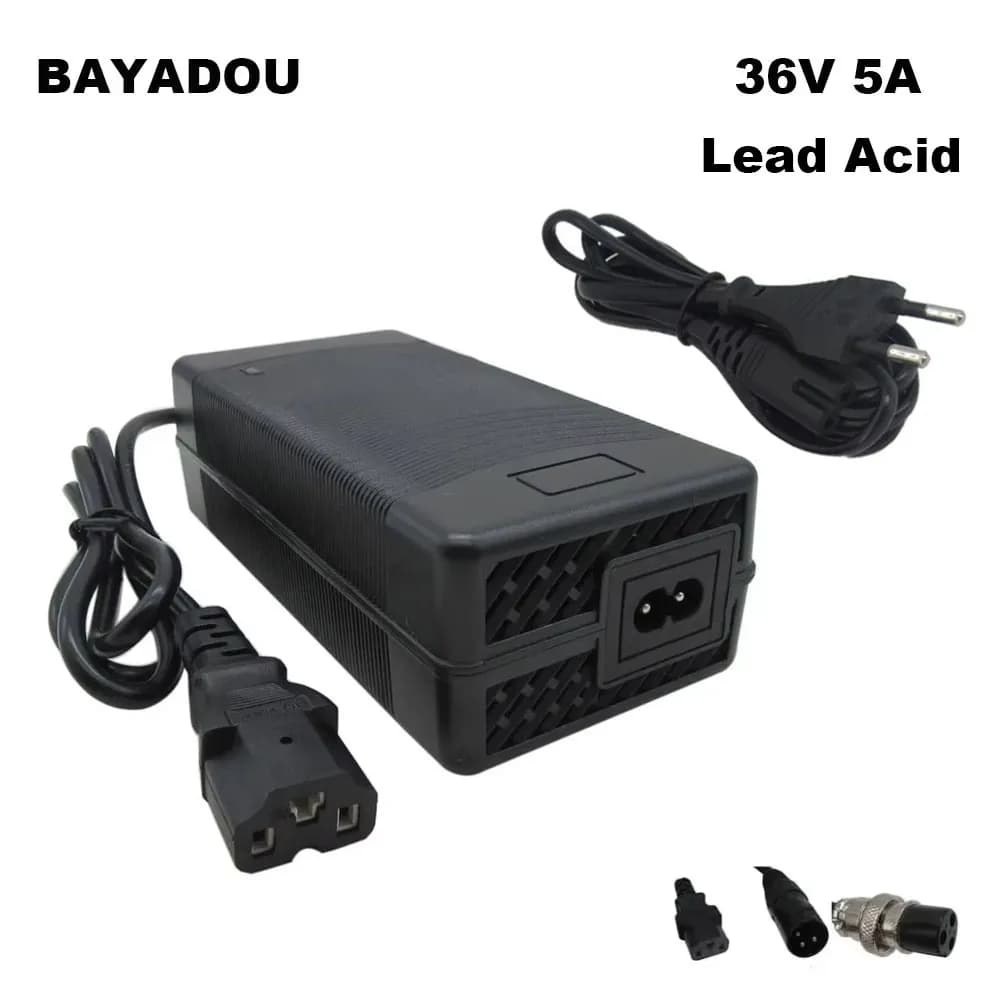

Charge port:3PIN IEC / DC / GX16 / XLRM
Safety standard:CE/RoHS
Apply to:36V Lead Acid battery
Charge Efficiency: >85%
Warranty:1 years

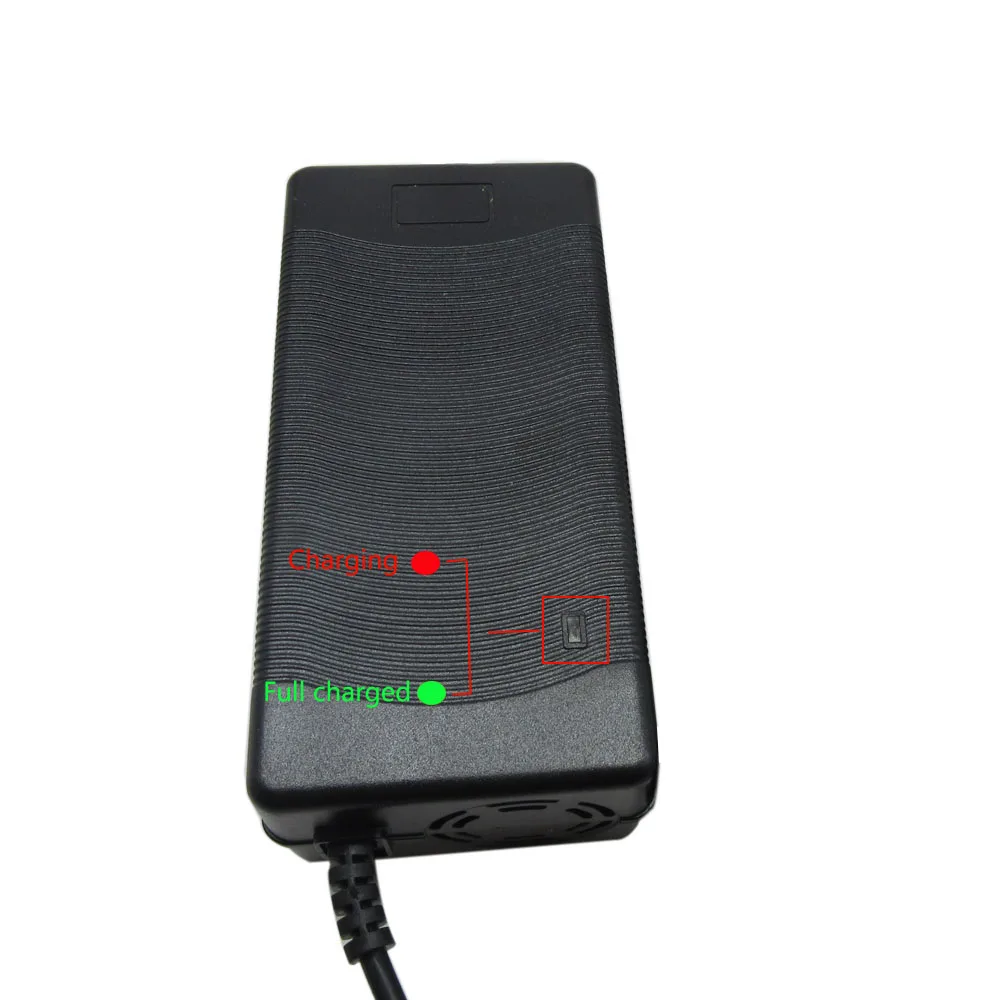

LED Light:

RED ---Charging
Green---Full charged, Stop automatically and turn green when the battery is full charged.

Charge mode:

CC-CV
First stage:CC-constant current charging, the LED indicator is red. When charging to the rated voltage, it will switch to the second stage.

Second stage:CV-constant voltage charging, the current will gradually decrease until the LED indicator turn to green, and the battery has been fully charged to 90% - 95%. The battery continues to charge at a small current until it is fully charged.

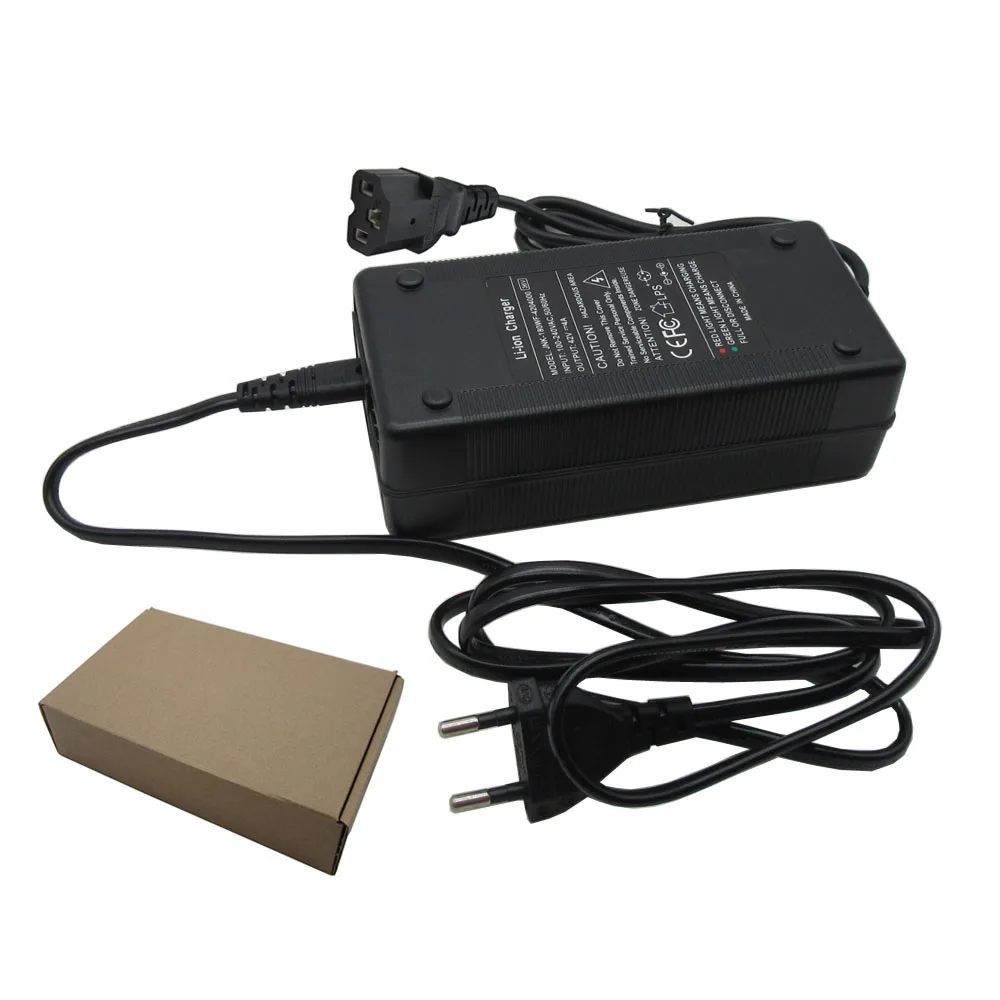

Parcel include:

1pcs Charger and AC Power Cord Cable
