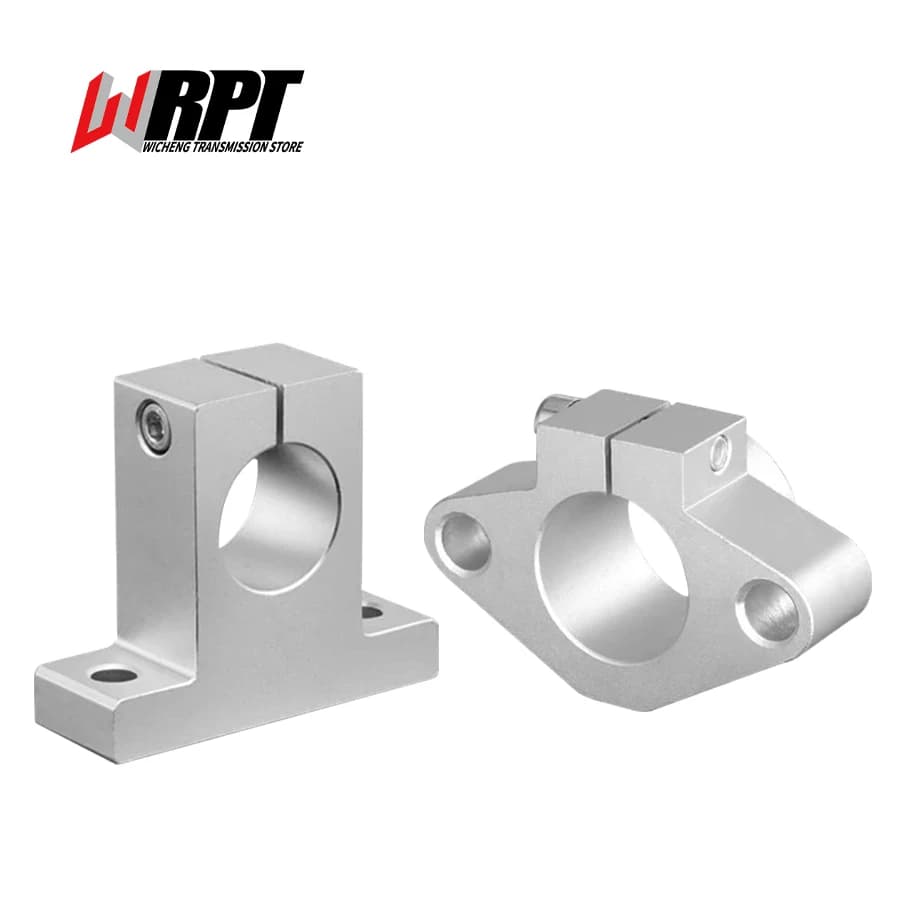

1/2/4PCS Aluminum Alloy Support Bracket SK/SHF8/10/12/16/20/25/30/35/40/50/60 Vertical Horizontal Bracket Linear Shaft Bearing

Description:

Product Name: Linear Rail Shaft Support

Material:  Aluminum alloy

Model Number : SHF10 / SHF12 / SHF13 / SHF16 / SHF20 / SHF25 / SHF30 / SHF35 / SHF40 / SHF50

Inner Diameter: 10mm/12mm/13mm /16mm/20mm/25mm/30mm/35mm/40mm/50mm

Model Number :   SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50

Inner Diameter: 8mm/10mm/12mm/13mm /16mm/20mm/25mm/30mm/35mm/40mm/50mm

Introduce：

SK shaft support is called vertical shaft support

SHF shaft support is also known as horizontal shaft support

It is mainly used to hold the linear optical shaft up, and can be fixed with bolts on both sides of the mechanical wall, so that the linear bearing or slider can travel back and forth in the optical shaft, and complete the mechanical function.

The material is made of aluminum, rust-proof, acid-proof and beautiful. There is a gap in the installation part of the shaft, which is easy to fasten the shaft with bolts. Low cost, unlimited travel, easy installation, easy operation, high precision.

Surface treatment: sandblasting, ordinary oxidation.

Note:

1.Please allow minor error due to manual measurement. Thank you!

2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.

FAQ

Q1: Why choose us?

To provide our customers with first-class services in the supply of quality minimizing costs.

Q2: Is your company a trading company or a manufacturer?

A: We have our own factory.

Q3: What’s your Delivery Time?

Standard parts: 7-20days

Non-standard parts: 15-25days

We will make the delivery as soon as possible with the guarantee quality

Q4: How to handle when the received parts are of poor quality?

A：If there is any non-conformity of the product, please contact us immediately, we will check the problem in the first time and reply you.

Q5: How to Custom-made?

If you have a new product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
