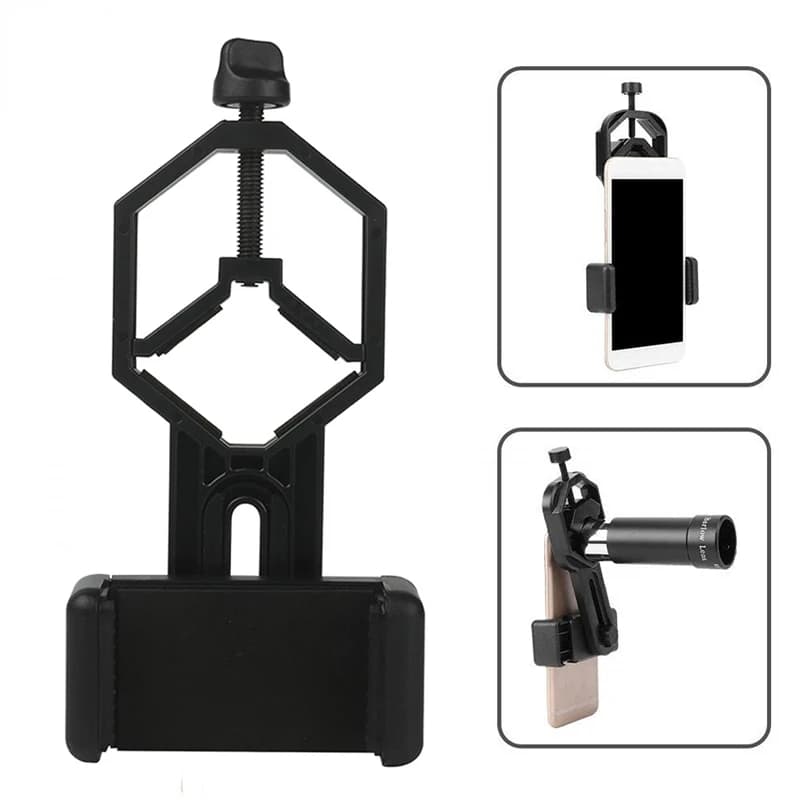

Telescope Phone Adapter Universal Cellphone Bracket Mount for Monocular Binoculars Spotting Scope

Telescope Phone Adapter Mount Cell Phone Bracket Adapter Mount Compatible With Monocular Binocular Spotting Scope Astronomical Telescope



Features:


1. Cell phone telescope adapter connect your phone with telescope or microscope to explore far beautiful scene and amazing micro world.


2.ONLY fits the outer diameter range of the eyepiece is 25-45 mm. For the microscope, astronomical telescope, binoculars, monocular, it works with the most models. For the spotting scopes, only works with few models, so please measure the outer diameter of your eyepiece before ordering.


3.Fits the phone width range is 55-85 mm / 2.16-3.35 inch, such as iPhone, Samsung etc. May NOT properly fit Pixel series, Samsung Galaxy S20/S21/S22 series, because the volume and power button on these phones are on the same side, which may cause the phone clamp wing to squeeze the side button. If your phone with armored case or bulky case, remove it to ensure the phone fits in the phone clamp well.


4.The surface touching with phone and eyepiece is covered by soft EVA pad, that prevents your device from being scratched or damaged. Both the body and the phone clamp are made of high strength plastic, lightweight, not fragile.





Specification:


Condition: 100% Brand New


Item Type: Mobile Phone Bracket


Material: Plastic


Color: Black


Compatibility: Binoculars, Monoculars, Astronomical Telescopes, Microscopes, Sighting Telescope, Night Visioning Telescope and Most Optical Equipment


Weight: about 80g


Package List:1 x Mobile Phone Bracket








Note to Buy:it Only fits the outer diameter range of the eyepiece is 25-45 mm please measure the outer diameter of your eyepiece before ordering.





APEXEL Cellphone Telescope Adapter Mount:

ONLY fits the outer diameter range of the eyepiece is 25-45 mm:

How to Use:





Step 1:


Open the eyepiece clamp by loosening the top knob until the opening size just right holds the eyepiece. (no need to tighten it)


Step 2:


Put phone into phone clamp. Loosen the bottom knob. Adjust the positioning of eyepiece clamp and phone so that algin phone primary camera to the virtual center of eyepiece zone.


NOTE: For phone with multiple camera lenses, only primary camera lens works. When you cover the lens with your finger, you can't see anything. That is the primary camera lens.


Step 3:


Place eyepiece clamp over the eyepiece. Launch camera app on your phone. If the view is not good, make small adjustment again. Once get the perfect view, carefully tighten the knobs.

Product display:
