WS2812B RGB LED Digital Flexible Individually Addressable Panel Strip Light WS2812 8x8 16x16 8x32 Module Matrix Screen DC5V

Package Include:

1Pc 8*8/16*16/8*32Pixels Led Panel

1Pc 3Pin Jst Connector

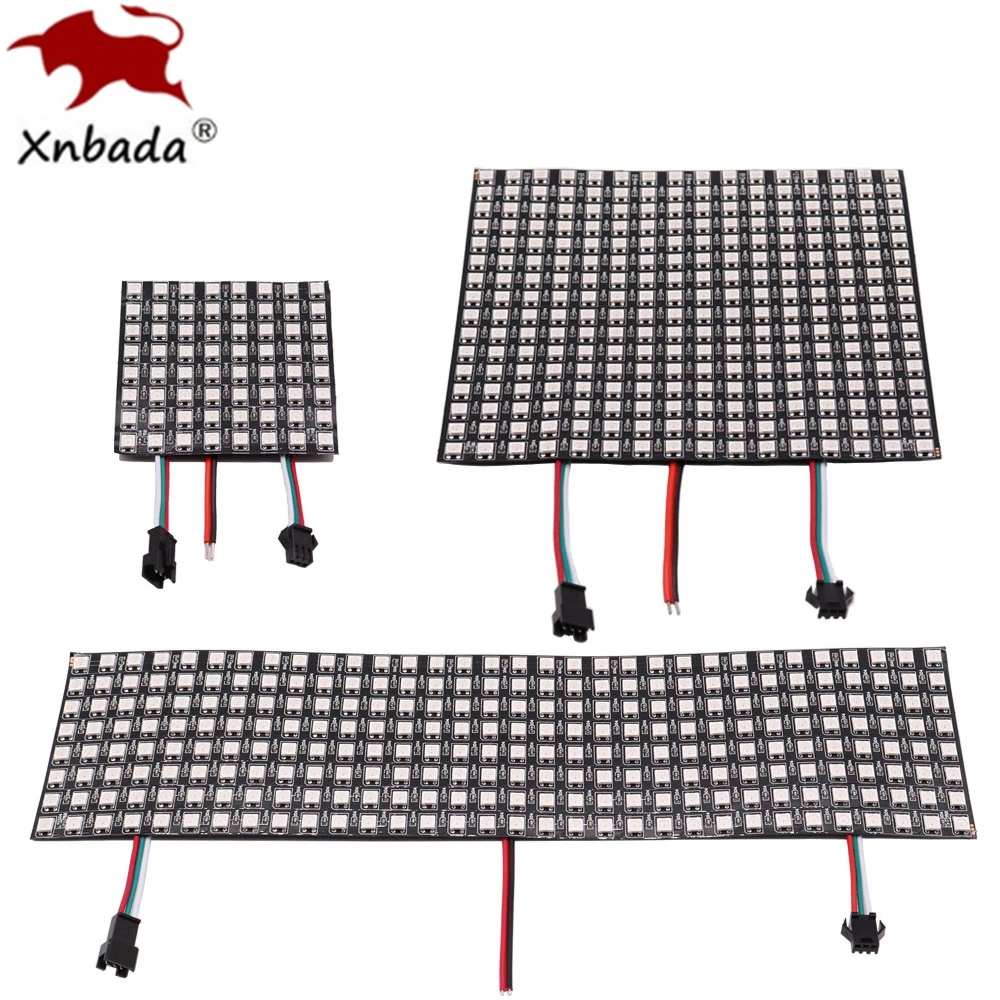

Three Size:

8*8, 64leds, 8cm*8cm

16*16, 256leds, 16cm*16cm

8*32, 256leds, 8cm*32cm

WS2812 led digital flexible panel light(ws2811 IC controlled),DC5V input

Work with the programmable SD controller(not included), it can make flexible LED screen

Arduino IC Digital Addressable Dream Color RGB LED Strip

Arduino compatible.You can control the strip by your programmable arduino.

Technology advantages

The WS2811 SMD5050 RGB LED,  every led built-in(embedded) an WS2811 IC, therefore every one led lignting effect can be control, every rgb led is digital addressable.

Easy installation

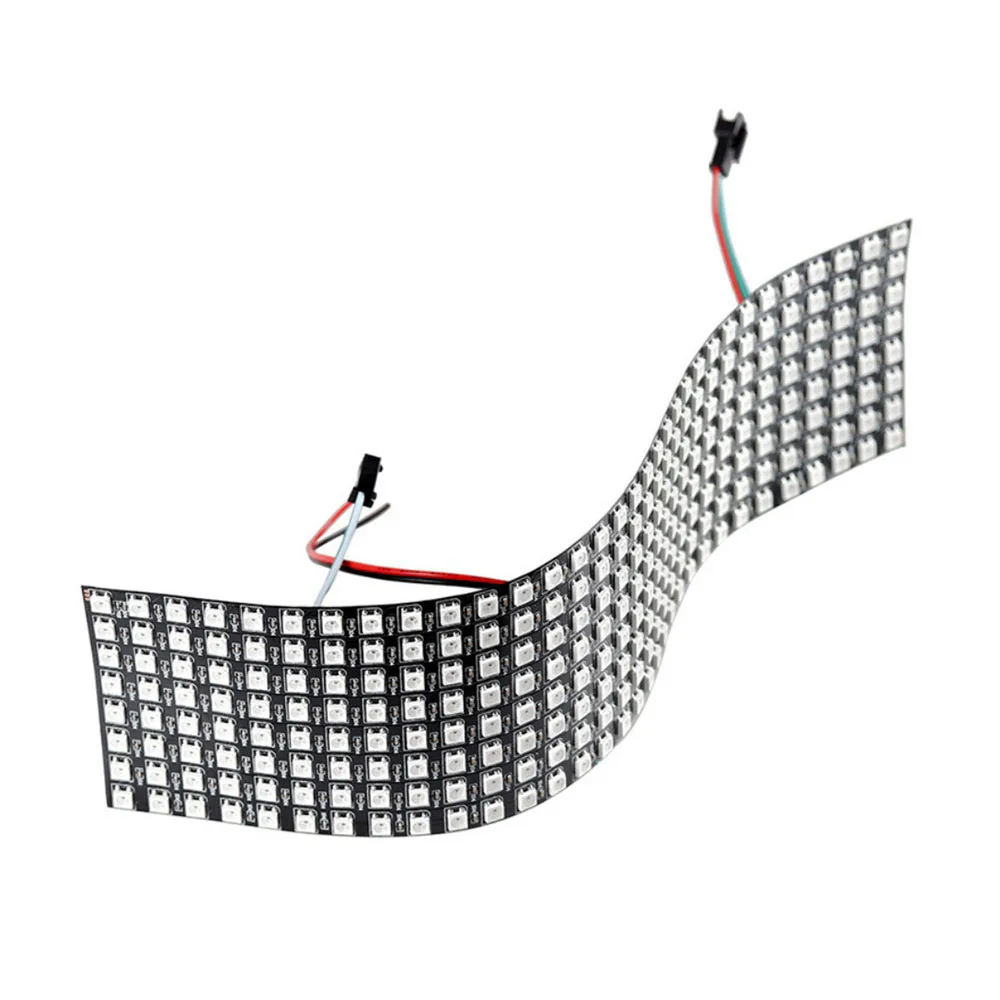

Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.

Dream color lighting

Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.

Application

Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.

1. Emitting color: pixel RGB , IC WS2812

2. Work voltage: DC5V

3. Power: 0.3W/pixel

4. waterproof level: Non-waterproof

5. Working mode: external controller Arduino compatible.

6. Connection:  VCC: RED; GND:BLACK/WHITE; DAT:BLUE

1, LED Chip Material:

9pcs Pure Gold Line, Copper Bracket (WS2812B).

2, LED IV Value Brightness:

Red: 400-700mcd, Green: 1000-1500mcd, Blue: 200-400mcd (WS2812B).

3, Warranty Period of Led Strip:

36 Months (WS2812B)

4, Suggestions on Product Application:

Such as Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, etc (WS2812B).
