YUESHUN 19mm 10A 15A 20A Large Current Metal Momentary Latching Push Button 1NO Ring LED 12V 220V Light Switches

YUESHUN 10A 15A 20A Large Current Metal Momentary Latching Push Button 1NO Ring LED 12V 220V Light Switches

Product Parameter

Mounting Hole: 19MM

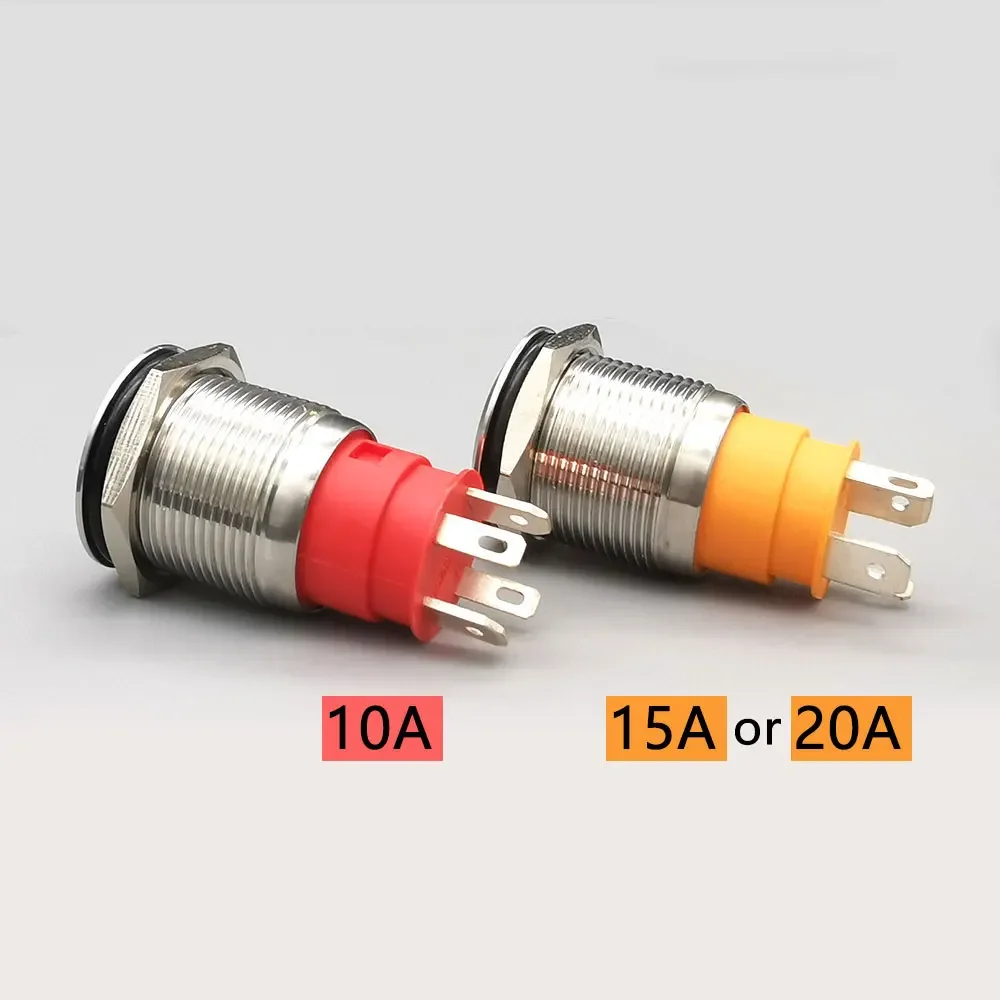

Switch Rating: 10A/250VAC 15A/250VAC 20A/250VAC
Body Material: Stainless Steel
The Front Shape: Flat Head
Switch Operation: Momentary / Latching
Contact Configuration: 1NO (1NC can be customized; )
Terminal Type: Pin Termlmal
IP Rating: IP67
Mechanical life : More than1,000,000 cycles
Operation Distance ：About 2.8mm
Operating Temperature: -20℃～+55℃
Operating Pressure : 3-5N

Difference between Momentary and Latching

Momentary (self-reset)：Push--ON, release--the actuator surface spring to original position;
Latching (self-lock): Push--ON, release-- the actuator surface stay still, Push again—off, the actuator surface spring to original position;

Pin Terminal

4 Terminal Pin
LED Pin ("+",:-:), 2.8*0.5mm
Switch Pin (NO-NO), 4.8*0.5mm

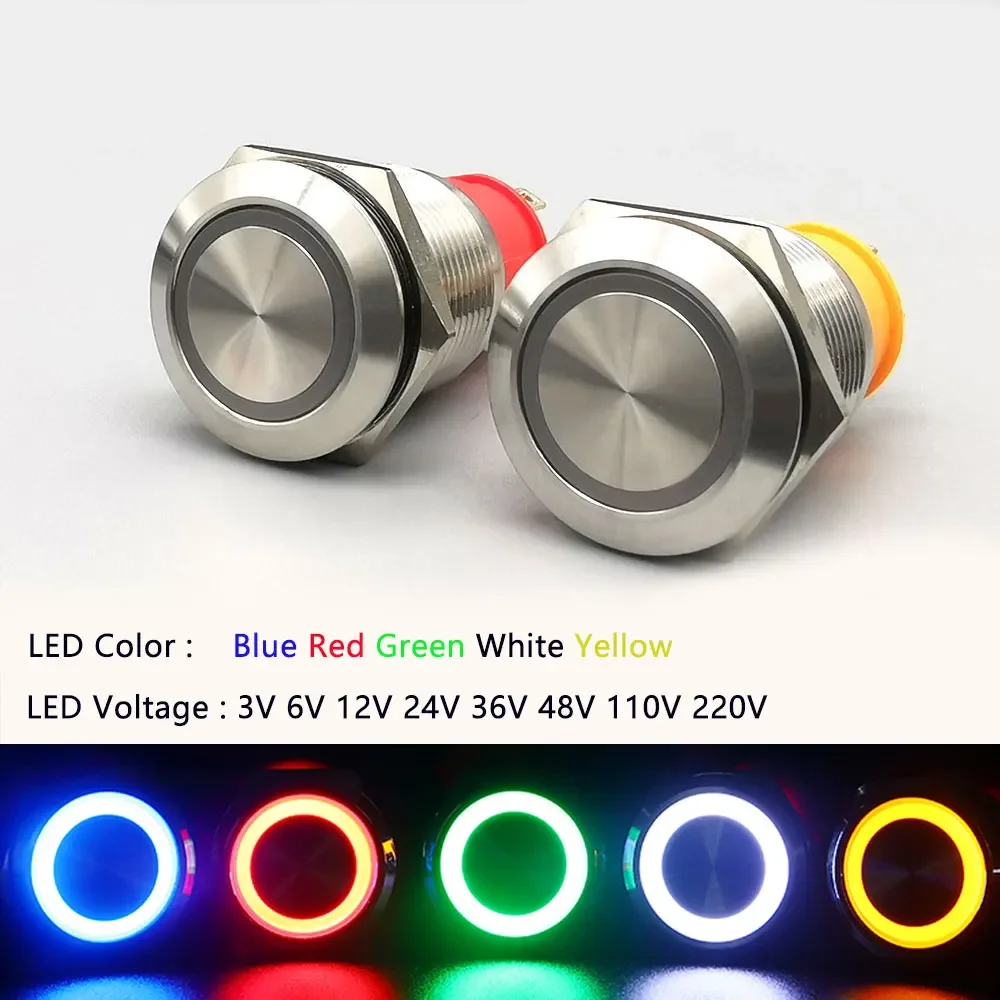

LED color & LED voltage

Our metal push buttons are made of high quality LED beads with gorgeous and beautiful lighting colors.The lamp bead has a service life of up to 40,000 hours.

Led Type: Ring
LED Voltage (AC & DC General )
3V / 6V / 12V / 24V / 36V / 110V / 220V / 380V
LED Color :
Red / Green / Blue / Yellow / White / Orange / Purple

Product Size

Connection Drawings

Product Packaging

Packaging includes :
1* Push Button Switch
1* Waterproof Rubber Ring
Modes of packing:

Product Features

★All our products have passed the CE, CCC, ROHS etc. certifications
★Our push buttons use 95% silver contacts,with good contact performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
