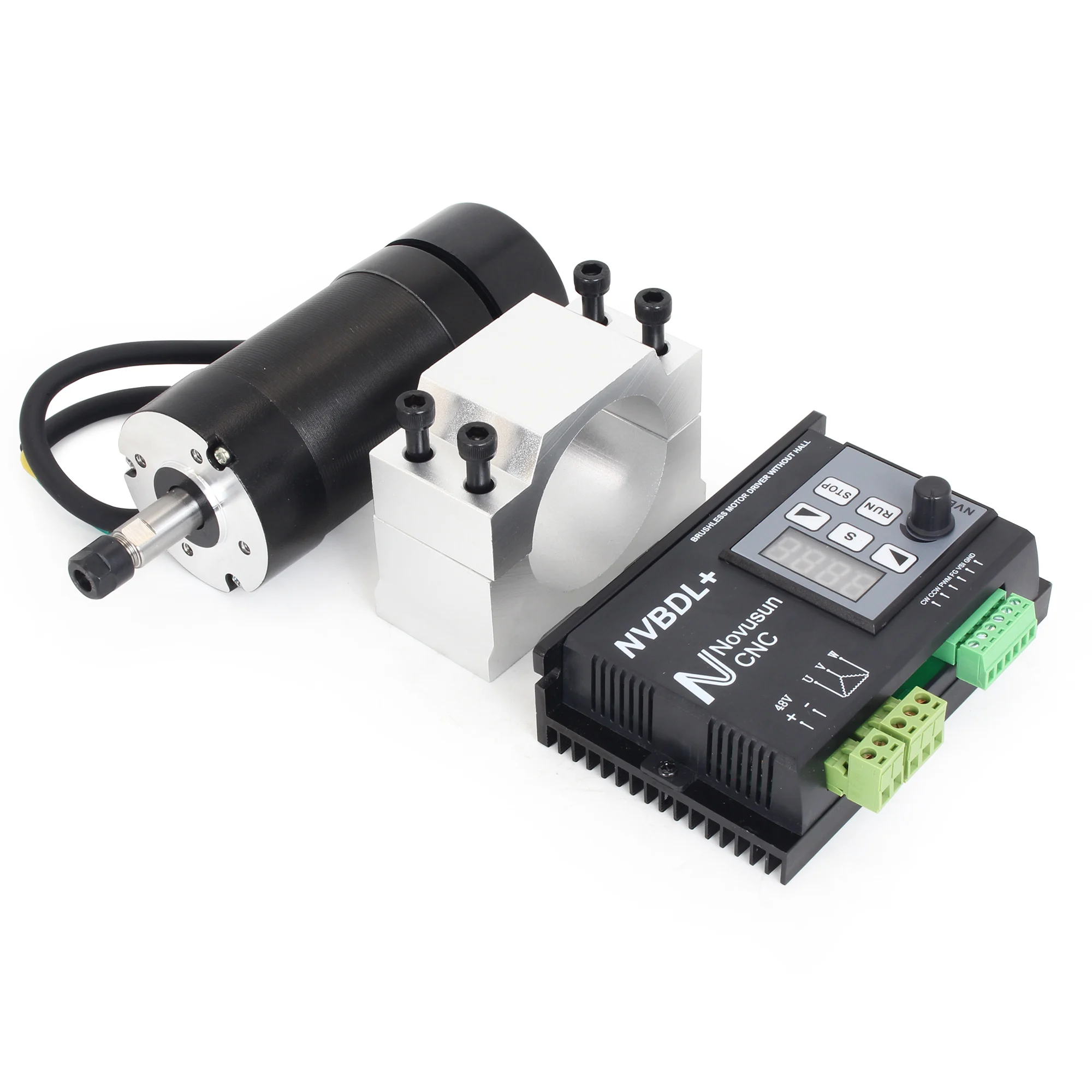

Air cooled DC Brushless Spindle Motor 400W 48V ER8 + 600W 60V Driver Without Hall CNC Router Milling Kit

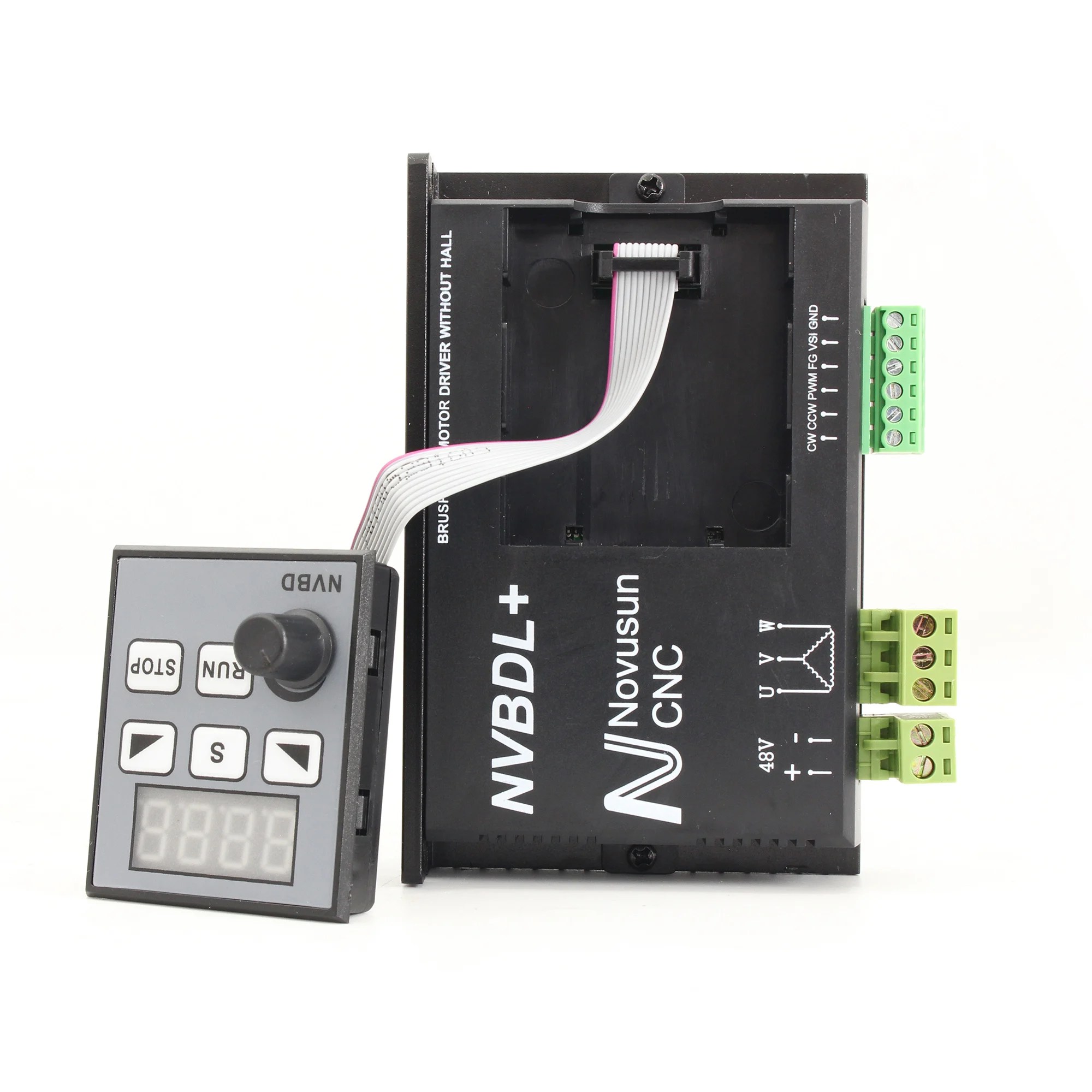

1 x 600w Brushless driver without hall

1 x 400w Brushless spindle without hall

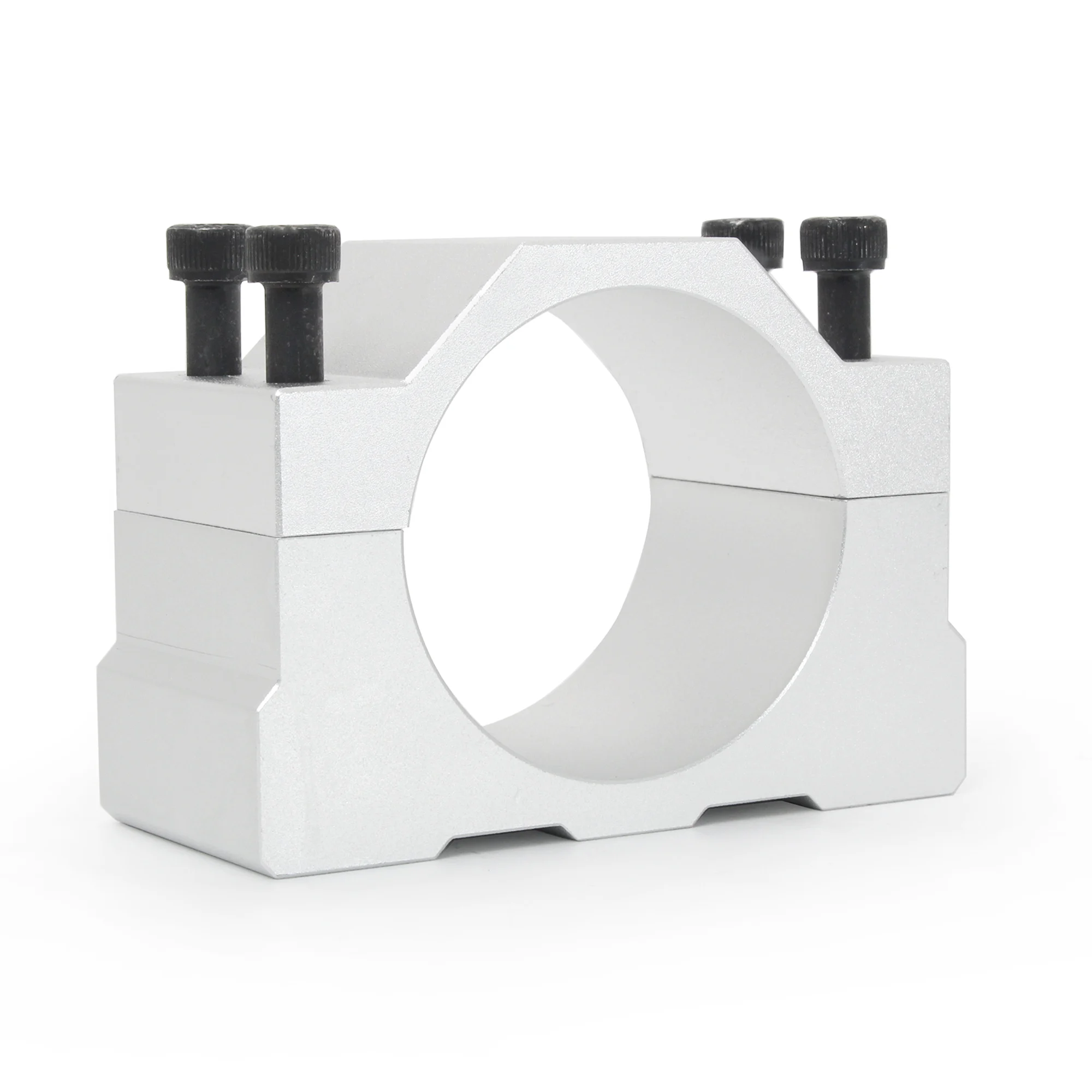

1 x 55mmMotor mount

Basic Information

Driver:

1) High performance, low prices

2) DSP main control module

3) No current passing when no movement

4) Voltage range 24VDC-60VDC

5) Demountable panel

6) Maximum driver power 600W

7) 3 debugging ways: Panel potentiometer, external voltage signal, external PWM Signal

8) Maximum driver motor running speed 12000R/Min.

9) Speed testing port for user to inspect the real speed.

10) Internal over-voltage, over-current and stalling inspection

11) Input signal TTL compatible

Motor:

1)Power: 400W

2) Input Voltage: 48V

3) Rotating speed: 12000 R/Min

4) Torque: 0.45 N.m

5) Insulation resistance: > 2ohms

6) Dielectric strength: 400V

7) Diameter: 55mm

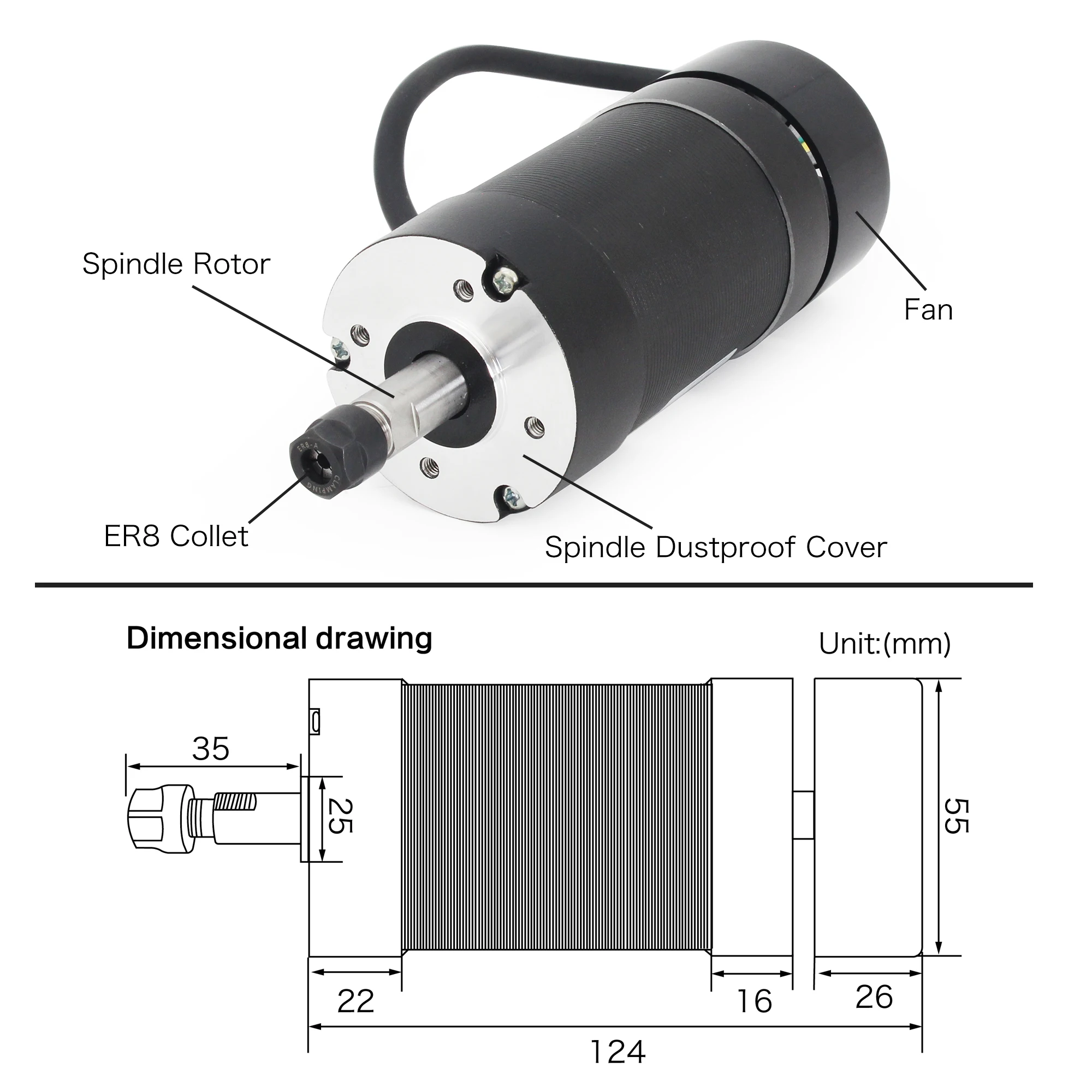

8) Chuck portion length: Arbor parts 35mm, (including the nut and sandwich 43mm)

9) Part chuck diameter: 16mm

10) Total motor length: 172mm (comprising gripping parts and motor)

11) Spindle Weight: 1.1KG

12) Spindle runout: about 0.01-0.03.

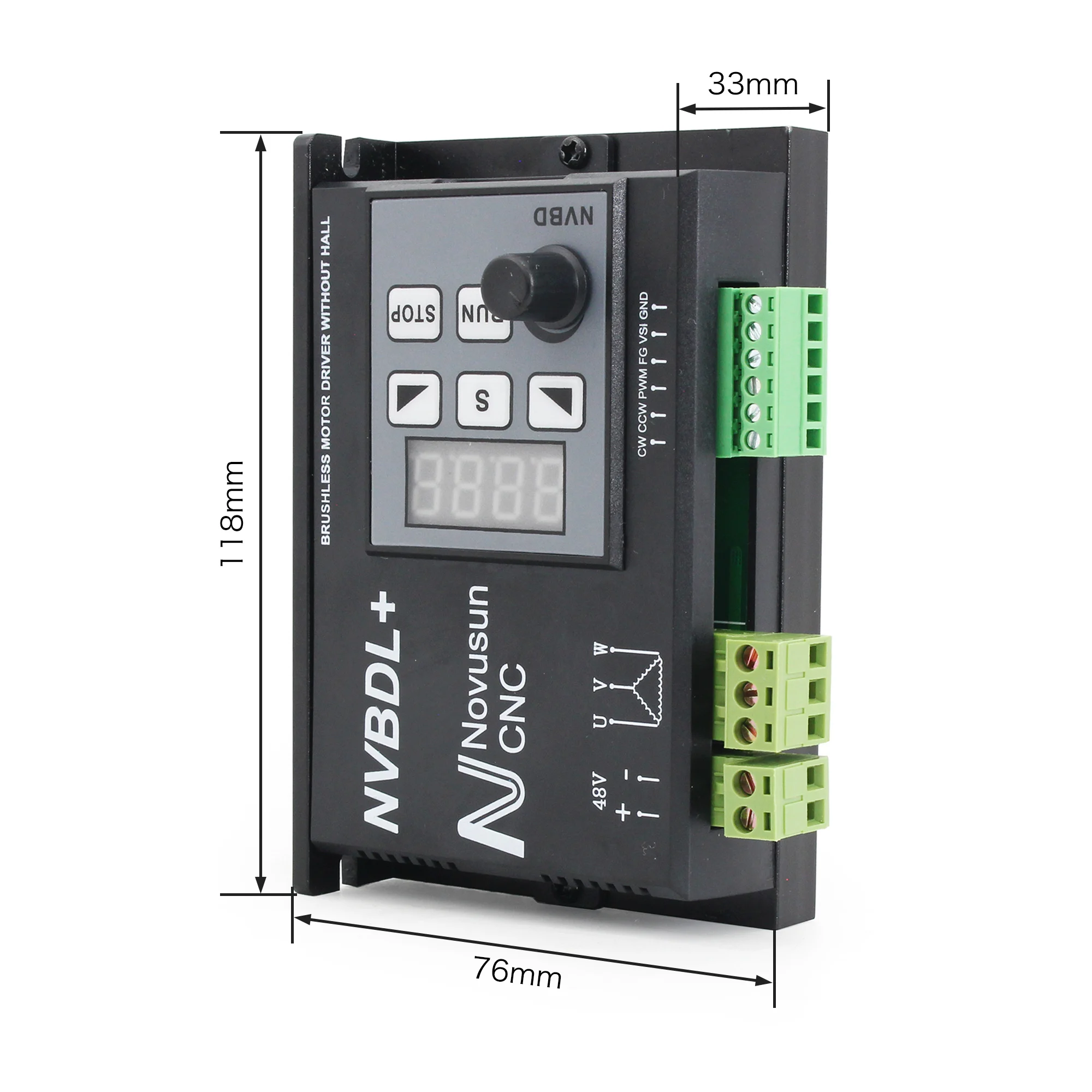

13) Mount: Product outline dimension is 118*76*33mm, as picture 1-7 shows. The two installing holes size is 110mm

III. Connection interface definition

NVBDL + without Hall feedback,other parts are same as NVBDH+.

NVBDH+ and NVBDL+ connection table as table 2-1.The green color Hall signal cable is only for NVBDH+.

3.1  NVBDL+ connection

NVBDL+ is the driver without Hall feedback,so the connection is easier than NVBDH+.Here we also introduce 3 control modes.

1. NVBDL+ panel button speed control+ Panel start/stop control

NVBDL+ panel button speed control+ Panel start/stop control connection pls see the picture. In this mode,if the control system need to collect motor speed data,then FG,GND port on NVBDH+ need to connect with signal collection port,GND port on controller.Cable thick yellow,thick green and thick blue is the U\V\W phase of the motor,they connect with UVW port on the drivers respectively.No hall connection.
