600W 400W 200W Solar Panel Kit Complete Plug and Play System 220V Photovoltaic Panel Home Power Micro Inverter Balcony Solar

600W 400W 200W solar panel rigid kit comeplete plug and play system 220v photovoltaic panel home power micro inverter EU Socket

Package Lsit:
2 PCs 100 W mono solar panels
1 pcs 300 W 230 V micro inverter
1 pair of 3M M C4 cables

This 300W balcony power plant contains everything you need to connect,
Plug in and need play. The package contains 2 pieces
High efficiency 100W solar modules, one 300 watt inverter, 1 piece
Photovoltaic cable.
The feed of the electricity generated by the solar modules into the
Power grid, without batteries, saves money on electricity bills, reduced
The CO2 emissions and makes an important contribution to the
Environmental protection.

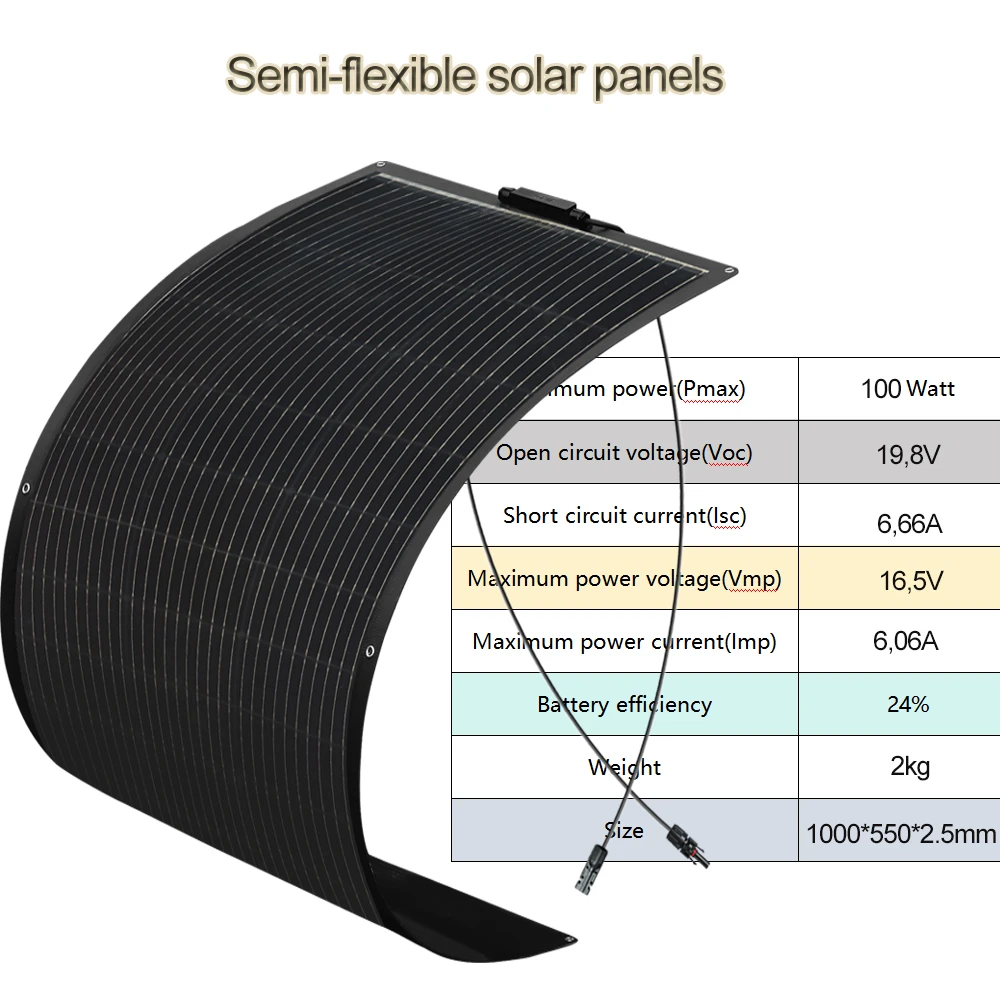

The 100W solar module with PERC solar cells made of monocrystalline silicon
With high efficiency. The conversion rate is up to 22%.
The bypass diodes are in a waterproof IP67 junction box
Pre-installed to the caused by shadows
Minimize performance degradation and excellent performance
In dimly lit environments.
This grid-connected system is easy to install and can be used on balconies, roofs, gardens, etc. Be set up.
Please click on "all offers" to purchase.
Specification:

Solar panel 100W
Maximum Power (Pmax) : 100 W
Open circuit voltage (Voc): 29.8 V
Short-circuit current (Isc): 6.36 A
Maximum power voltage (Vmp): 16.5V
Maximum power current (Imp): 6.06A
Material: PERC monocrystalline solar cells
Cell efficiency: 22%; Number of cells: 30St
Standard test conditions Irradiance: 1000 W/m2, temperature 25 °C, AM = 1.5
Weight: 1660G; Size: 1000*550*3mm
Connection box type: IP67; Cable length: 90 cm

Micro Inverter
Maximum input power: 300W
Maximum input DC voltage: 50V
Peak voltage trachings: 25-40V
Operating voltage range: 17-50V
Min/Max Start Voltage: 22-50V
Maximum DC short circuit current: 20A
Maximum Input Current: 15A
Initial Data: @ 230VAC
Peak output power: 300 Watts
Rated output power: 280 Watts
Rated output current: 1.36A
Rated voltage range: 180-260VAC
Rated Frequency: Range 47-52.5Hz
Maximum output efficiency: 93%
Ambient temperature: -40 °C to + 60 °C
Dimensions (WxHxD): 289mm × 200mm × 38mm
Weight: 1.6 kg

How do I close the 300 watt solar panel system?
1. Install the solar panel and select a place to fix the inverter.
2. Connect the solar modules in series.
3. Connect the inverter to the solar modules.
4. The switch on the grid side is connected to the inverter.
5. After the system is assembled, pay close attention to the
Operating condition. If there are any anomalies, switch
Please
Turn off the power and check it immediately.

Balcony Power Plant 400 Watt Complete Set 4x100W Solar Panel Photovoltaic Solar Panels Inverter 600 Watt
This 400W balcony power plant contains everything you need to connect,
Plug in and need play. The package contains 4 pieces
High efficiency 100W solar modules, one 600 watt inverter, 1 piece
Photovoltaic cable.
The feed of the electricity generated by the solar modules into the
Power grid, without batteries, saves money on electricity bills, reduced
The CO2 emissions and makes an important contribution to the
Environmental protection.
The 100W solar module with PERC solar cells made of monocrystalline silicon
With high efficiency. The conversion rate is up to 22%.
The bypass diodes are in a waterproof IP67 junction box
Pre-installed to the caused by shadows
Minimize performance degradation and excellent performance
In dimly lit environments.
This grid-connected system is easy to install and can be used on balconies, roofs, gardens, etc. Be set up.
Package Lsit:
4 PCs 100 W mono solar panels
1 PCs 600 W 230 V micro inverter with extension cable
2 pairs of 3M M C4 cables

400 W grid connected solar panel The kit includes 4 high efficiency 100 W monocrystalline solar panels, a 600 W 220 V/230 V micro inverter and a long extension cable. Plug-and-play. Directly integrated into the mains, no batteries required. You can install the solar panels on the balcony, floor, roof, railing, garden. The BOGUANG 400W solar kit is a complete solution for the power supply of your home. Lower your electricity bill.

Micro Inverter
Solar Panel Open Circuit Voltage Range: 36-50VOC
Peak Power Tracking Voltage: 22-45V
Min/Max Start Voltage: 22-50V
Maximum DC Short Circuit Current: 40A
Maximum input operating current: 27.2A
Peak output power: 600Watt
Rated output power: 550Watt
Rated output current: 2.39A
Rated voltage range: 190-260VAC
Rated frequency range: 47-52.5Hz /57-62.5Hz
Output efficiency: @ 230VAC
Static MPPT efficiency: 99.50%
Maximum Output Efficiency: 90.50%
Operating temperature range: -40 ℃to + 60?
Dimension (L× W× H): 283mm × 200mm × 41.6mm
Netweight: 1.63kg
Waterproof grade: IP65

Balcony Power Plant 600 W Complete Set 6x100W Solar Panel Photovoltaic Solar Panels Inverter 600 Watt
This 600W balcony power plant contains everything you need to plug in, plug in and play. The package contains 6 pieces of high efficiency 100W solar panels, a 600 watt inverter, a 5 m long cable, 2 pieces of photovoltaic cables and 2 pairs of 3-in-1 plugs.
Feeding the electricity generated by the solar modules into the power grid, without batteries, saves money on electricity bills, reduces CO2 emissions and makes an important contribution to environmental protection.
The 100W solar module with PERC solar cells made of monocrystalline silicon with high efficiency. The conversion rate is up to 22%.
The bypass diodes are pre-installed in a waterproof IP67 junction box to minimize shadow-induced performance degradation and ensure excellent performance in dimly lit environments.
This grid-connected system is easy to install and can be used on balconies, roofs, gardens, etc. Be set up.
Package Lsit:
6 PCs 100 W mono solar panels
1 PCs 600 W 230 V micro inverter
1 piece 5 m extension cable
2 pairs of M C4 cables
2 pairs of 3-in-1 connectors

BOGUANG 600 W grid connected solar panel The kit includes 6 high efficiency 100 W monocrystalline solar panels, a 600 W 220 V/230 V micro inverter and a long extension cord. Plug-and-play. Directly integrated into the mains, no batteries required. You can install the solar panels on the balcony, floor, roof, railing, garden. The BOGUANG 600W solar kit is a complete solution for the power supply of your home. Lower your electricity bill.
Input data (micro inverter)
Number of M C4 Input Connectors: 1 set
MPPT voltage range: 24V-40V
Operating voltage range: 18V-50V
Maximum Input Voltage: 50 V
Starting voltage: 18 V
Maximum input power: 600 W
Maximum Input Current: 24A
Output data (micro inverter)
Single phase network type: 220 V
Maximum output power: 600 W
Rated output current: 2.52 A
Nominal output voltage: 220 VAC
Standard output voltage range: 180 V-280 V
Nominal Output Frequency: 50Hz
Peak efficiency: 92%
Dimensions: 41mm x 106mm x 282mm; Weight: 0.95 kg
Integrated grounding: The device grounding is determined by the PE in the AC cable
Provided. No additional soil is required.
Protection functions: Isolated Island, voltage, frequency, temperature, current, etc.
Connection Method:

1. All three plates are connected in parallel
2. Switch the two board strands in series after the parallel connection
3. The solar modules are connected to the input of the inverter
4. The output of the inverter is connected to the home network

Comments:
The bracket is not included, please make it yourself
Note:
The black corner protection is not included with the solar panel
But serves to protect the corner of the solar panel. It only serves
To protect the solar module during transport. So it's not in
Of the package list included. If the black corner protection is damaged,
Please take it off and throw it away. We can corner protectors
Not reissue, please note. Thank you very much.
Note:
Thank you for buying the balcony power plant system. Due to the size of the item, we will ship it in 2-4 packages, you will receive these packages one by one, when you receive the first package, please don't worry, please rest assured, the remaining packages will arrive one by one. If you care about this shipping method, please place your order with caution. Thank you very much.
