NEJE E40 Laser Engraver Module 11W 450NM HD Fixed Focus 2 X Beam DIY CNC Cutting Engraving Printer Machine Tool for Wood Metal

NEJE E40 Laser Engraver Module 11W 450NM HD Fixed Focus 2 X Beam DIY CNC Cutting Engraving Printer Machine Tool for Wood Metal

E40 Laser Module Specification:

Focus: 0.06x0.06mm

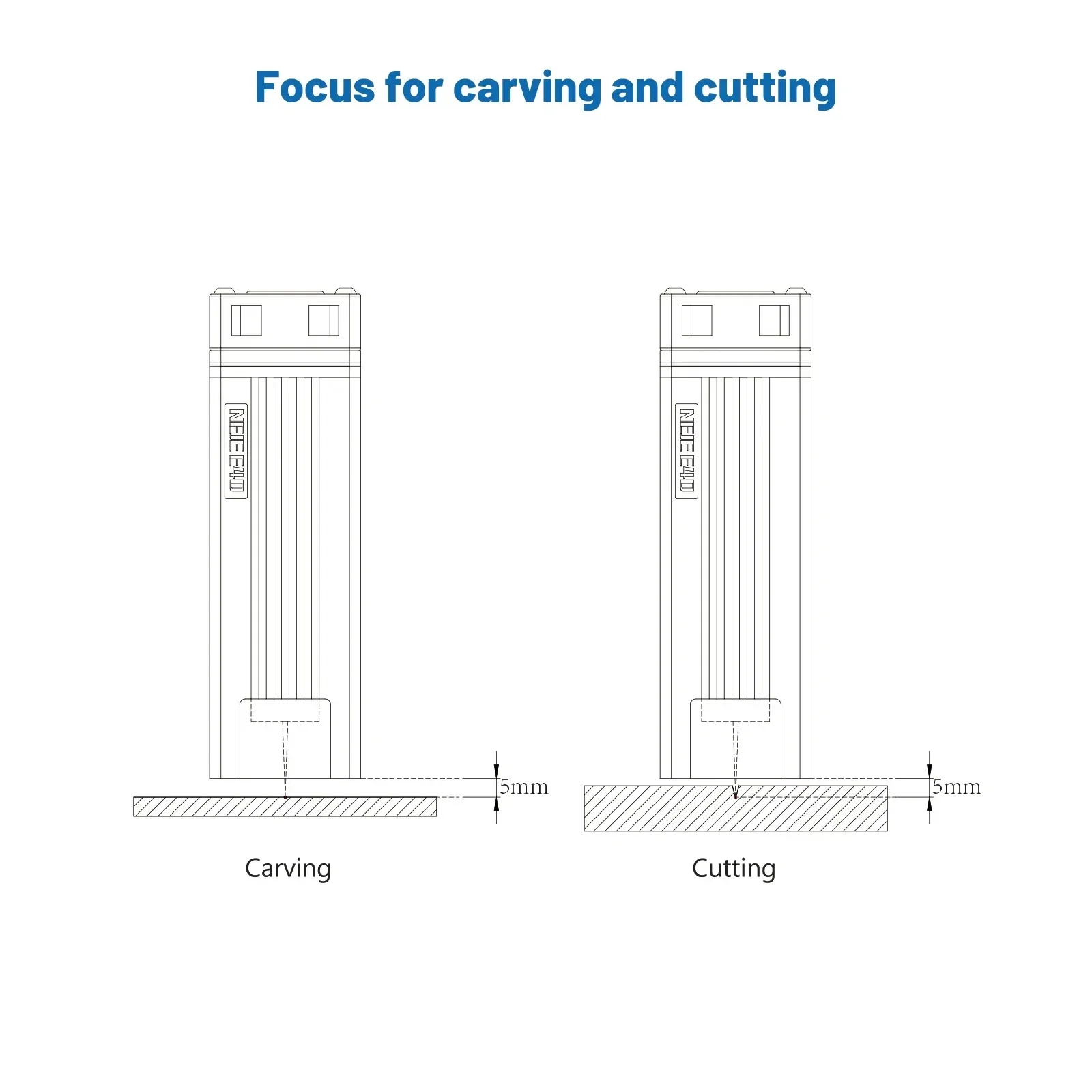

Focus method: fixed focus( 3-5mm from the radiator )

Optical power: Pulse 11W+, CW 10W+

Max scanning speed: 1000mm/s (mdf material clear test results)

Compatible: compatible with any 24V or 12V equipment, independent power supply, controlled by ttl 2pin signal of the equipment

Wavelength: 450nm

Weight: 280g

Module Size: 40x48x130 mm

Input: DC 12V 4A

Interface: 4pin PH2.0 + ( 2pin DC12v extra power )

Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc...

Power Control: PWM Power Modulation

Fan: Double Ball High Life Fan

Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.

Surge Protection: Yes

Smart Feedback: Yes

Temperature Feedback: Yes

Temperature control: 45℃

Air pump: ACO 328+ air pump, or 30psi+ waterless air pump (used when cutting mdf / leather and higher density materials. Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)

Air interface: 4mm pvc trachea

Protective window lens: Yes ( withstand 1000℃ )

Original registered brand: Yes

Warranty: 2 years

Warranty Statement: Power not less than 50% ，Generally, the E40 service life under comprehensive working conditions can reach 5 years. Please do a good job of moisture-proof and dust-proof treatment, The lens needs to be cleaned regularly according to the selection of air source. The lens does not belong to the free warranty. The conditions of NEJE's free after-sale policy must be met under the conditions of non-human disassembly and misoperation and use in the correct environment.

E40‘s Special Capabilities:

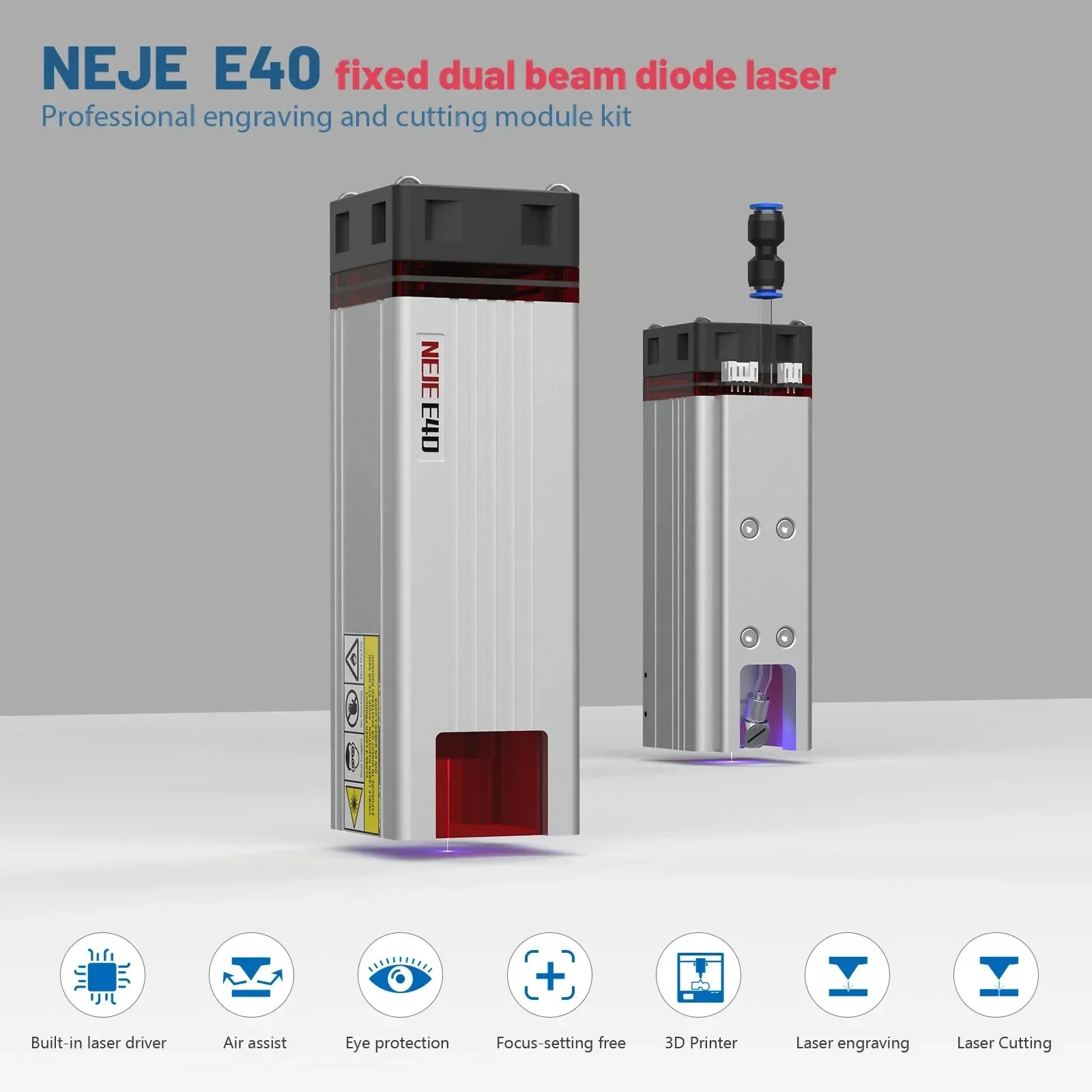

E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate.

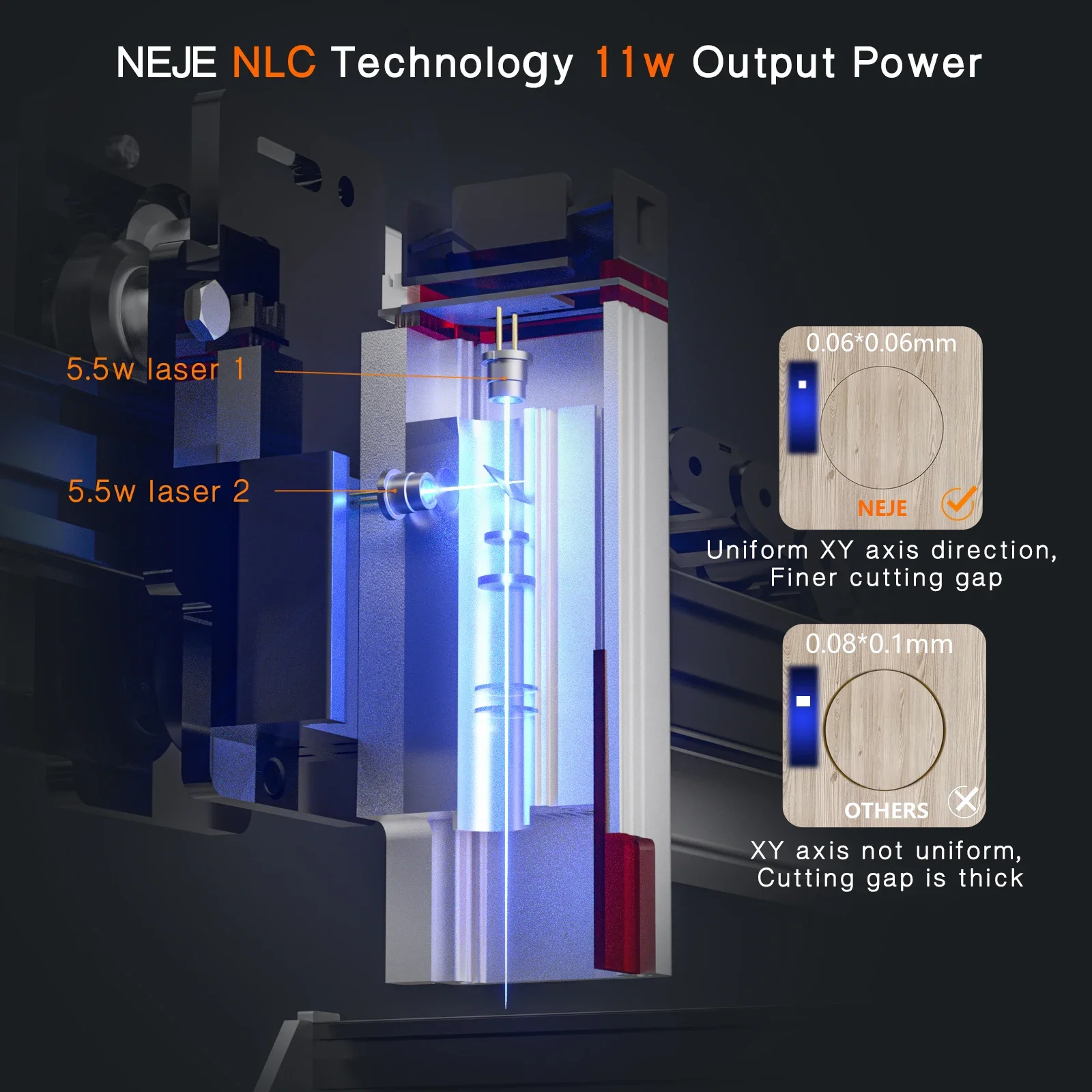

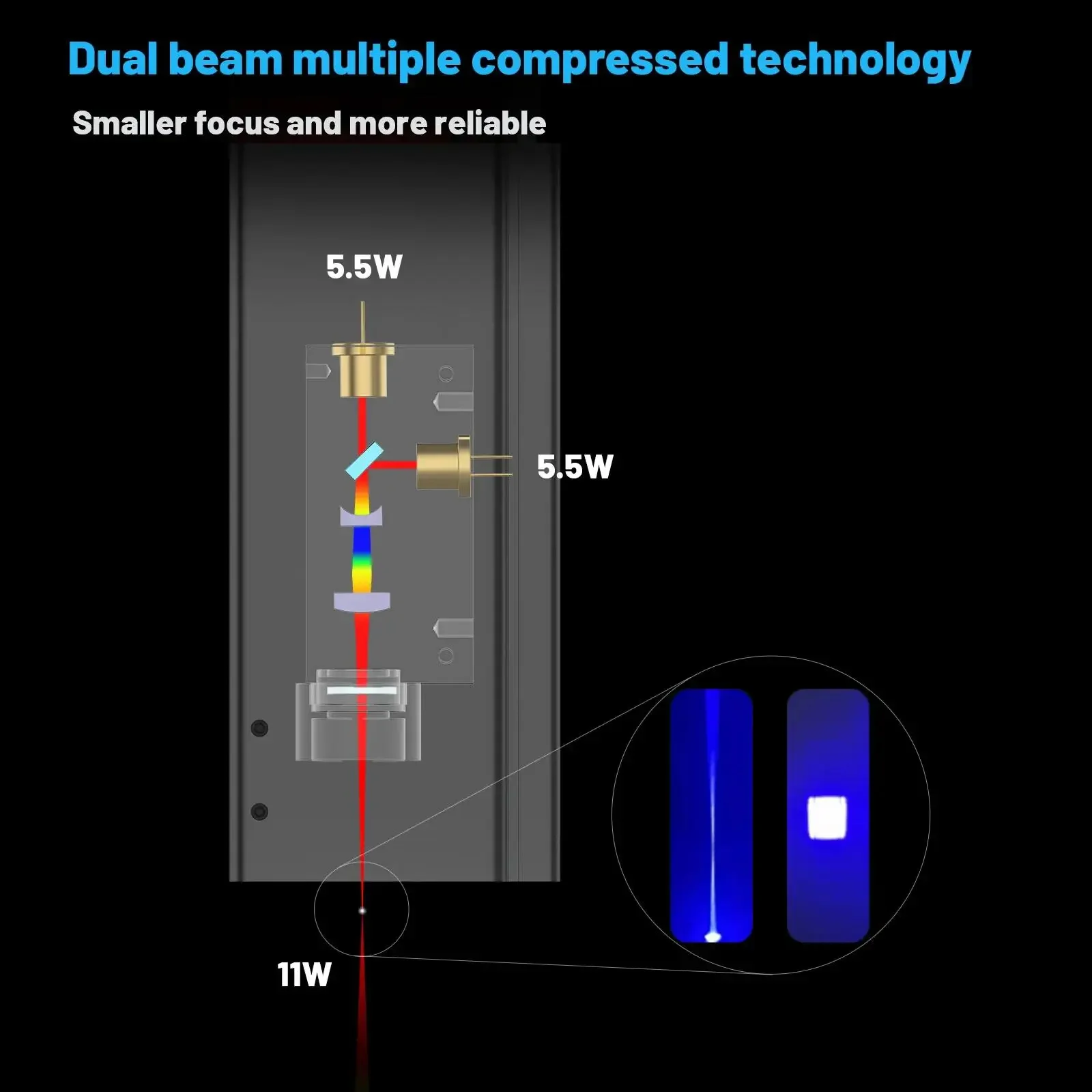

It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process.

The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years.

The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.

Detail:

Package list:

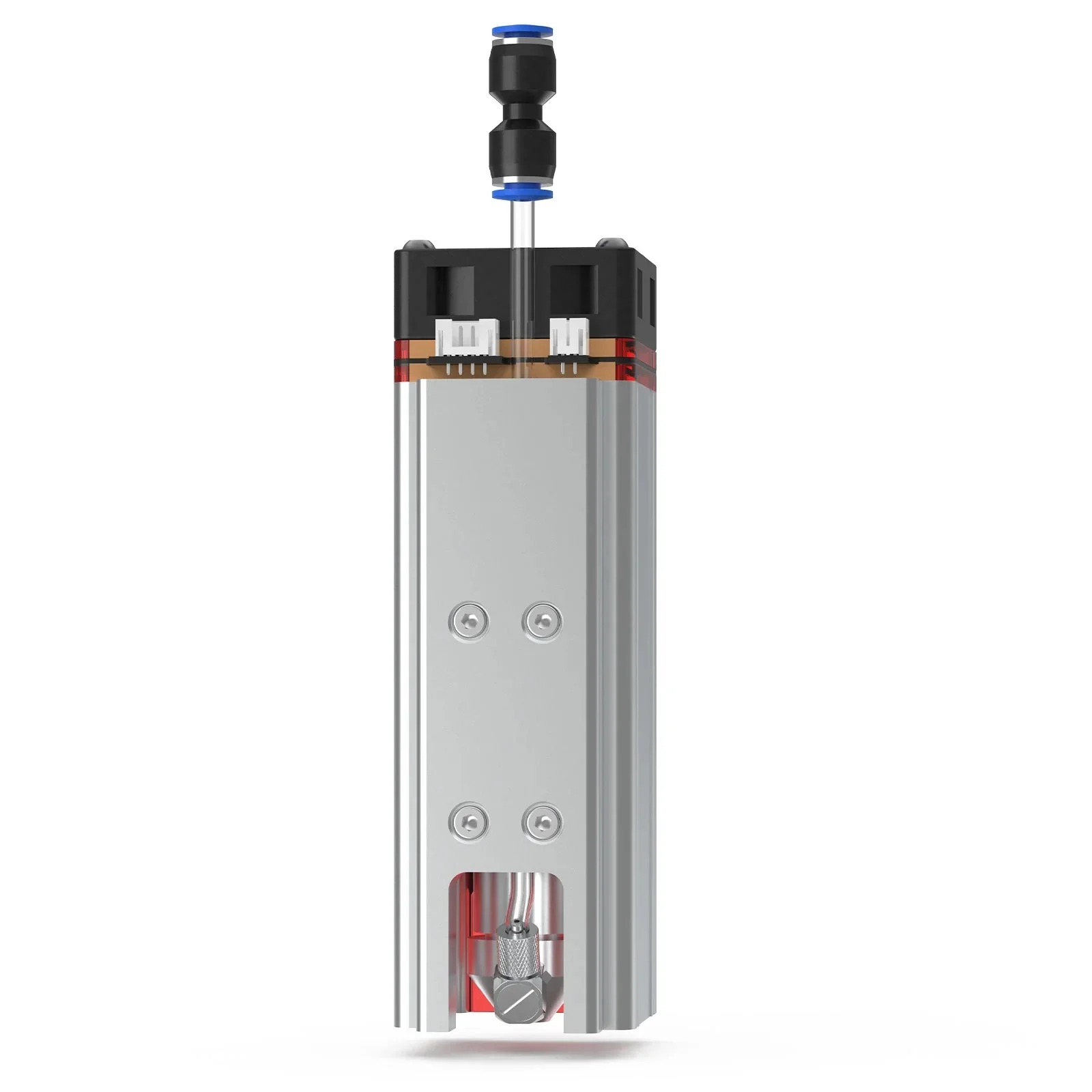

1 x NEJE E40 laser module ( Built-in high-pressure air nozzle )

1 x Laser module height adjuster

1 x 4 pin cable(30cm)

1 x 2pin yellow and black signal line + 3pin input line

1 x NEJE digital PWM temperature test / switch / interface adapter board

1 x NEJE test / switch / interface adapter board

1 x 2.5mm L-shaped wrench

1 x 5mm L-shaped wrench

1 x Tube (4mm x 2m)

1 x connector ( M8 to M4 )
