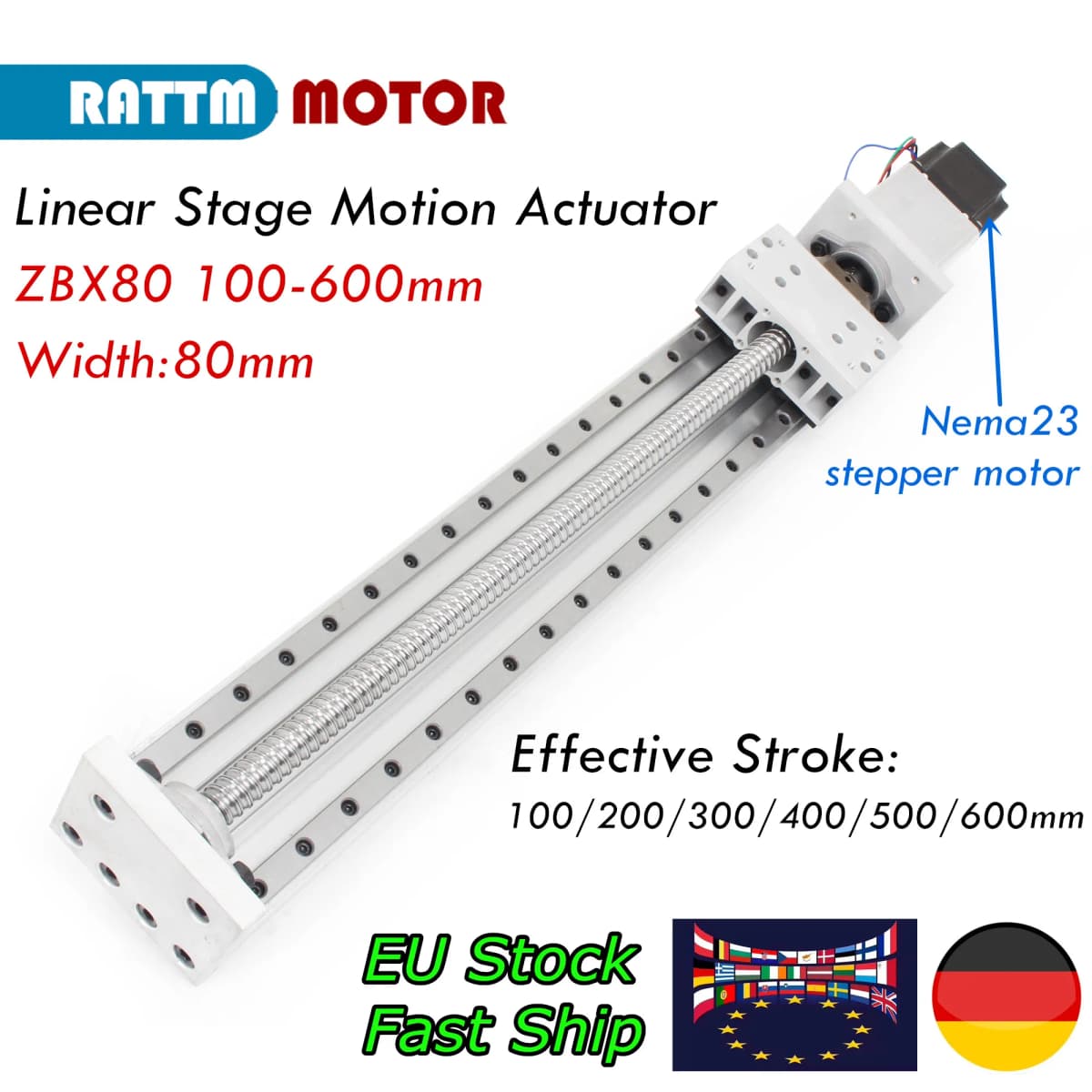

ZBX80 CNC Linear Guide Actuator Stage Rail Motion Slide Table & SFU1605 Ball screw 200mm / 400mm Travel

Notice:

Dear friends,we havewarehouseinGermany/United States/Russia，we can ship to all EU countries from our Germany warehouse via DHL, ship to United States from our USA warehouse via UPS, which isfast delivery.

Package include:

1 x 80mm width Linear Guide Actuator 100-600mm effective stroke Travel

(with motor,but no limit switch)

(Pls note: we also have 100-600mm effective stroke type, if u need pls contact us.thank u.)

Specification:

Material: Aluminum Alloy

Effective Stroke: 200mm

Horizontally loadable: 80kg

Vertical carrying: 20kg

Width:80mm

Standard motor: Nema 23 stepper motor 1.2 N.m

Screw: Ball screw drive 1605-diameter 16 pitch 5mm

Total length of the 200-stroke motor model:430mm

Total length of the base plate with 200-stroke: 319mm

200-stroke effective stroke:200mm

Standard M6 mounting hole

Features:

★ High-quality aluminum alloy, high strength, light weight, corrosion resistance.

★ SFU-1605 ball screw,Accuracy up to 0.03.

★ High-speed silent, smooth running.

★ M6 movable nuts are used on the sides and bottom to make the installation of the sliding table more flexible and changeable.

400mm travel size:
