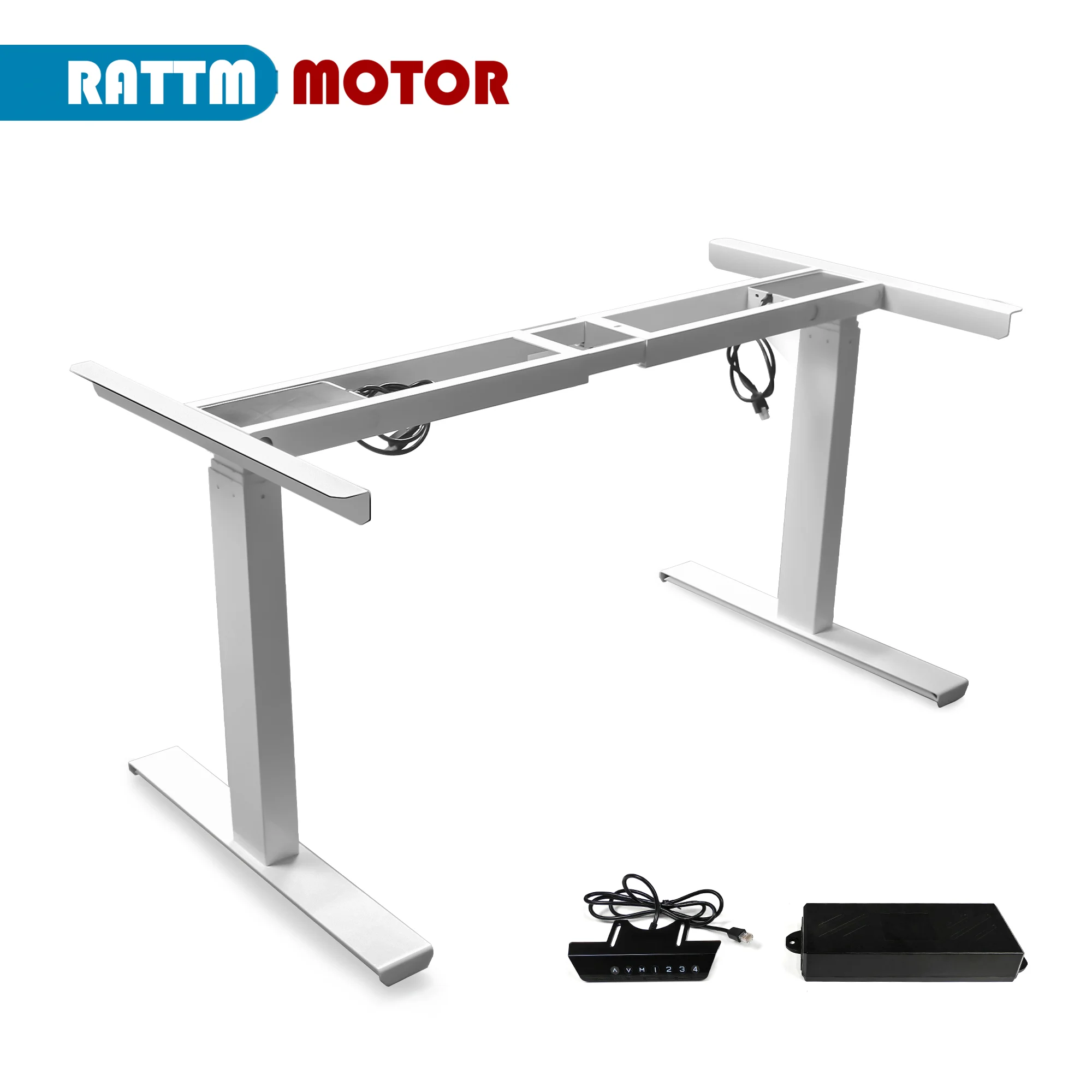

【EU Stock】RATTM MOTOR Two Foot Dual Motor Electric Height Adjustable Lifting Table Sit/Standing Desk Frame White/Black

Good News:

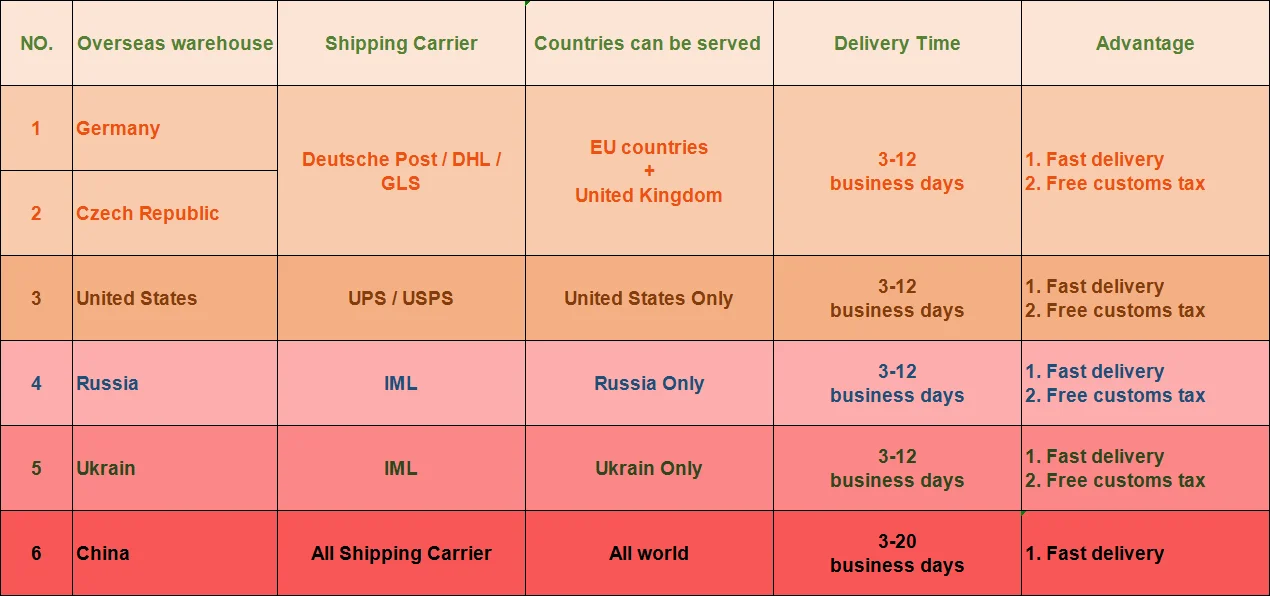

We have warehouse in Germany, Czech Republic, United Kingdom, United States and so on, we can ship to EU countries via DHL/UPS, which is very fast delivery.

Package include:

1 x Two-foot Electric Standing Desk (Without desk top)

1 x English user manual and Installation instruction will send by Email

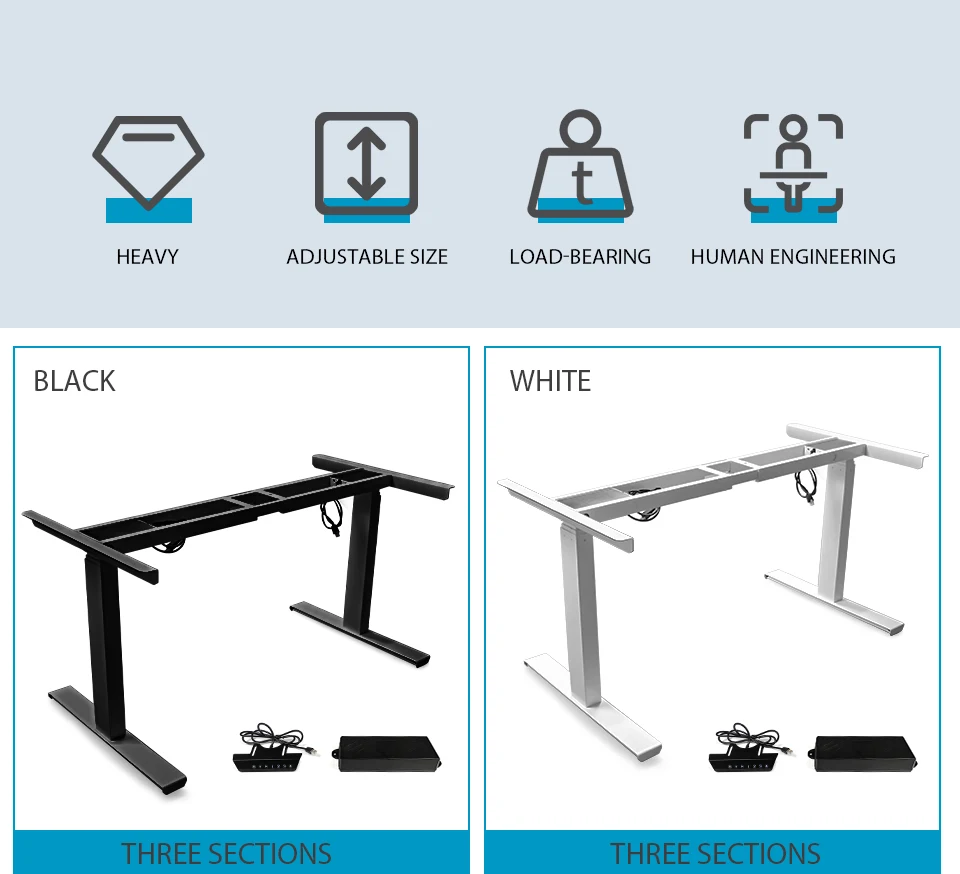

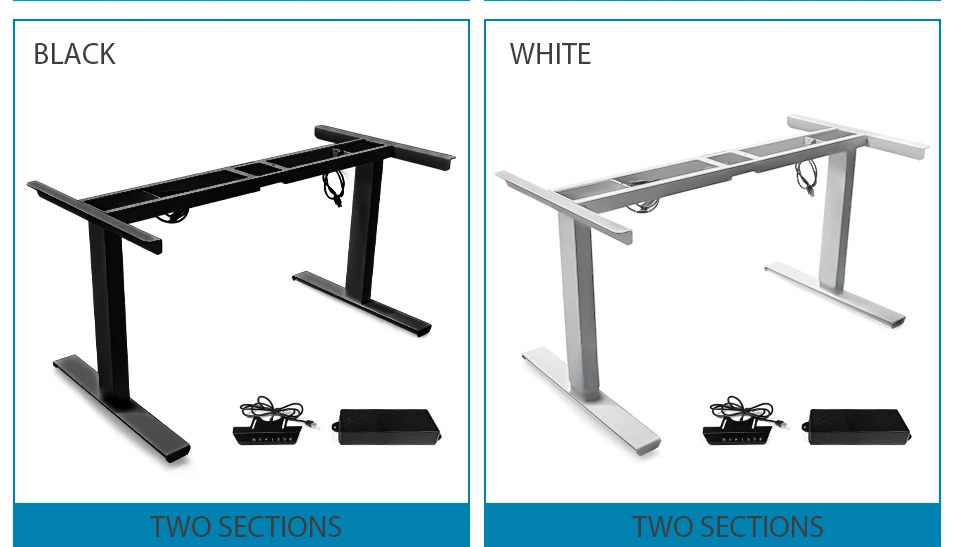

Note 1: We have two colors, white and black, pls choose the one you like when you place the order.

Note 2: we have two types, two sections and three sections, pls choose the one you need when you place the order.

Three-sections:

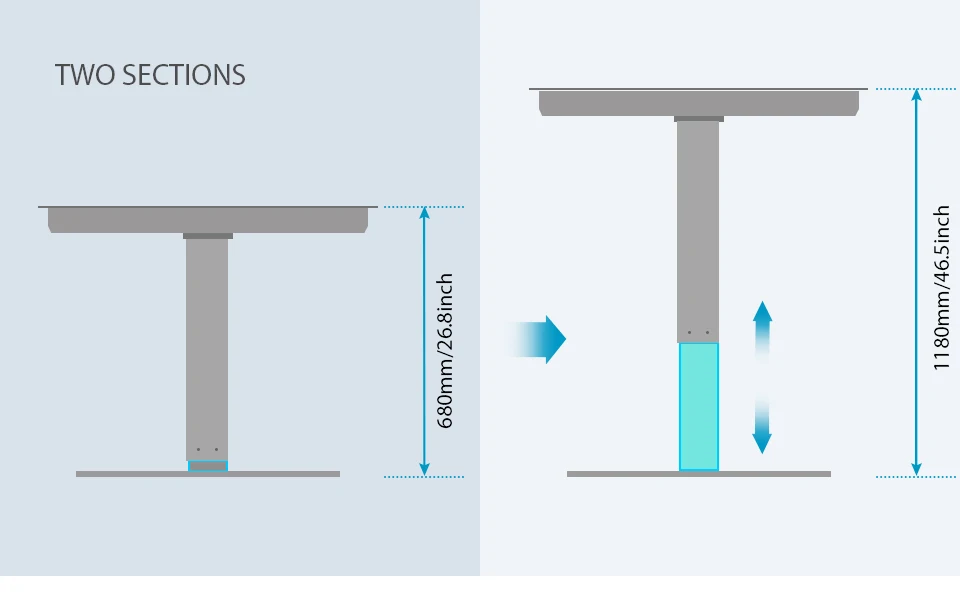

Two-sections:

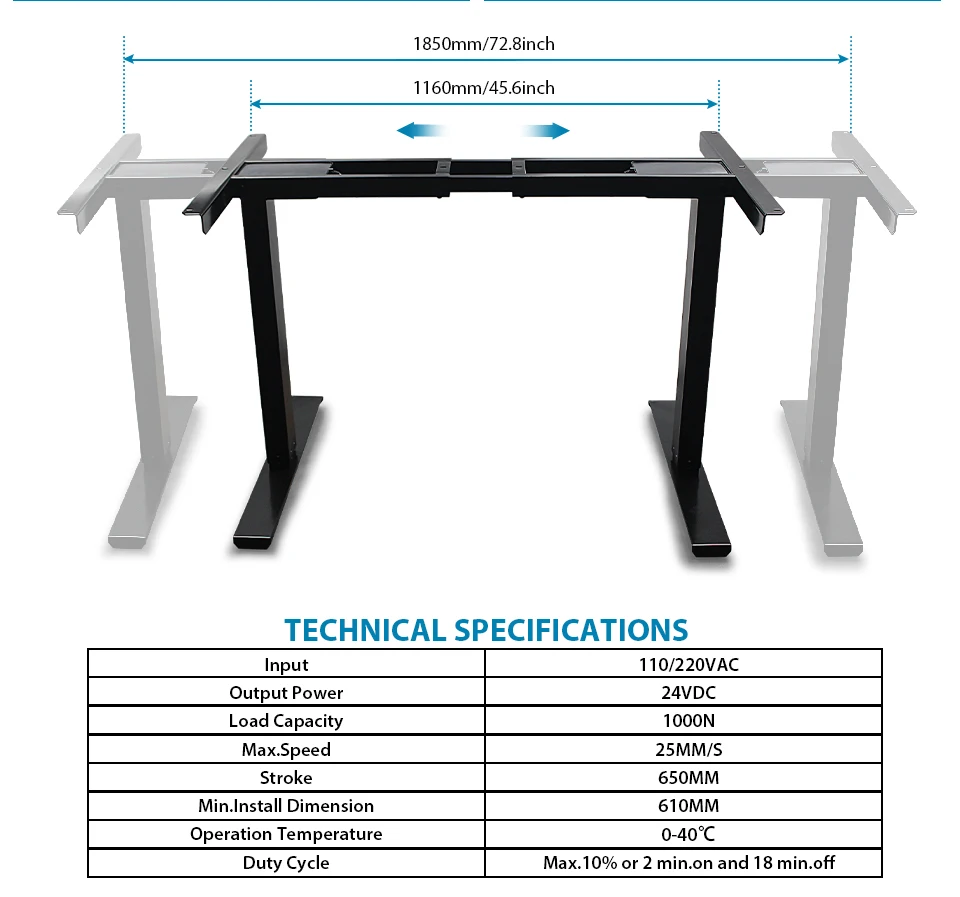

Technical Specifications

Input: 220-230VAC

Output Power: 24VDC

Load Capacity:1000N

Max.Speed: 15MM/S

Stroke:480MM

Min.Install Dimension:700MM

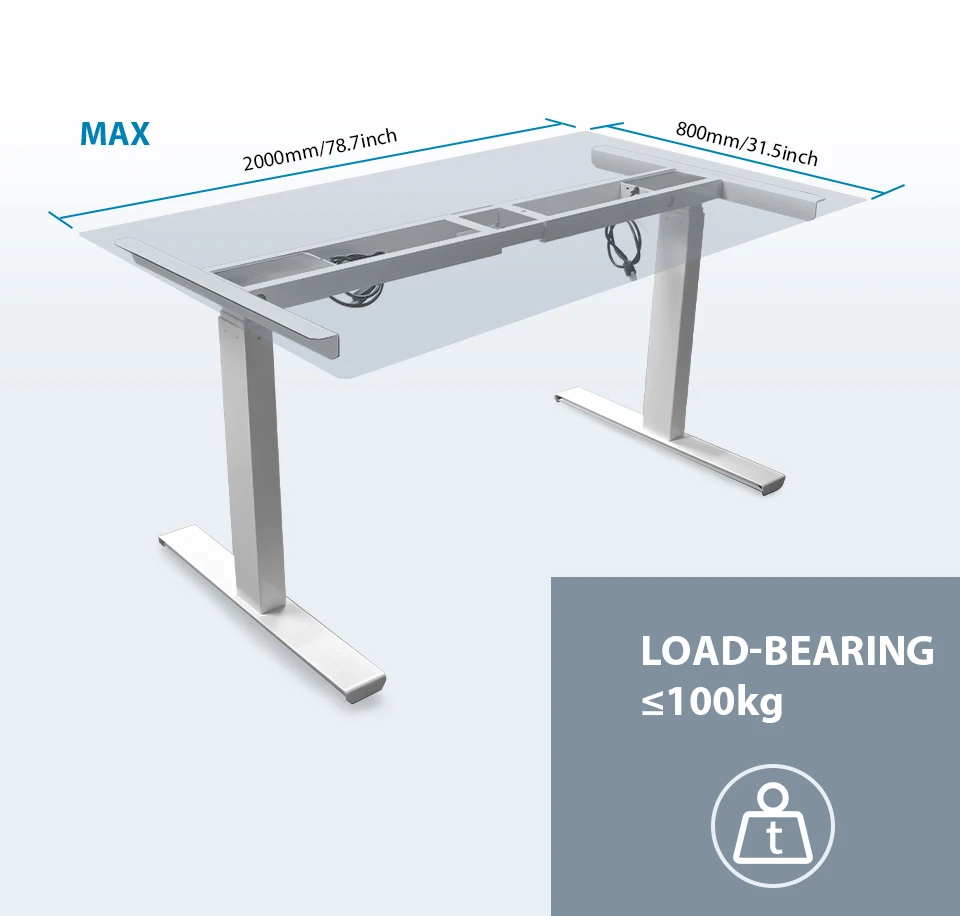

Load:0-100KGS Two Sections/ 0-150KGS Three Sections

Operation Temperature: 0-40℃

Duty Cycle:Max.10% or 2 min.on and 18 min.off

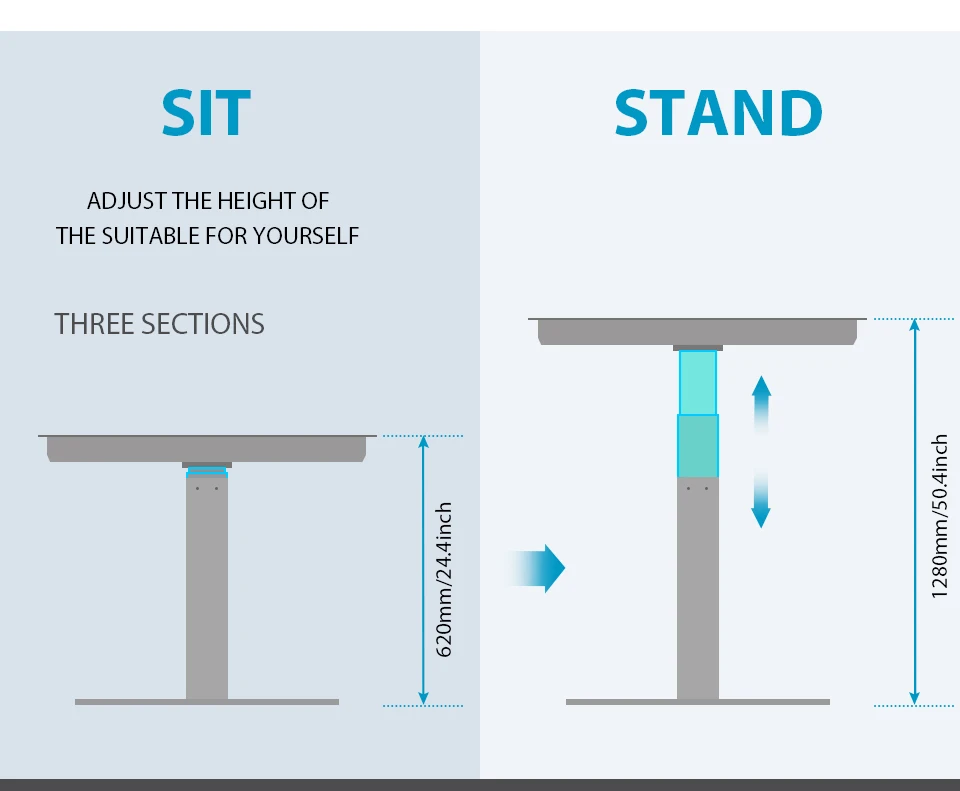

Size: high/low limit of this frame is 23.4"-49" (height),41.1"-53.7" (Width)

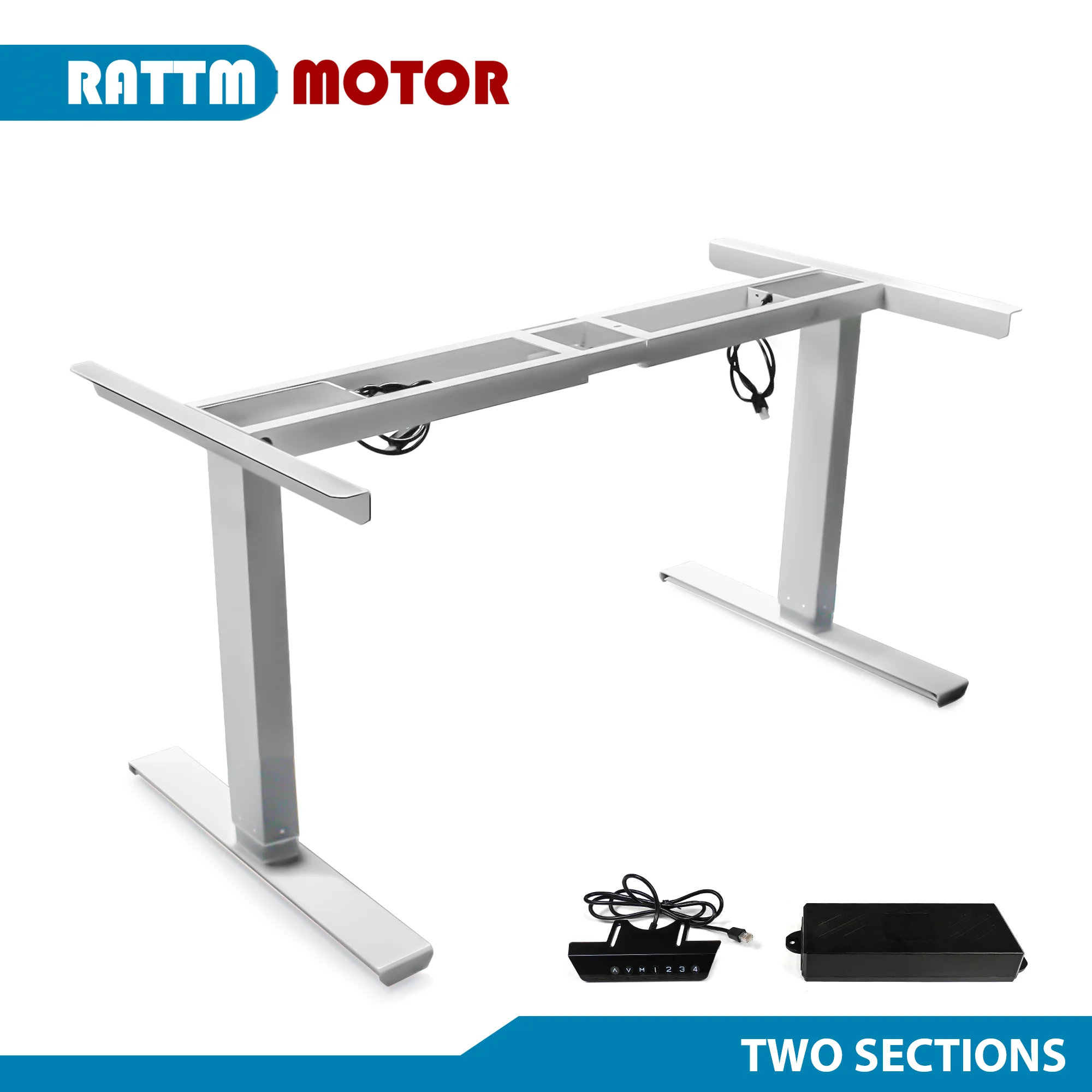

this frame is two section adjustable

This frame include dual motor

the maximum Load is 800N

Direction for Use

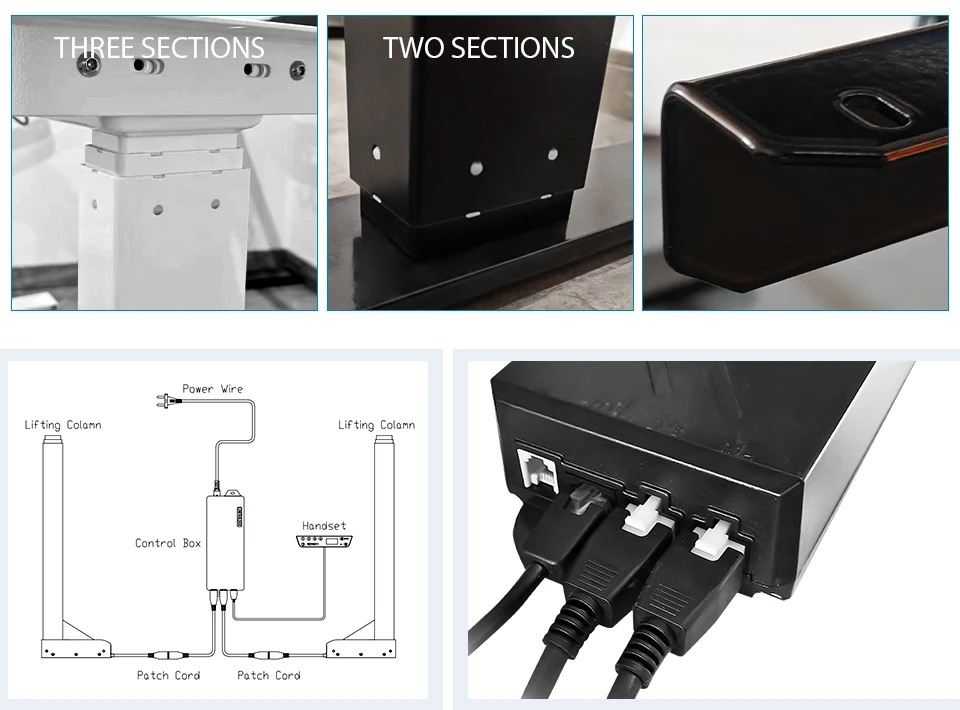

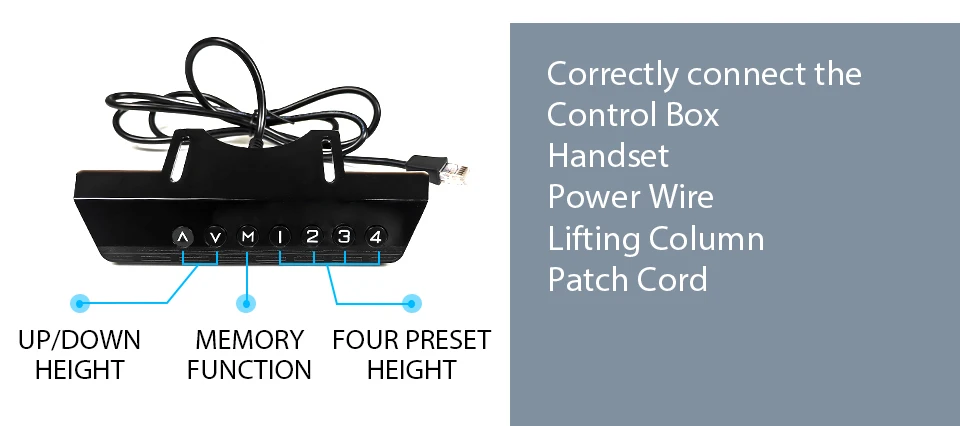

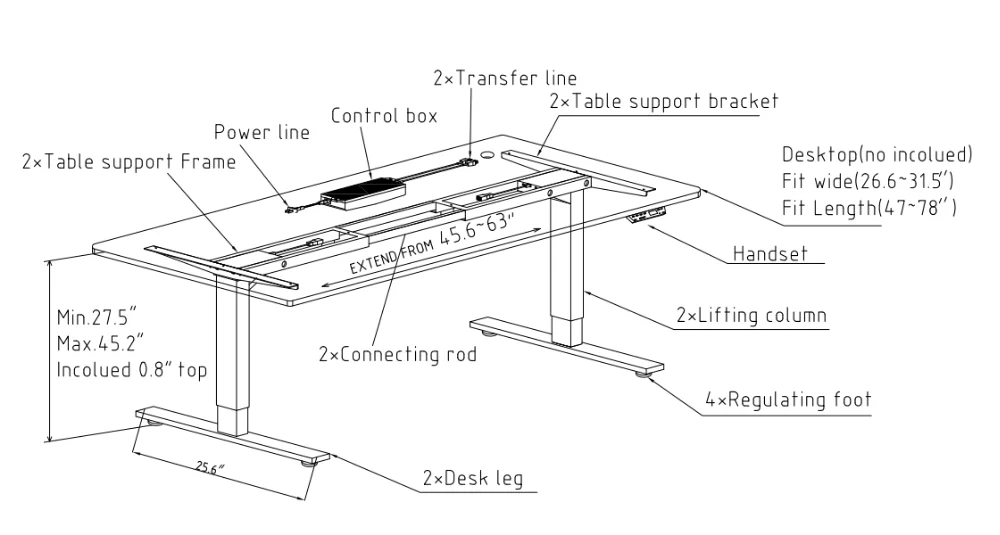

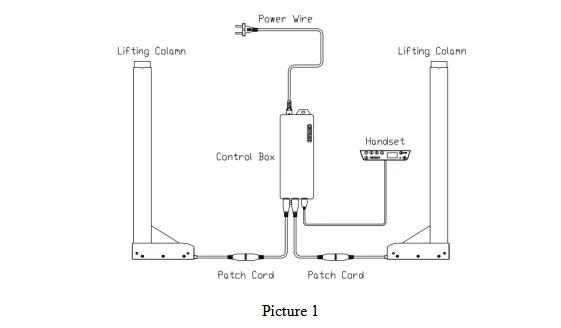

1. Correctly connect the Control Box,Handset,Power Wire,Lifting Column, Patch Cord.(Picture 1).

2. Plug the power cord into 110~230VAC outlet:The Digital Tube will  display “PON” for seconds it means electrified successfully,need to reset.

   After reset the Digital Tube will display 23(MM),reset finished.

   RESET:

   Press and hold the down button, after 5 seconds the desk will begin tolower, until to the lowest height then slightly rise.Reset finished.

   Release the down button.

3. After reset,press and hold “UP” button,lifting column will rise,release to  Stop.

4.  After reset,press and hold “DOWN” button,lifting column will fall,release to Stop.

5. How to memory:

   After pressing and holding UP/DOWN button to a height,press button S  first,then press button 1,this height will be remembered by button 1.Still pressing and holding UP/DOWN button to another height,press button S,then press button 2,this height will be remembered by button 2.

 The same way,the button 3,4 can remember other heights.

   After memory,press 1/2/3/4 button,desk will motion to the height it  remembers,press “UP” and “DOWN” button.The motion will bestopped.

Notice

1.This product must be used under the correct technical parameters.

2.Keep away from liquids,corrosive gases,dusty environment.

3.Contact our factory when necessary.
