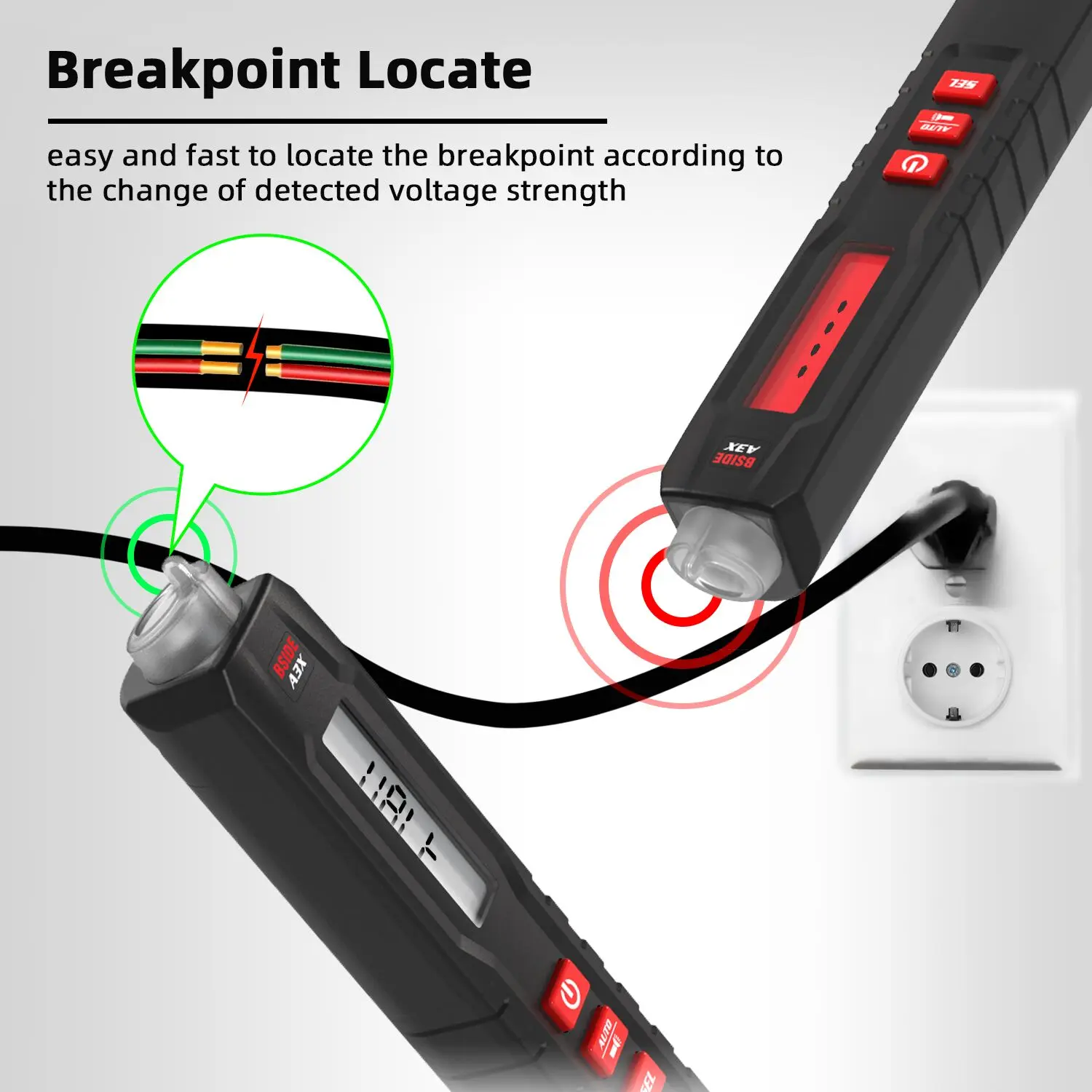

BSIDE A3X Voltage Tester Detector, Capacitance Diode Non-Contact AC Sensor Pen Live Wire Check Breakpoint Locate V-Alert Tester

BSIDE Voltage Tester 3-Results Display Voltage Detector, Capacitance and Diode Measurement, Non-Contact AC Electricity Sensor Pen Live/Neutral Wire Check Breakpoint Locate V-Alert Tester

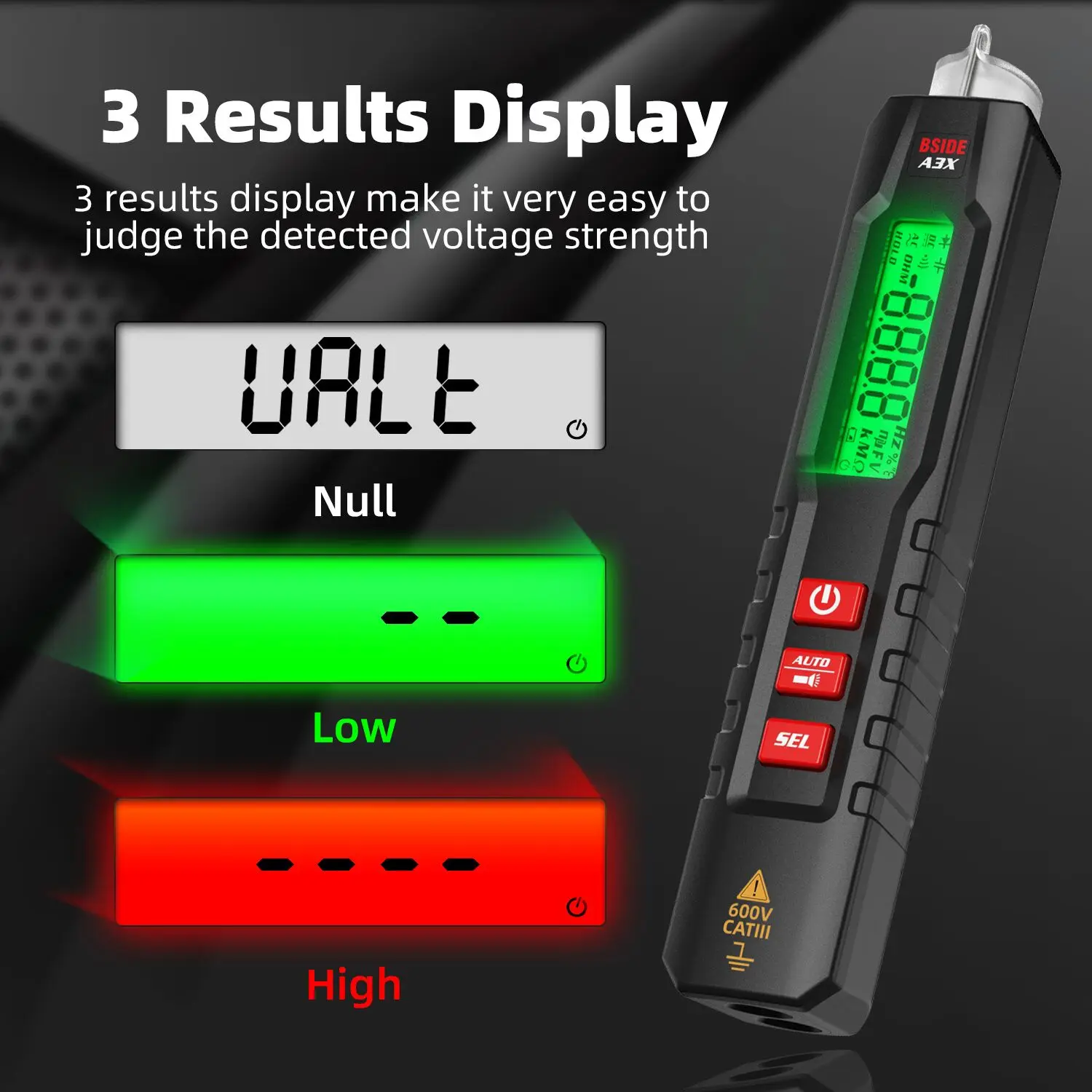

[3-Results Display]:3-results display make it very easy to judge the detected voltage strength.

[Triple-Mode Alarm]:Backlight flashing, LCD display analog bar and continuous beeping sounds when detecting AC voltage.

[Smart Mode]: Automatic identification design make it very easy to use. BSIDE smart technology make this multimeter can automatically identify the tested parameters and choose their required range.

[Dual Mode Design]: Voltage detector integrated multimeter design not only greatly expands the testing applications, but also let you not worry the multimeter consume too much space.

[Upgraded Flashlight]: Upgraded flashlight let you test efficiently and comfortably anywhere, indoors and outdoors, day and light.

Specifications:

Display: 4000 counts

Screen: 1.9 inch

DC Voltage: 0.05V-600V (DC mode) /0.8V-600V
(auto mode) 0.001V ±(0.8%+3)

AC Voltage: 0.05V-600V (AC mode) /0.5V-600V (auto mode) 0.001V ±(1.2%+5)

Resistance: 0Ω-10MΩ 0.1Ω ±(1.2%+3); 10MΩ-40MΩ 0.1Ω ±(2.0%+10)

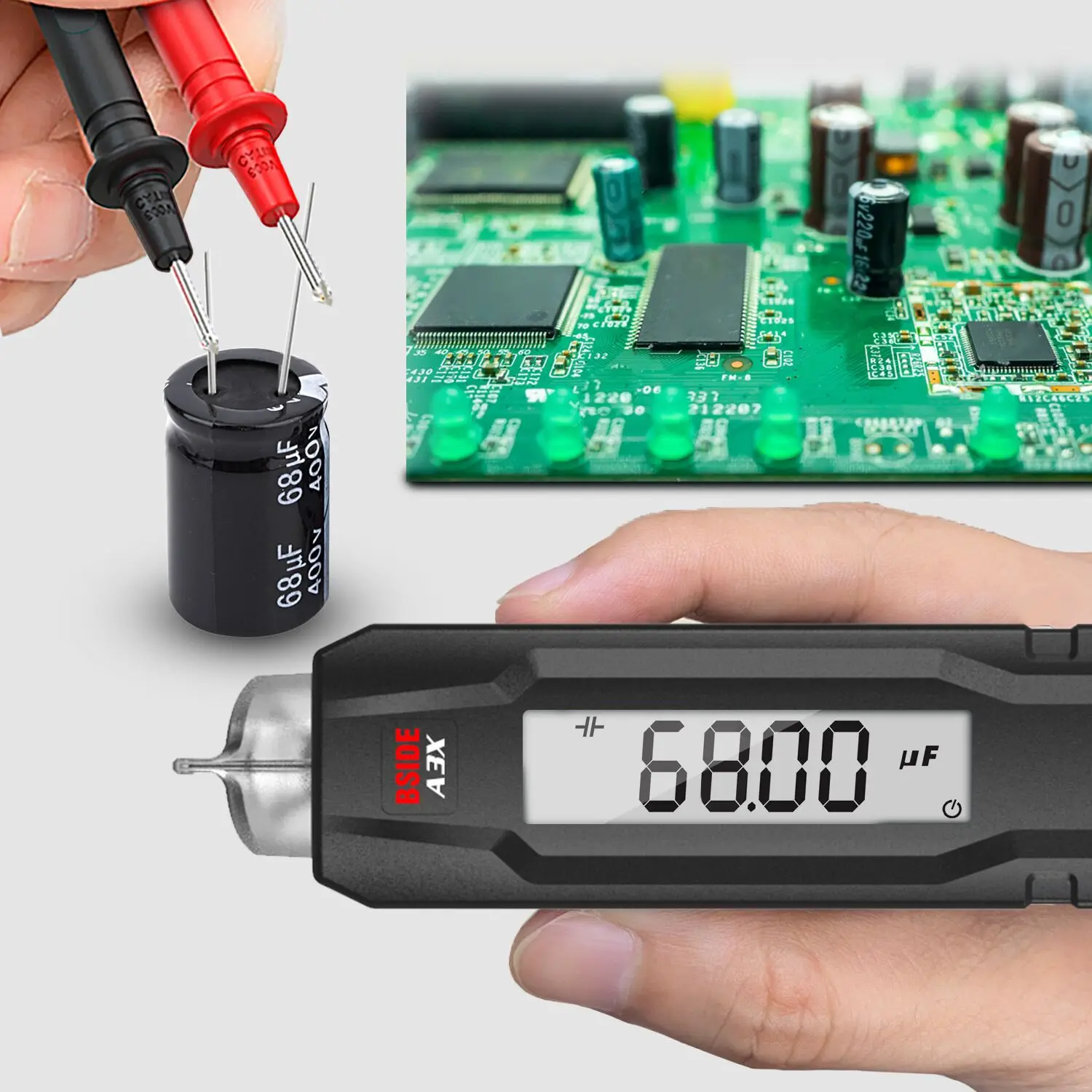

Capacitance: 1nF-1mF 0.001nF ±(3.5%+8); 1mF-4mF 0.001nF ±(4.5%+10)

Frequency: 0-4MHz(900mVrms-20Vrms) 0.1Hz ±(2.0%+10)

Diode: Measure diode within 1.5V

Ambient Temperature: 0-50℃ ±2℃ Continuity: If the resistance less than 50Ω, the beeper sounds

V-Alert (Non-contact Voltage Detection): Yes

Power: 1.5V (AAA) x 2

Size: 169*30*31mm

Weight: 77g

Package Includes:

1 x Voltage Detector
1 x Test Leads
1 x Screwdriver
1 x User Manual
