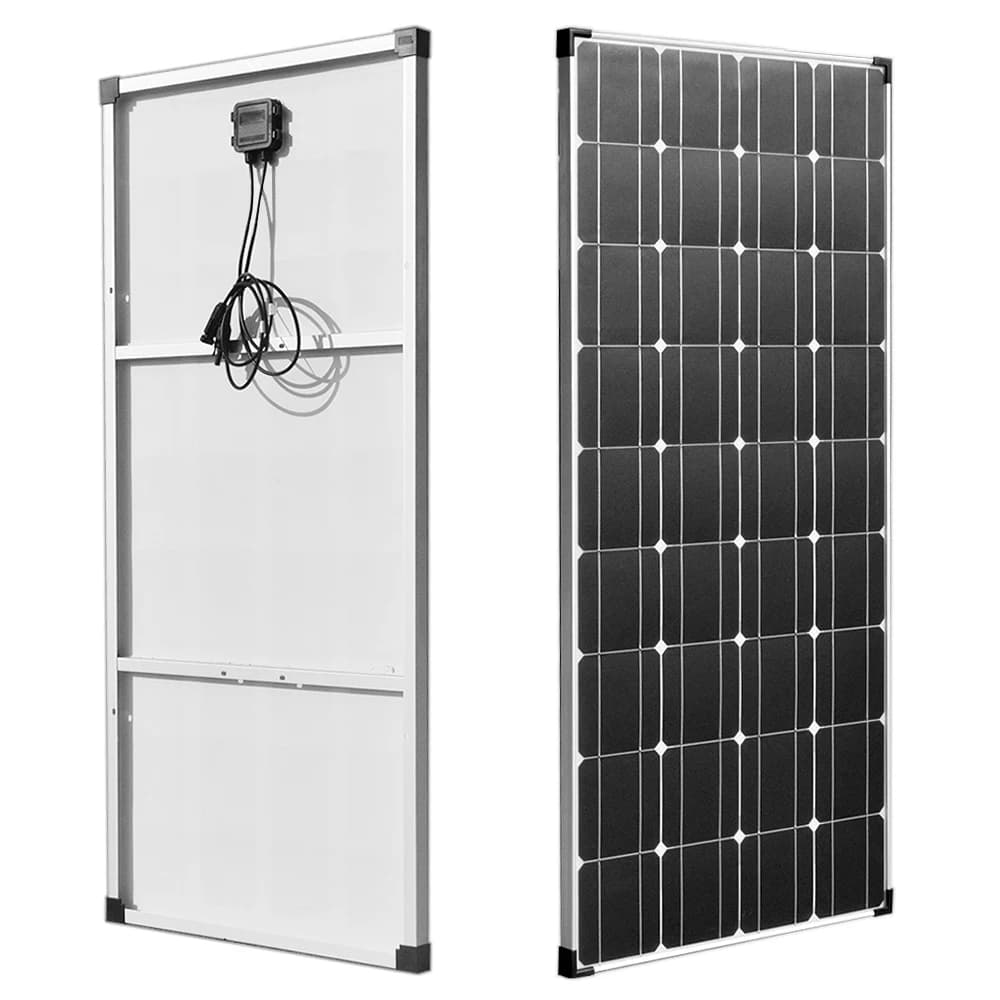

150W 18V Solar Panel Lightweight Module PV Power Cell for 12V Battery Charging Boat Caravan Any Other Off Grid Applications

150 Watt 18 Volt Monocrystalline Solar Panel, High Efficiency Module PV Power for 12V Battery Charging Boat, Caravan, RV and Any Other Off Grid Applications

If the corner of the solar panel you received has black things Please note that it protects the solar panels Please remove it when using

Please note: This solar panel is not a glass solar panel, it is a PET solar panel with a frame

Feature

a. High efficiency: cell efficiency is about 1.2 times that of conventional polycrystalline

b. Using the latest component packaging technology, thinner, lighter, softer and longer life.

c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.

d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

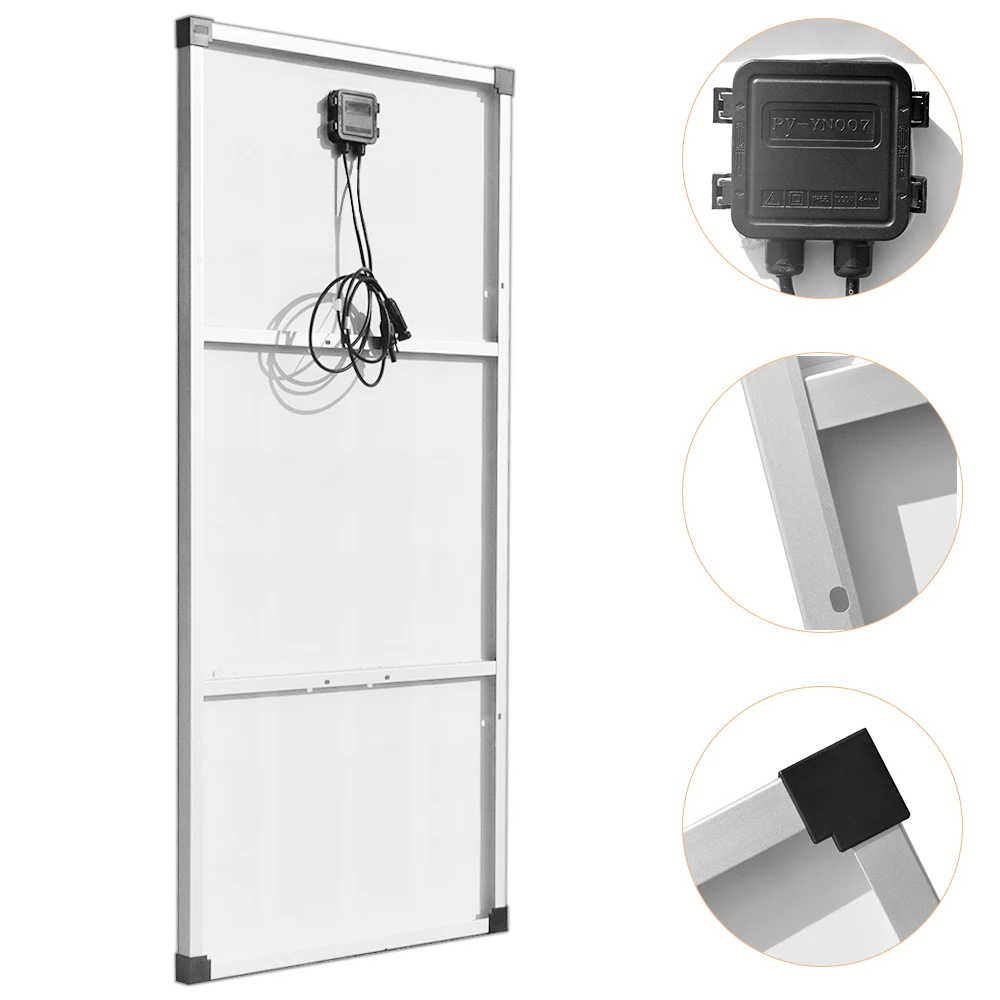

e. The junction box has an IP67 waterproof design, which includes a bypass diode, and the circuit adopts input overcurrent protection and reverse protection design.

f. The PV cables connectors for photovoltaic modules are used for outgoing cables. The outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connectors are easy to use, plug and play.

g. This product is a solar module. It is recommended to be used with controllers and batteries.

It can be used in a variety of scenarios such as RVs, households, camping, yachts, street lights and solar power stations.

150W PET Solar Panel Specification:

Maximum power (Pmax) 150W
Maximum system voltage 1000V DC
Open circuit voltage (cov) 25,9 V
Short circuit current (Isc) 7,59 A
Vmp 21.6V
Maximum power current(Imp) 6,9 A
Temperature range -40℃～+80℃
Cell Monocrystalline silicon cell
Number of cells 39 pieces
Cell efficiency 23%.
Weight 2.74kg
Size 1140 x 530 x 25mm
Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
Output port 0.9 m long MC 4 connector wire
Lighter than glass solar panels, longer service life than flexible solar panels, suitable for installation in places with light weight requirements

Specification

Maximum power(Pmax) 150W

Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Maximum power voltage(Vmp) 18V

Cell efficiency 22%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Weight 3100g

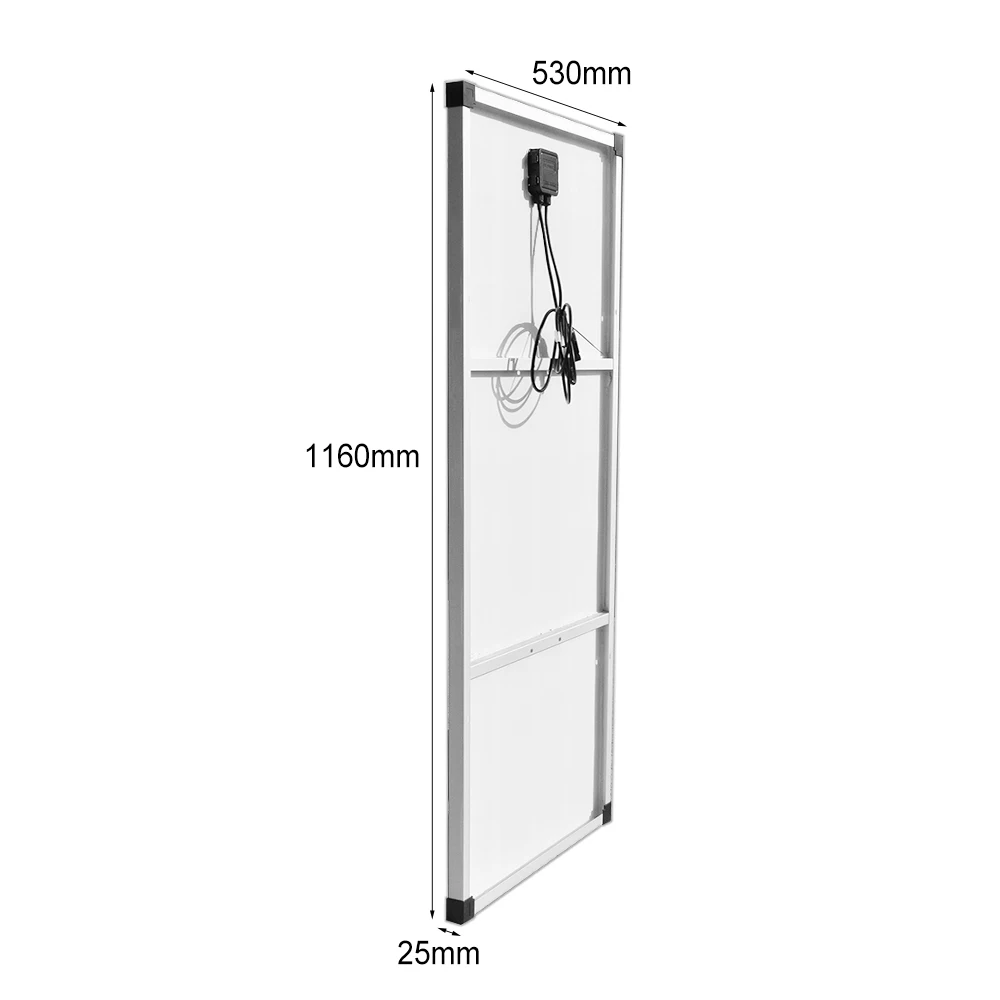

Size 1160*530*25 mm

Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell

performance and provide a long service life.

【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and

snow loads (4000Pa)

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way

this monocrystalline panel provides you with the most efficiency per space.

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing.
