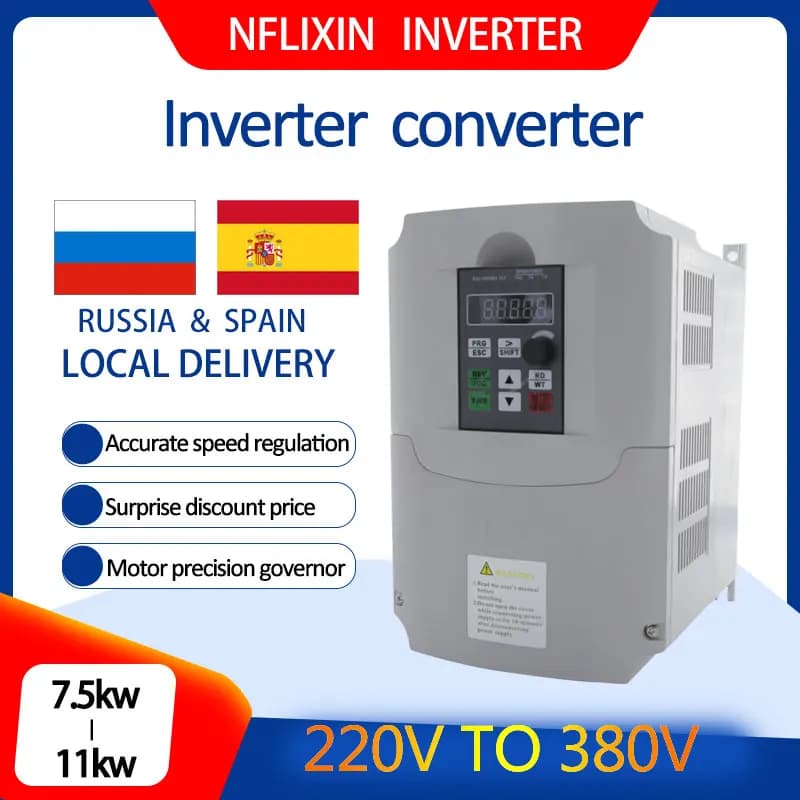

2.2kw 220v single phase input 380v 3 phase output AC Frequency Inverter & Converter ac drives /frequency converter

1.Input:1 phase 220V±15%

2.Output Voltage Range:3 phase 380V(415V)±15%

3.Output Power:0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw/11kw

4.Rated current:2.5A/3.7A/5A/8.5A/13A/16A/25A

5.Rated Frequency :50hz/60hz

6.Output Frequency Range:0~650Hz

7.Control way: Open loop vector control(SVC)V/F

OUR SUGGESTIONS

220V to 380V frequency converter is to solve the problem that the motor of electric equipment is 380V three-phase, but there is no 380V three-phase power supply around it, but only 220V single-phase power supply. The specific solution can refer to the following suggestions:

A. If the three-phase 380V motor itself is a star connection, it can be changed to a triangular connection. At this time, the motor becomes three-phase 220V motor, using our 220V converter to make single-phase 220V into three-phase 220V, the same level power selection can solve the problem (220v converter purchase can click on this link);

B. If the three-phase 380V motor itself is triangular connection, it can not be solved by changing its connection method. We must use our 220V to 380V converter to solve the problem, and pay attention to the selection.

C. Identification of motor connections can be referred to in the following figure:

Figure1 is a star connected motor.

Figure 2 is a triangular connection motor.

OUR PRODUCT TECHNOLOGY

● Peripheral interface features

Programmable digital input: 4 inputs

Programmable analog input: AI1: 0~10V input, AI2: 0~+5V or panel potentiometer input

Open collector output: 1 output

Relay output: 1 output

Analog output: 1 output, optional 4~20mA or 0~10V


● Technical performance characteristics

Control: PG-free vector control, V/F control

Starting torque: without PG vector control: 0.5Hz / 150% (SVC)

Speed ratio: no PG vector control: 1: 100

Speed control accuracy: PG vector control: ± 0.5% of the maximum speed

Carrier frequency: 0.5k ~ 15.0kHz


● Features

Frequency setting mode: digital setting, analog setting, serial communication setting, multi-speed, PID setting.

PID control function

Multi-speed control function: 8-speed control

Swing frequency control function

Instantaneous power outage without stopping function

REV / JOG key function: user-defined multi-function shortcut keys

Automatic voltage adjustment function: When the grid voltage changes, the output voltage can be automatically maintained constant

Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.

WIRING DIAGRAM

SPECIFICATIONS
