Beam Connecting Rods Conrod for Audi VW Golf R32 A3 3.2L VR6 24v 84mm

Steel EN24 Racing 4340 Connecting Rods for Audi V6 3.2L/3123cc bore 84mm+ 164mm

Application

For Audi VW Golf R32 Audi A3 3.2L VR6 24v
Compatible for VW V6 R32 3.2L/3189cc, bore 84mm+
Compatible for Audi V6 3.2L/3123cc，bore 84mm+
(Note: Please confirm the dimensions before purchase the connecting Rods)
Pin Type: Floating Pin Piston

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

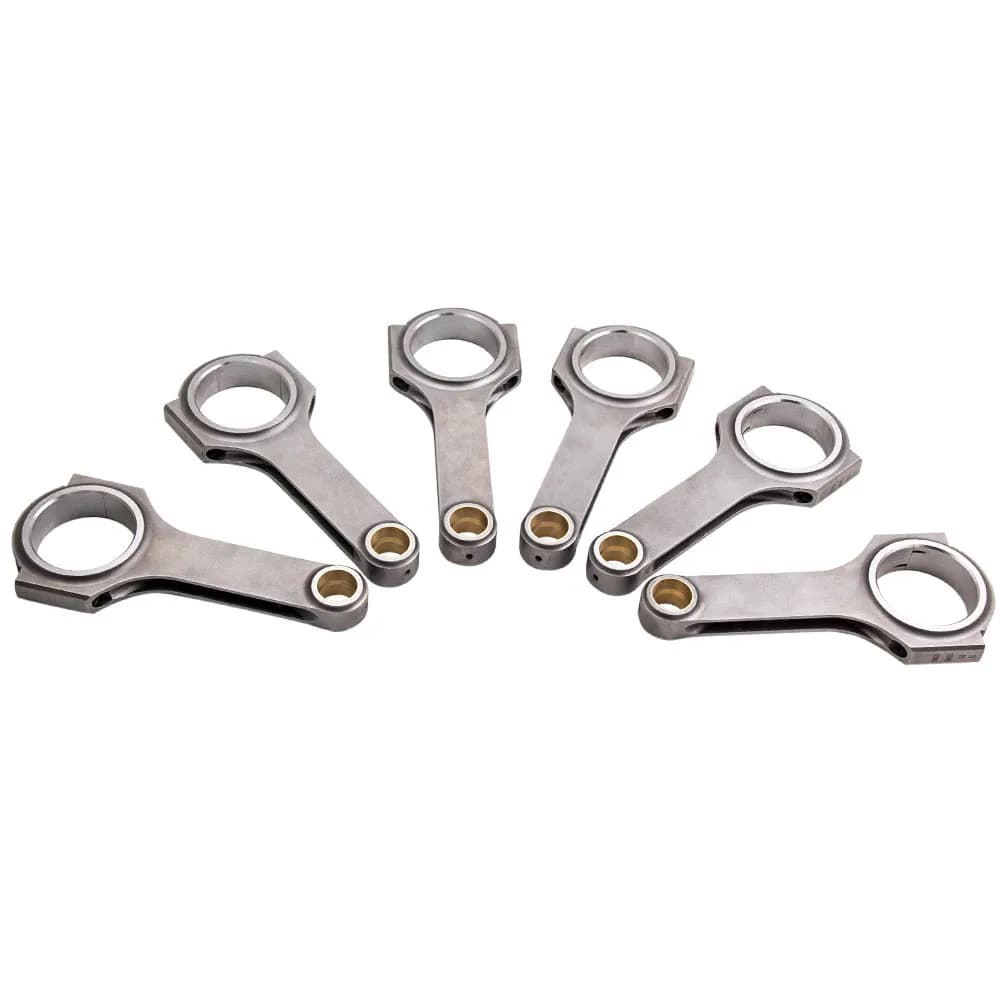

*H-beam Conrods Quantity: 6 Pieces as showing in picture
*Bolts: Not Including bolts (Note: Extra cost for upgrading to ARP 2000 3/8" or ARP L19 bolts)
*The connecting rods do not include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*14CM

Dimension

Center to center length:164mm/6.457"
Big end diameter:56.8mm/2.236"(bore 84mm+)
Small end diameter:20mm/0.787"
Big end width:19.9mm/0.783"
Small end width:19.9mm/0.783"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. Optional ARP 2000 bolts or ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
