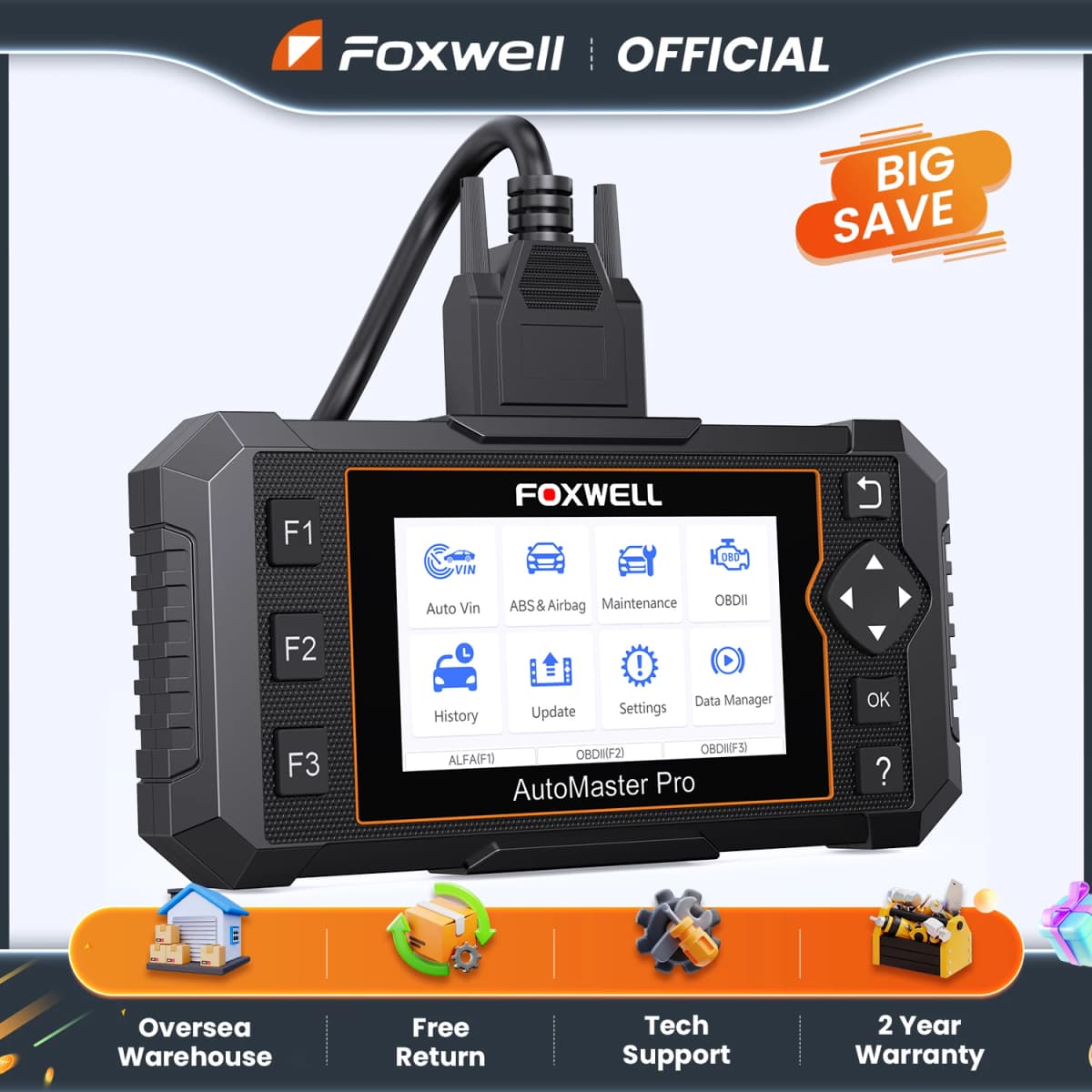

FOXWELL NT650 Pro OBDII Car Automotive Scanner Code Reader ABS SRS Bidirectional Car OBD2 Scanner 25 Maintenance Diagnostic Tool

The latest NT650 PRO Car Maintenance Diagnostic Tool--Upgraded Version of NT650 Elite!

26+ Maintenance Services for Free

1. Oil Service Reset
Allows you to reset the service lamps on the instrument cluster. The Service Indicator System is designed to alert the driver when the vehicle is due for a service.

2. EPB, Electronic Parking Brake
allows you to perform the service and maintenance of brake systems,
including deactivation and activation of the brake control system, bleeding brake fluid, opening and closing brake pads, and setting brakes after disc or pad replacement, on multiple brands of vehicles where electronic brake systems are fitted.

3. BRT, Battery Replacement
Lets you to new battery validated, how to clear faults from the dashboard and display.

4. D.P.F, Diesel Particulate Filter Regeneration
let you perform the D.P.F cleaning to clear the blockage through continuous burning of the particulates captured in the D.P.F filter. When a D.P.F regeneration cycle is completed, the D.P.F light automatically goes off.

5. TBA/TPS, Throttle Body Alignment
Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA)

6. SAS, Steering Angle Sensor Calibration
let you perform calibration of the Steering Angle Sensor.

7. TPMS, Tire Pressure Monitoring System Programming
allows you to check the tire sensor IDs from the vehicle ECU and to perform TPMS programming and reset after tires and/or TPM sensors are replaced and/or tires are rotated.

8. Gear Learning
Crankshaft position sensor adaptive learning.

9. CVT
This function is used to reset the compensation code and initialize the ECT after a solenoid valve or valve body assembly has been replaced.

10. Injector Coding
This function is to reset and match the date after injector is replaced.

11. A/F Adjust
Correspondingly change the fuel supply to change the steam production of boiler and maintanin the energy balance in the combustion process.

12. ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion.

13. CLUTH adaptation
14. Seat Match
15. Language Change
16. Windowsdoor
17. Turbo
18. Headlamp
19. Change Tire Size
20. Tcmoil
21. AT Adaption
22. Replace airbag ECU model
23. EVAP Test

and more……

ABD/SRS Code Reader & Bidirectional Control Test

📌 For ABS System:
Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.It main read ECU information,read live data,read or clear ABS system fault codes, turn of the trouble indicator after the problems by fixed.

📌 For SRS System:
SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.It main read ECU information,read live data,read or clear SRS system fault codes, turn of the trouble indicator after the problems by fixed.

🔥 Bi-directional Active Test for ABS & SRS:
Not only read/erase error codes, read ECU info, display live data, but also you can use it to do the bi-directional test. Performs bi-directional control to command the components to pinpoint faults, such as ABS manual control test, ABS motor test, Actuator test, etc. It allows you to temporarily activate or control component, and helps to pinpoint potential problems more accurately.

OE-Level 3 System Diagnostic

Quickly Scan and pinpoint the problem

More Features

Auto VIN Scan:Identify cars quickly and easily with one-key VIN reading on the FOXWELL NT650 PRO automotive scanner.

DTC Lookup:The built-in DTC library allows you to know about the fault code definition after scanning it out, saving you time and energy in searching.

Live Data Stream:To analyze live data, you can select 2 parameters to customize the 2-in-1 merged graph for intuitive display.

Full OBDII Functions

1. Reading Codes:Present some diagnostic trouble codes after scanning the vehicle.
2. Erasing Codes:Clear the fault codes after doing the repair according to the prompt of the scanner.
3. Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
4. I/M Readiness:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Freeze Frame:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
6. On-Board Monitor Test:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7. O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8. EVAP Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems.
9. Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Multi 15 Languages:

Built in multilingual menu for your needs, it support English, Italian, Germany, Spanish, French, Portuguese, Dutch, Russian, Japanese, Korean,Hungarian,Swedish,Simplified Chinese and traditional Chinese etc.

Wide Coverage:NT650 pro car scanner code reader supports 108+ vehicle models including cars, SUVs, minivans, and light-duty trucks.

Asia
for Acura, for Daewoo, for Honda, for Hyundai, for Infiniti, for Isuzu, for Kia, for Lexus, for Mahindra, for Mazda, for Mitsubishi, for Nissan, for Perodua(For Malaysian Market Only), for Proton(For Malaysian Market Only), for Scion, for Subaru, for Suzuki, for TATA, for Toyota,

European
for Abarth, for Alfa-Romeo, for Audi, for AstonMartin, for BMW, for Bugatti, for Bentley, for Citroen, for Dacia, for EU Ford, for Fiat, for Jaguar, for Lancia, for Land Rover,for Maserati, for Maybach, for Mercedes Benz,for Mini, for Opel, for Peugeot, for Porsche, for Renault, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Vauxhall, for Volvo, for VW

America
For Chrysler, for Jeep, for Dodge, for Ram, for Ford, for Lincoln, for Mercury, for GM, For BrazilGM, For BrazilFiat ( including brazilian car maker ), for Chevrolet, for Cadillac, for Buick

Chinese
For BYD, for Brilliance, for Chery, for Chery_ne, for Geely, for Great Wall, for Karry, for Rely, for Riich.

Lifetime Free Update via Wi-Fi

No longer requires a separate cable to connect to the PC for updates, but one click update to get the latest version and fix bugs,for Free!

Package List:

1*NT650 PRO Main Unit
1*OBDII Diagnostic Cable
1*USB Cable
1*Bag
1*User Manual
