1900W IR Bga Machine LY M770 Rework Station Soldering 220V 2 Zones Manual Operation

1900W IR bga machine LY M770 Rework station 220V 2 zones manual operation solder reballing

Feature:

This model maybe the cheapest 2 zones infrared bga rework station,if you are new bie,or have limited budget,you can consider of this model.

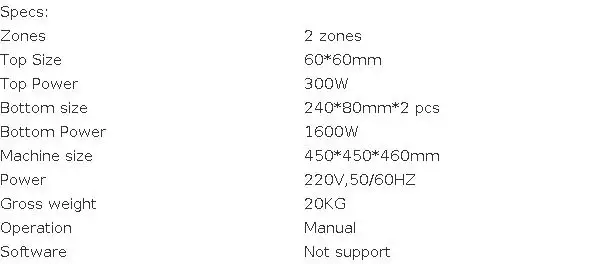

Specifications:

01. Applicable to laptop motherboard, desktop motherboard, XBOX-360, server motherboard, digital products etc..

02. Two heating zones, independant heating, upper heating 300W, bottom preheating 1600W

03. Maximum heating temperature : 500 degree

04. Used high accurate Intelligent temperature controller, make more accurate temperature controlling

05. Movable heater, easy and convinient to use

06. Infrared heating panel, independant controlling heating

07. Brilliant-designed Universal circuit board structural support, weld zone part non-support, none sink

08. Bottom preheater, used to preheat PCB, to make sure it non-deformation, maximum heating area 450 * 500mm

09. No limit for PCB thickness during desoldering

10. No limit for BGA chips size during desoldering, max size for 775CPU, min size for CCD grain

11. Dimension: L450 * W450 * H460mm

12. Power supply: 220V 5060Hz

13. Effective power: 1900W

14. Weight: 20kg

15. Factory bulk welding success rate up to 98%, machine warranty for 1 year

RE:Not support communication by software with Com.
