Racing Coilovers Strut Spring Assembly For Mazda 3 2004-2013 24 Ways Adj. damper

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

For Mazda 3 (BK) 2004–2009 (Includes Mazdaspeed 3 / Mazda3 MPS)

For Mazda 3 (BL) 2009–2013 (Includes Mazdaspeed 3 / Mazda3 MPS)

For Mazda 5 (CR) 2006–2010

Specifications

Top mounts: Front pillow ball top mounts

Damping: 24 levels rebound damping adjustable

Shock type: Twin tube

Adjustable height: Yes lowering 1'' to 3''

Adjustable camber plate: No

Spring preload: 7-10 mm

Spring rate Front: 10 kg/mm (560 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Color: Red

Product included

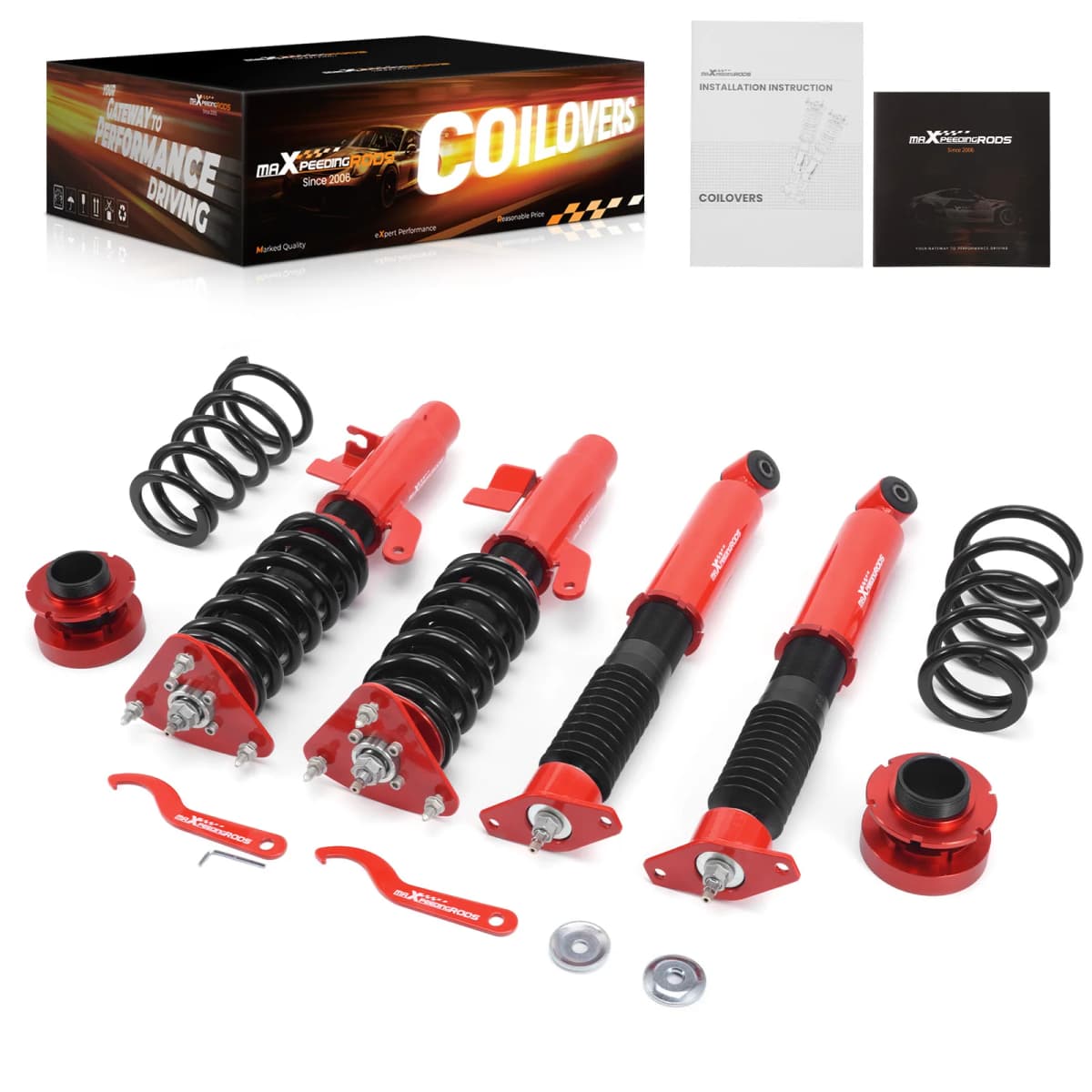

Complete Coilovers 2 front and 2 rear

Dimension

Size: 63*51*21 cm

Weight: 27.54 kg

Features

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3. Twin-Tube structure allows sufficient stroke within the shock absorber.

4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

5. Separate height adjustment does not affect damper stroke.

6. Height can be adjusted with coilovers installed on the vehicle.

7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

8. Height Adjustment tools included.

9. Pillow ball top mount - It improves the steering feel and response.

10. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

Notice

* Professional installation & alignment suggested.
