Engine Water Pump Kit for Yamaha 9.9/15HP Outboard 46-84277T 1984-2005 Complete

Application:

for Yamaha outboard 2 stroke 9.9hp 15hp and 4 stroke 8hp 9.9hp motors

for the Following 9.9HP Yamaha 2 Stroke Outboards: 9.9hp, 1984-1995 Year

for the Following 15HP Yamaha 2 Stroke Outboards:15hp 1984-1995 Year

for the Following 9.9HP Yamaha 4 Stroke Outboards:F 9.9, 1985-2005 Year

for the Following 9.9HP Yamaha 4 Stroke Outboards:FT 9.9, 1985-1990 Year

for the Following 9.9HP Yamaha 4 Stroke Outboards:T 9.9, 985-2005 Year

OE/Part number:

682-W0078-00,682-W0078-A3,682-W0078-A1,18-3148,46-84277M, 46-84277T

Specification:

Type:Outboard water pump impeller rebuild kit

Material：Rubber+Stainless Steel+Plastic

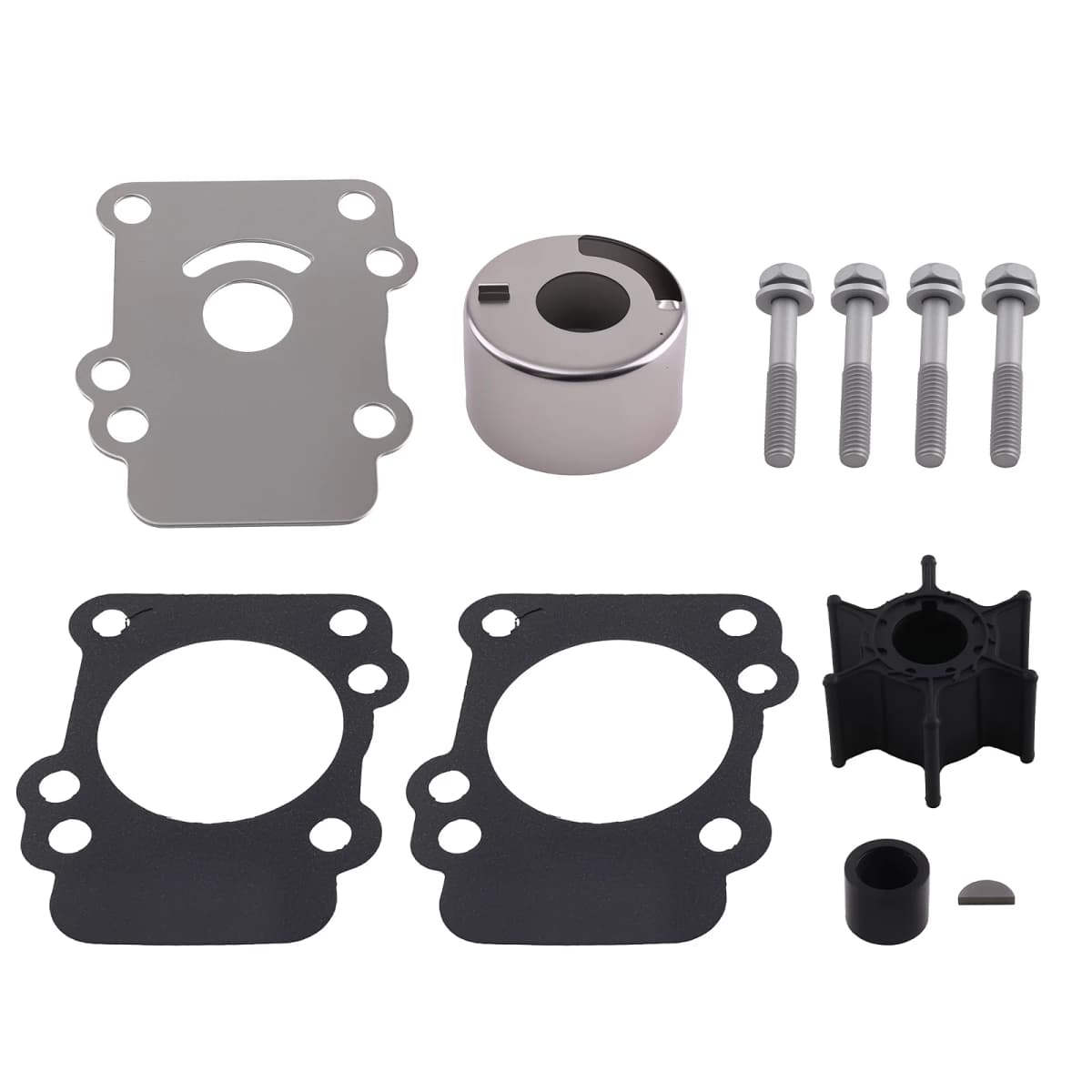

Package included:

1*Water Pump Impeller 682-44352-03-00

2*Gasket, Water Pump 682-44315-A0-00

1*Woodruff Key, Impeller 90280-03024-00

1*Dampener Water Seal 682-44365-00-00

4*BOLT - 97080-06045-00

1*Cartridge Insert Cup 682-44322-00-00

1*Cartridge Outer Plate 682-44323-00-00
