TOPDON TC001 MAX Thermal Camera 512x384 TISR Resolution Thermal Imager

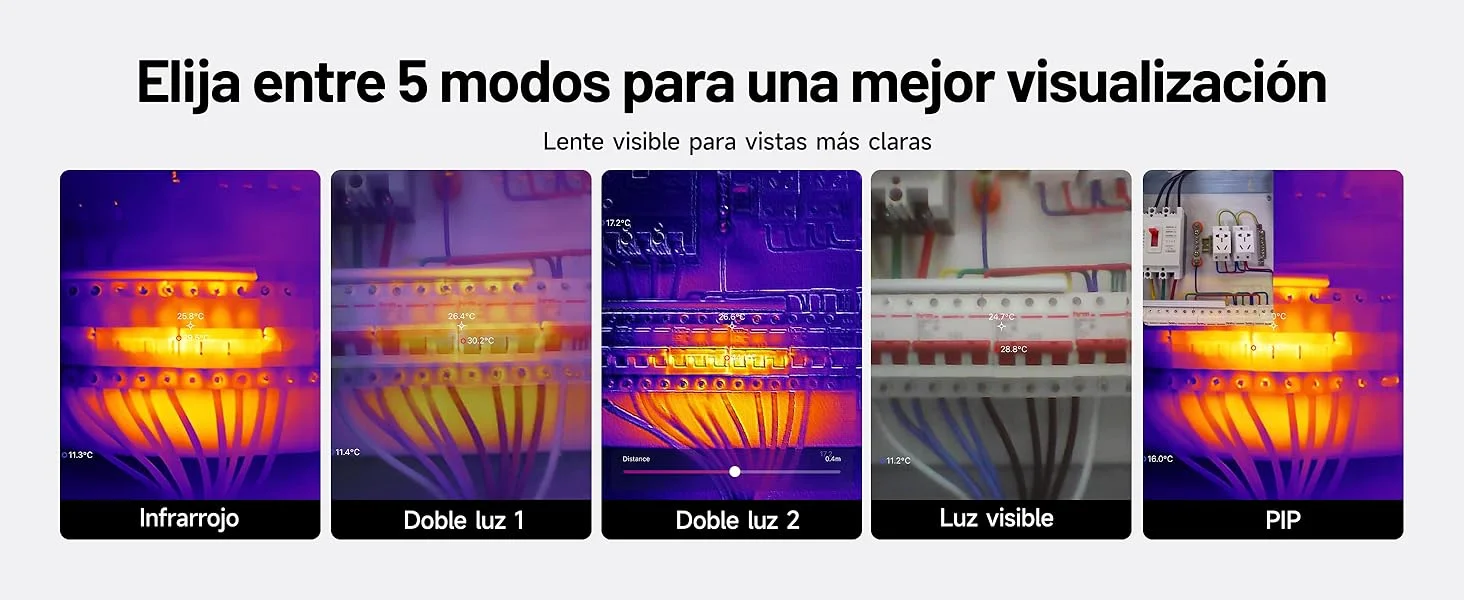

【Improved TOPDON Dual Lens Thermographic】TC001 Max thermal camera features a 1.5MP visible lens and a 512×384 IR lens with super resolution, using iMix image fusion technology for sharper contours, precise details and more faithful reproductions. It offers five image modes: Thermal Imaging, Thermal Fusion, Contour Fusion, Visible Light, PIP - allowing you to easily identify even the smallest temperature differences.

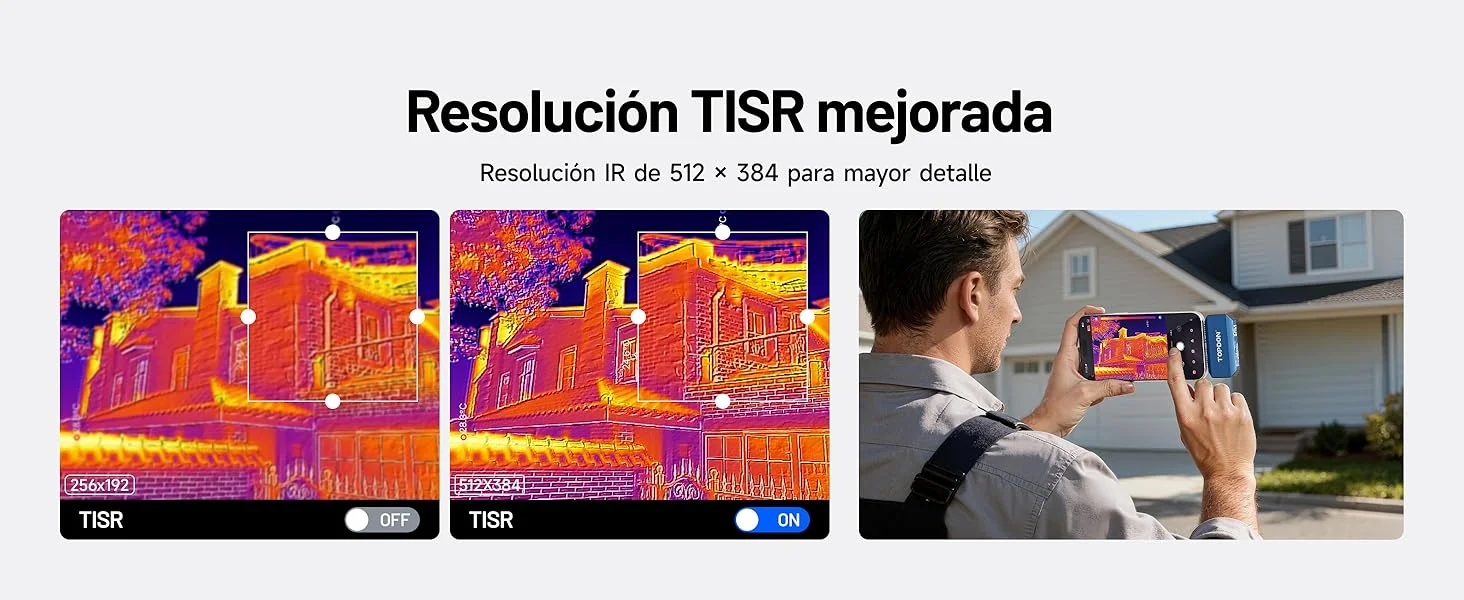

【High Quality Images】Thanks to TISR super resolution technology, the TC001 Max increases the IR resolution from 256×192 to 512×384, showing clearer details. With a refresh rate of 25Hz and thermal sensitivity of 40mK, it delivers fluid and accurate temperature readings in real time. It supports photos, videos, image rotation, secondary analysis and 3D analysis, allowing continuous temperature tracking using intuitive graphics.

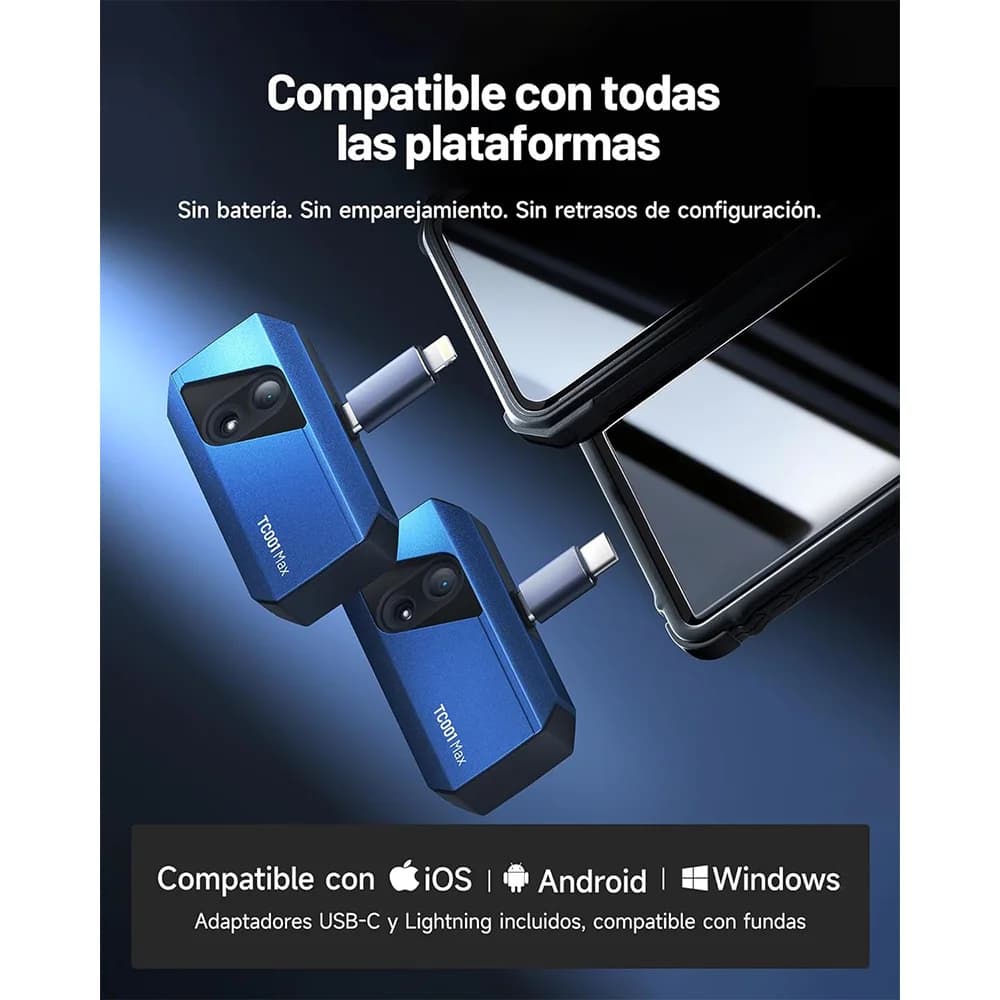

【Universal USB-C Compatibility】The TC001 Max thermal imaging camera uses a USB-C port and is compatible with iOS, Android and Windows smartphones and PCs, including iPhone 17/16/15, iPad Air/Pro and most OTG compatible Android devices (Samsung, Xiaomi, etc.). Connected to the PC, it allows advanced analysis of images and videos. Note: Not compatible with Mac devices.

【Wide Temperature Range】 This TOPDON thermal camera measures temperatures from -20°C to +550°C with professional accuracy (0.1°C, ±2°C). It has 10 customizable color palettes and 3 analysis modes (point, line, area) for complete and systematic temperature analysis. It allows you to set maximum and minimum temperature limits and activate visual and audible alerts to detect anomalies immediately.

【Wide Applications】TC001 Max has a 50° wide-angle lens and allows you to adjust emissivity and distance, measuring temperature differences up to 5 meters. Thanks to Dual-Light fusion, IR zoom and image adjustment, it offers a wider and more detailed view. Ideal for building inspections, HVAC maintenance, electrical inspections, leak detection, door and window inspection, PCB repair, and automotive diagnostics.

【Portable & Easy to Use】No batteries required, plug-and-play. Low consumption of 0.38W, up to 10 hours of continuous use. Compact size (71×42×14mm, 30g), very portable, ideal for building inspectors, electricians, HVAC technicians and mechanics. What's in the Box: TC001 Max, 50cm extension cable, USB-C to Lightning adapter, USB-C adapter, cleaning cloth, EVA case, box, quick guide.
