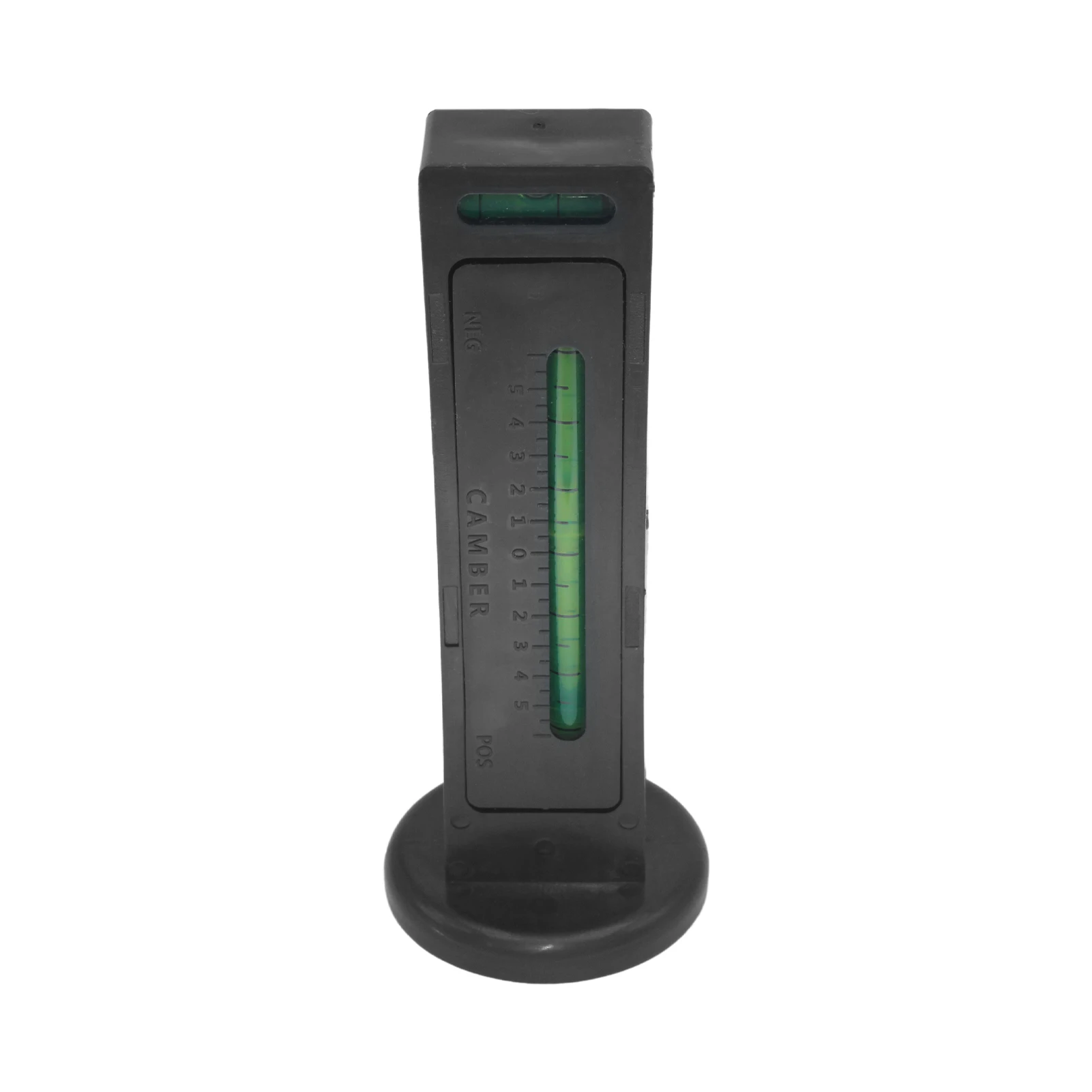

Black Blue Magnetic Camber Castor Strut Wheel Alignment Gauge For Car Truck Four Wheel Positioner Universal Magnetic Gauge Tool

Bullet Points:
1、How to use: This is an auxiliary tool for adjusting the camber angle of the magnetic level of the car four-wheel alignment, with simple twisting the knob at back for operation.
2、What it does: Ideal for measuring and checking camber and caster on hubs or brake discs with this gauge, maintaining proper wheel alignment even after tire wear.

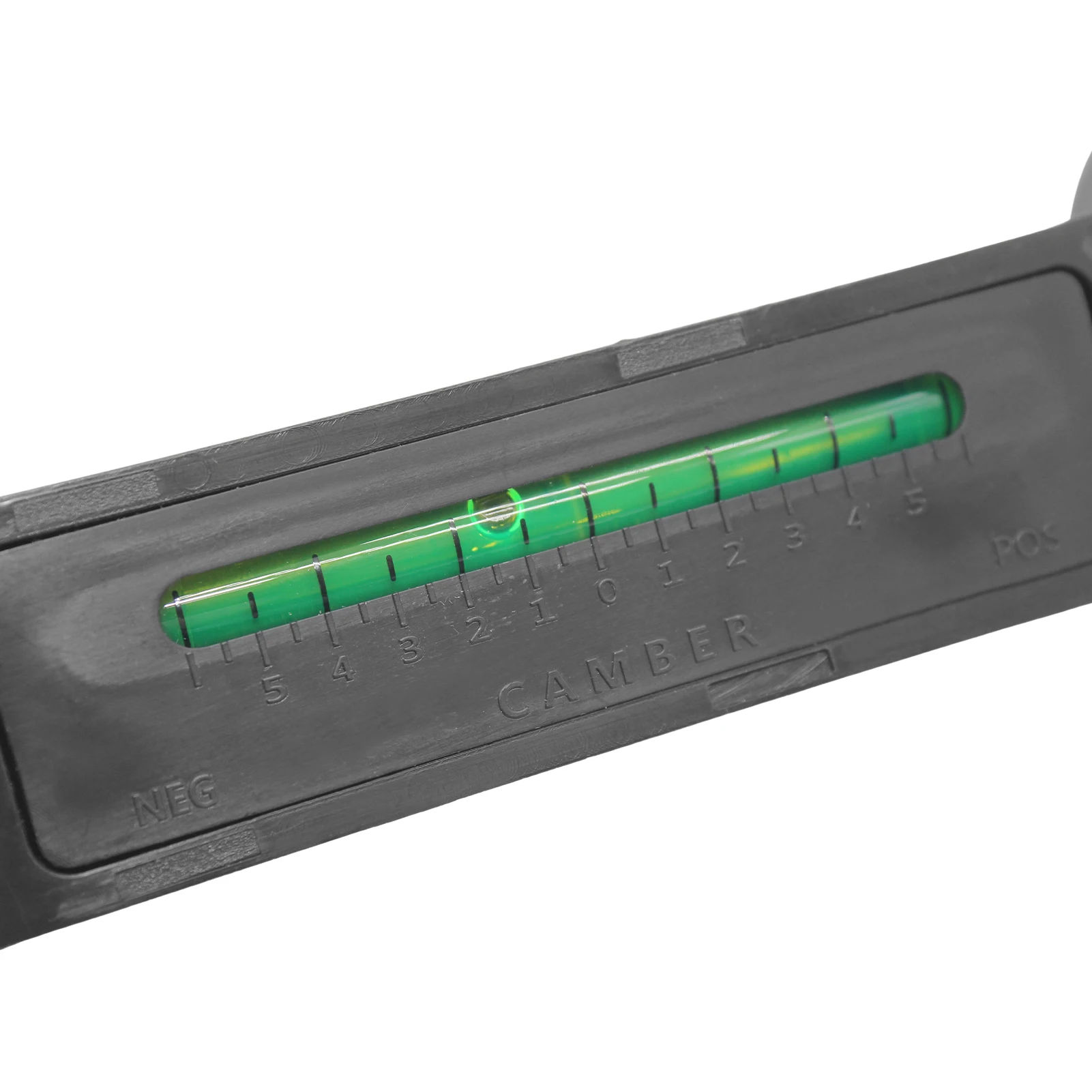

3、Easy to read: Features an easy-to-read level adjustment from -5 degrees to 5 degrees with powerful magnets for easy mounting on a variety of metal surfaces.
4、Quality material: The fine wheel caster camber gauge is made of high quality ABS for great strength and durability, with a precision level for precise measurement.
5、Wide range of uses: suitable for motorcycles, cars, vans, trucks, etc. to measures the Camber and Caster angle on the wheel hubs andRV tire repair

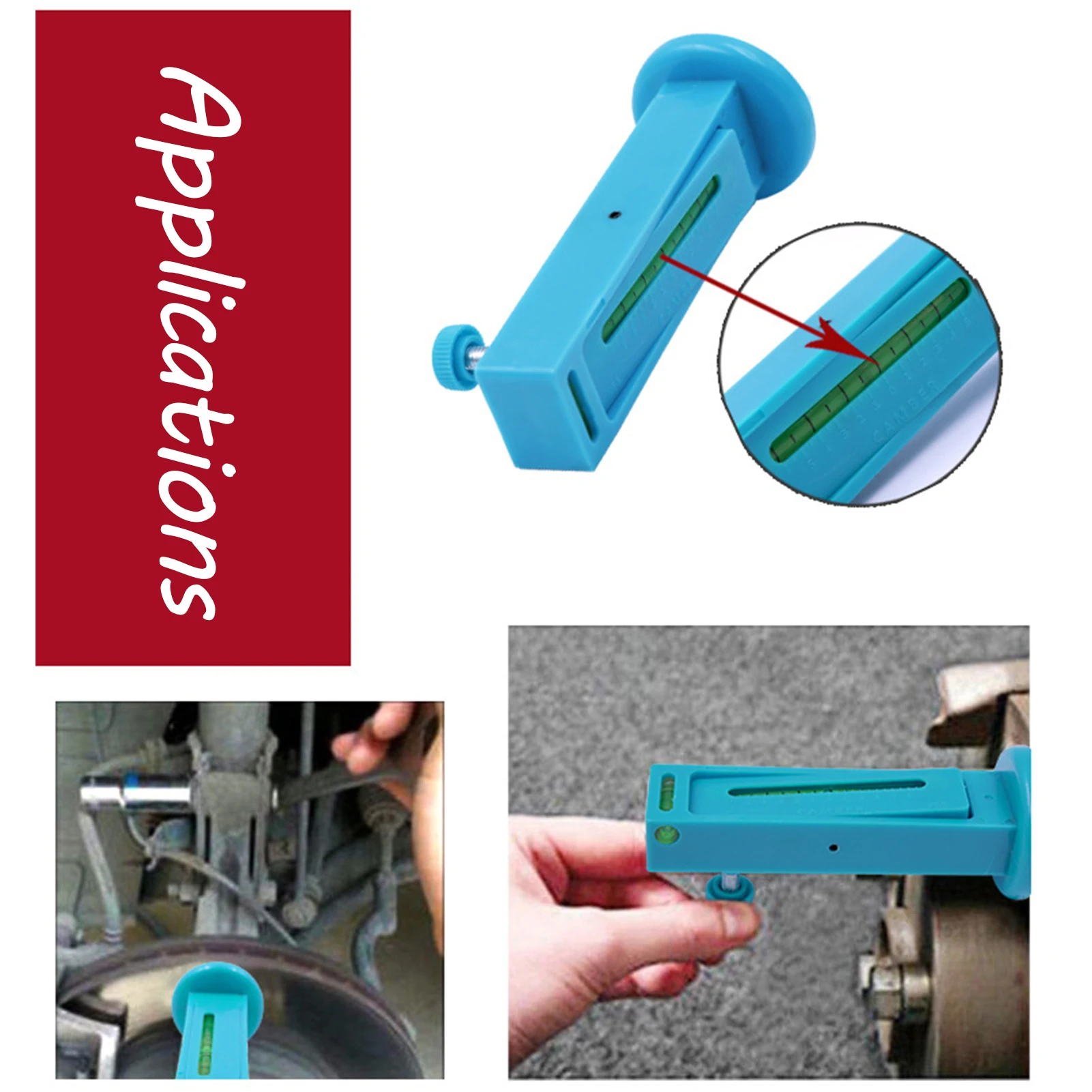

Instructions for use:
1. Use the locator to detect and determine that the camber angle needs to be adjusted
2. Remove the four-wheel alignment sensor (clamp) and remove the tire

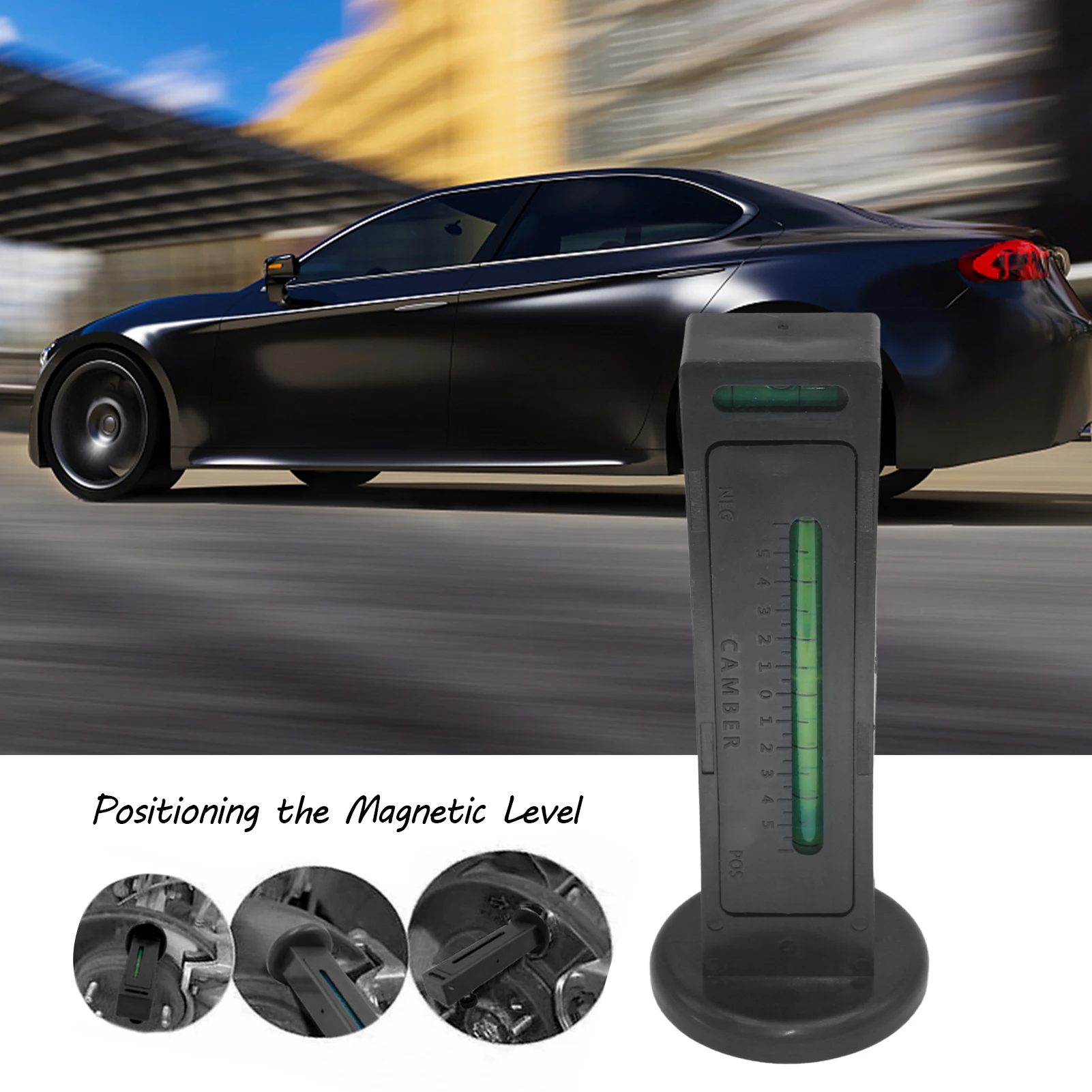

3. Suck the magnetic level on the side of the brake disc (avoid grooves and keep it horizontal)
4. Adjust the level adjustment knob to let the scale return to zero (do not move the adjustment knob after the benchmark is established, remove it and put it aside)
5. Replace the bolt on the upper e of the original s hock a bsorber with the eccentric bolt
6. Put the magnetic level on the brake disc again, adjust the eccentric screw, make the scale of the level reach the expected degree, and tighten the eccentric nut
7. Install tires, fixtures and sensors, and use the locator to re-measure the data to adjust the toe-in
Size: 12.7*5cm/5*1.95in
Color: black, blue
Material: ABS
Weight: 120g
Notice
* Due to differences in lighting and screen settings, the color of the item may be slightly different from the picture.
* Please allow for slight size differences due to different manual measurements.
Positioning Magnetic Level *1
