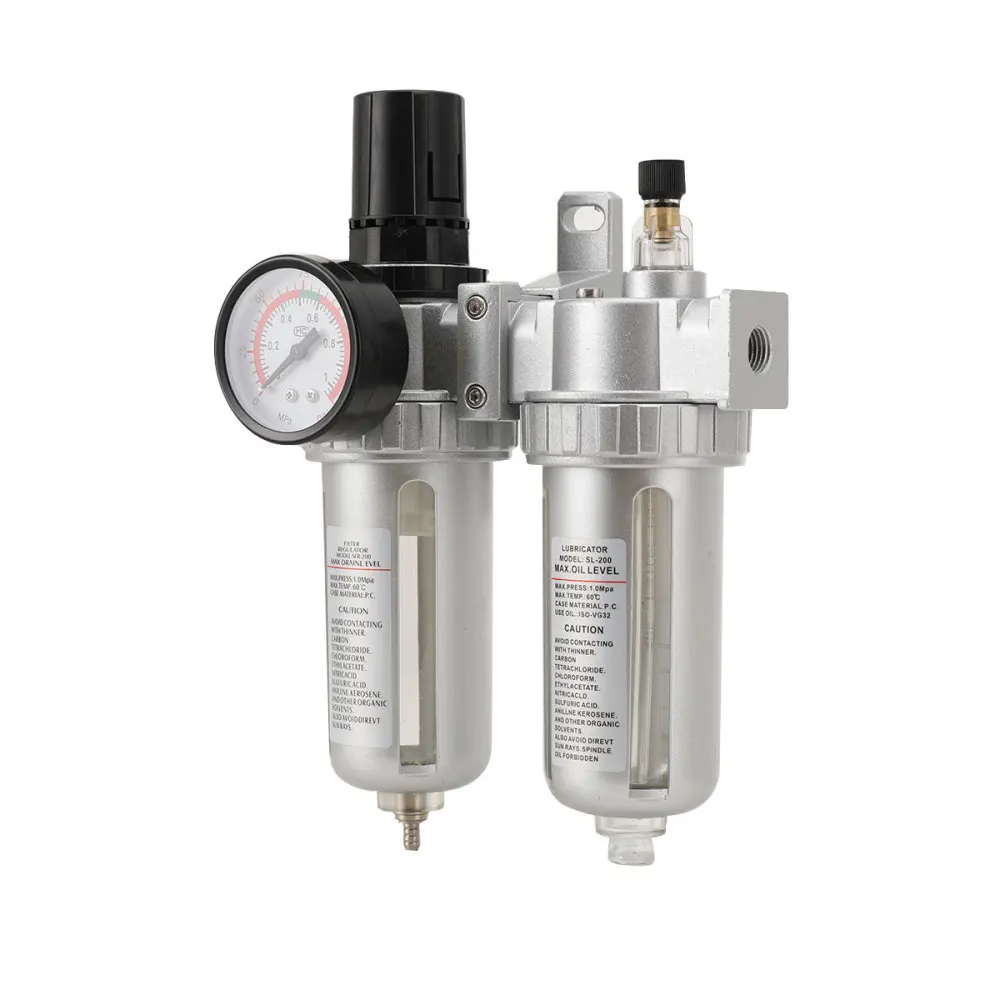

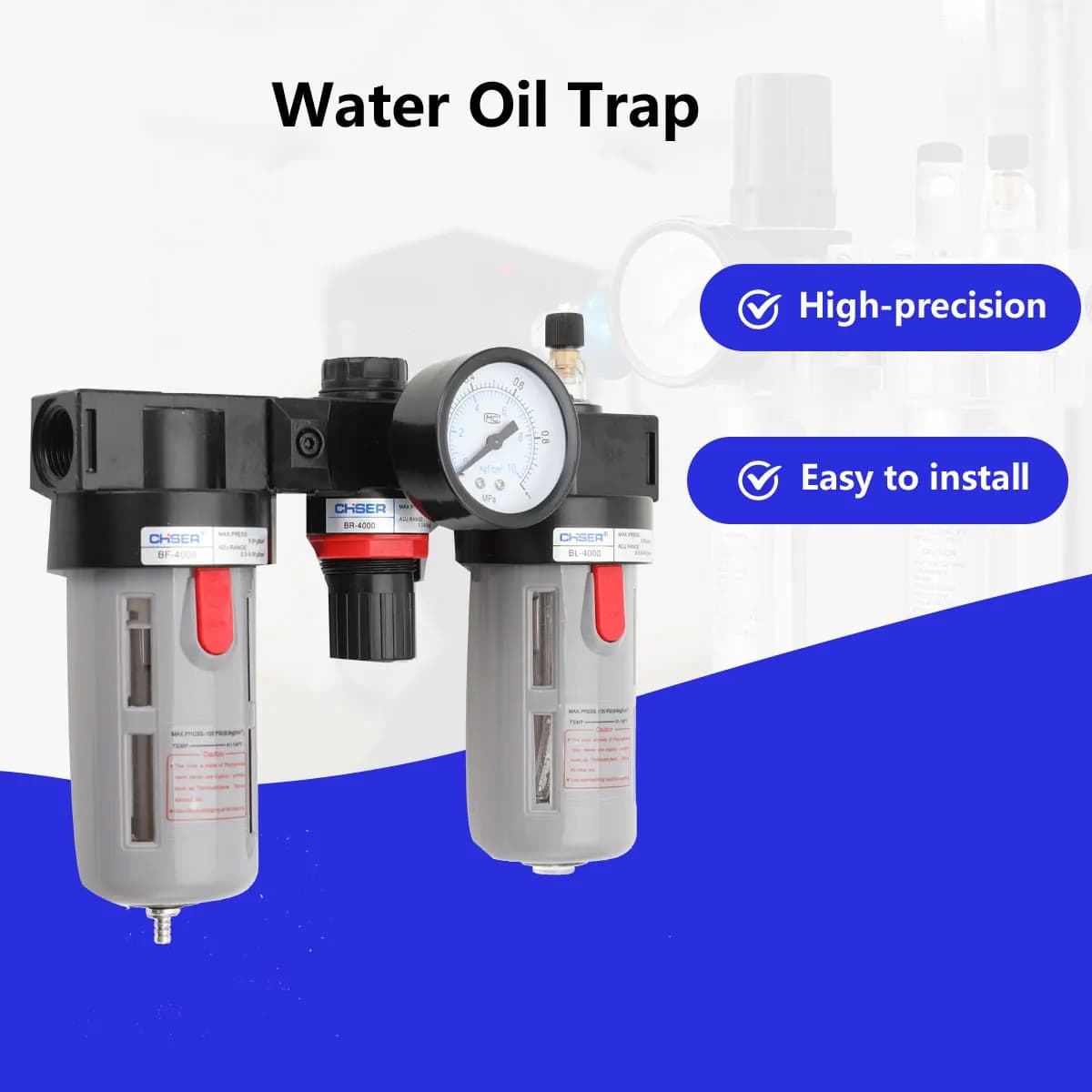

1/2" 1/4" Water Oil Trap Air Line Filter Regulator Trap Separator Compressor Gauge

【Features】PT 1/2" inlet, 40μm filtering core precision, it can work within 60℃ temperature condition and the regulate pressure scope is 0.05-0.85 Mpa. The biggest and adjustable press is 0.95MPa.
【Sturdy and durable】Aluminum alloy valve + plastic cup and protective shell.
【Good sealing performance】 PC capacity cup, high strength, high temperature resistance, not easy aging, good sealing performance.
【High-precision】With transparent container cup, imported filter element, and high quality sealing ring,with great filtering effect. With this oil water filter, protect your air tools with much longer life.
【Convenient】 Easy to use, simply operate the pressure regulating valve, pull up to unlock, rotary adjust pressure.
【Universal】The reasonable product design is easy to use and small in horizontal space, which can meet the different requirements of pneumatic system.

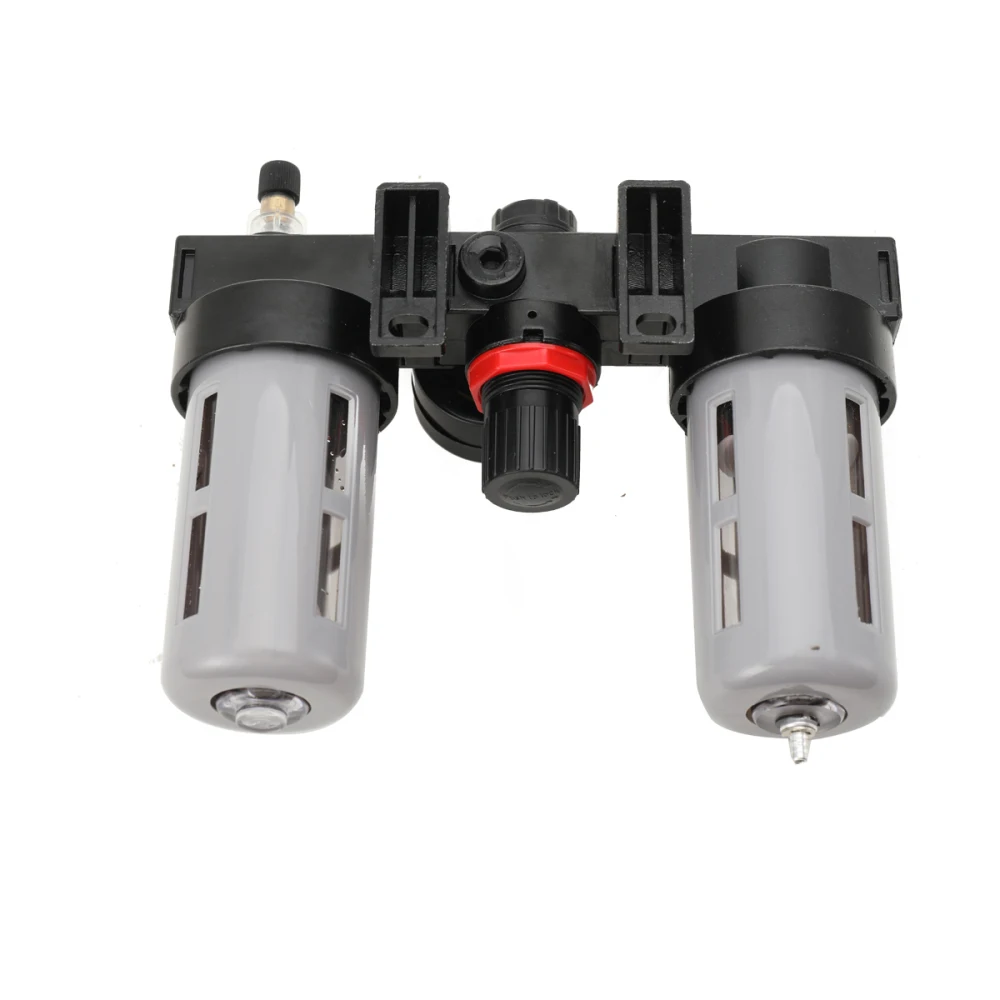

Specifications 1:
Name: Air Line Filter Separator
Model: BL-4000
Main Material: Aluminum Alloy
Cup material: Plastic + PC
Working medium: Air
Inlet: PT 1/2"
Filtering core precision: 40μm
MAX. PRESS: 9.9Kgfcm ²
ADJ. RANGE: 0.5-9.0Kgfcm ²
Operating temperature -5~60 ℃
The capacity of the cup of water filter: 60 c.c.
The capacity of the oil cup: 90 c.c.
Recommended oil: ISOVG32 or The same class oil

Drainage method: differential pressure drainage


★Regulates pressure more accurately than the regulators supplied with most small compressors.
★Better regulation of air pressure gives air tools more consistent performance and is absolutely essential when spraying.
★Built in filter to remove large particles and grit that cause excessive wear to air tools.
★Complete with pressure gauge to show output pressure and locking regulator knob helps prevent accidental pressure adjustment.
★Also features a built in water trap to remove any condensation that may form in the compressors tank.
★Also features a built in oil lubricator. If required this lubricates air tools down the air line,and provides an oil mist in the air in proper proportion to the consumption.

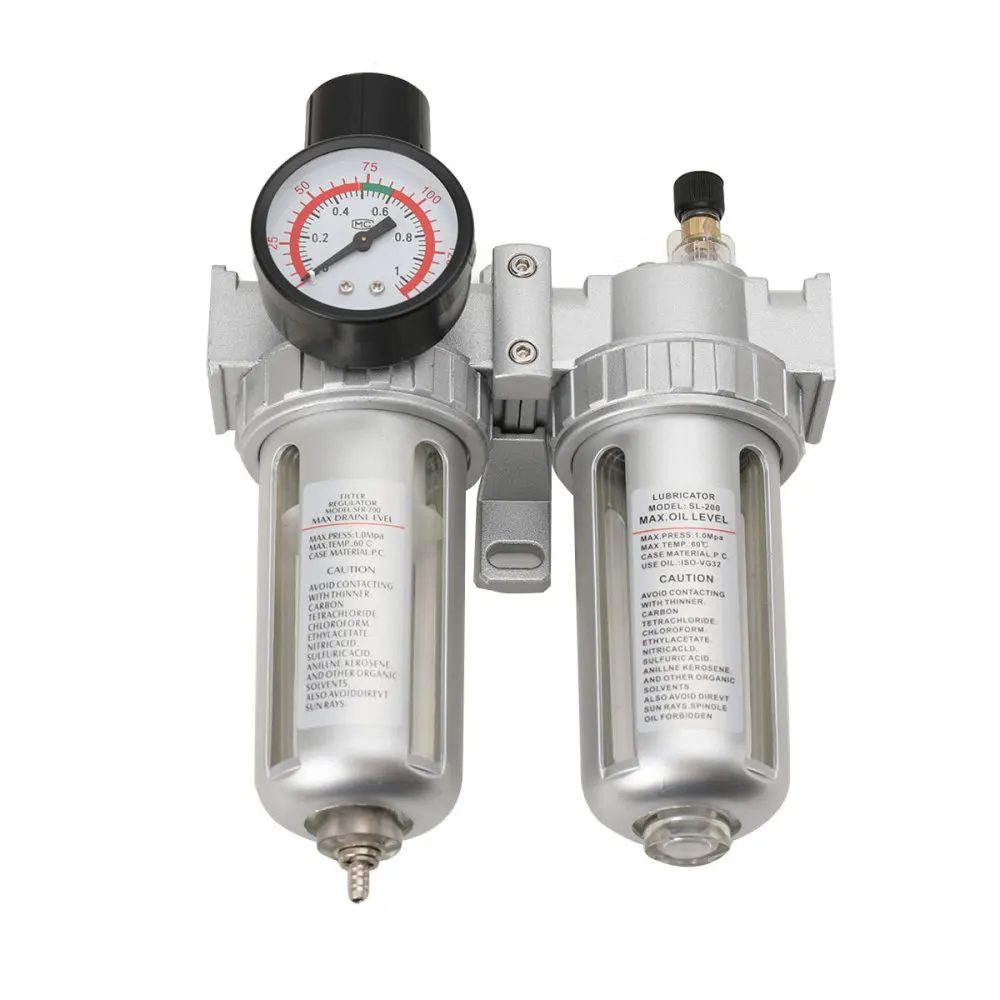

Specification 2:
Name:Air Line Filter Separator
Model: SL-200
Material: Aluminum body
Case Material: Plastic + PC
Color: Silver
Item Size: 22*15.5*7cm
Air In/Outlet: 1/4''
Temperature Range:5-60 Degrees
Max. Pressure: 1Mpa = 145Psi
Recommended oil: ISOVG32 or The same class oil

Packing list
1 x PT 1/2" BL-4000 Compressor Filter kit / 1 x 1/4" Compressor Filter kit

Notes:
1. Please Check The Size Detail Carefully Before You Purchase.
2. Due to lighting effects, monitor's brightness , contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item.
3. Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.
