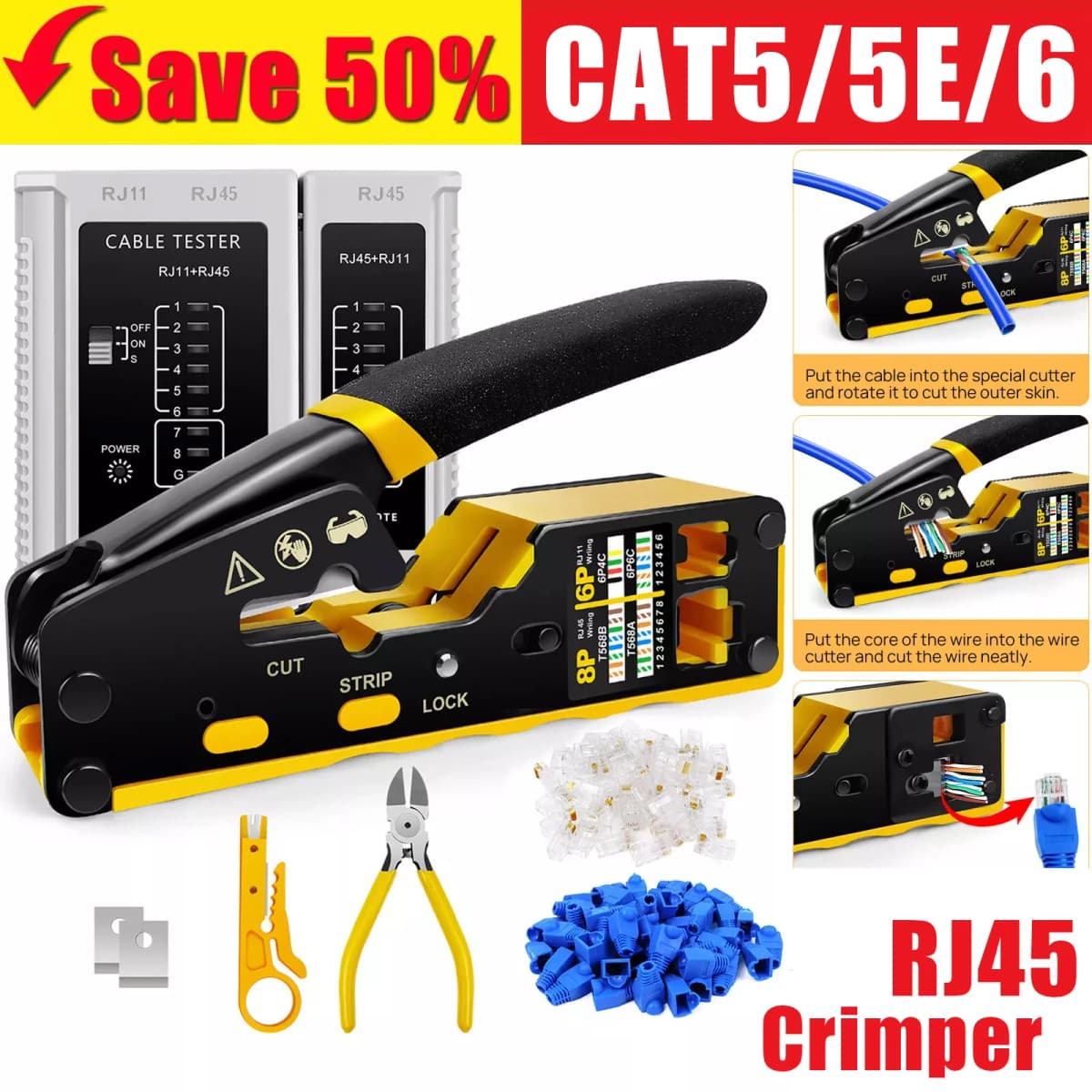

DayPlus RJ45 Network Crimper with Tester, 3-in-1 Crimping Cutting Stripping Lan CAT5/5E/6 (STP/UTP) & RJ11/12 Tel Modular Cable

- Fast, reliable RJ45 Crimp Tool for voice and data applications with Pass Through 50PCS RJ45 connector plug, 50PCS Covers Network/Phone cable tester, plier, Mini Cable Stripper (Replacement blades available)

- RJ45 Pass Through Crimp Tool - Reduce prep work time significantly with Pass Through technology

- Compact RJ45 Crimper - crimps and trims RJ45 Pass Through connectors onto paired-conductor cables (round STP/UTP cables)

- Wiring diagram on the tool helps eliminate rework and wasted materials

- Phone/Network Cable Tester - Network Cable Tester for cables with RJ45/RJ11/RJ12 Connector (9V battery not included)； We can test our just finished cable in this tester, and we will quickly know whether this cable work or not

Product Name: RJ45 crimping tool

Package size: 23*23*5cm

Weight: 0.8kg

Color: Black & yellow

Hole position: double hole

Crimping range: network cable, telephone line

Material: tool steel + ABS

Suitable for: rj45 port (network cable) rj11-rj12 port (telephone line)

Function: crimping, cutting and stripping 3 in 1

Compatible with: Cat5 cat5e cat6 network cable

Note:

- CAT5 is compatible with 5 series network cables, such as cat5e; cat6 is the same

- CAT5/CAT6 refers to network cables of different rates

The difference between 8P and 6P in the double hole：

8p is the port of rj45

6p is the port of rj11-rj12

8p is the network cable head 6p is the telephone line head

Wire sequence of crystal head wiring：

1.There is a sticker on the pressure interface on the tool pliers, which can be inserted into the alignment slot

2.The crimping sequence of the two crystal heads must be the same, otherwise it will not be powered on.

The package contains：

- Dual-purpose crimping pliers*1

- Network tester*1

- Multifunctional wire stripper*1

- Pliers*1

- Spare disassembled blade*1

- Crystal head*50

- Crystal head protective cover*50
