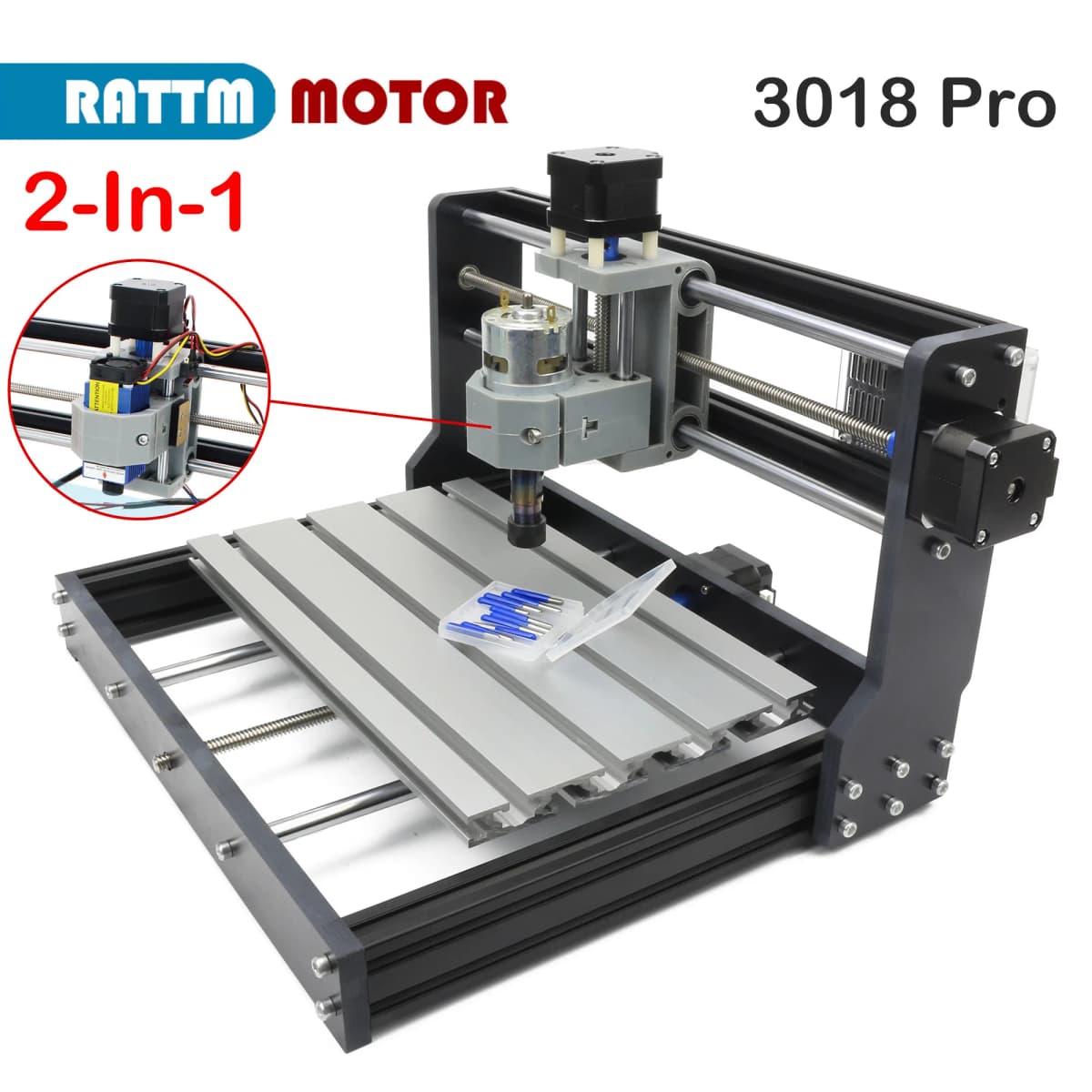

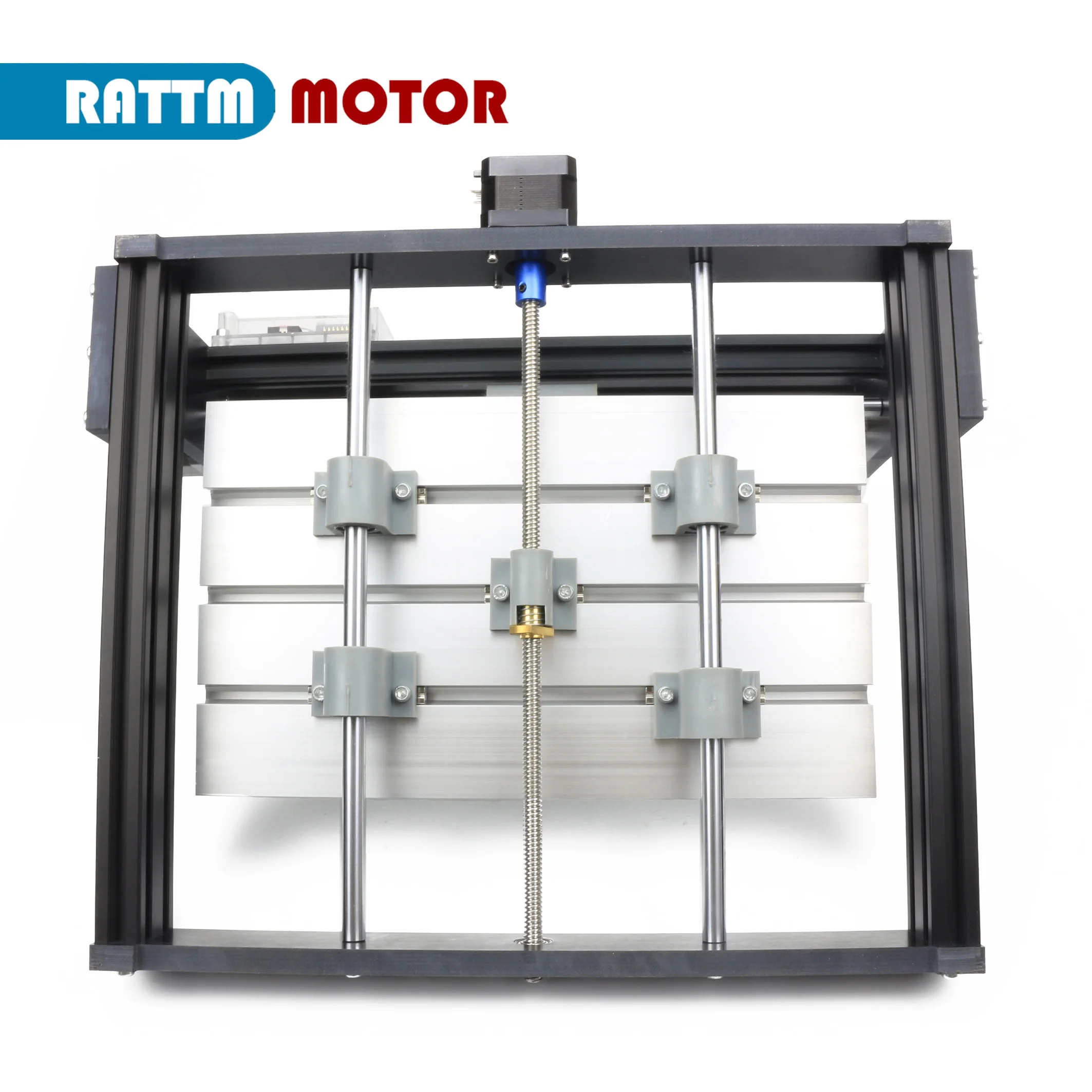

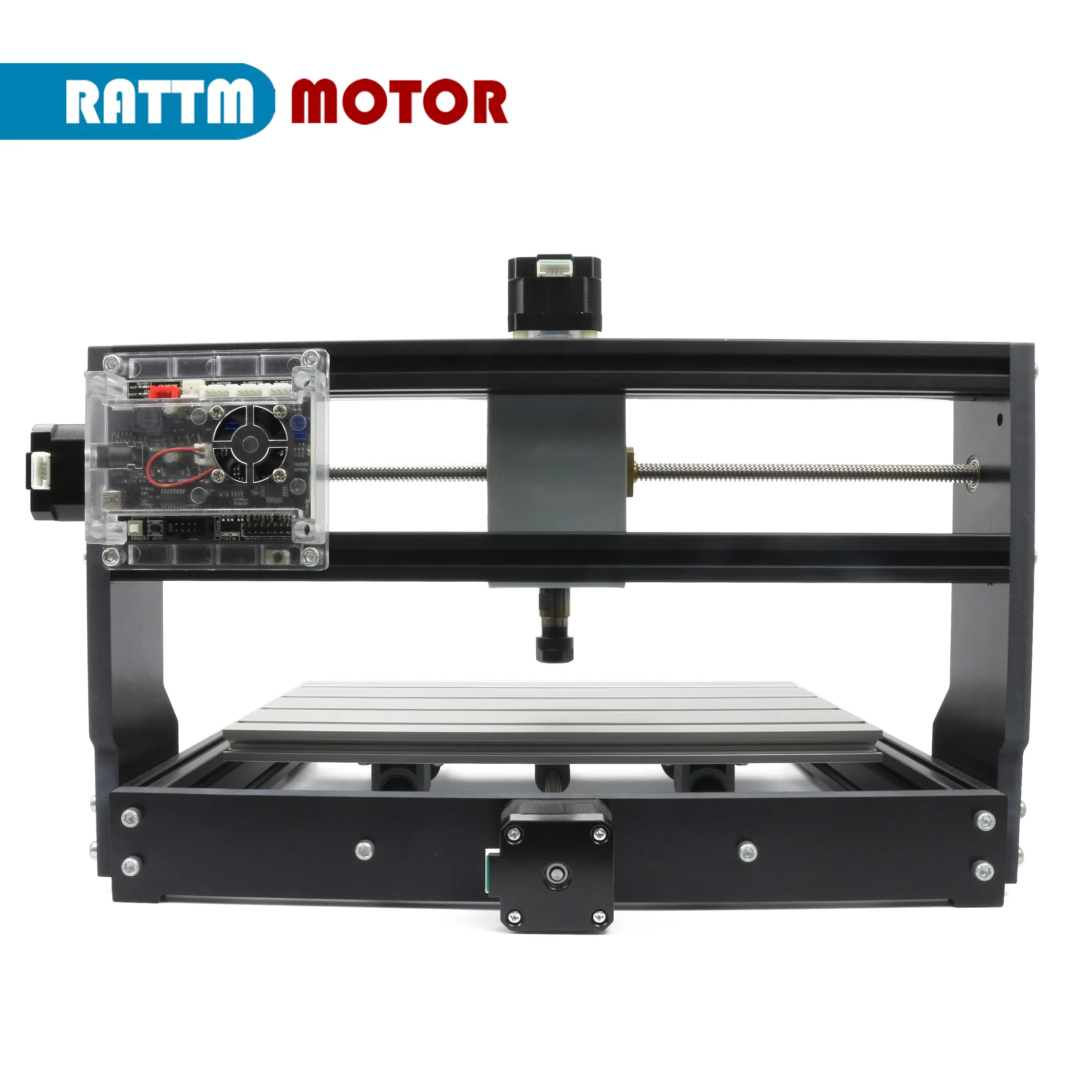

DE Stock 3018 PRO CNC Laser Engraver Wood CNC Router Machine GRBL ER11 Hobby DIY Engraving Machine for Wood PCB PVC Mini CNC

Package include:

1set GRBL 3018 Pro CNC Laser machine kit (laser is optional)

1 x 775 Spindle Motor with ER11 Collet

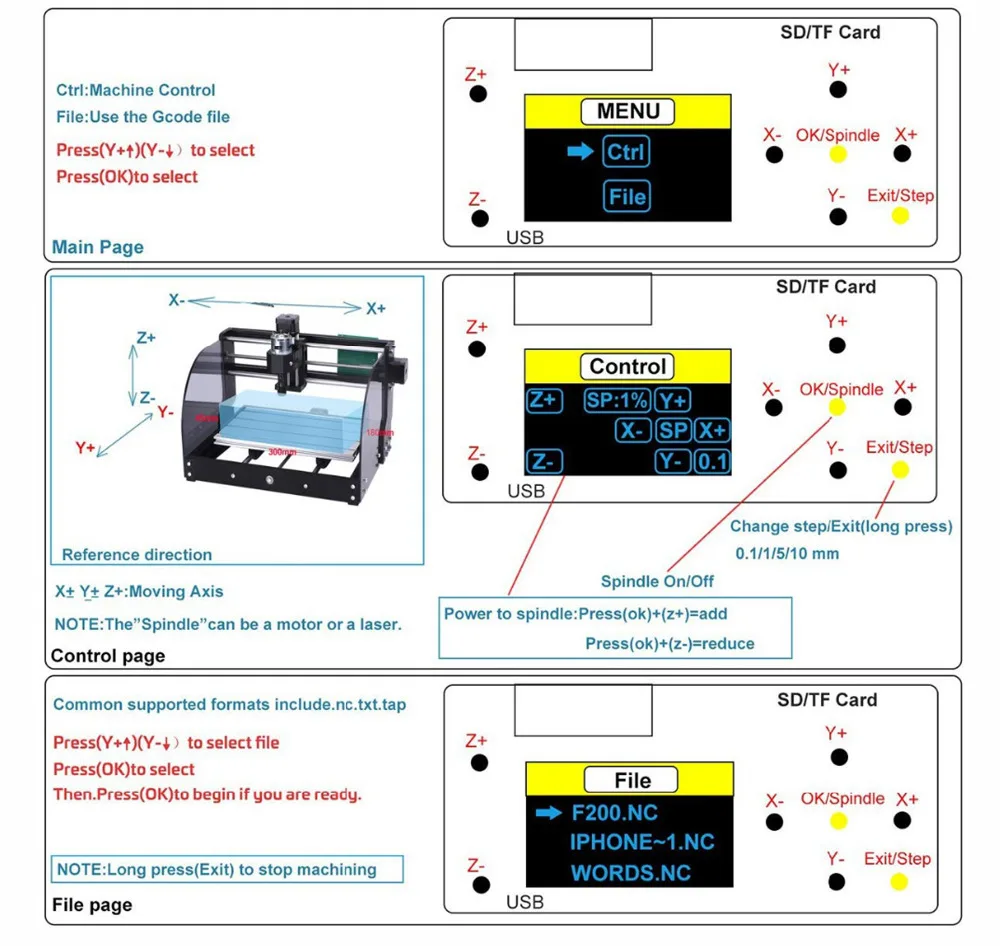

1 x Offline hand controller(optional)

1 x GRBL control board

10 x 20°0.1mm drill bits

1 x Set of allen wrench

1 x Power Supply

1 x U disk

English manual link will send to your email.

Ps:because ER11 shank accuracy is very high, so the hole is small,therefore. need to be heated before installing the shank to be fitted.

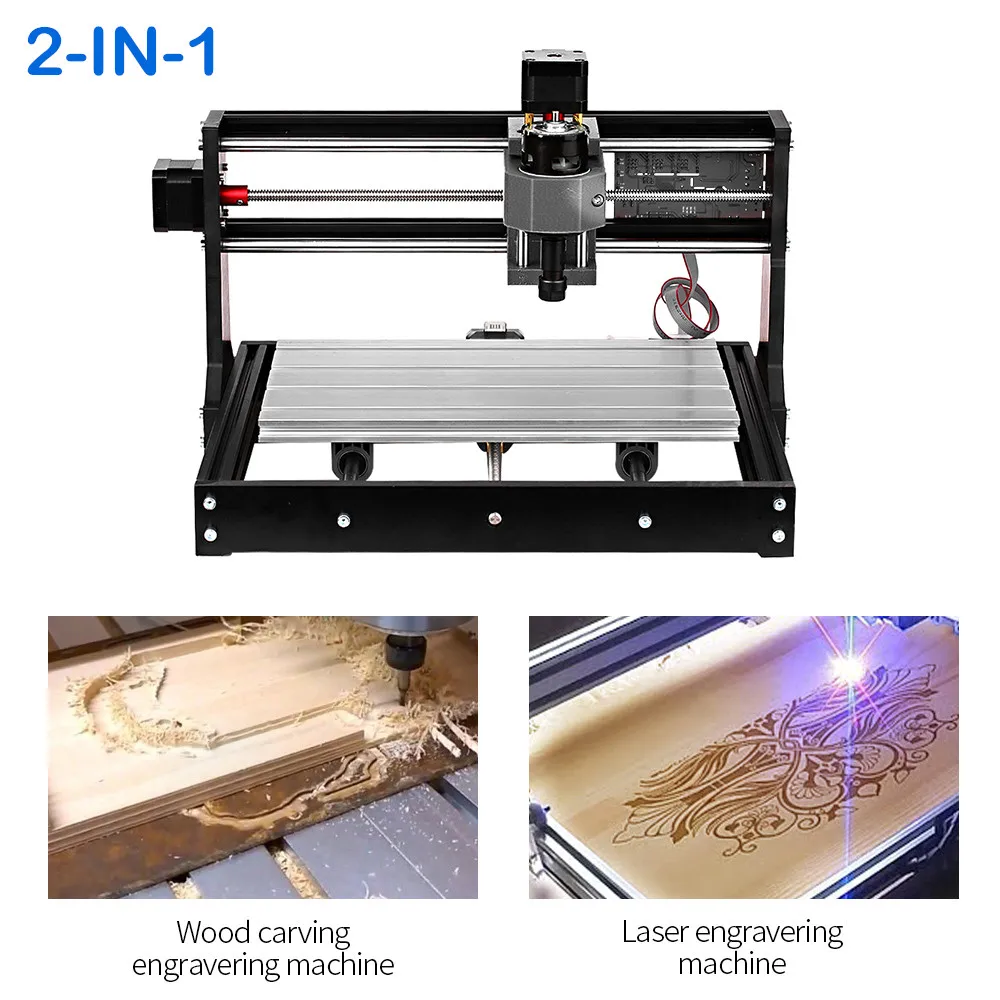

 Introduction:

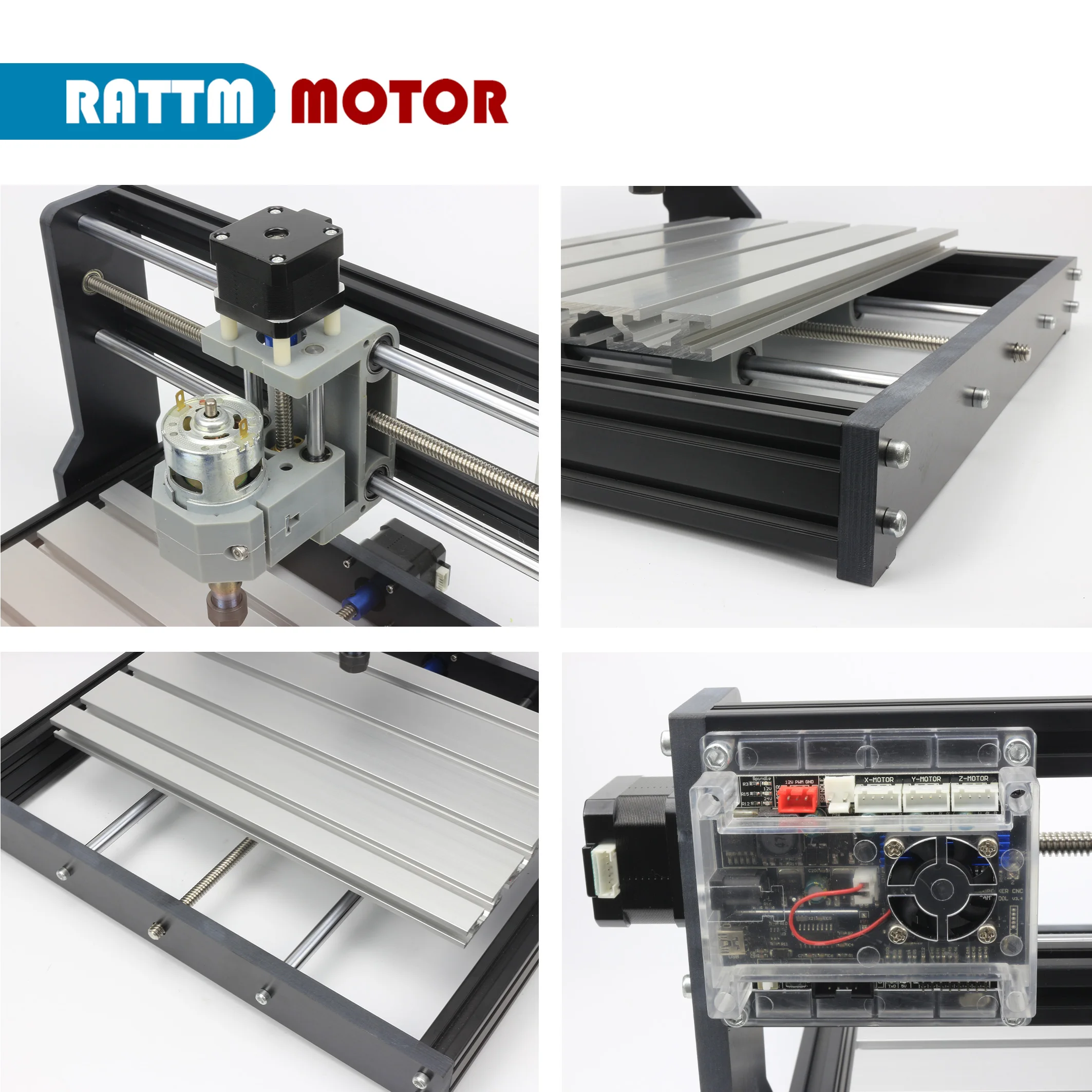

Body used profiles and plastic, small size, light weight, USB interface,

GRBL control system, learning, entry preferred. Can use carving knife,

but also can use laser engraving.

Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the other similar material.

 Basic Paraments:

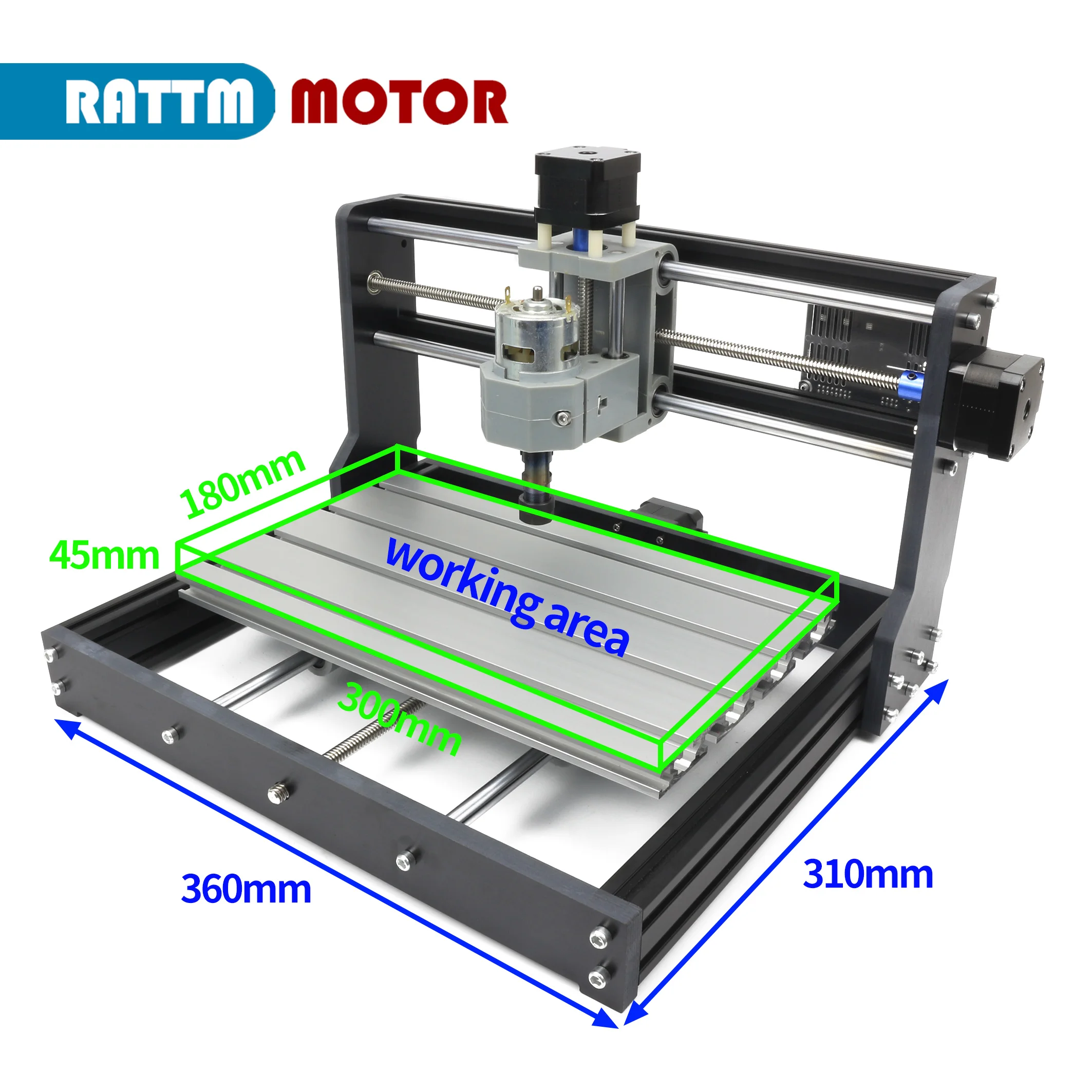

Working area :30x18x4.5cm

Frame size      :42x25x27CM

Spindle            : 775 spindle motor (12-36V)24V: 10000r/min

Spindle Collet : ER11-3.175mm,Support 0-7mm

Step motor      : Nema17 Stepper,Torque 0.3N/M, 1.3A

Power supply  : AC110-240V

Software          : GRBL controller

Support System: Windows XP / Win 7 / Win 8 /

Drill bits: tip 0.1mm ,20 degree , diameter3.175mm.

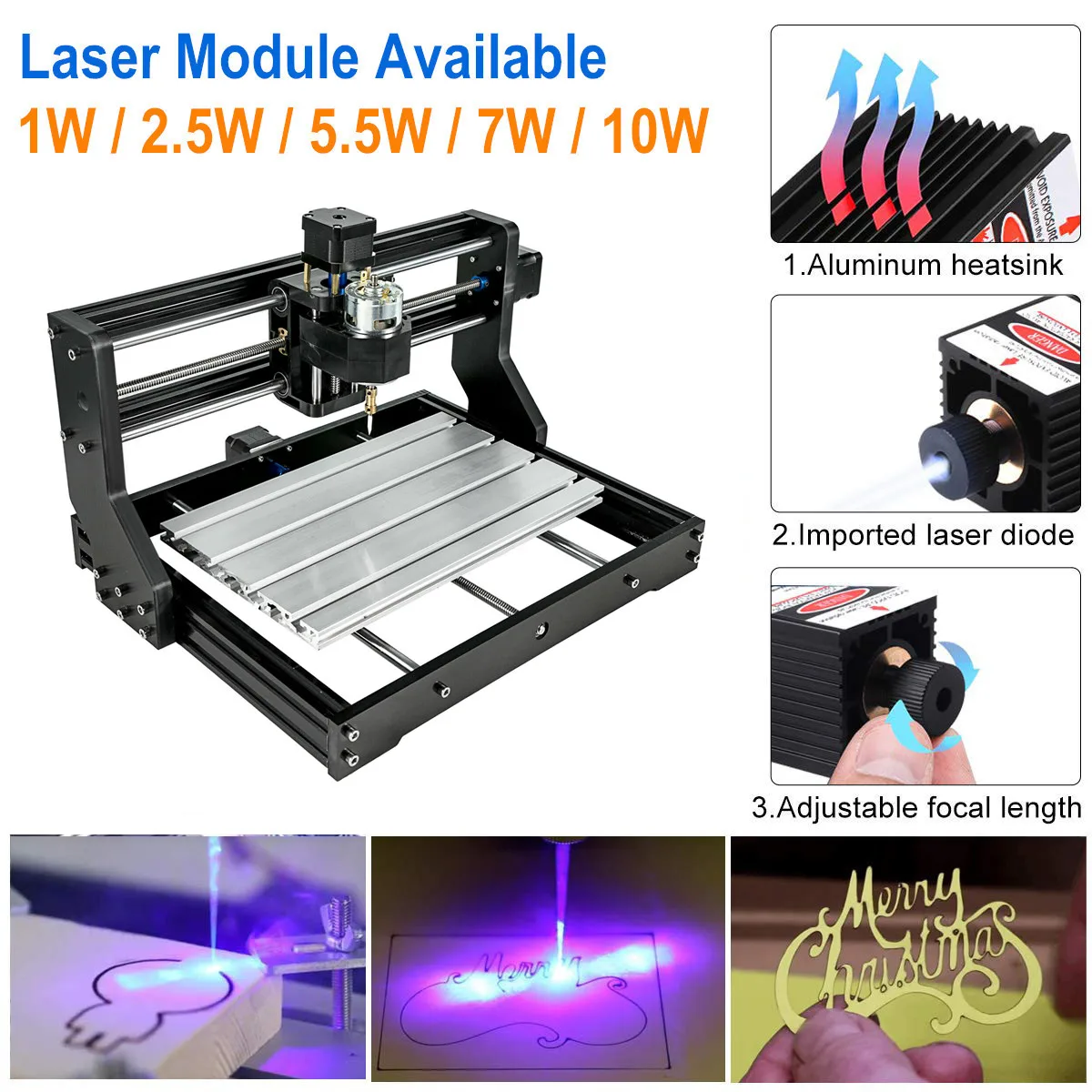

Laser: 500mw 405nm,12v / 2500mw 450nm,12v / 5500mw 450nm,12v.
