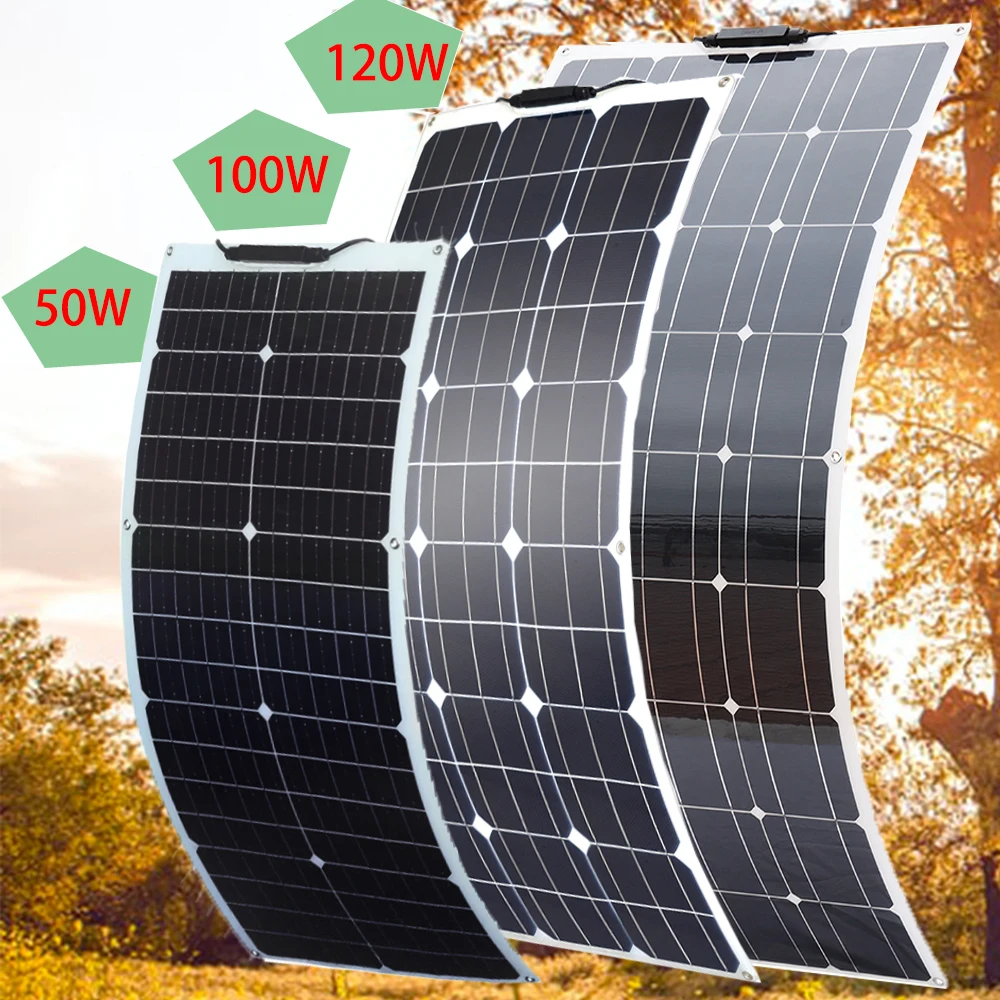

18V Flexible Solar Panels 50W 100W 120W Solar Balcony Photovoltaic Panel for Home Car Boat Camper 12V Battery Charger Waterproof

12V Flexible Solar Panel 50W 100W 120W Monocrystalline Bendable 18 Volt Semi-Flexible Mono PV Panels Charger Off-Grid

Features:

* Conversion efficiency 21%.

* Generate electricity all day in the sun.

* Can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage,

* Lightweight and easy to install.

* Outdoor photovoltaic power generation portable device.

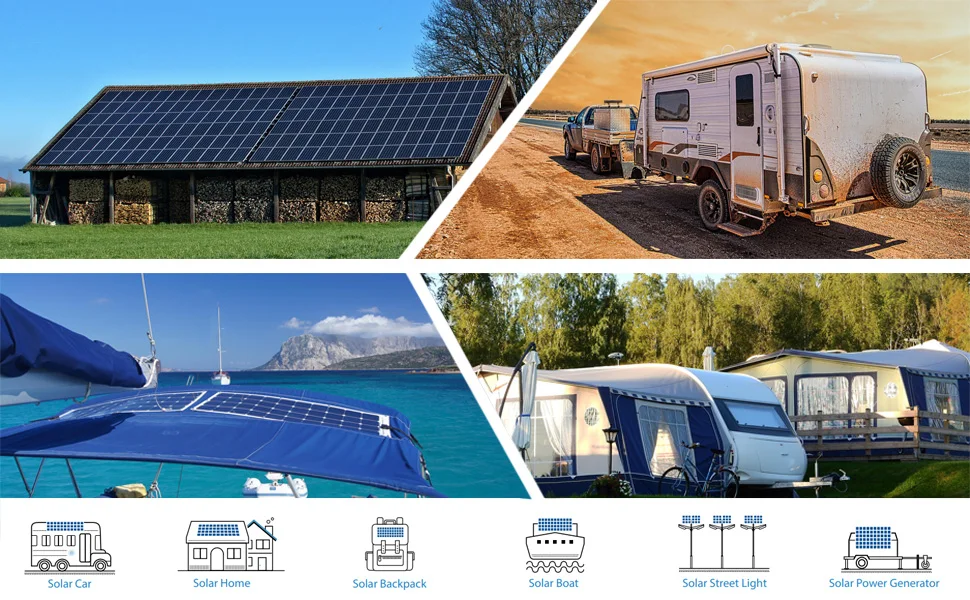

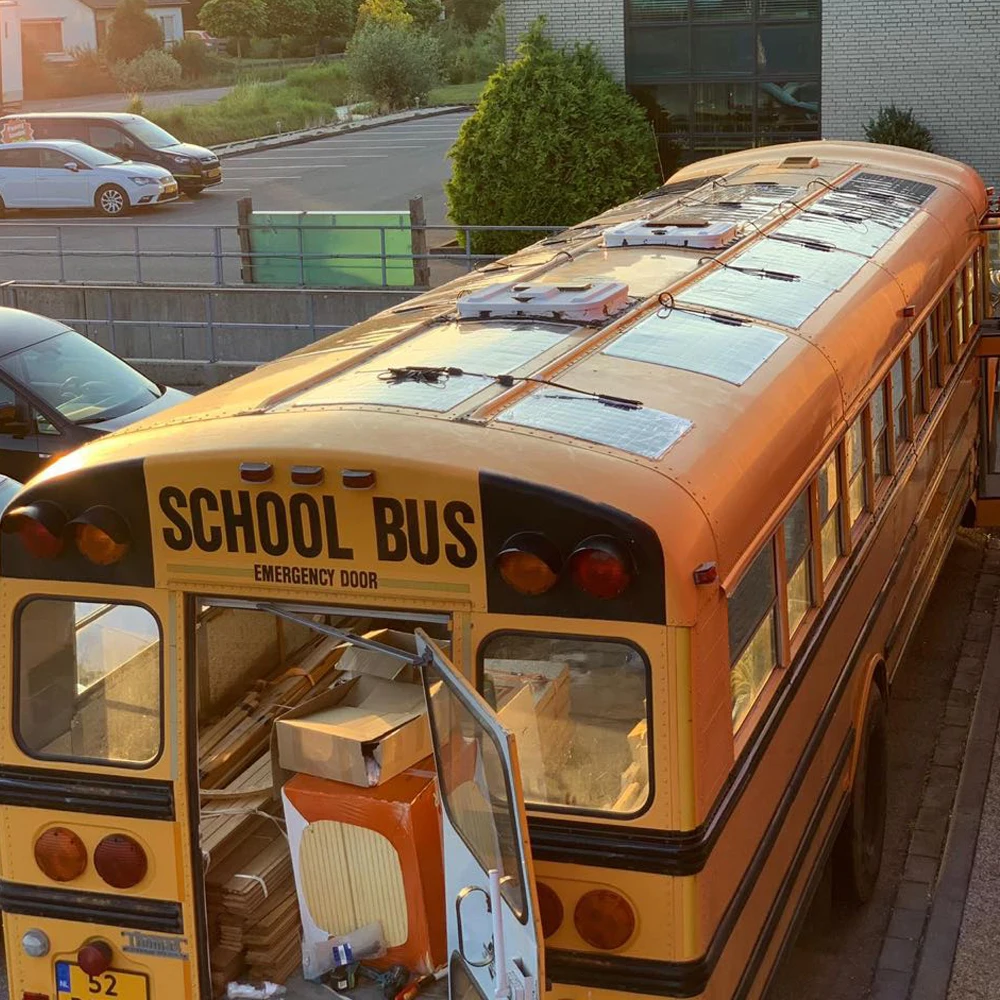

* Wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.

19.8V 50W Specification:

Cell material: Monocrystalline silicon
Pmax (Power at Maximum under STC) :50W
Imp (Current at Max Power, A): 2.52A
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit):21.8V
Isc (Current at Short Circuit,A): 2.65A
Solar Cell Efficiency: 24%

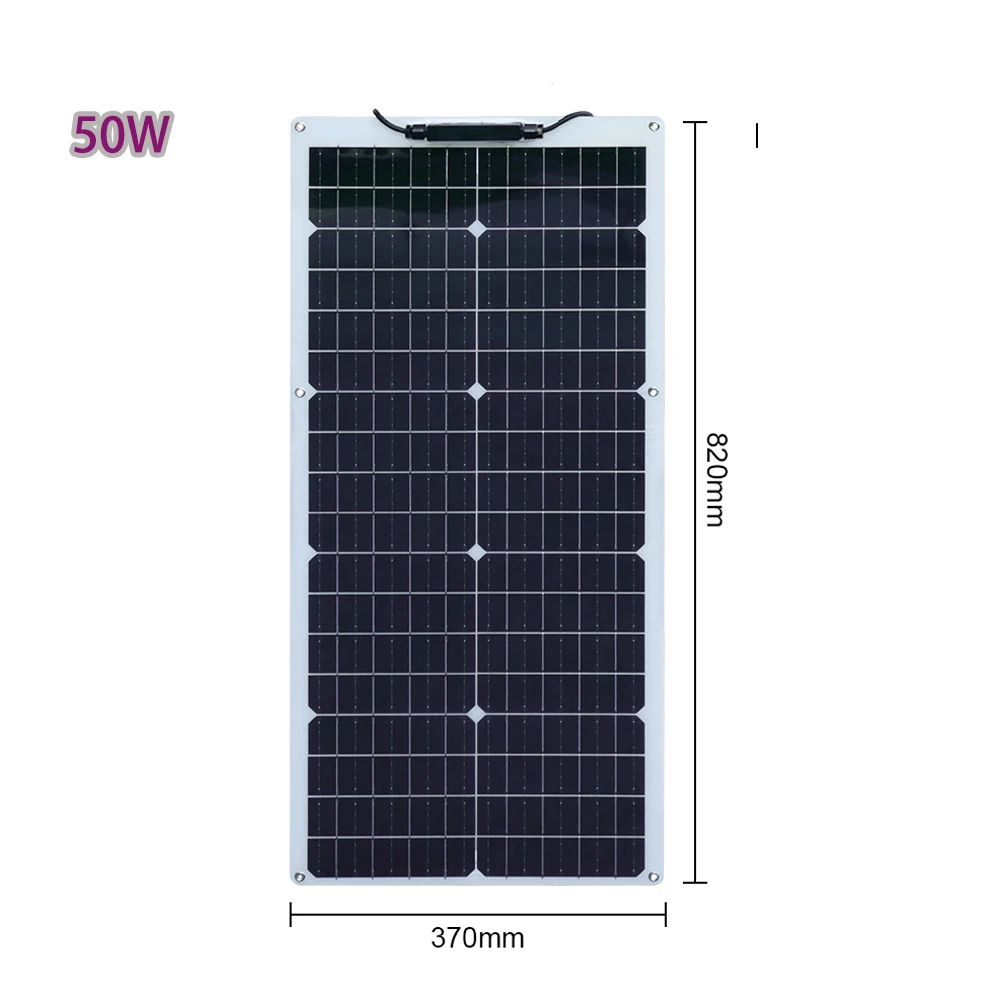

Size of module:820*370*3mm

Net Weight: 2.56Ib (1.1kg)
Length of Cables: 19.7(inches)

18V 50W Specification:

Maximum power(Pmax) 50W

Output tolerance ± 3%

Maximum system voltage 600V DC

Open circuit voltage(Voc) 18V

Short circuit current(Isc) 2.77A

Maximum power voltage(Vmp) 21.6V

Maximum power current(Imp) 2.91A

Cell efficiency 24%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 33pcs

Weight 1500g

Size 1150*235*3mm,

Color White

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5


1 Etage: Haustier

2 Etage: Eva Film

3 Stock: Solarzelle der hohen Leistungs fähigkeit

4 Stock: Eva Film

5 Etage: Tpt Backs heet

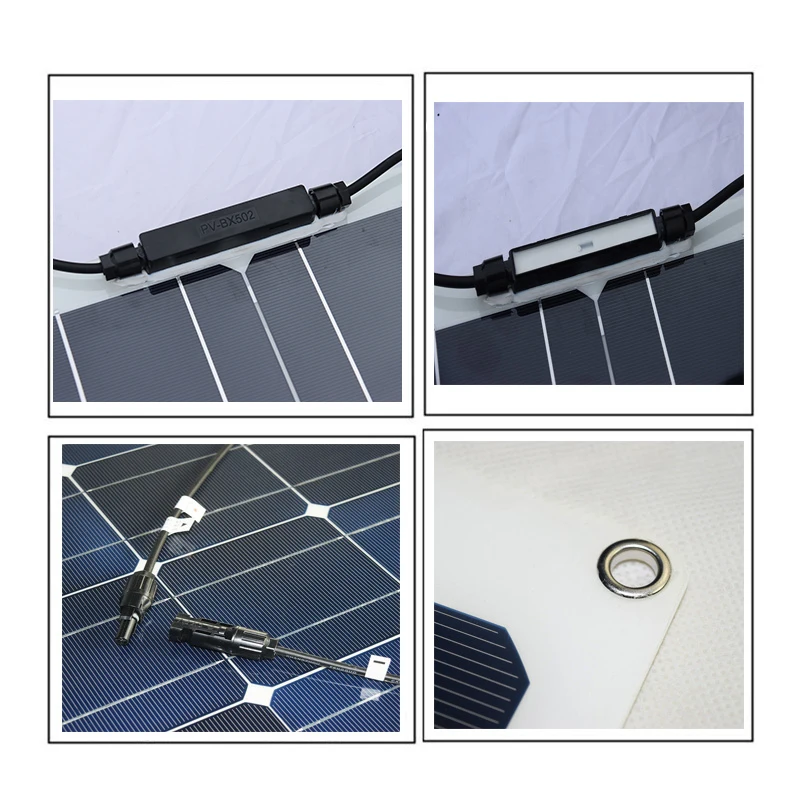

Wasserdichtes Niveau: IP67 (Anschluss kasten)

(Die obigen Daten basieren auf der Labor-Standard-Testumgebung)

Für Feld verbindungen, verwenden minimun no.14awg Kupferdrähte isoliert für ein Minimum 90 ℃

Standard test bedingungen:

Am = 1,5 Bestrahlung stärke = 1000w/m2 Temp.= 25 ℃

(Die Größe wird manuell gemessen und es gibt einen bestimmten Fehler. Kunden, die genaue Größe bitte nicht kaufen wollen, danke)

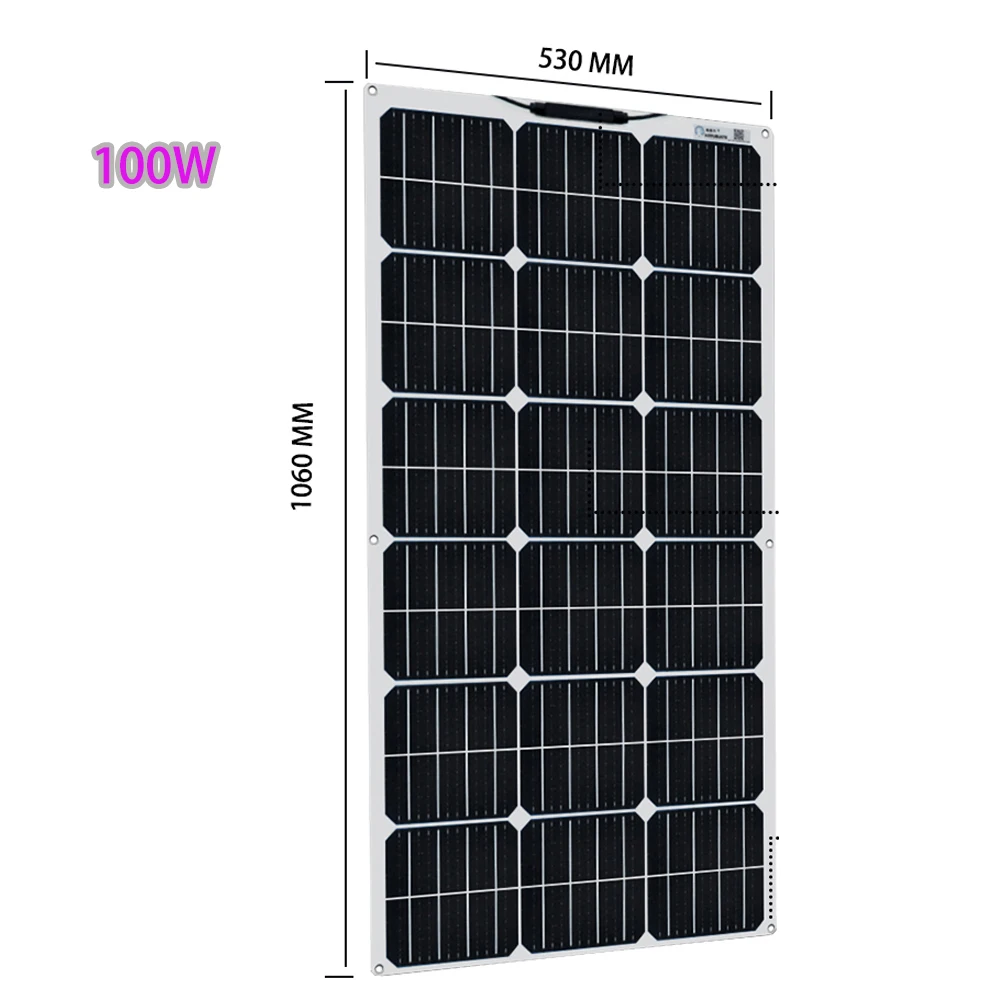

19.8V 100W Specifications

Maximum power(Pmax) 100W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 23.7V
Short circuit current(Isc) 5.55A
Maximum power voltage(Vmp) 19.8V
Maximum power current(Imp) 5.05A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 1950g
Size 1060*530*3 mm
Colour: Black
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

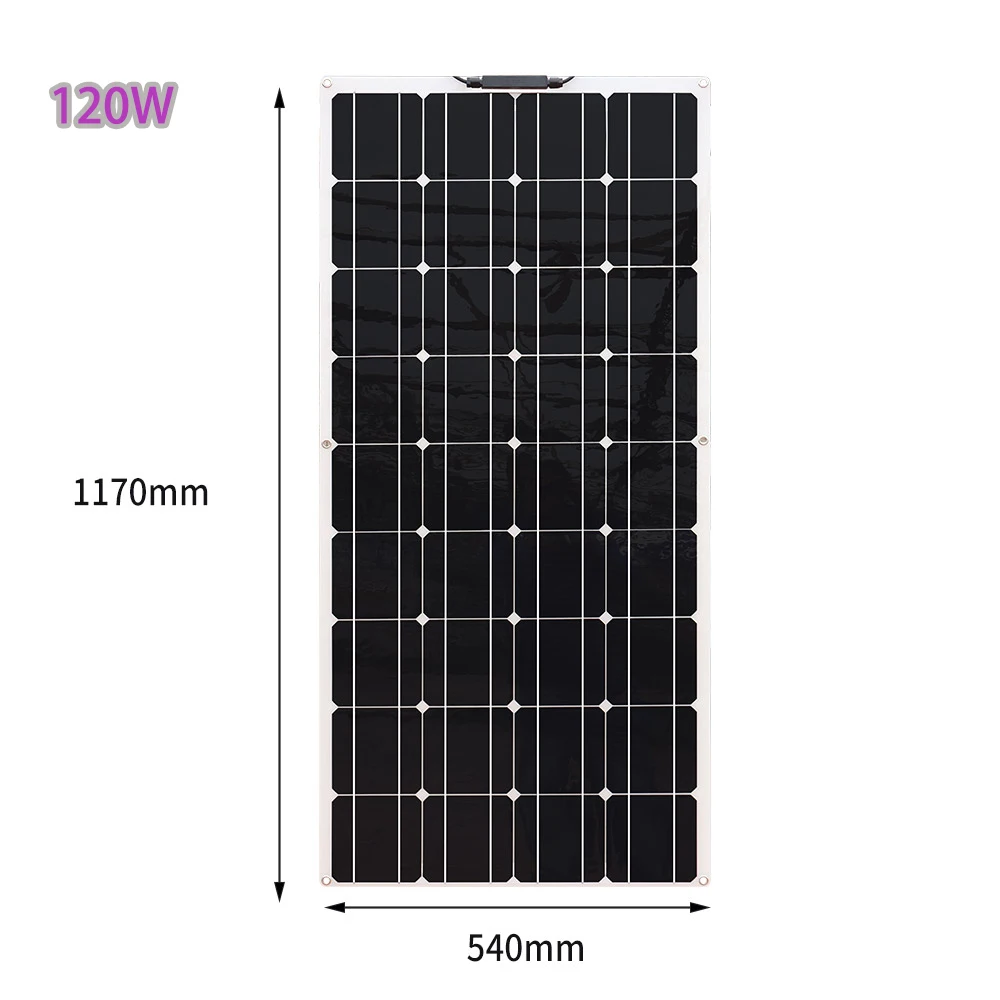

18V 120W Specification

Maximum power(Pmax) 120W

Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Maximum power voltage(Vmp) 18V

Short circuit current(Isc) 6.8 A

Maximum power current(Imp) 6.5A

Cell efficiency 21%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Weight 2100g

Size 1170*540*2.5 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
