BOGUANG 200W Flexible Solar Panel 100W Waterproof Portable Solar Panels Charger 12V / 24V Solar Cell For Home/Car/Camping/Boat

BOGUANG 200W Flexible Solar Panels Waterproof Portable Solar Panels Charger 12V / 24V Solar Cell Sets For Home/Car/Camping/Boat plug and play solar panel Solar energy Solar plate

Dear Buyer, pls kindly notice:

For Europe Client: solar panels will ship from our spain or czech warehouse, so buyer do not need to pay for tax.

For Russia Client: solar panels will ship from our Russia warehouse, so buyer do not need to pay for tax.

Attention

the zip code in France 20001-20999,97100-97699,98400-98899.

the zip code in Italy that starts with 22,23,47,69.

the zip code in Denmark 100-999,3900-3999.

the zip code in Portugal 9000-9900.

Mont Athos in Greece.

the zip code in Finland 2200-2299

Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain.so we will ship from China to above zone.there sometime will need pay extra remote area fee. hope you can understand.

for Spain,the zip code in Spain that starts with 07,35, 38, 51, 52,pls offer us your ID card number and real name on ID card,we need to make invoice then can send your order.

Package 1: 200W solar panel

1. 2pcs 100w solar panel (size1060*530*2.5mm)

100W Panel Solar specifications

Maximum power(Pmax)                           100W

Output tolerance                                  ± 3%

Maximum system voltage                       700V DC

Open circuit voltage(Voc)                        23.7V

Short circuit current(Isc)                          5.55A

Maximum power voltage(Vmp)               19.8V

Maximum power current(Imp)                 5.05A

Cell efficiency                                        22%

Operating temperature(NOCT)          45±2℃

Temperature range                                 -40℃～+80℃

Number of cells                                      33pcs

Weight                                               1950g

Size                                              1060*530*3 mm

Colour: Black
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

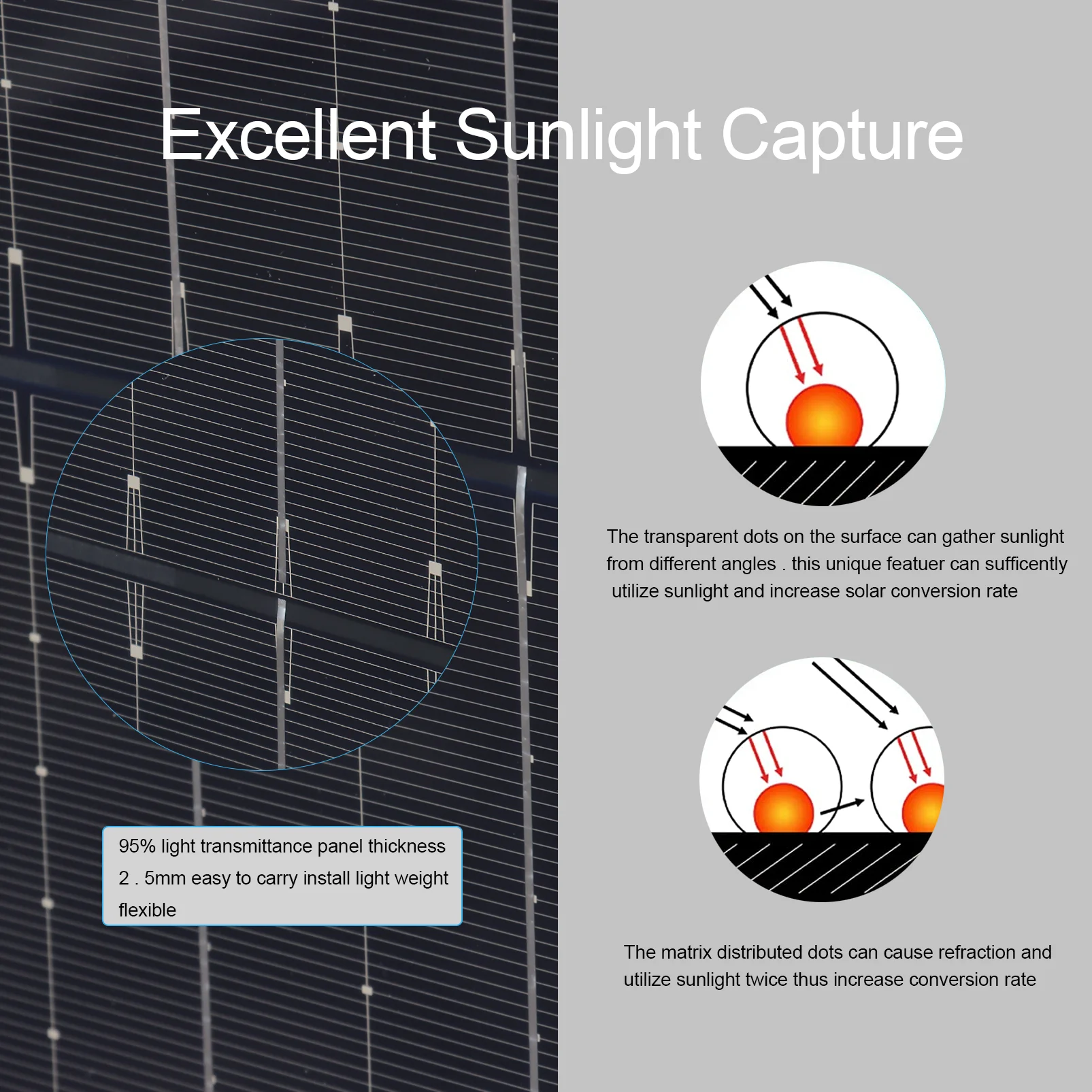

[Excellent performance] High efficiency monocrystalline solar cells offer good performance even under poor light condition,Including bypass diode, circuit with input overcurrent protection, reverse protection design

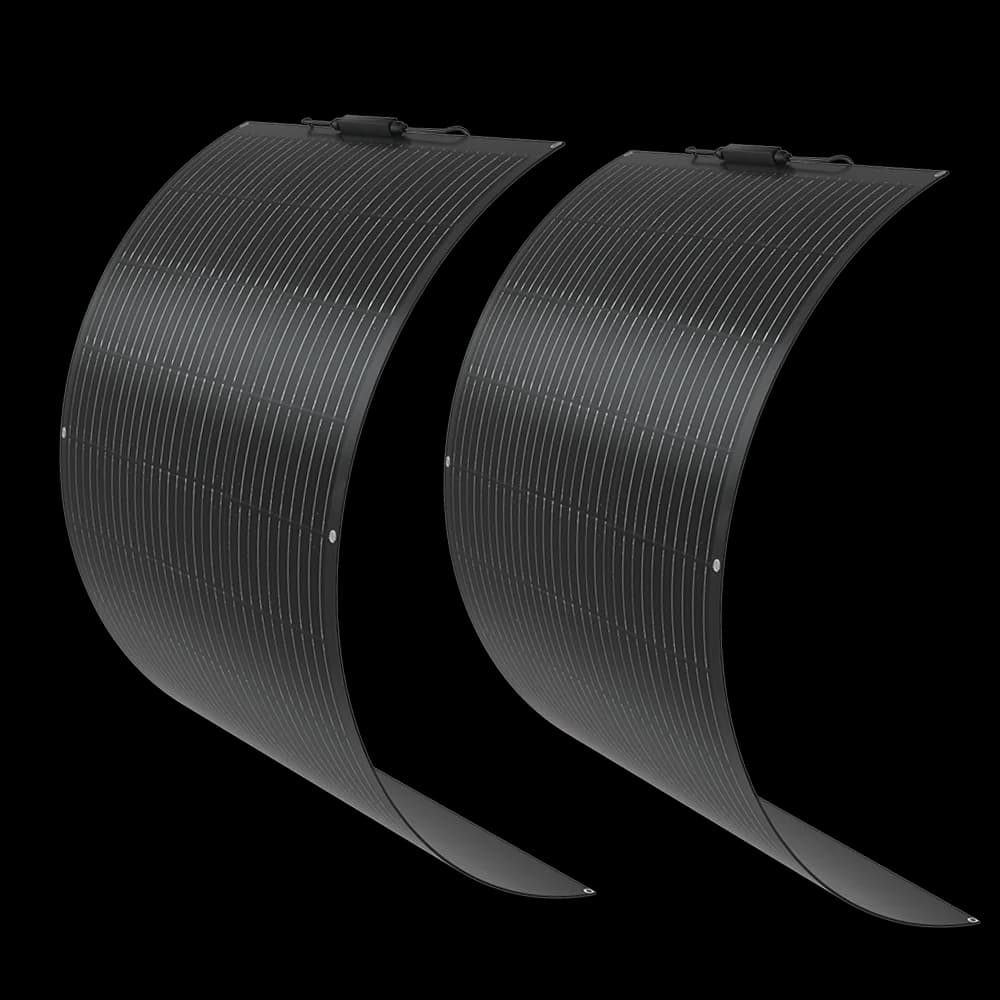

[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.

[Practicality] Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas.

[Lightweight] Ultralight and Ultra-thin ,Better applied to the carrier with weaker bearing, attached to the surface, no space,easy to install,

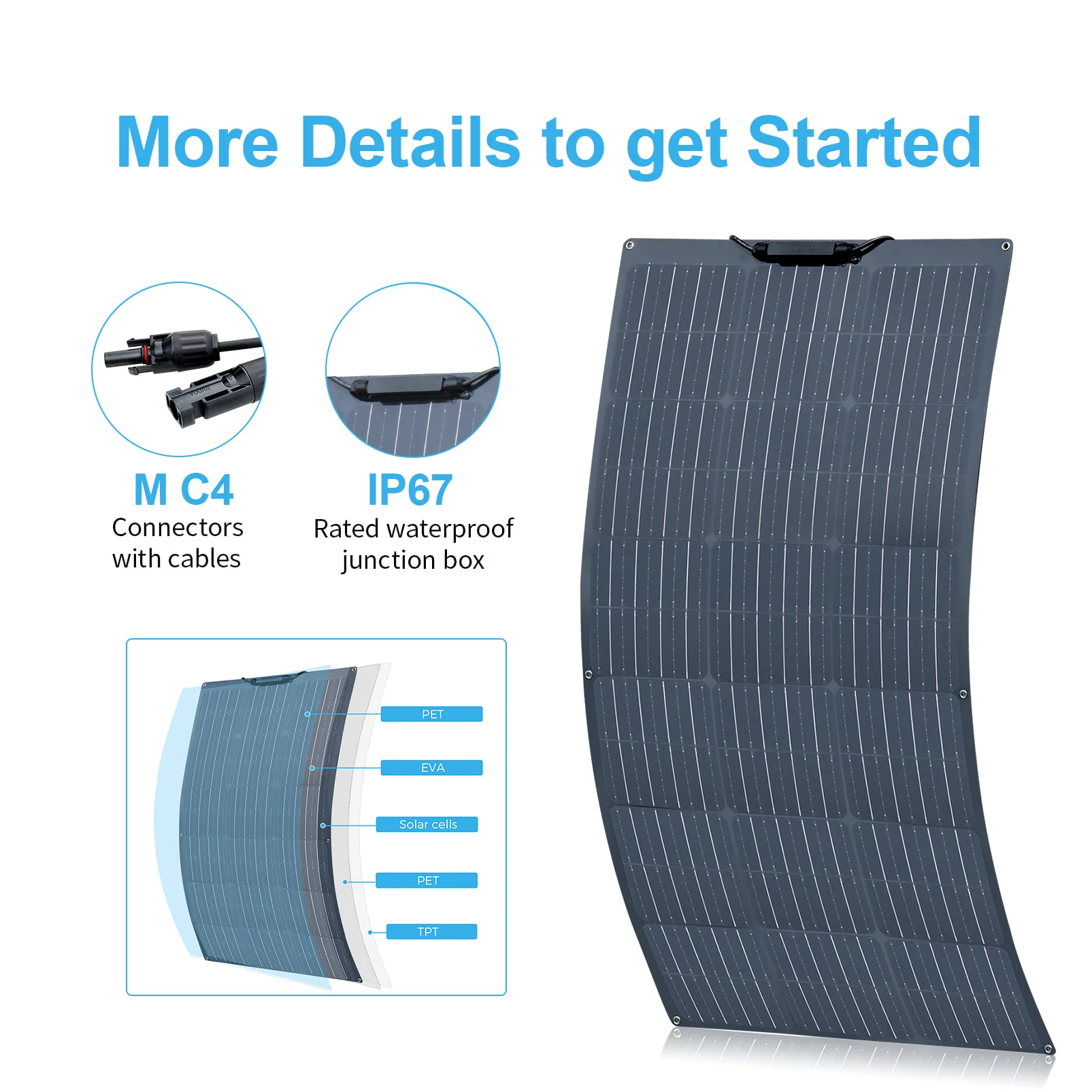

[Nice Details] The water resistant semi-flexible solar panel is far more durable than traditional glass and aluminum models, The junction box is sealed and waterproof.

24V Solar panel kit connection diagram


12V Solar panel kit connection diagram

Solar system kit wiring method and precautions

1.The solar system kit connection is divided into parallel connection or serial connection. The controller must be first connect the battery , and then connect the solar panels.

2.When the solar panels are connected in series or in parallel, paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.

3.The total input power of the solar panel can't be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.

4.When the cable is connected to each component, the connection should be stable and there should be no looseness.

5.The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.

6.When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultaneously connected to the battery.
