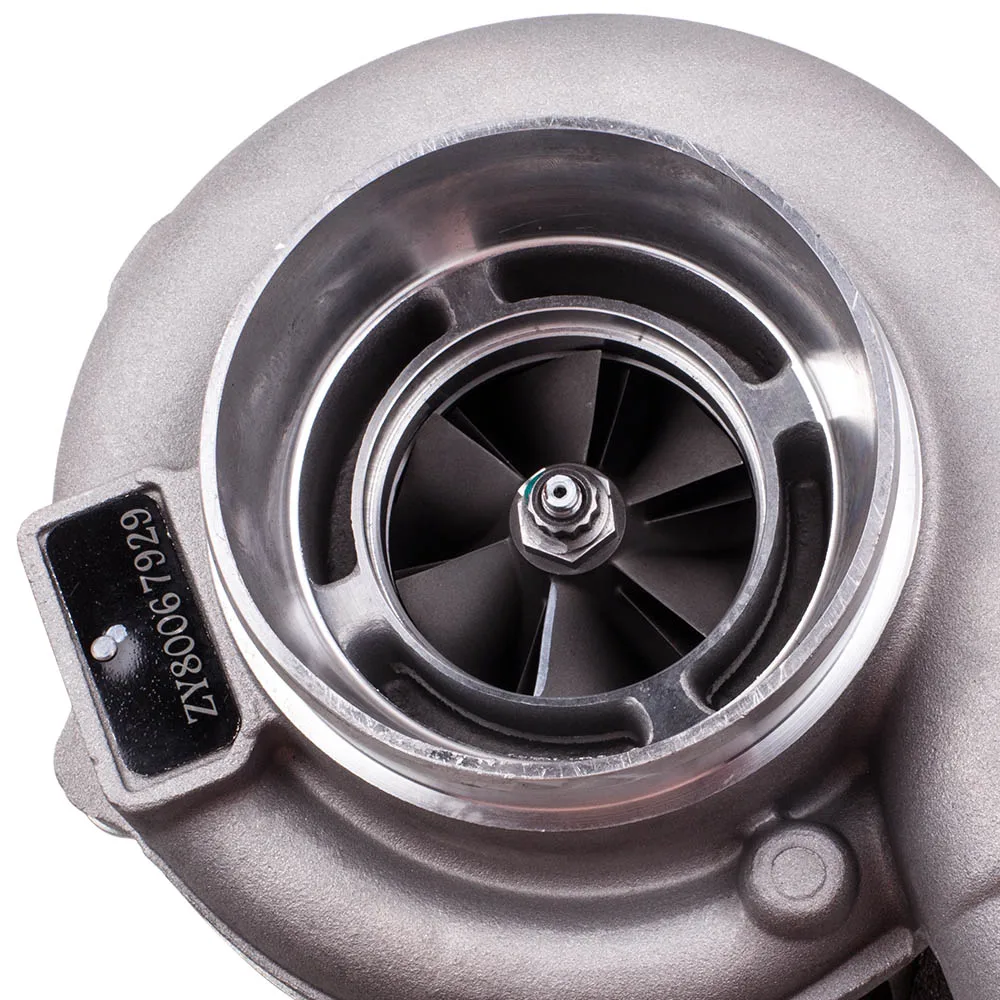

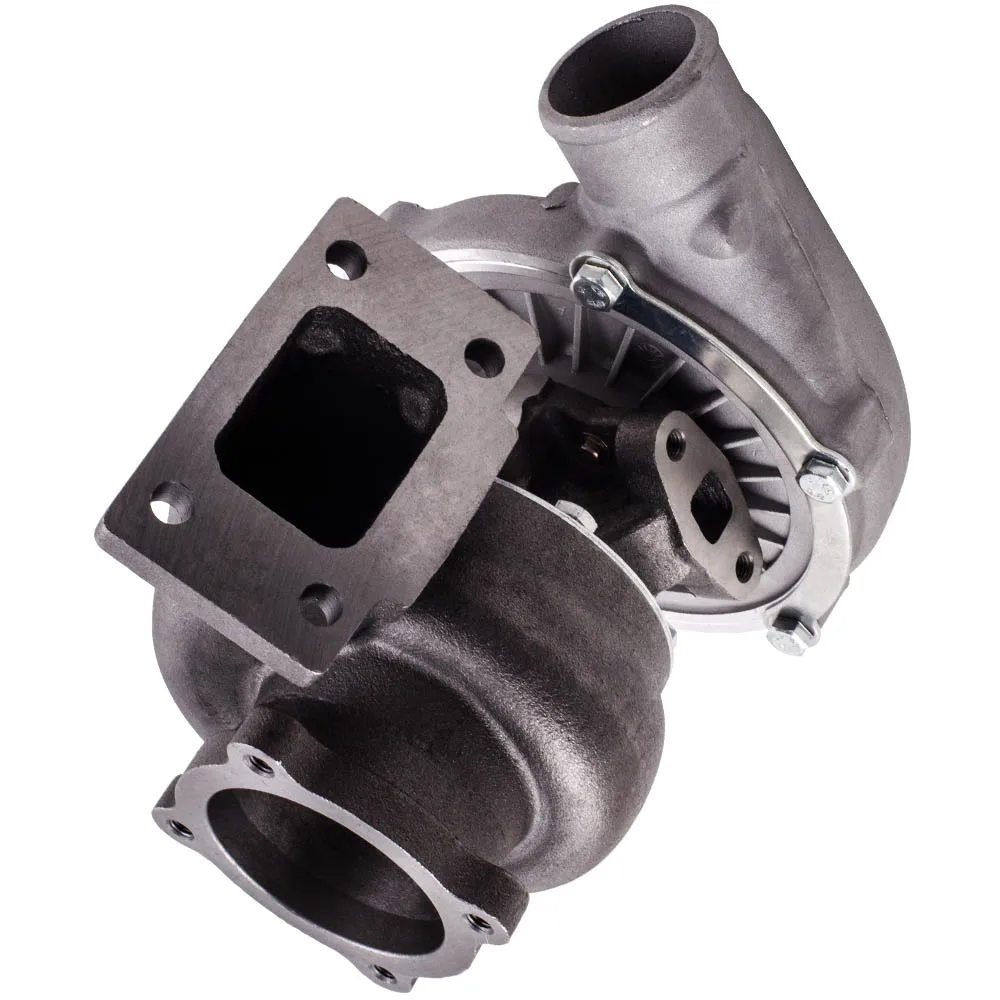

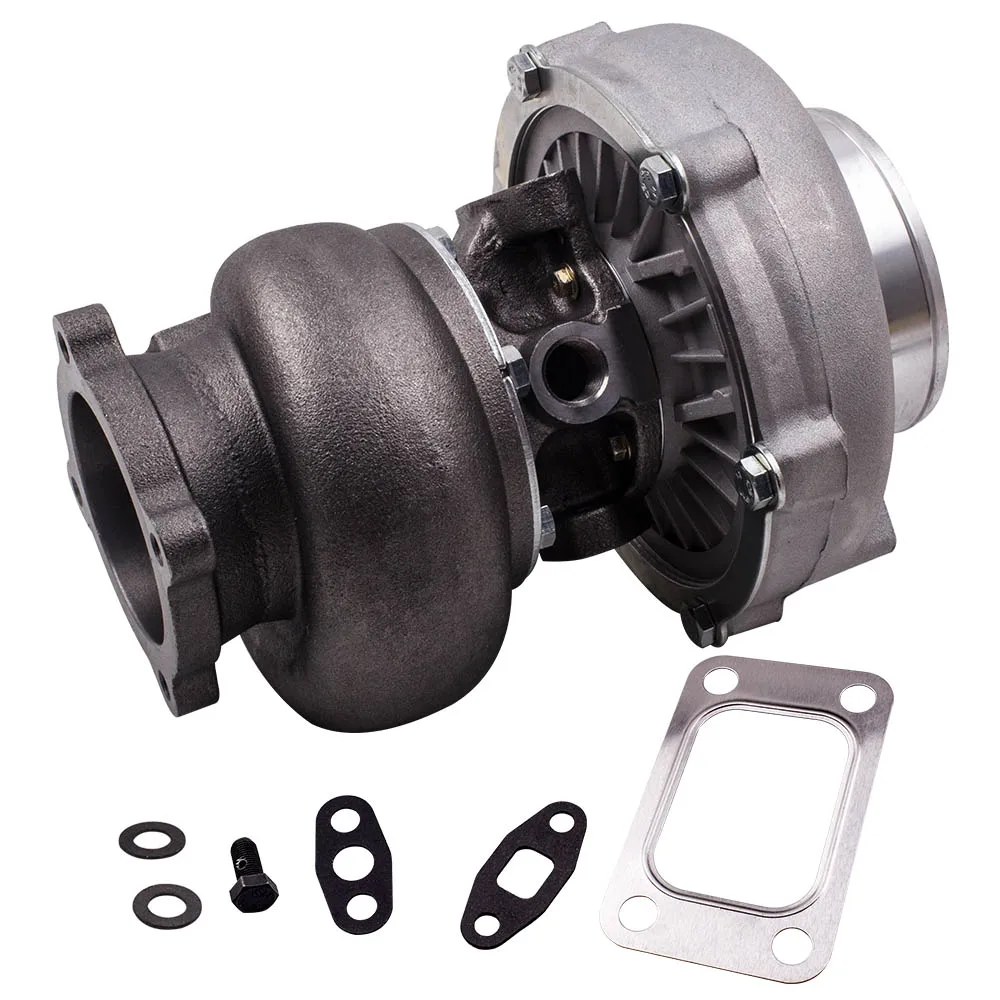

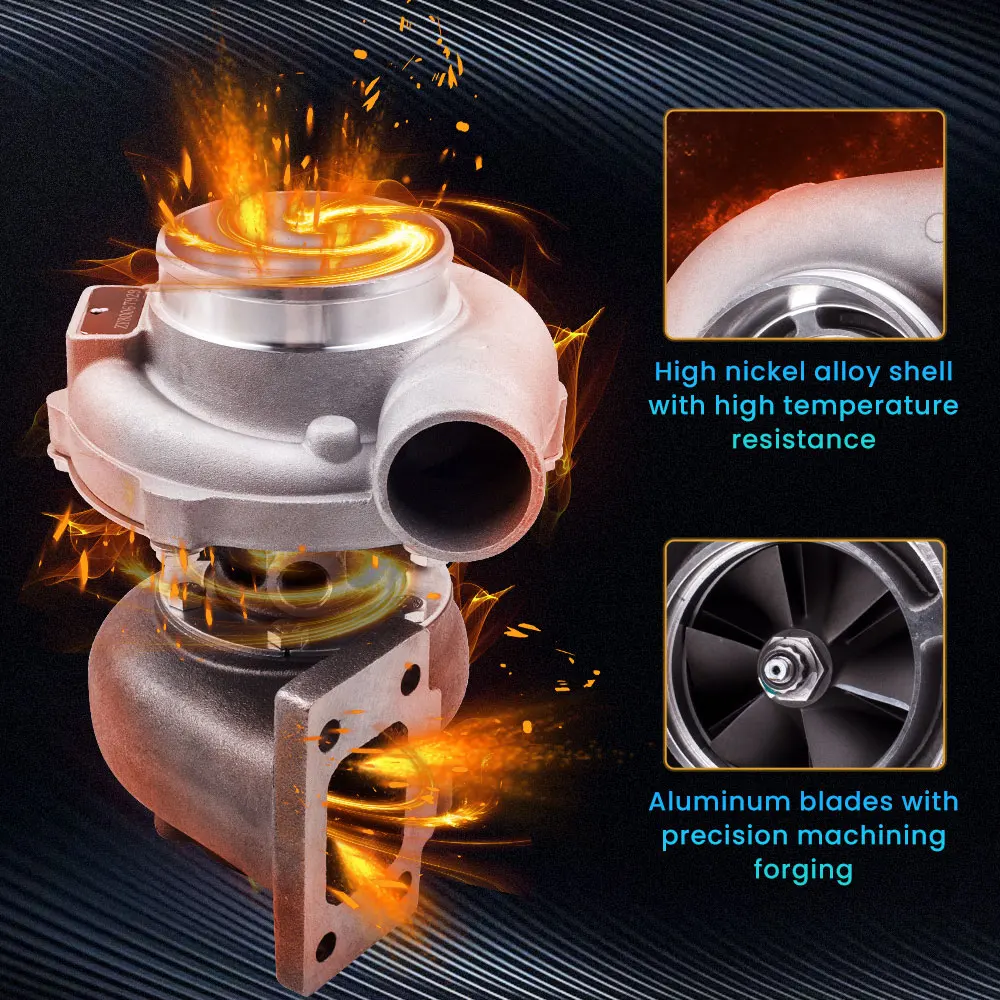

GT3076R GT3037 GT30 T3 4-BOLT Flange 500HP Turbo Charger 0.6 A/R 0.82 Turbine universal Turbo Charger 500BHP Water Cold

The GT3037 Turbocharger is a large turbo capable of generating 500 HP, depending on application and with the correct tuning. The GT3037 is generally used for larger displacement engines of 3.0L and up, since these types of engines can produce enough exhaust volume to push the GT3037.

Application

Perfect for all 4 / 6 cyl 2.5L-3.0L engines

Horse Power:

Capable of Boosting Horse Power up to 500HP

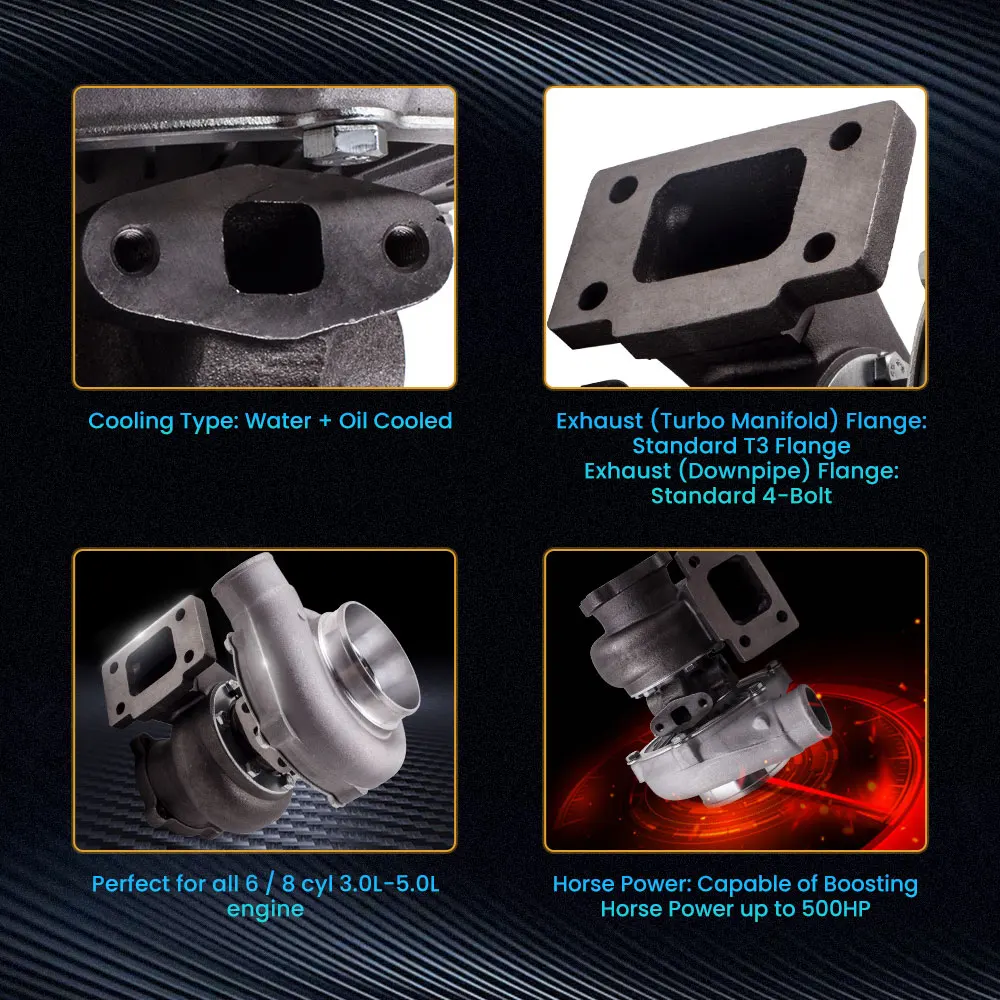

Cooling Type:

Water + Oil Cooled

Specification

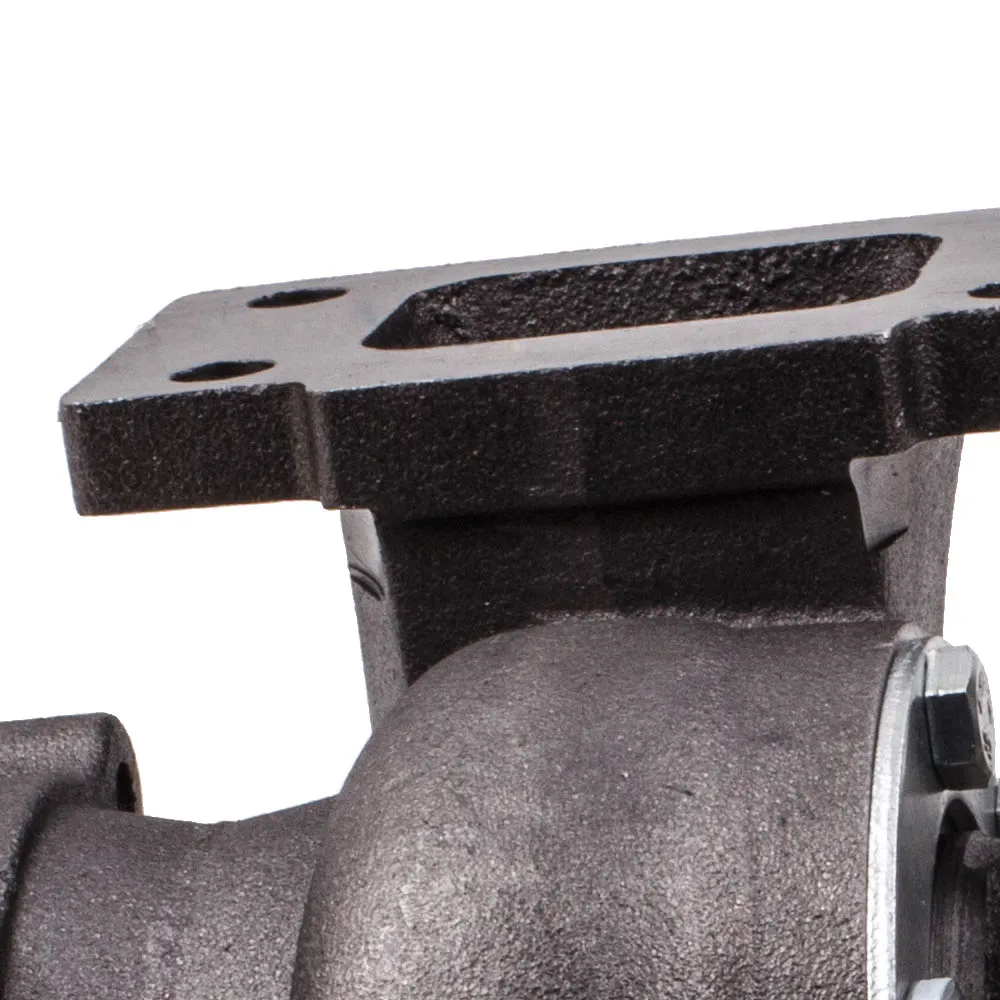

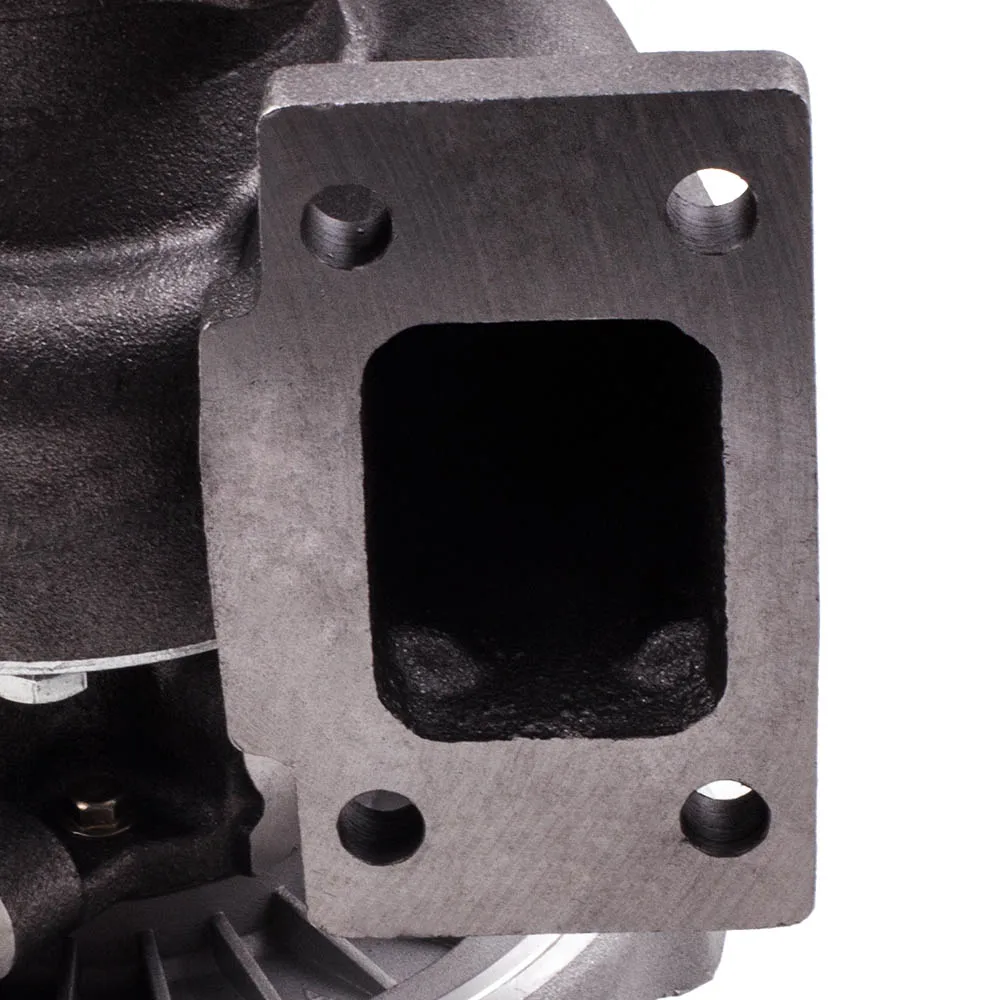

Exhaust Inlet Flange: Standard T3 Flange

Exhaust Outlet Flange: 4-Bolt

Turbine Side:

Turbine Trim: 74.2

Turbine Inducer Diameter:64.8mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.82

Compressor Side:

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7mm

Compressor Exducer Diameter: 76mm

Compressor A/R:0.6

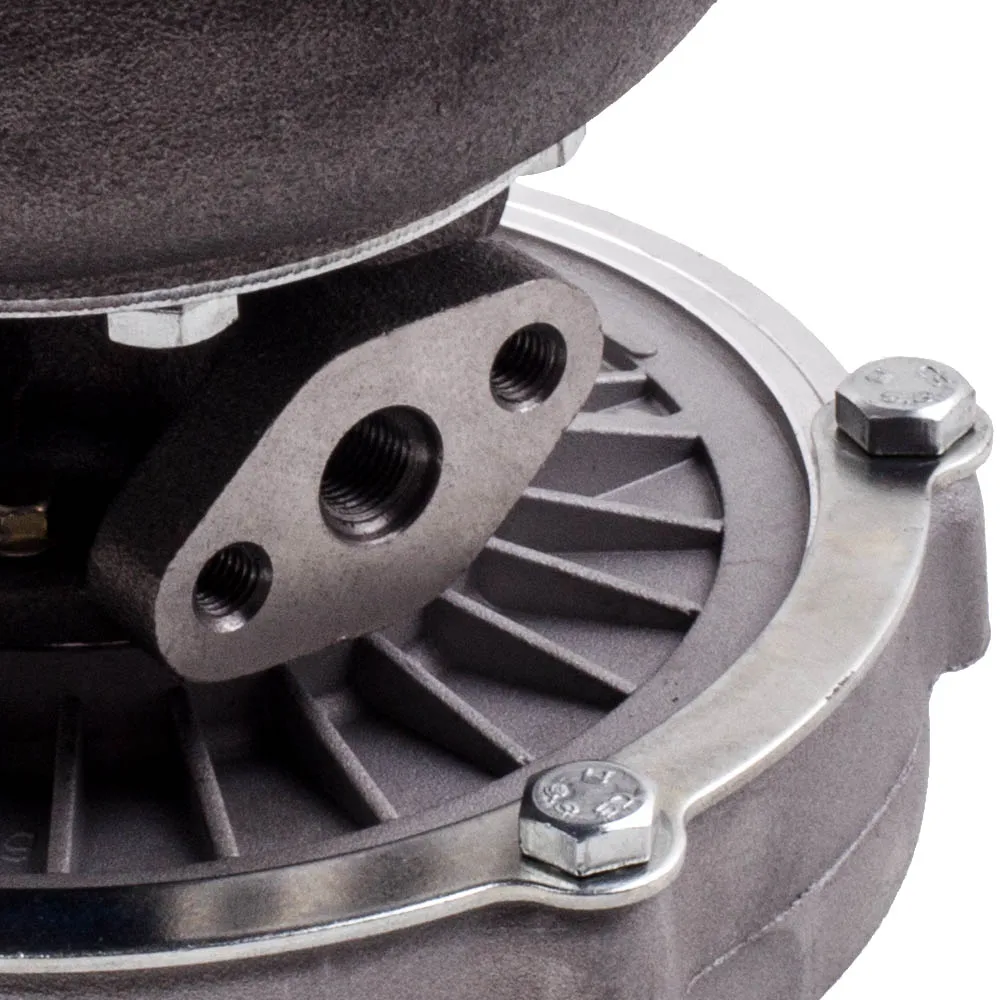

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Water: M18*1.5

Horse Power: Capable of Boosting Horse Power up to 500BHP

Cooling Type: Water + Oil Cooled

Bearing: Journal Bearing

Wastegate: without Wastegate

Thrust bearing: 270 Degrees

Turbo Type: Individual

Condition: Brand New
