ACHI IR PRO SC IR6500 Infrared BGA Rework Station Motherboard Chip PCB Repair Welding Soldering Machine

ACHI IR PRO SC infrared BGA Soldering Rework Station For Motherboard Chip PCB Repair Machine ACHI IR-PRO-SC

Introduction

1. ACHI  BGA Rework Station is designed to meet the increasing demands of today`s BGA Rework environments .Products apply to the welding of CBGA CCGA CSP QFN MLF PGA, all the green epoxy type BGA chip and other special parts such as metal shielding cover, plastic connector replacement of various and soft PCB.

2. Machine comes along with Manual ,The information is easy to understand. Even if you have never engaged in BGA rework , it can be quickly mastered the technology.

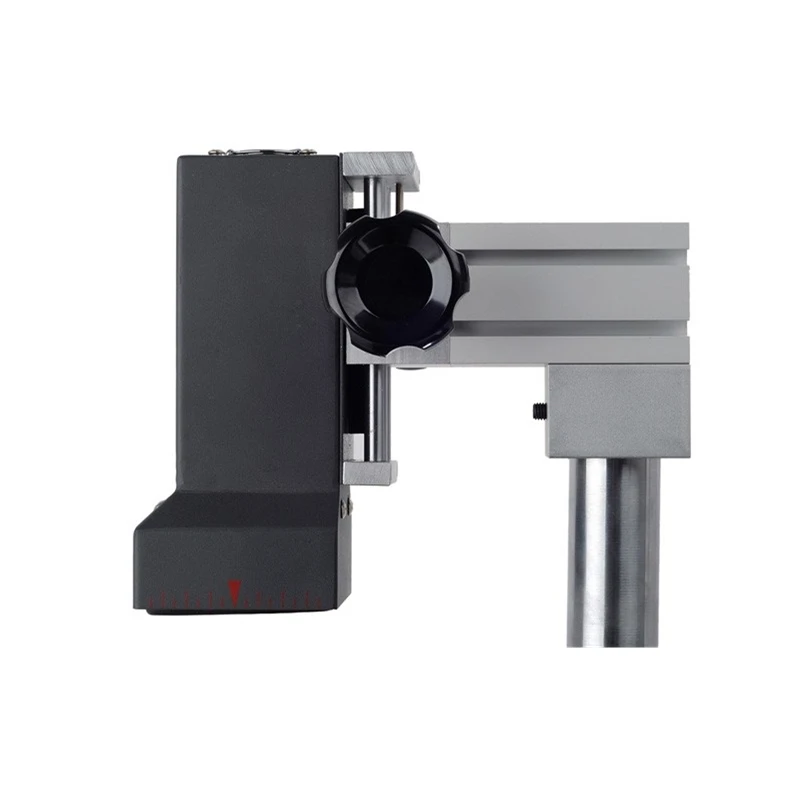

3.The height of Top heating head may adjust by rotating the handle. The Top Infrared heater could rework BGA ICs of large size up to 70*70mm.

IR-PRO-SC can be connected to a computer with USB port. It can be controlled by the software.

What is difference with ir-pro-sc v3

1)ACHI ir-pro-sc V4 add build-in high quality pump suction pen

2)Use more better quality heater plates

3)CE approvaled

Technical Parameters:

Total Power: 2800W

Upper heater power: 400w

Bottom heater power: 2400w

Rated voltage: 220v,50-60hz

Temperature control method: K-type sensor+closed-loop control

PCB positioning method: V-groove slot+PCB adjustable bracket

Maximum PCB board: 450x300mm

Dimensions: 480x480x420mm

Gross weight: 32KG

Cartoon size:60X60X52MM

ACHI IR6500 infrared BGA Soldering Rework Station IR 6500 For Motherboard

Chip PCB Repair System Solder Welding 220V

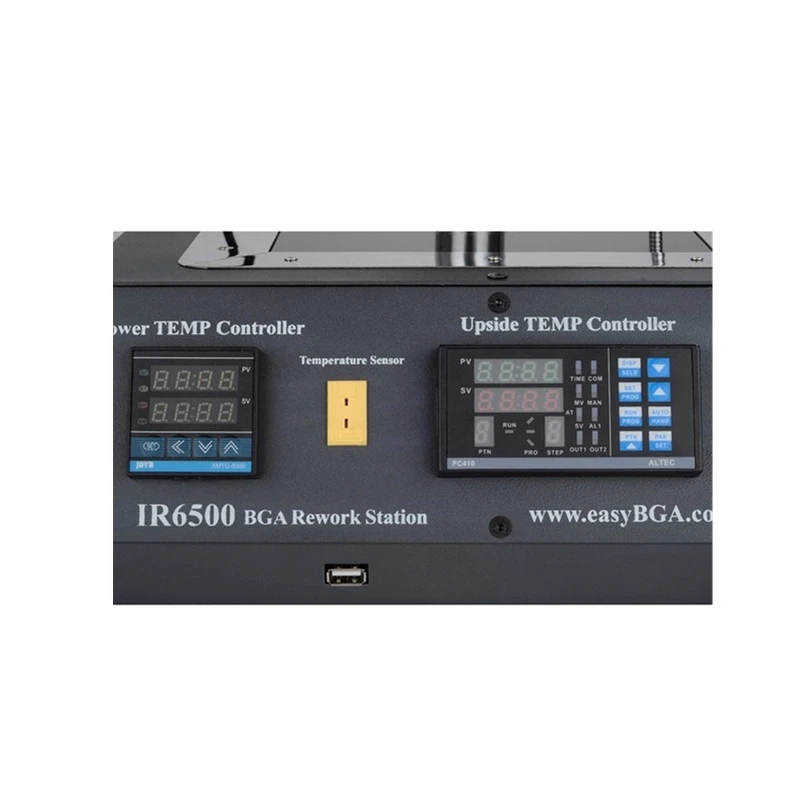

1. USB interface.

2. 2 temperature zones

3. With tempering glass,more uniform heating

4. Hot sale model, praised by many customers.

5. Low cost.

6.  Technical support is always available

7.  Original Factory, look for worldwide distributors

Where this  IR6500 DIY IR BGA Reflow Rework Station Price Good can be used for ?

1. For repairing Mobile phones

2. For repairing Notebooks/Laptops/computers

3. For repairing game consoles,especially for XBOX360/PS3/WII

4. For repairing any other mainboards with size from 22x22mm to 500x400mm

5. For preheating chips or mainboards before soldering to improve rework efficiency.

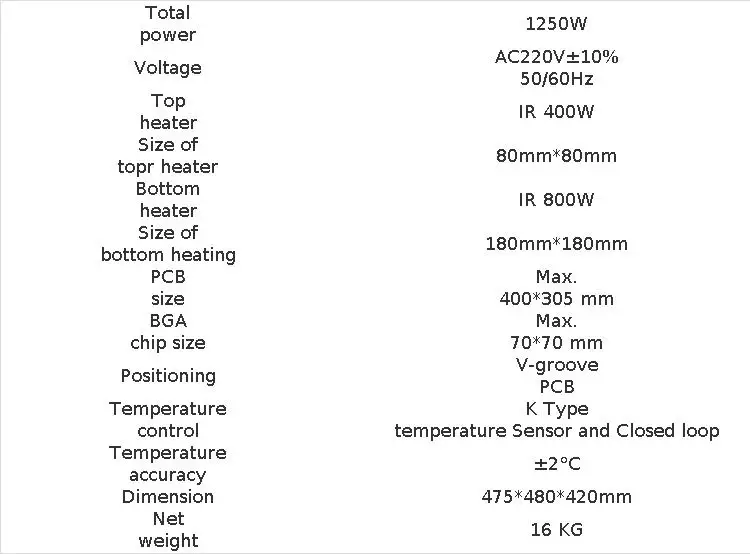

Specifications of this IR6500 DIY IR BGA Reflow Rework Station Price Good

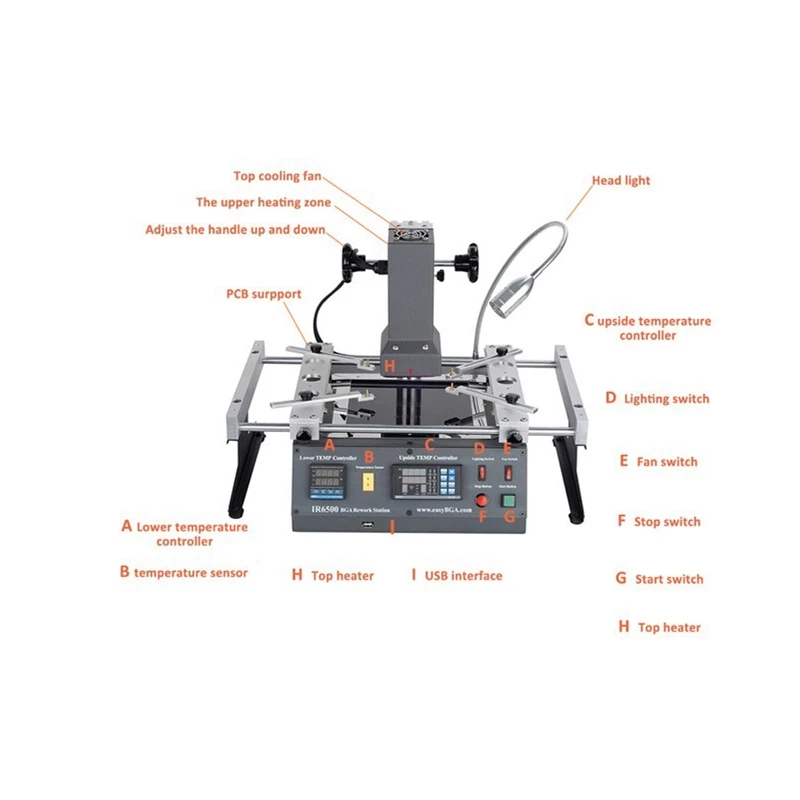

Main Structure of this IR6500 DIY IR BGA Reflow Rework Station Price Good
