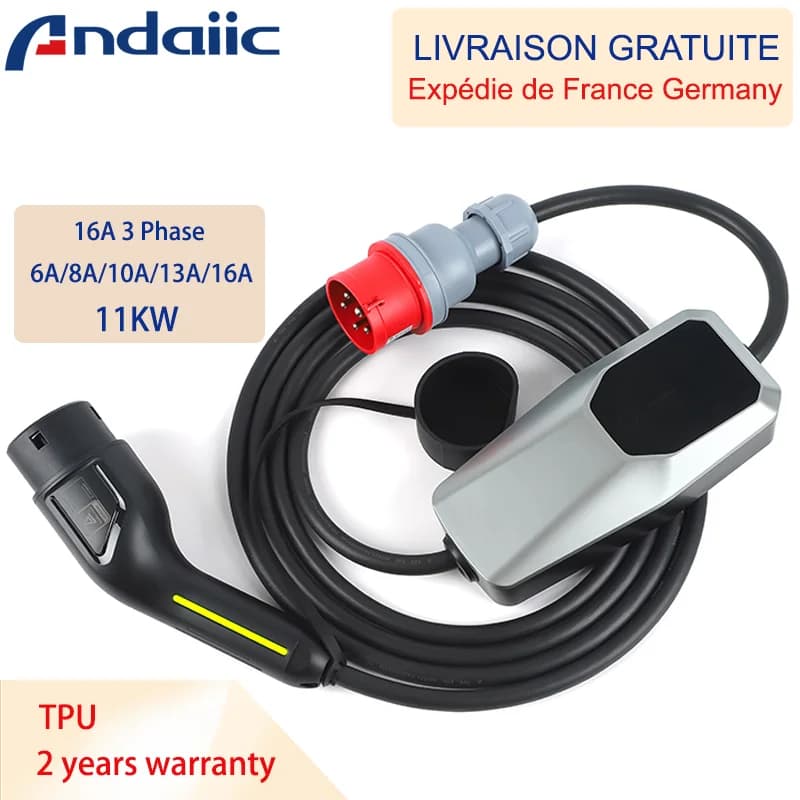

Type 2 Type 1 EV Charger 3.5KW 7KW 11KW 22kw 16A/32A EVSE Charging Cable Mode 2 for Electric Car Vehicle

Total 4 Meters  EV Charger for Electric Vehicle Type 2 or type 1

Smart control remembers the current used last time

Once you select your car's current from 6A, 8A, 10A, 13A or 16A, the charger will automatically set the same current for next charge.

If you select 6A last time, next time also 6A to charge.

Timed charging

Can set 1- 5 hours later to start charging.

Charge the car during the daytime with solar energy, save cost, pay less electricity bill.

Arrive home at 20:00, but want to charge at 23:00, so set charge 3 hours later.

Option 1: 16A 1 phase 3.5KW ( type 1 or type 2)

Current: 6A/8A/10A/13A/16A adjustable

• Type 1 or type 2 match most popular EVs

• Long-lasting thermal-conductive coating and copper wire

• Conveniently lock in your car's charging current

• Monitor vital information on the easy-to-read screen

Option 2:  32A 1 phase 7kw type 2

Current: 6/8/10/13/16/20/24/32A adjustable

Option 3:  16A 3 phase 11kw  type 2

Current: 6A/8A/10A/13A/16A adjustable

Option 4:  32A 3 phase 22kw type 2

Current: 6A/8A/10A/13A/16A/20A/24A/32A adjustable

Vehicle Compatibility

Type 1 is compatible with type 1 SAE J1772 standard charging ports.

Type 2 is compatible with type 2 IEC62196 standard charging ports.

Please check your car's charging port before placing an order.

Detailed LED display provides at-a-glance information

Easily read the charging temperature, current, time and power status in kWh on the convenient screen.

5 safety features protect your vehicle

The surge box safeguards against leaks, high or low voltage, overloading, lightning and overheating.

When the internal temperature of the control box exceeds 85 °C, enter over-temperature protection, stop charging.

After temperature drops to 70 °C will recover charging.

Usage and Care

Adjust the current setting by pushing the button. While you adjust the current, the power plug should be connected. The type 1 or type 2 plug should be disconnected. After selecting the proper current, plug the charger into your car's port and start charging.

Specifications

Origin: China
Total Length: Total 4 Meters
Interchange part number: type 2/type 1
Material: thermoplastic and copper
Insulation resistance: > 1000MD (DC500V)
Terminal temperature rise:< 50K
Housing Fire Rating:UL94V-0

Shipping and Returns

We have France Russia, China warehouse.

This charger have 2-years warranty. if product problem. We will send a free new one.

For information about returns, please reach out to us directly. We will reply to you in 12-24 hours.
