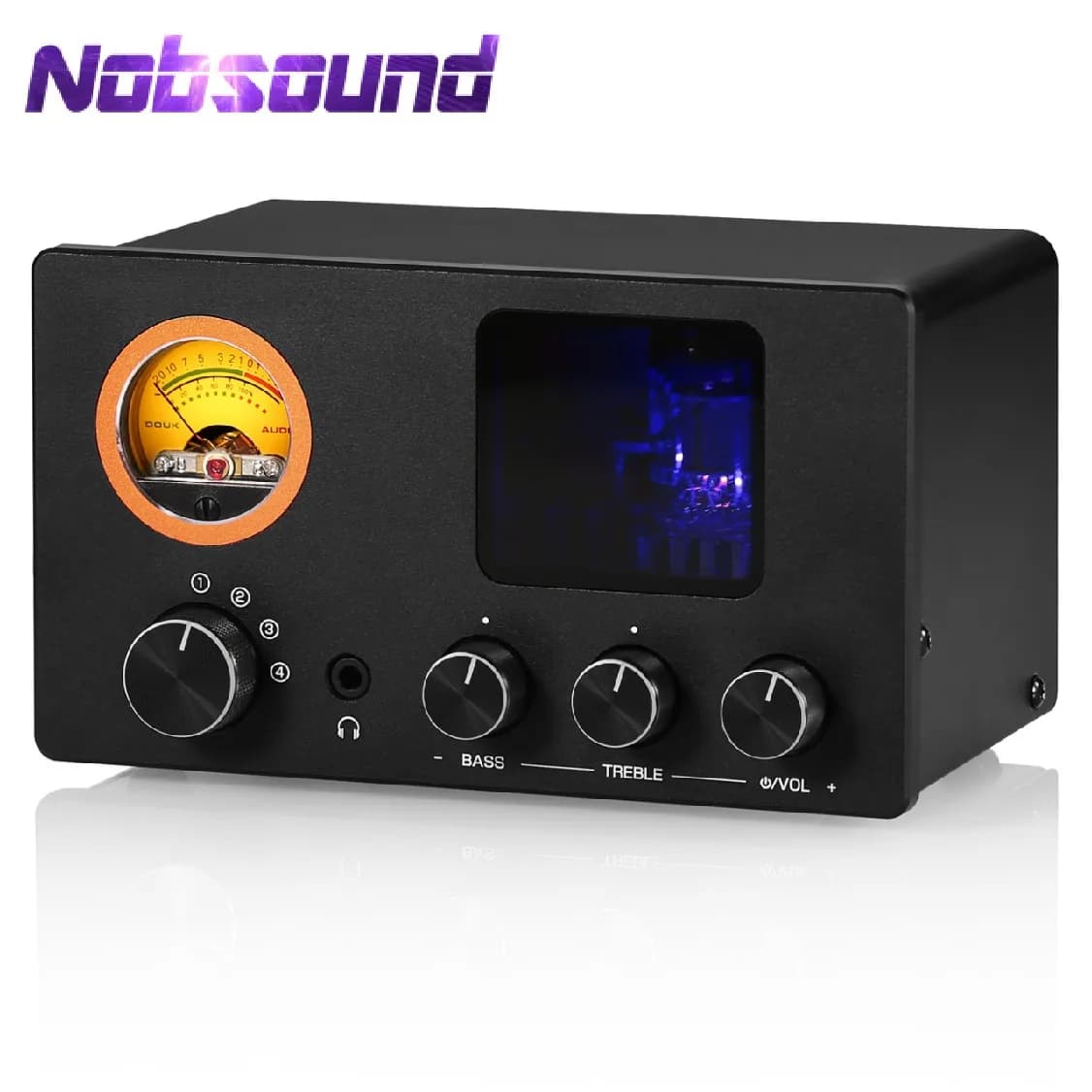

Nobsound TUBE-T5C 4-Way Audio Selector Splitter Mini Stereo Tube Preamp Headphone Amplifier with VU Meter

Features

Optimized Tube Amplification: Powered by an isolated power section with metal shielding, effectively reducing interference for a cleaner and more stable audio signal. The tube operates at a boosted 180V, maximizing its performance for a rich, dynamic sound.

4-Way Audio Selector & Splitter: Supports up to 4 RCA inputs, allowing easy connection to CD players, DACs, streamers, and Blu-ray players etc. The input switch enables seamless comparison between multiple devices without constant replugging. Dual outputs support simultaneous output, allowing connection to two amplifiers or two active speaker sets.

Vintage VU Meter and Built-in Tube: The elegant VU meter, paired with a glowing tube, brings a timeless vintage aesthetic. The adjustable internal RGB lighting further enhances the ambiance. Whether in a studio or a cozy listening space, it creates an immersive experience.

Headphone Output & Tone Control: With an integrated headphone jack, it delivers up to 500mW at 32Ω, ensuring ample drive for a wide range of headphones. Additionally, the adjustable bass and treble controls allow for precise tonal shaping, letting you customize the sound to match different headphones and audio setups.

Easy Op-amp and Tube Upgrades: Designed for effortless customization, the pluggable sockets allow users to easily swap out op-amps and tubes for enhanced flexibility. Upgrade to higher-end components to refine the sound quality and elevate your listening experience.

Warm tips

1. All outputs work at the same time. The volume/treble/bass are controlled simultaneously.

2. If the VU meter needle isn't moving noticeably, please turn up the bass and the master volume.

3. 10-second warm-up required; audio delayed during tube activation.

4. The TUBE-T5C with 1PC pluggable NE5532 op-amp, can be upgraded by dual op-amps like 2134/2604/5532/2068/muse02.

5. Default one ECC83 tube, can be directly replaced by PSVANE 12AX7-S and Shuguang 12AX7B / 7025 / 12AX7 etc.

6. High voltage inside, please turn the TUBE-T5C off first before replacing the op-amp and the tube, and avoid dropping anything inside.

Parameters

Brand: Nobsound

Model: TUBE-T5C

Audio input: 4 groups of RCA

Audio output: 2 groups of RCA / 3.5mm headphone jack

Input sensitivity: 0.775V

Rated output level: 2V

Frequency response: 20Hz-20KHz (±0.8dB)

THD+N: 0.06%

SNR: ≥107dB

Bass/treble range: ±6dB

Headphone output power: 500mW/32Ω

Matched headphone impedance: 16-600Ω

Working voltage: DC 12V

Dimensions (W*D*H): 152*92*85mm / 5.98*3.62*3.35in

Package dimensions (W*D*H): 285*155*110mm / 11.22*6.10*4.33in

Net weight: 827g / 1.82lb

Package weight: 1.10kg / 2.42lb

Packing list

1* TUBE-T5C Preamp

1* DC 12V Power Adapter

1* Hexagonal Wrench
