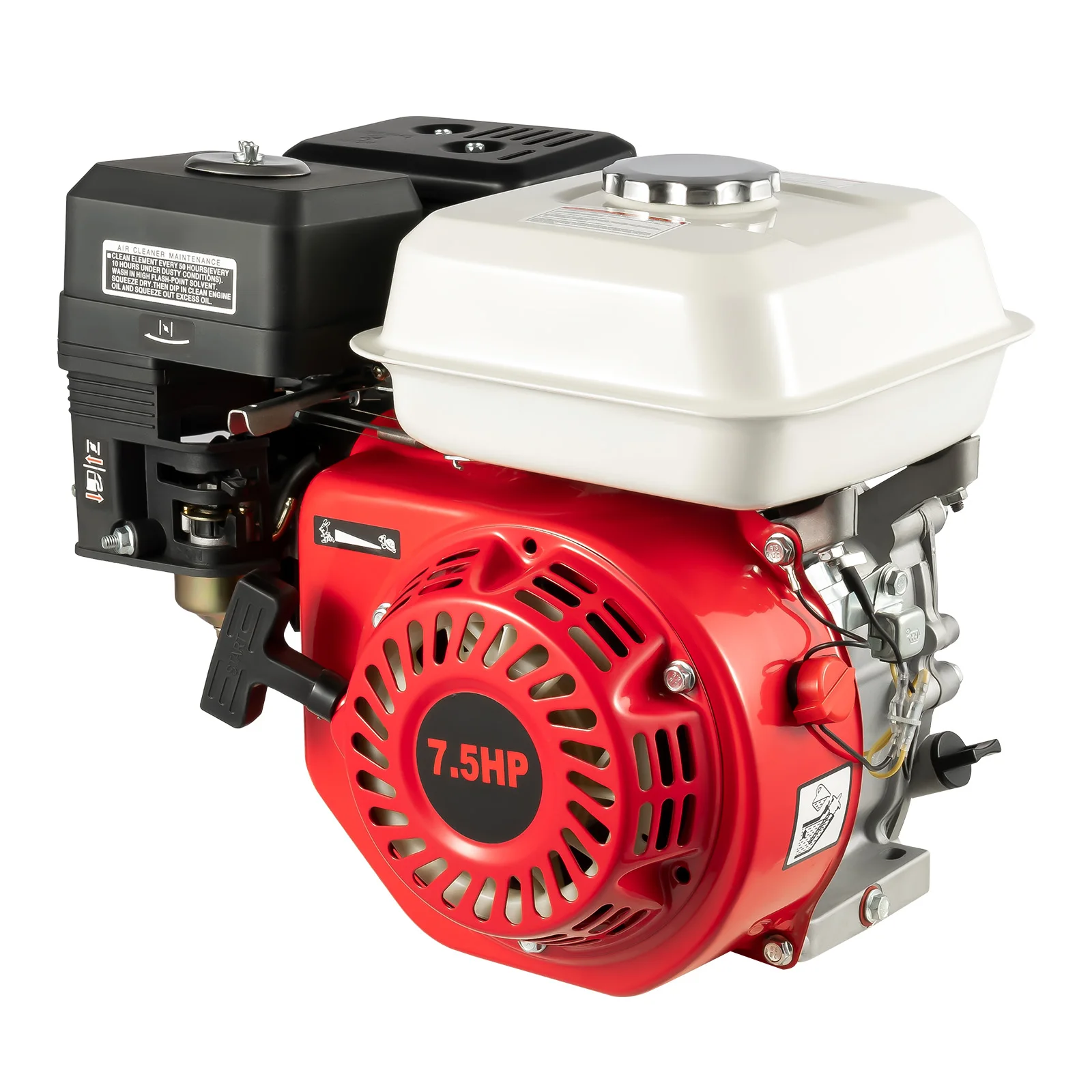

4-Stroke Petrol Engine, 7.5 HP OHV Single Cylinder Gasoline Engine Gas Motor Engine Go Kart Engine Air Cooling 212CC

7.5 HP Petrol engine, 4-stroke OHV single cylinder petrol engine standing 5.1KW engine kart engine gravity supply air cooling

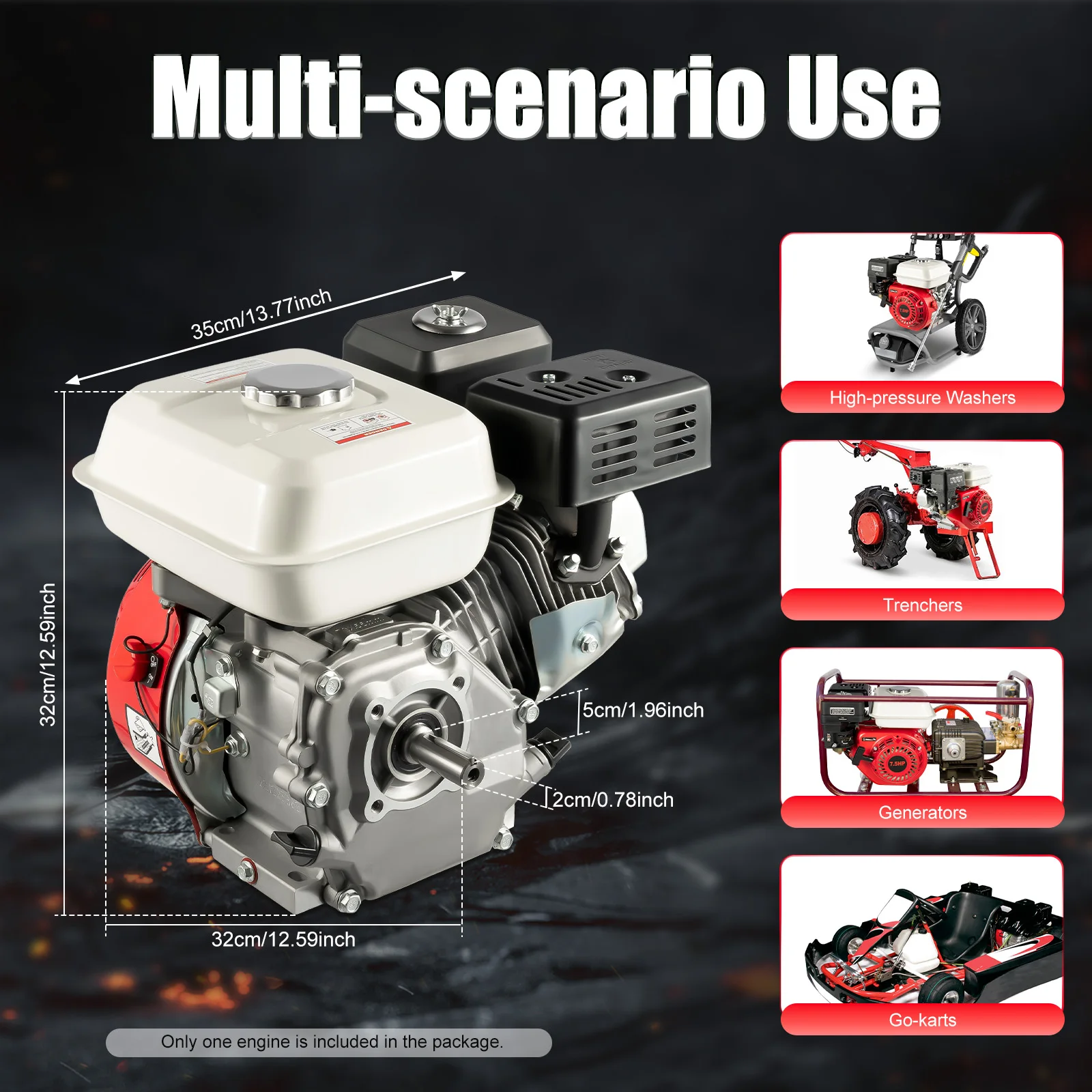

This product is widely used in go-karts, compressors, trenchers, generators, high-pressure washers, cement mixers, etc, as long as the crankshaft matches.

Specification

Type: Single Cylinder, 4-stroke

Color: Red

Material: Aluminium, Nylon, PP, Cast Iron

Surface Treatment: Spray Paint, Nodular Iron

Power Source: Gasoline

Gasoline Type: 92#, 95#

Engine Cooling Type: Air Cooling

Maximum Torque: 13.4N-m

Bore Stroke: 70*54mm/2.75*2.12inch

Crankshaft Diameter: 2cm/0.78inch

Crankshaft Length: 5cm/1.96inch

Displacement: 212CC

Horsepower: 7.5HP

Rated Power: 4.4KW

Maximum Output Power: 5.1KW

Rotational Speed: 3600RPM

Lubrication Oil Capacity: 0.6L/0.15 Gallons

Fuel Tank Capacity: 3.6L/0.95 Gallons

Fuel Consumption Rate: ≤360g/kW·h

Starter System: Hand Start

Gross Weight: 14.05kg/30.97lbs

Net Weight: 12.5kg/27.55lbs

Product Size: 35*32*32cm/13.77*12.59*12.59inch

Package Size: 41*34.5*37cm/16.14*13.58*14.56inch

Package Included

1* Gasoline Engine

1* English Manual
All Accessories for Assembly

Key Features

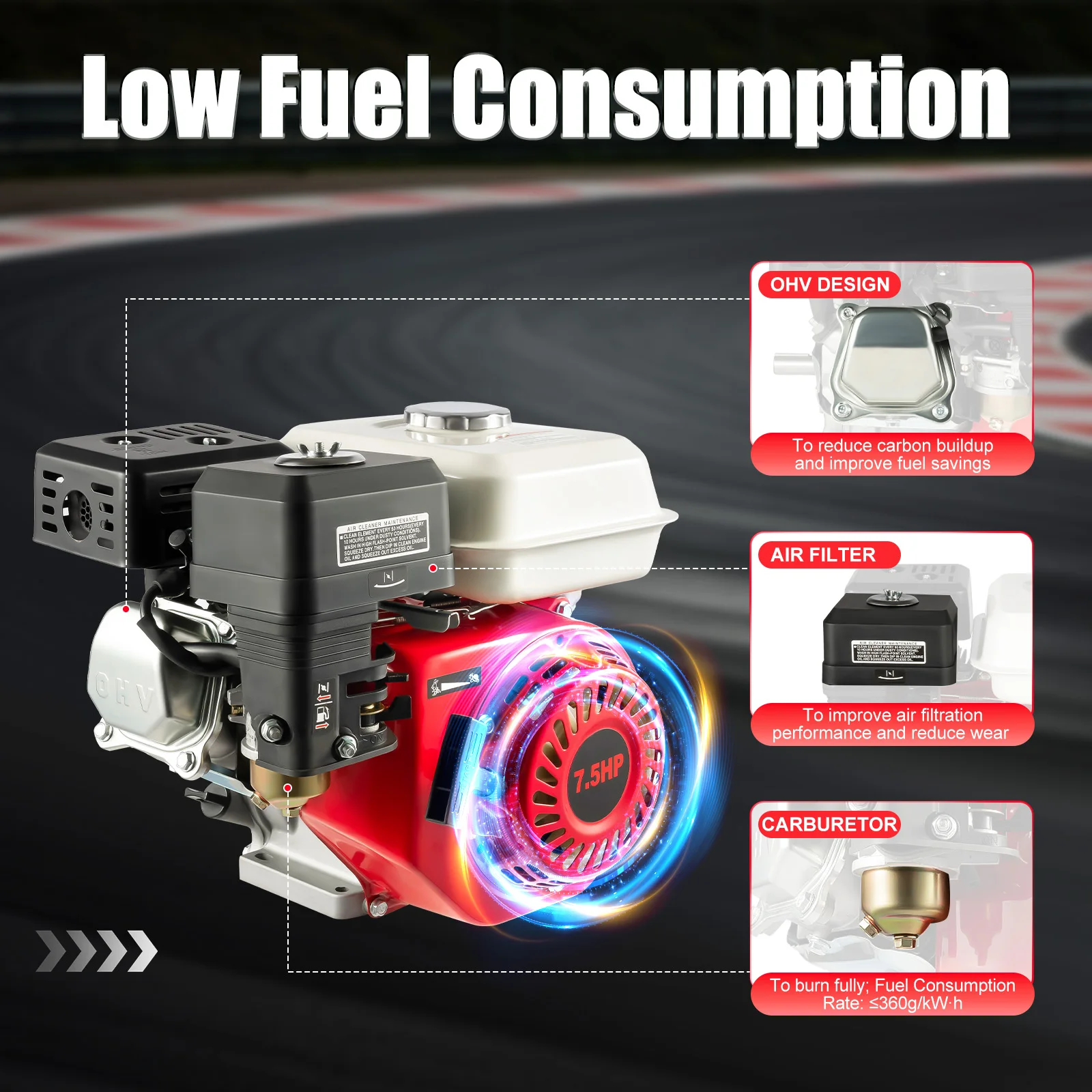

Low Fuel Consumption: The overhead valve can effectively help reduce carbon buildup and dramatically improve fuel savings. The air filter also improves air filtration performance and reduces wear. Both can help you save a lot of money on fuel costs.

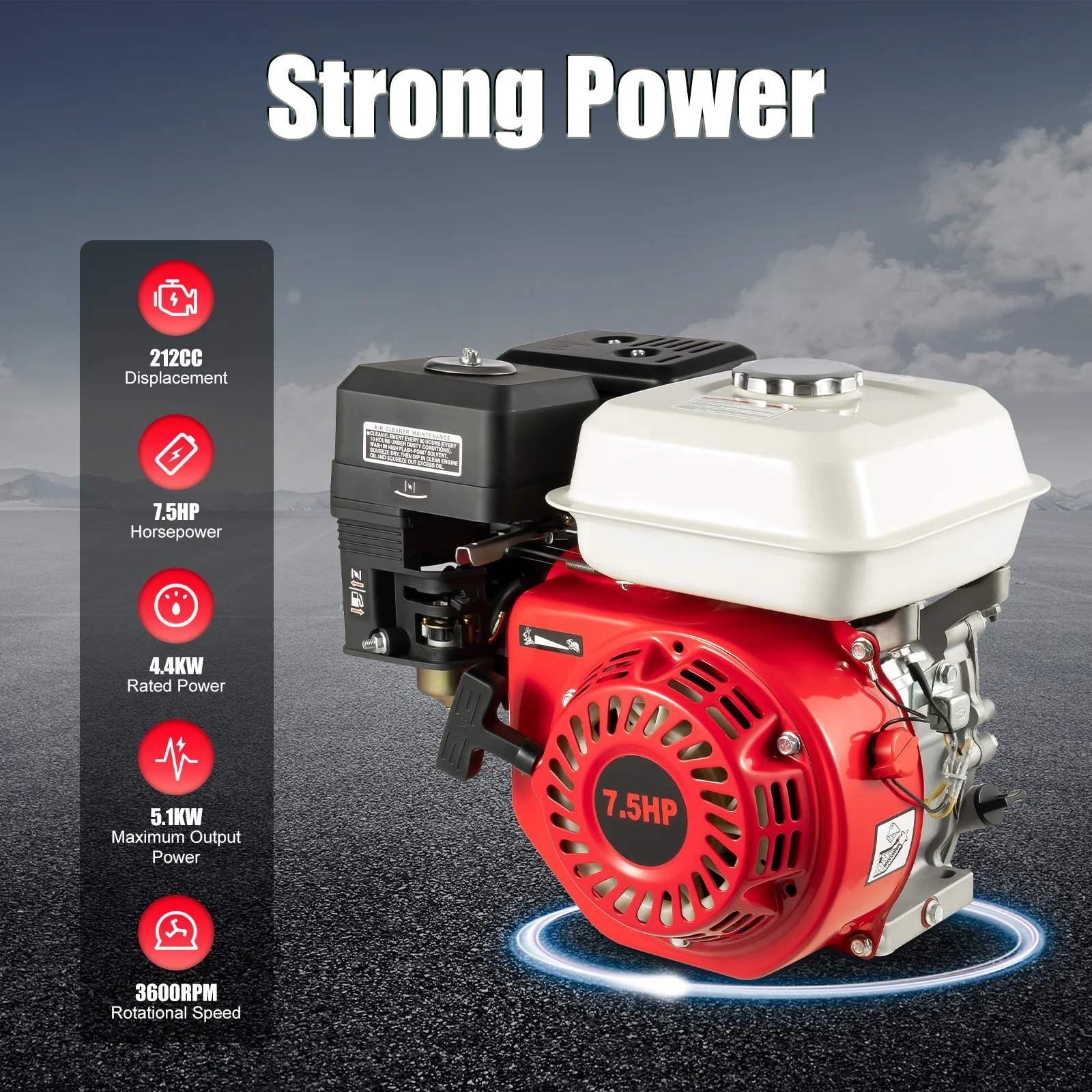

Strong Power: The gasoline engine boasts a horsepower of 7.5HP, a displacement of 212cc, and a rotating speed of 3600RPM, providing strong power and ensuring that your work can be completed quickly and easily.

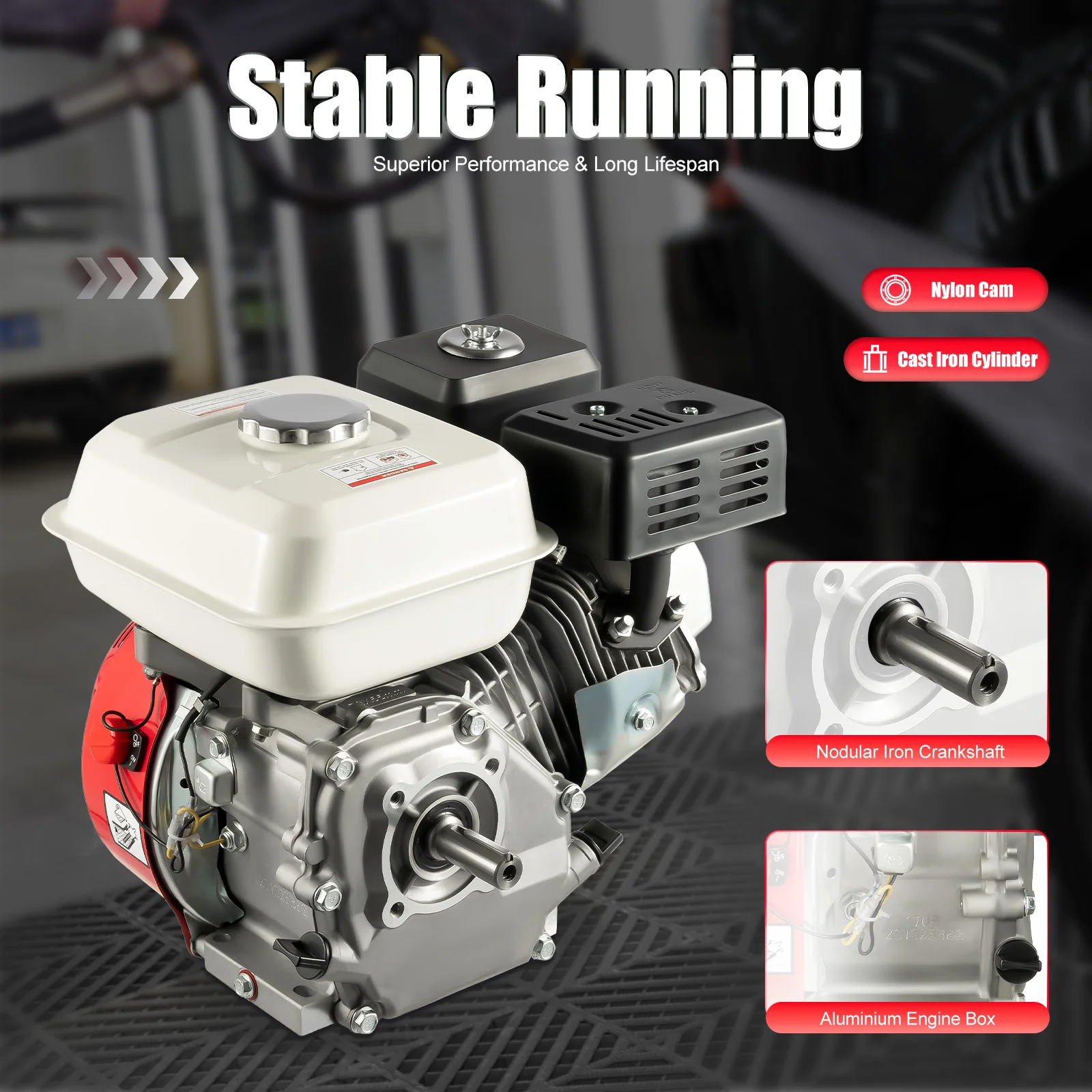

Stable Running: The engine adopts a nylon cam, nodular iron crankshaft, and cast iron cylinder liner, ensuring superior performance and a longer lifespan. Start it manually and enjoy stable engine operation every time.

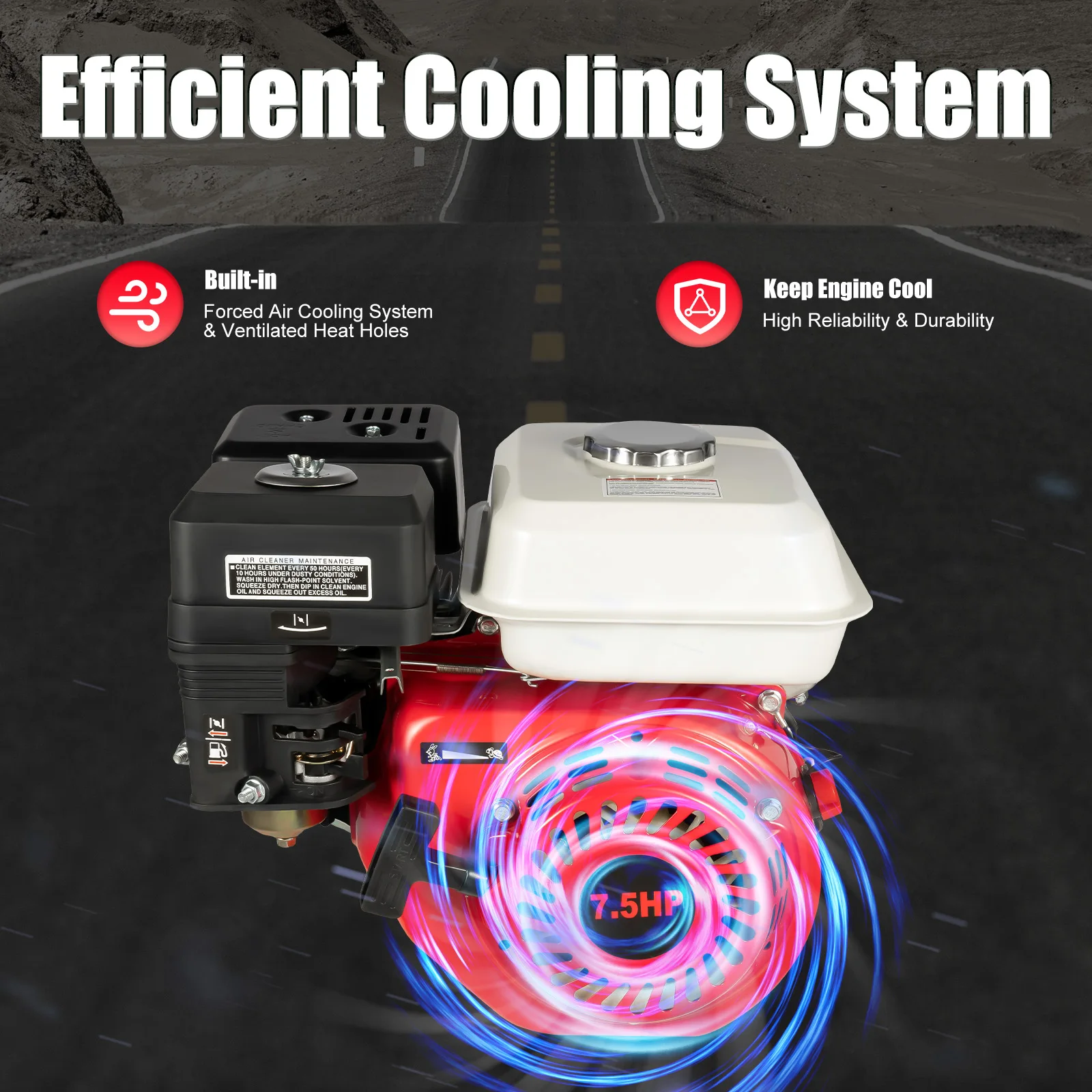

Efficient Cooling System: The built-in forced air cooling system and ventilated heat holes are designed to keep the motor cool and provide high reliability and durability.

High Safety: The product is equipped with an oil alarm. If enough oil is not added, the machine will automatically turn off to protect the machine, providing a longer service life.

Low Noise: The equipped silencer has a good noise reduction effect, which creates a quiet working environment for you.

Large Fuel Tank: The engine has a large fuel tank capacity of 0.95 gallons, allowing it to work for a long time. You don't need to fill the tank frequently, which is convenient.

Protective Packaging: This product comes in a custom foam that resists common compression and falls to prevent product damage in transit.

Details
PP Handle: The ergonomic T-shaped start handle provides a point of application of force for easy and comfortable starting.

Pulling Rope: The pulling rope is made of nylon, which is more wear-resistant and durable.

Damper Handle: Properly closing a portion of the air intake during cold engine start can increase the gasoline concentration of the mixture entering the cylinders and improve engine starting performance.

Speed Lever: You can change the engine speed to suit different usage scenarios by moving this level.

Engine Switch: A red engine switch can help you to turn on or off the engine easily when you use it or not.


Notes
1.Professional installation is highly recommended.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
