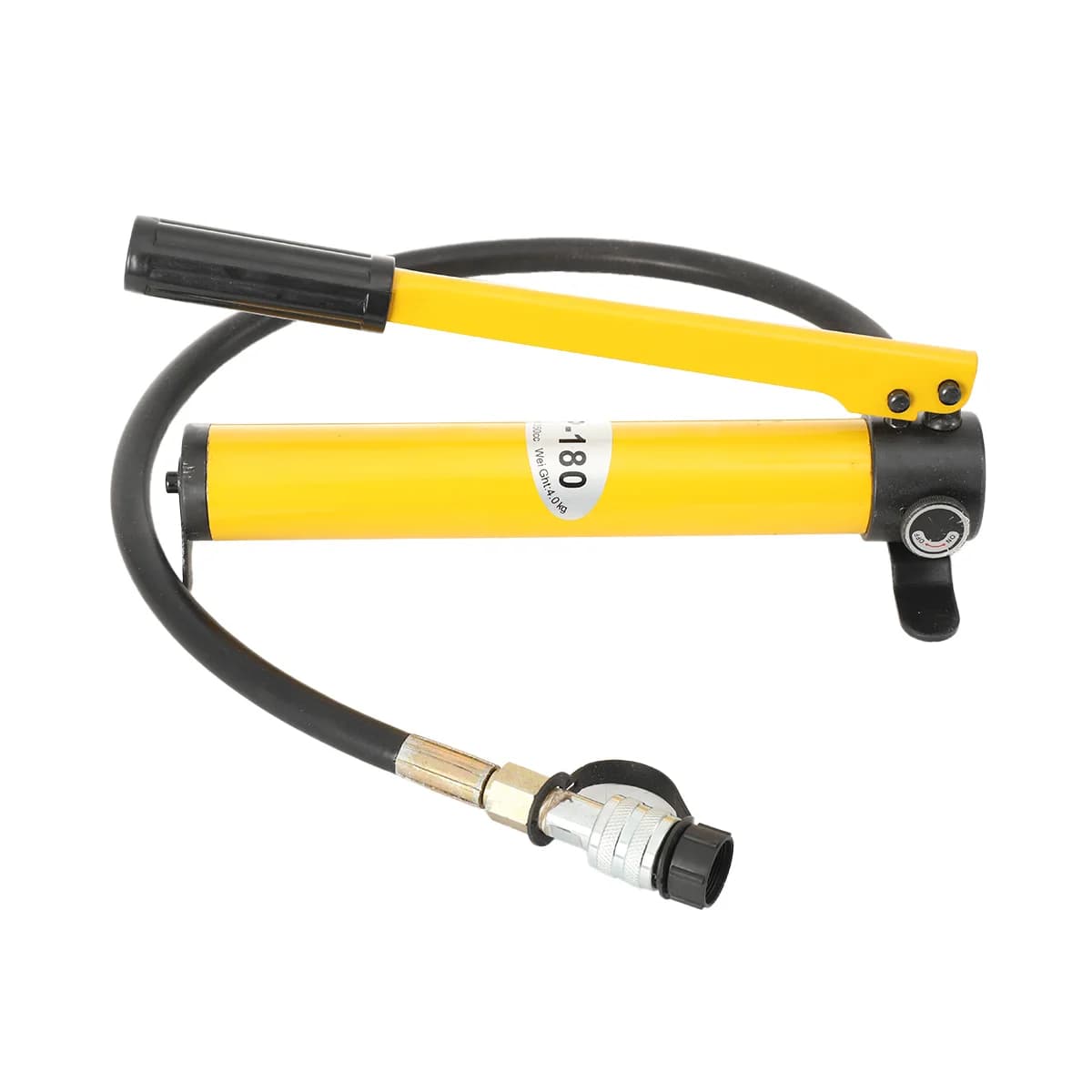

Hydraulic Pump CP-180 Hand Operated Pump Hydraulic Hand Pump Manual Punp For Connecting Crimping Head Portable Tools

A CP-180 manual hydraulic pump is a small hydraulic pump that converts manual mechanical energy into hydraulic energy. This manual hydraulic pump is made of high-end steel, which is corrosion-resistant and makes the whole body smooth and easy to clean. In addition, it has a strong anti-strike ability, so it has high strength and is not easy to deform. And it's very powerful, so you can use it easily.

Details:
1. Steel Wire Joint Sheath: Its joint is equipped with steel wire protection, which can effectively avoid damage caused by excessive bending of the joint oil pipe so that it can be used for a long time.
2. Thickened Plunger: The thickened design of the plunger increases its wear resistance, which can effectively increase the service life of the manual hydraulic pump.
3. Dust Cover: The joint is equipped with a dust cover for you to prevent dust from entering and damaging the pump when you are not using it.
4. High-pressure Oil Pipe: It adopts a high-pressure oil pipe (1m/ 3.3ft) and attaches a quick joint（ZG3/8''）, which makes it convenient and fast for you to use.
5. Application: It can be used with hydraulic punches, hydraulic cutting machines, hydraulic cylinders, hydraulic tongs, etc. to perform various operations, such as lifting, bending, straightening, shearing, riveting, assembly, disassembly, etc.

How to Use:
1.Open the dust cover and connect it to the male connector of other tools.
2.Connect the connectors tightly to avoid leakage.
3.Tighten the pressure relief valve switch clockwise before use.
4.Press the handle back and forth.
5.Then the piston of the cylinder will rise.
6.Loosen the pressure relief valve switch counterclockwise.

Specifications:
Name: Manual Hydraulic Pump
Model: CP-180
Color: Yellow
Material: Steel
Surface Treatment: Plastic Spraying
Condition: Brand New
Type: Manual
Oil Reserves: 350CC
Maximum Pressure: 70Mpa（700kg/ cm²）
Low-Pressure Speed: 2L/ s (0.44Gal/ s)
High-Pressure Speed: 0.2L/ s (0.044Gal/ s)
Tubing Connector: ZG3/8''
Pump Body Length: 33cm/ 13in
Pump Body Height: 11cm/ 4.3in
Handle Length: 34cm/ 13.4in
Hose Length: 1m/ 3.3ft
Package Size: 37.5*22.5*16cm/ 14.76*8.86*6.3in
Net Weight: 3.5kg/ 7.72lbs
Gross Weight: 4kg/ 8.82lbs


Package Included:
1* Manual Hydraulic Pump
1* 1m Hose
1* Handle
