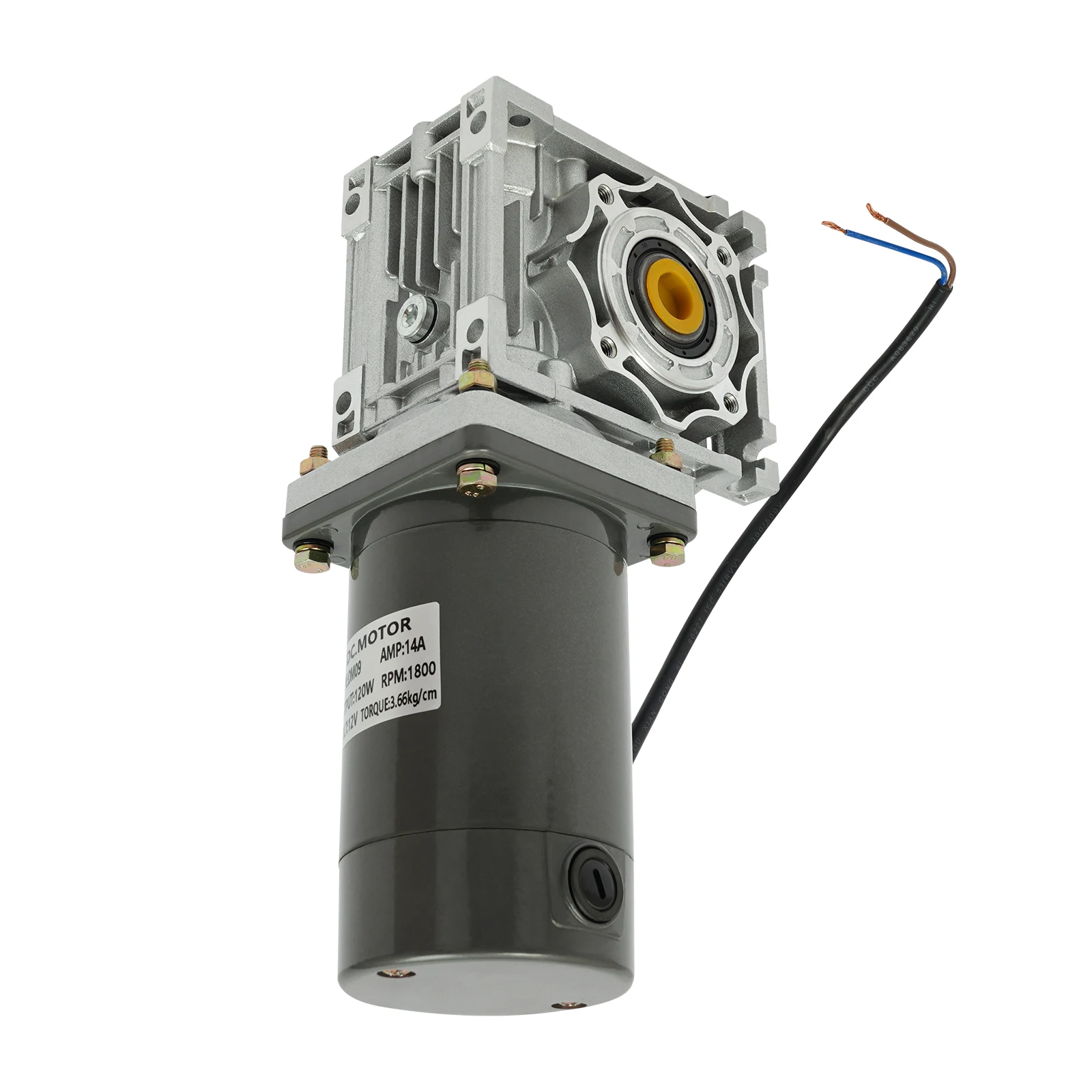

DM09 120W Gear Motor 1800rpm Pure Copper Motor DC 12V Adjustable Speed Worm Gear Reducer Gearbox Worm Gear Speed Reducer

DM09 120W Gear Motor 1800rpm Pure Copper Motor DC 12V Adjustable Speed Worm Gear Reducer Gearbox Worm Gear Speed Reducer

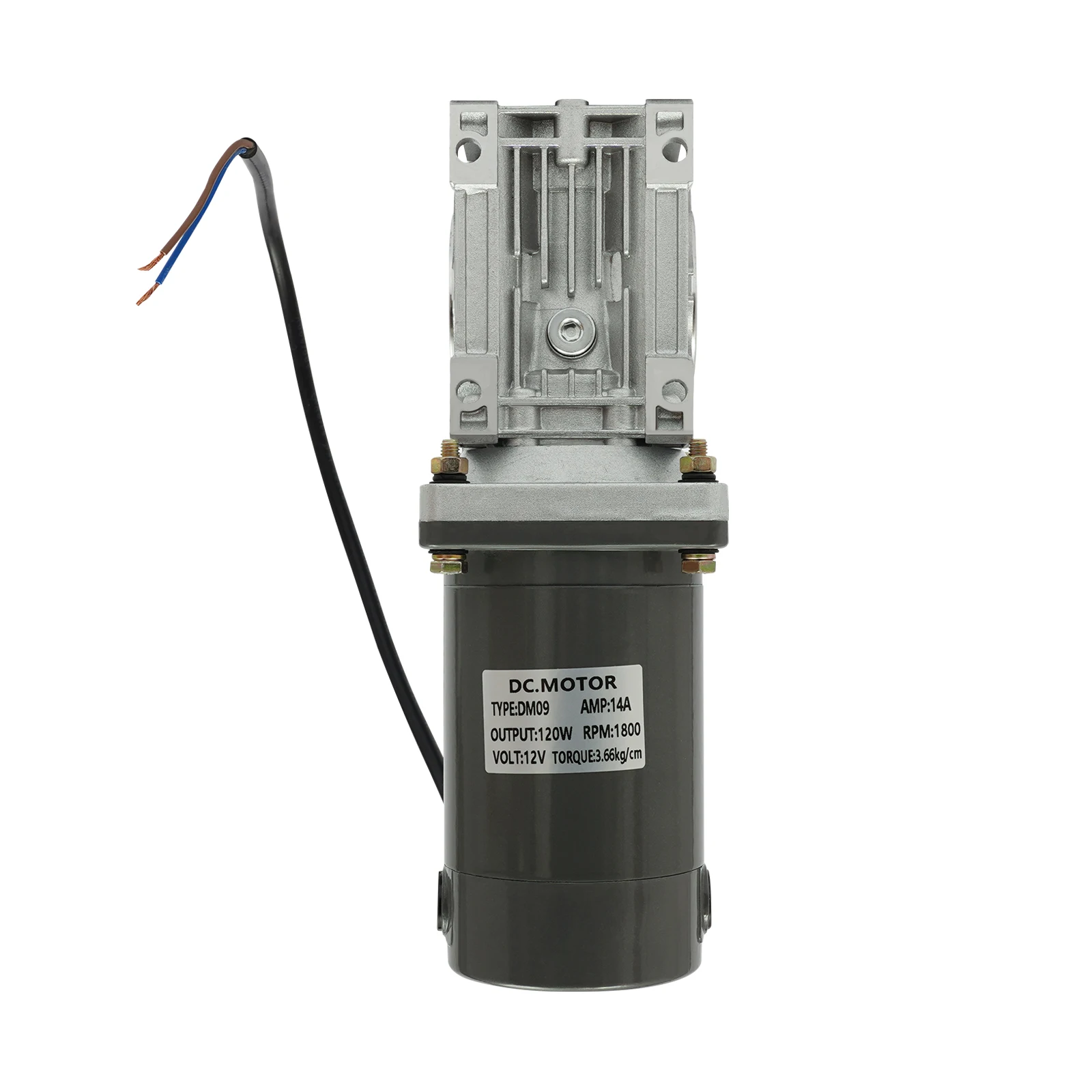

Specifications

Type: DM09

Model: NLRV

Gearbox: NLRV-040

Color: Gray

Material: Cast Aluminum, Hollow Steel Tube

Processes: Die-casting, Heat Treatment

Shape: Square, Round

Feature: Portable

Type: DC Motor

Gearbox Type: Worm Gearbox

Motor: Pure Copper Motor

Noise: About 50-60db

Output Type: Hollow Bore

Torque: 3.66kg/cm

Voltage: DC 12V

Power: 120W

Speed: 1800RPM

AMP: 14A

Ratio: 1:50 (50K)

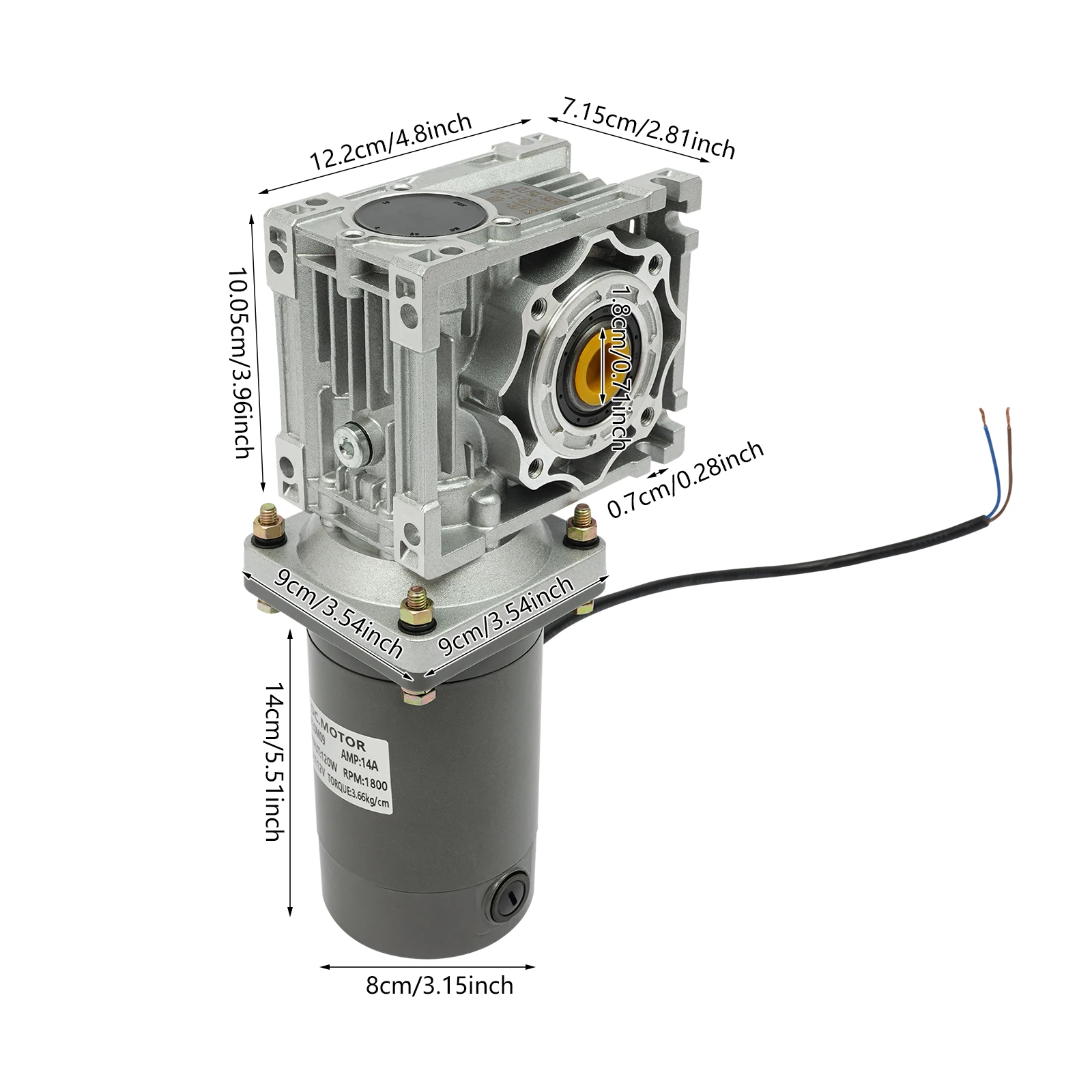

Input/Output Flange Size: 9*9cm/3.5*3.5inch

Output Bore Diameter: 18mm/0.7inch

Installation Hole: 7mm/0.27inch

Gear Motor Size(L*H): 9*14cm/3.5*5.5inch

Connect Interface Size: 9*9cm/3.5*3.5inch

Package Size: 30*14.5*10cm/11.8*5.7*3.9inch
Net Weight: 5kg/lbs
Gross Weight: 5.5kg/lbs

Package Included
1* 120W Gear Motor

Key Features

Powerful Motor: It adopts a single-phase pure copper motor with low loss, low noise, fast heat dissipation, and high return accuracy, which can greatly improve work efficiency.

Stable Operation: Both ends of the rotor are equipped with ball bearings, which can reduce friction and temperature during use to ensure stable operation.

High Safety: The slow start function can effectively avoid current overshoot and protect the motor.

Self-locking Function: With a self-locking function (clockwise/counterclockwise self-locking), the output shaft should not move even when the motor is power-off.

High Flexibility: It has a reversing function that is flexible with normally open and closed control systems.

Gapless Structure: Its gapless structure means free maintenance that is hermetically sealed. And it prevents the lubricant from easily losing, going bad, and being exchanged.

Speed Adjustable: You can match it with a speed controller (not included) to adjust different speeds according to different products to achieve the desired effect.

Buy with Confidence: We have been working hard to provide better service and quality for our customers, which is our goal. If there is any problem with our products, please contact us in time.

Details

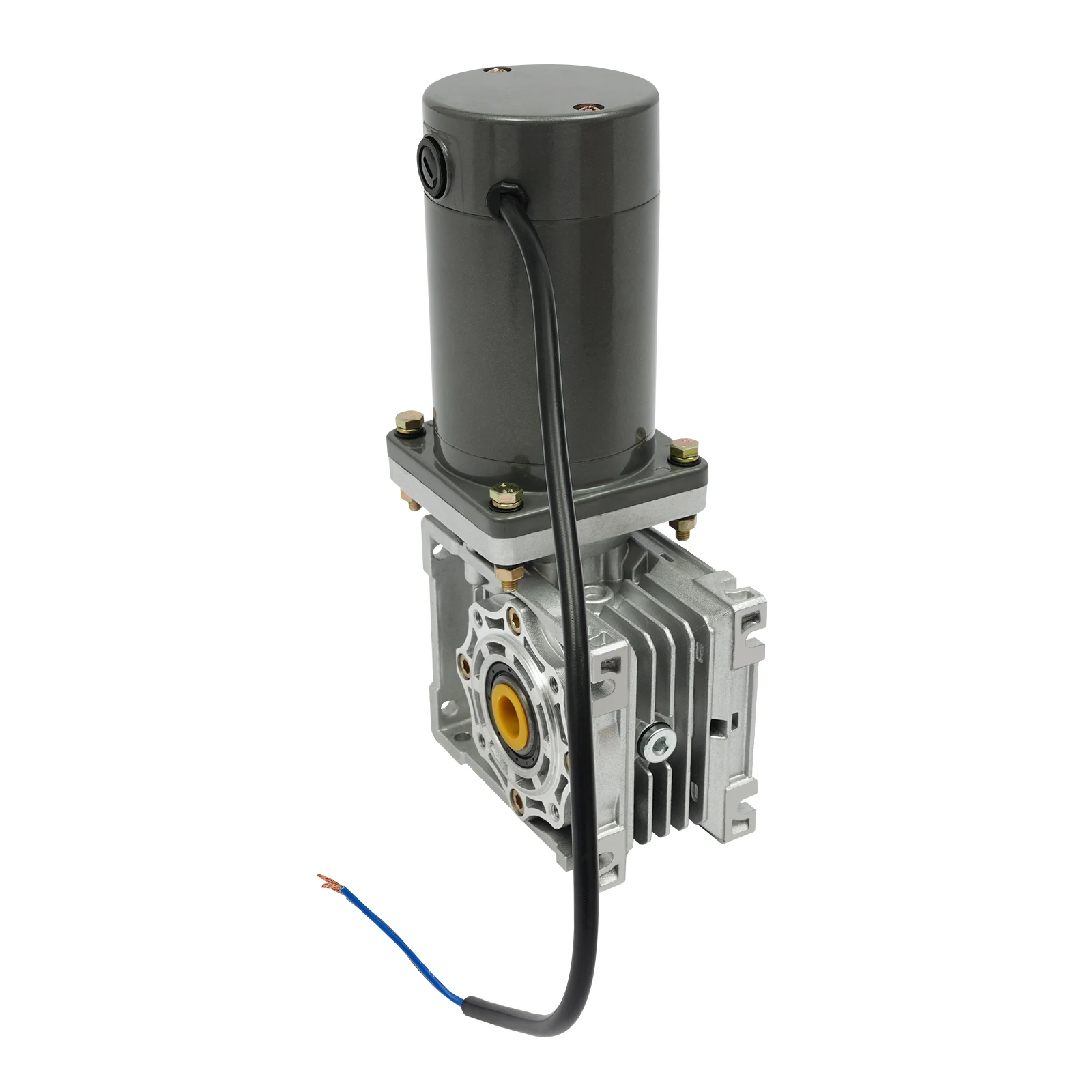

Power Cable: The power cable uses pure copper coils, featuring good conductivity and a large current carrying capacity.

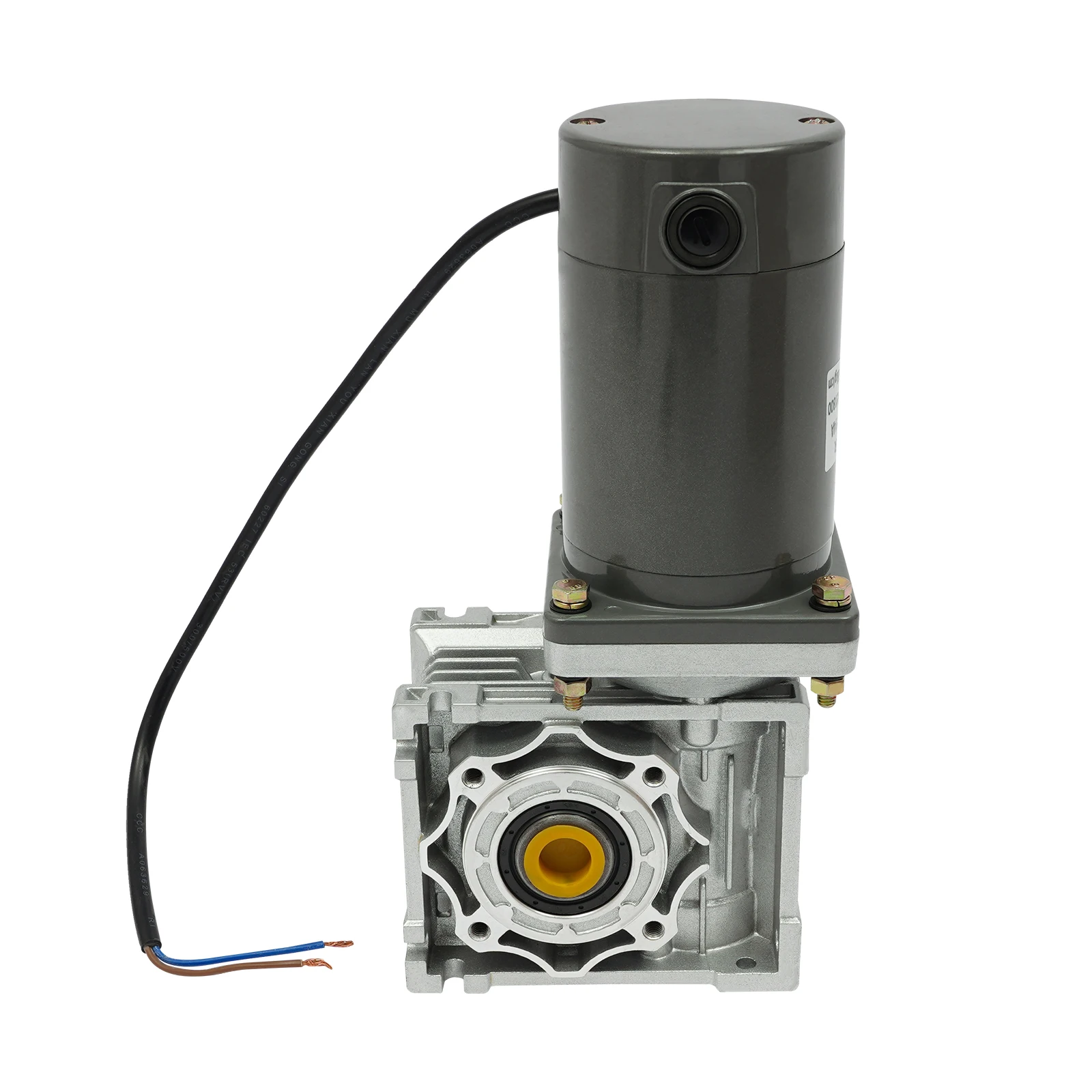

Cap: The yellow cap can effectively protect the output bore when not in use. After removing it, you can insert the shaft in the hole.

Application
It is widely used in automatic barbecue/mixing/doors/windows, conveyor belts, conveyors, feeders, calender, extruders, peeling machines, blenders, cargo lifts, packaging machines, textile/printing/food machinery, vending machines, office/medical equipment, etc.

Notes
1.It is not suitable for positioning applications. Please note that the product does not include a speed controller.
2.Based on the industrial standard, to meet the different needs of customers, our motor does not include a power cord. You need to purchase a power cord to connect.
3.Please do not plug&unplug the power cable when the power is on. Please do not knock or beat the machine.
4.The motor can run for a long time within the safe speed regulation range. The safety speed range of a small load: is 50% of full speed-full speed; The safety speed range of a large load: is 70% of full speed-full speed.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
