Multi-Functional RJ45 Cat5e Cat6 Network LAN Ethernet Cable Crimping Crimper Stripping & Cutting Tool Electrician Plier Plugs

An RJ45 crimper tool is a handheld tool that is used to terminate, or crimp, Ethernet cables with RJ45 connectors. RJ45 connectors are commonly used in networking applications to connect computers, routers, switches, and other networking devices.

The RJ45 crimper tool is designed to hold the RJ45 connector securely in place while the cable is inserted into the connector. The tool then applies pressure to the connector, crimping it onto the cable and creating a secure connection between the cable and the connector.

Using an RJ45 crimper tool is relatively straightforward. First, the cable is stripped of its outer insulation to expose the individual wires. The wires are then arranged in the correct order according to the wiring standard being used (such as T568A or T568B). The wires are then inserted into the RJ45 connector, making sure that they are fully seated and in the correct order. Finally, the RJ45 crimper tool is used to crimp the connector onto the cable, creating a secure and reliable connection.

There are a variety of RJ45 crimper tools available on the market, ranging from basic, manual tools to more advanced, automated tools. Some RJ45 crimper tools may also include additional features, such as a wire cutter and stripper, which can make the process of terminating Ethernet cables even easier and more efficient.

In addition to their use in networking applications, RJ45 crimper tools are also commonly used in home and office wiring projects. They can be used to terminate Ethernet cables that are being run through walls or ceilings, allowing for a clean and professional installation.

Overall, an RJ45 crimper tool is an essential tool for anyone working with Ethernet cables and RJ45 connectors. With the right tool and some basic knowledge of Ethernet wiring standards, anyone can create secure and reliable Ethernet connections in a variety of applications.

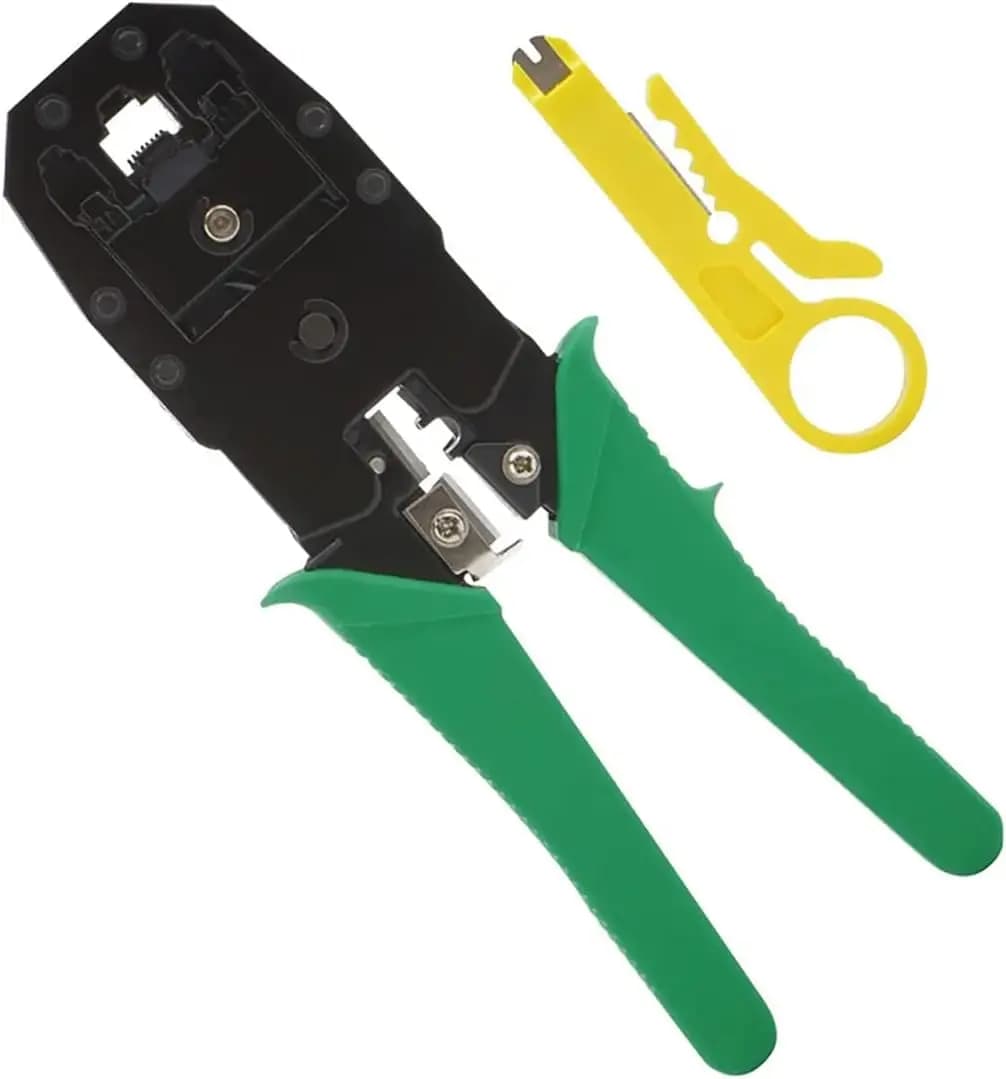

This RJ45 Crimp Tool makes it easier to trim patch cords into any lengths you need. This handy all-in-one tool allows you to terminate an RJ45 plug with a stranded four-pair, unshielded, twisted-pair cable. Now you can crimp, cut, and strip with one convenient tool. Features: Portable style with perfect shape. It won't damage the shelled wire and works with high efficiency The mouth of the press-pliers is made of magnetic steel, which is hard and durable While using press-pliers, just insert the crystal top into its position and press it For 4, 6, 8 poles modular connectors Suited for network cable with RJ45 Connector and ADSL Cable with RJ11 Connector Package Content: 1 x Crimping Tool 1 x Cutter with Stripper Also see the above image showing the Package contents.

FEATURES

Suited for network cable with RJ45 Connector

ADSL Cable with RJ11 Connector

For 4, 6, 8 poles modular connectors

While using press-pliers,

mouth of the press-pliers is made of magnetic steel

Brand: True Face

Style: Wire Stripper
