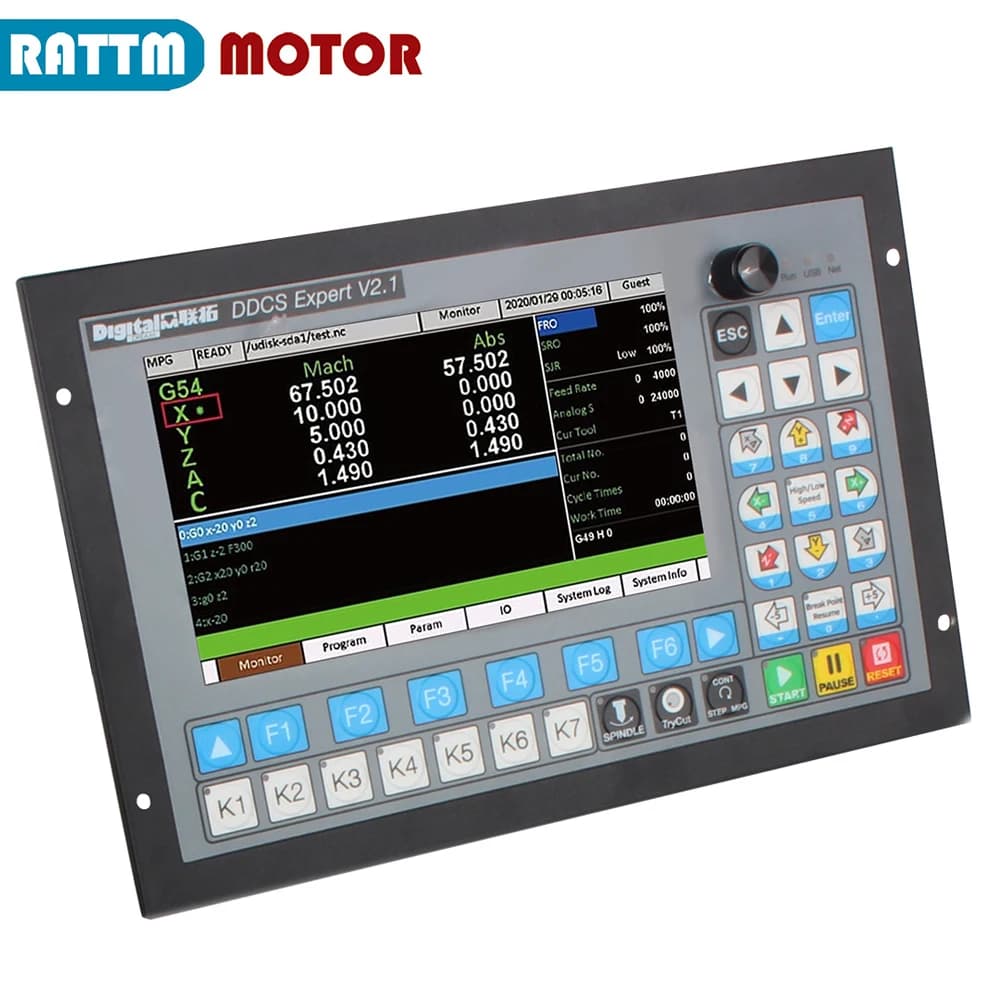

DDCS Expert V2.1 4 Axis 5 Axis PLC CNC Off-line Motion Controller For Router Engraving Milling Lathe Machine

Package Include:

1 x DDCS-EXPERT (4, 5 axis optional)

1 x MPG handwheel

English manual is sent via e-mail,after u purchase,pls leave ur e-mail address

Introduction: The DDCS Expert numerical control system adopts the ARM+FPGA design framework. ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. The internal operating system is Linux based

Main Features: 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;Analog spindle control 0-10V spindle control, also support PWM Output;Compatible with standard G-code,support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on

24V DC Power Supply Input: DDCS-Expert needs two power supplies,Main power is for controller system,IO Port power is for Input and Output and MPG ports. Both power supply is 24VDC,current is 3A

Applications:The DDCS Expert can be used for many styles and types of CNC machines. Lathes, CNC Routers,Pick and Place,Milling Machine, lathe and cutters are just a few examples

1.1 Product Brief Introduction

Digital Dream is a numerical control company specializing in the research, development

and production of various CNC (Computer Numerical Control) systems since 2008. Digital Dream

aims to combine high quality and high reliability with affffordability.

The DDCS Expert is a 3~5 axes motion controller for open or close stepper and servo systems

with 7/10.2 full color display screen. The highest output pulse per axis is 1MHz. The users can

self-defifine the functional keys. This controller supports multiple spindle mode, support straight

Tool Magazine, gantry type Magazine, disk type magazine. The Operation system interface even

though very comprehensive, can be learned in very short time.

The DDCS Expert numerical control system adopts the ARM+FPGA design framework. ARM

controls the human-computer interface and code analysis and the FPGA provides the underlying

algorithms and creates the control pulse. This guarantees reliable control and easy operation.

The internal operating system is Linux based.

The DDCS Expert can be used for many styles and types of CNC machines. Lathes, Routers,

Pick&Place and Mills, lathe and cutters are just a few examples. The DDCS Expert operates as a

Stand Alone system without the need of a computer. This guarantees high precision, accuracy

and reliability.

1.2 DDCS-Expert Brief technical feature:

axis circular interpolation;

1) Max. 5 Axis; 1M Hz output frequency for each axis; 2-4 Axis linear interpolation, any 2

2) 7 inch full color display screen; resolution ratio: 1024*600, 40 operation keys;

3) 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;

4) Analog spindle control 0-10V spindle control, also support PWM Output;

5) Magazine type: Supports multiple spindle mode, support straight Tool Magazine, gantry

type Magazine, disk type magazine;

6) Probe Mode: Supprt Floating Probe and Fixed Probe;

tion, length compensation;

7) Backlash compensation methods: direction gap compensation, radius gap compensa-

8) Interpolation Algorithm: S type, circular hard algorithem, circular soft algorithm;

9) Language: Chinese, English;

10) Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so

11) Network: Support fifile share and online machining the remote fifiles by Ethernet;

output, and servo spindle output;

12) Spindle control mode support Multi-speed (3 lines 8 kinds speed), 0-10V Analog

13) Compatible with standard G-code, support popular CAD/CAM software, such as

ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on;

14) The control system can preview the processing path before machining, and it makes

the system more steady, working smoothy and precise;

15) Support high speed machining in continuous Polyline segment, system can choose a

most effiffifficient algorithm automatically from difffferent kinds Polyline segment algorithm;

16) Support un-limited size fifile for machining;

17) Support Pause Breakpoint resume, “Power Cut” recovery, Start from the specifific line;

18) Support time-lock function;

19) Support 4 kinds operation rights: visitor, operator, admin, super admin;

mode” and so on;

20) Support function of “Try cutting” (handwheel guiding) and “Single-stage processing

21) Support the fuction of Back to orignal point

21) The Power Supply for the controller is 24VDC, minimum Current is 0.5A;

22) The Power Supply for IO Port is 24VDC, minimum current is 0.5A; By the IO power

supply,system already supply the power to IO ports.So no need the external power supply.
