[EU/BR Stock] K11-100mm/K12-100mm 3/4 jaw Chuck 4th Rotary Axis+65mm Tailstock CNC Dividing Head F/ CNC Router Engraving Machine

[BR Stock] K11-100mm/K12-100mm 3/4 jaw Chuck 4th Rotary Axis+65mm Tailstock CNC Dividing Head For CNC Router Engraving Machine

Package include:

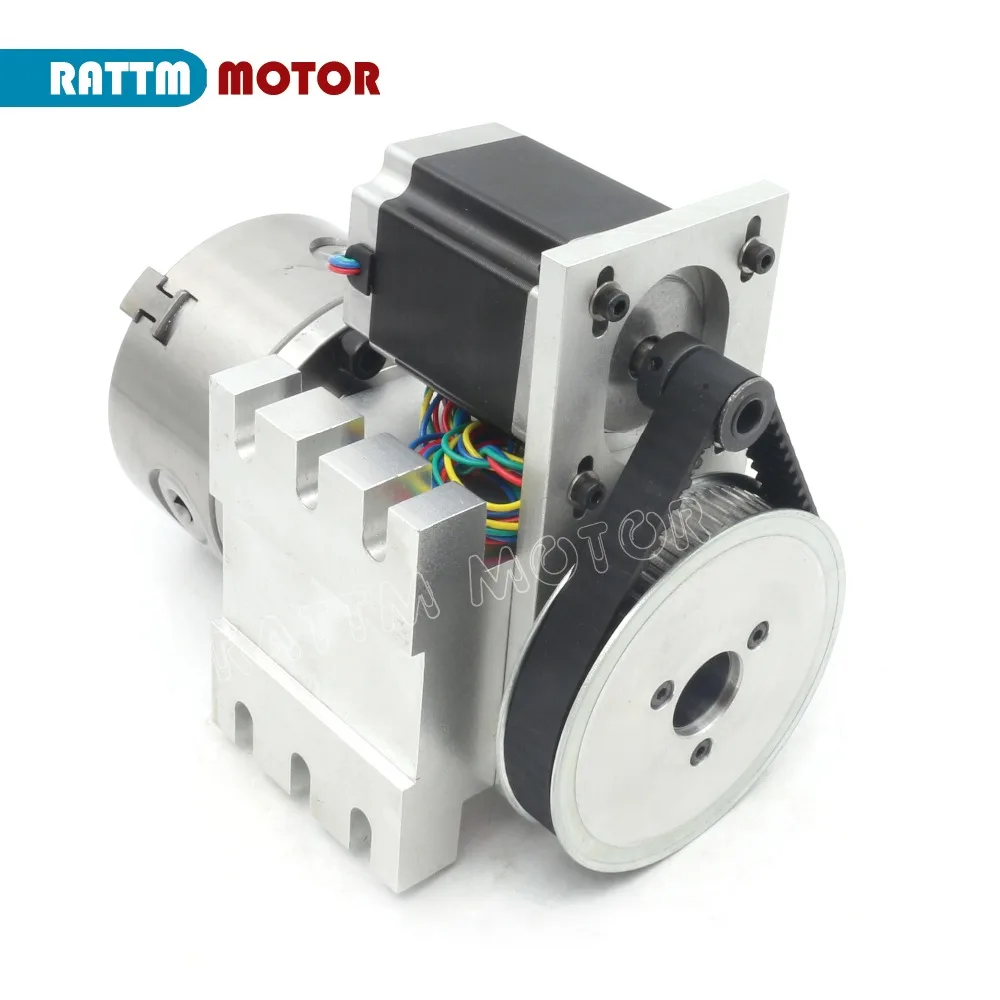

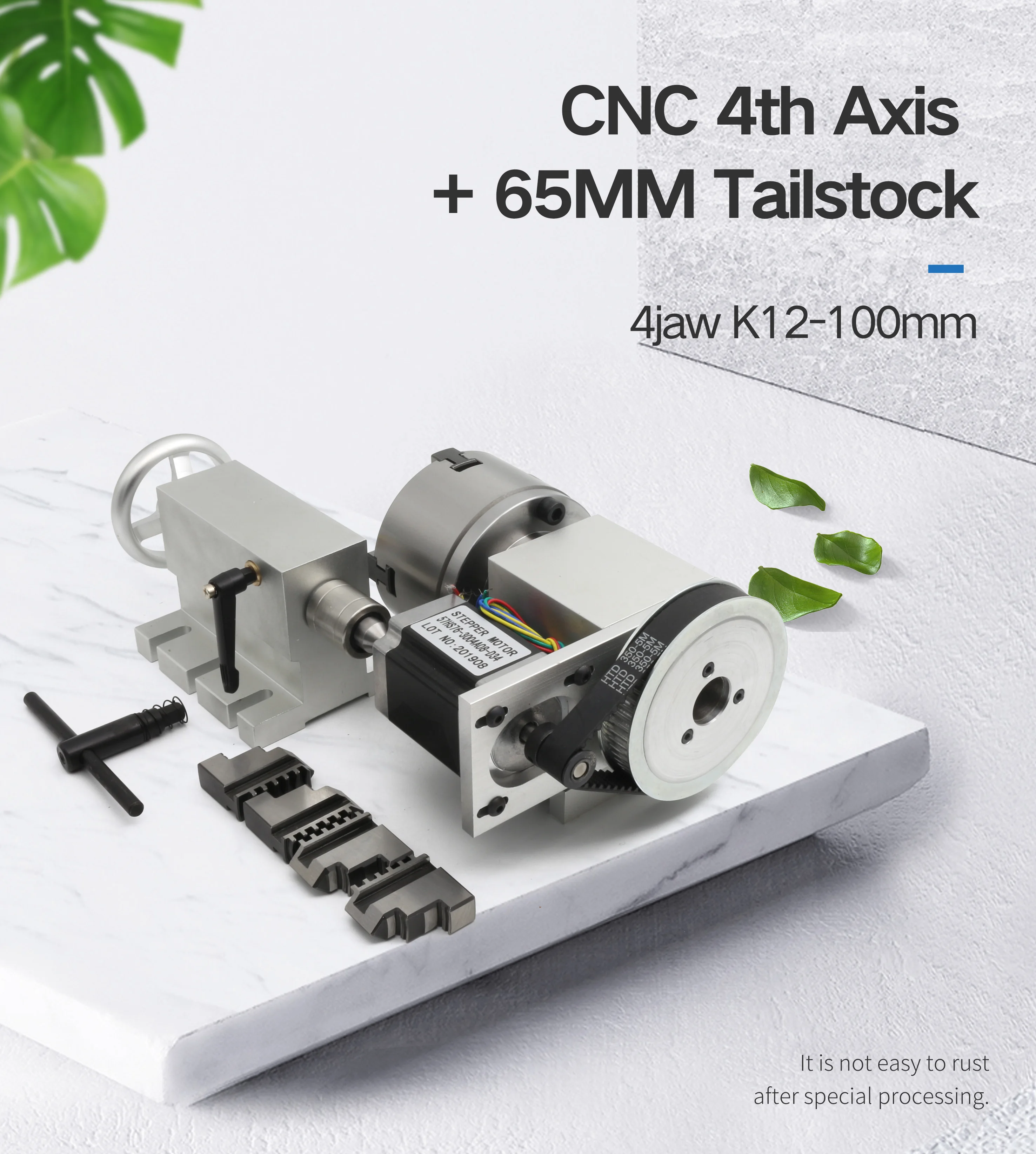

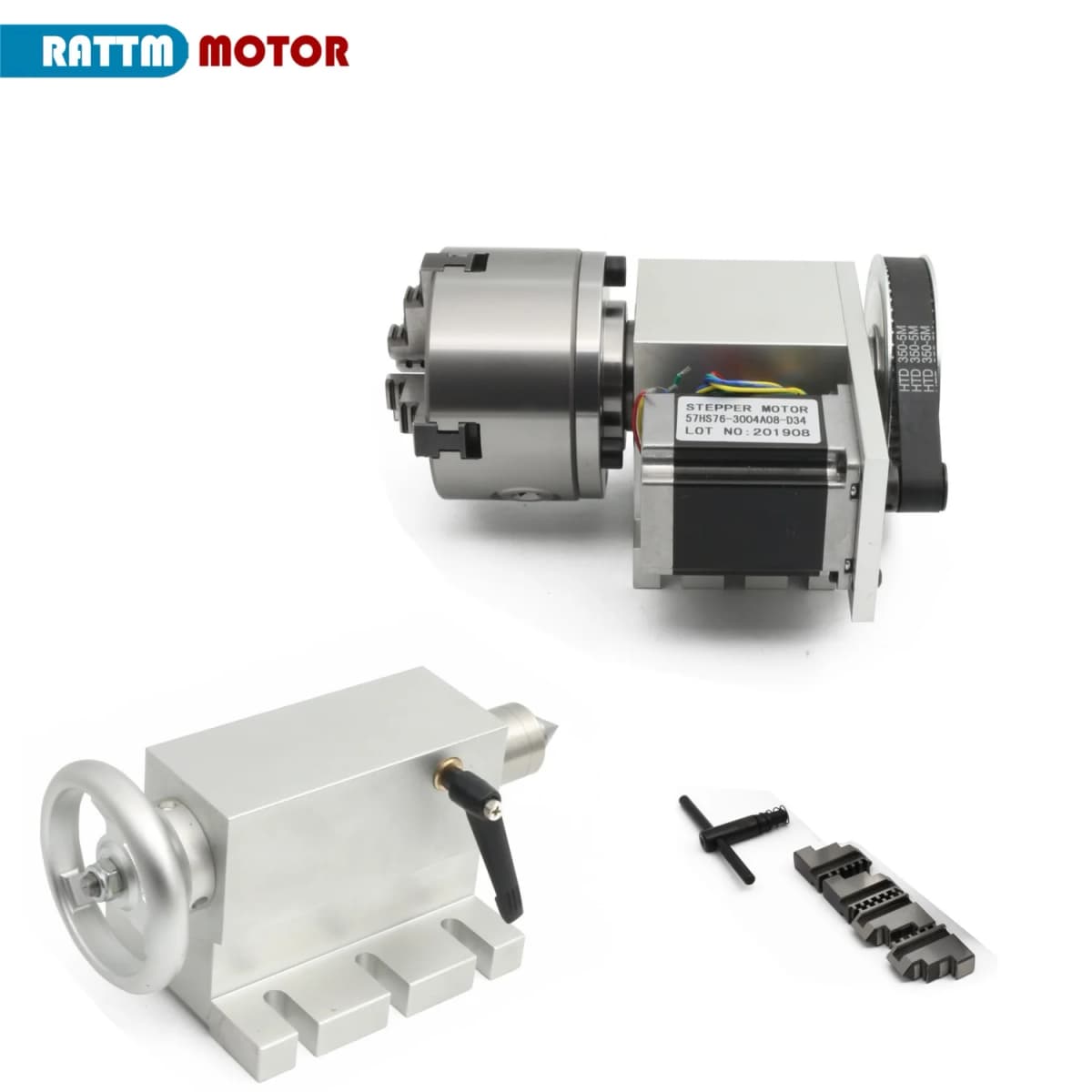

1 Set 4th axis (K11-100mm / K12-100mm)

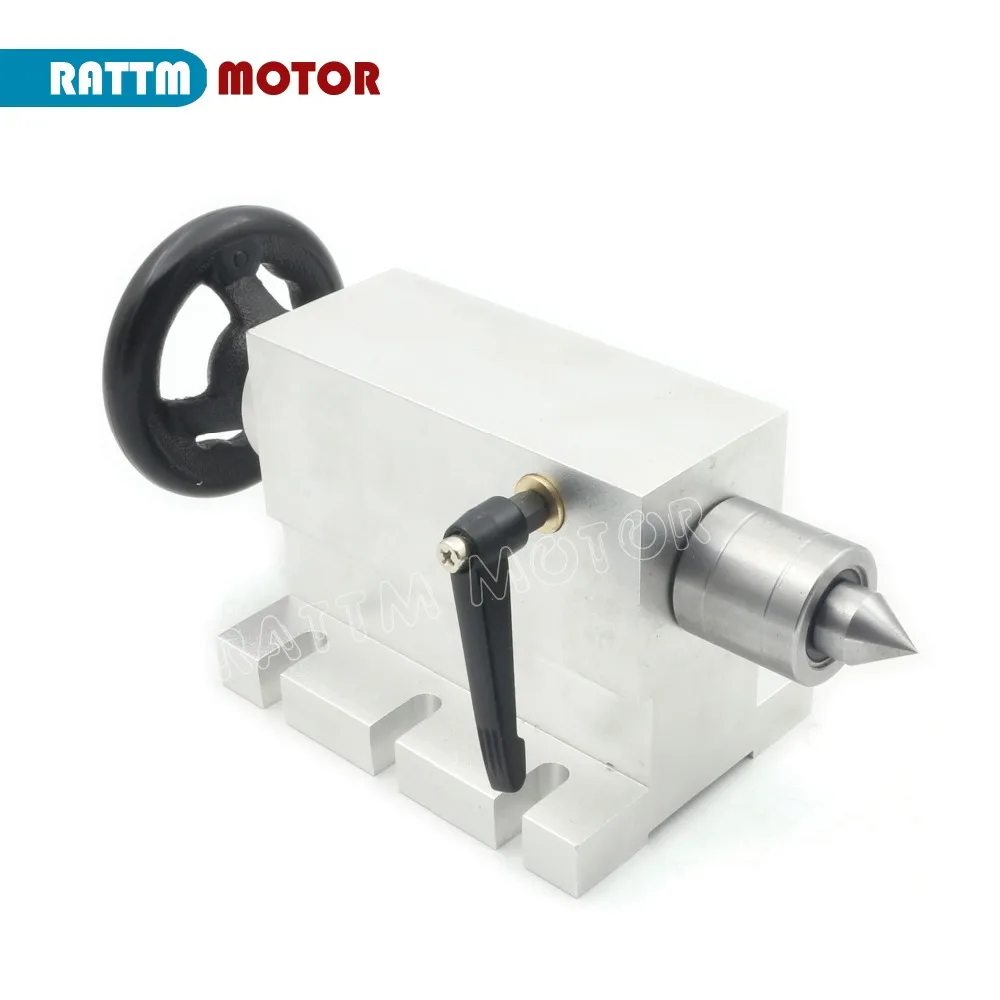

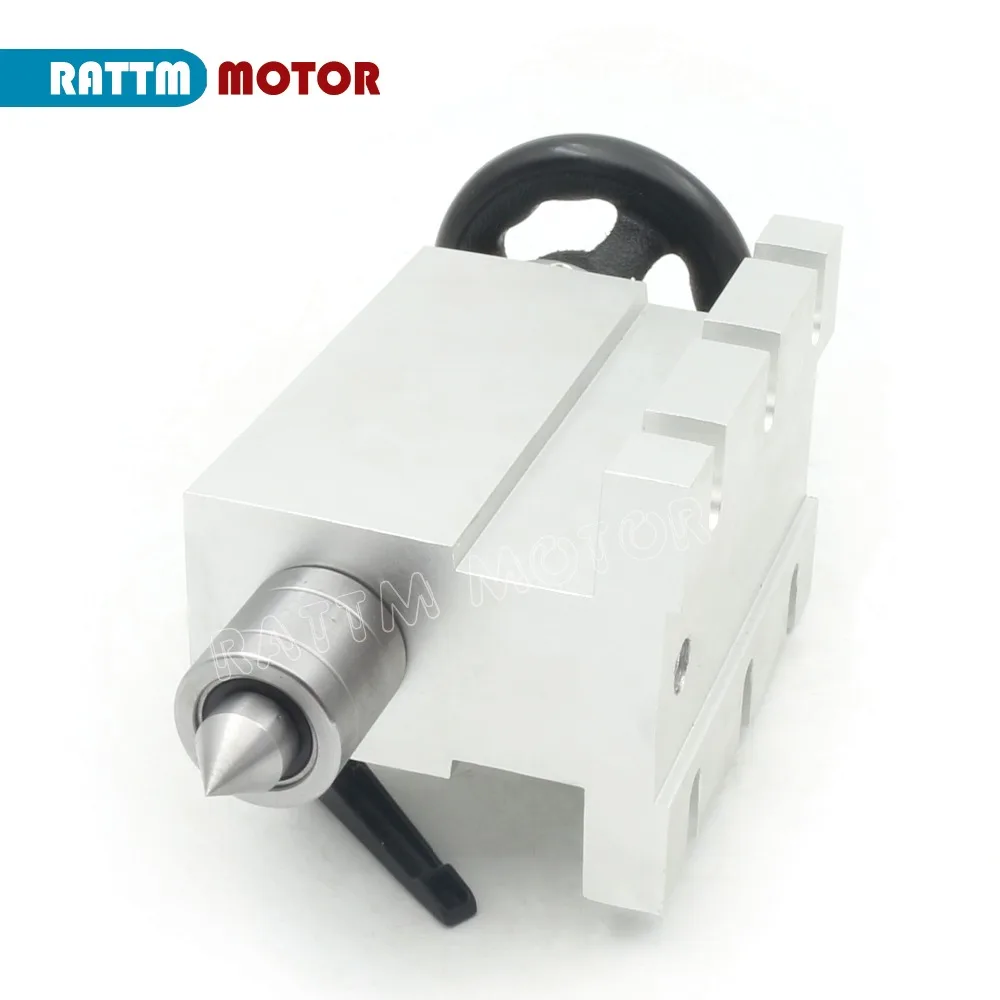

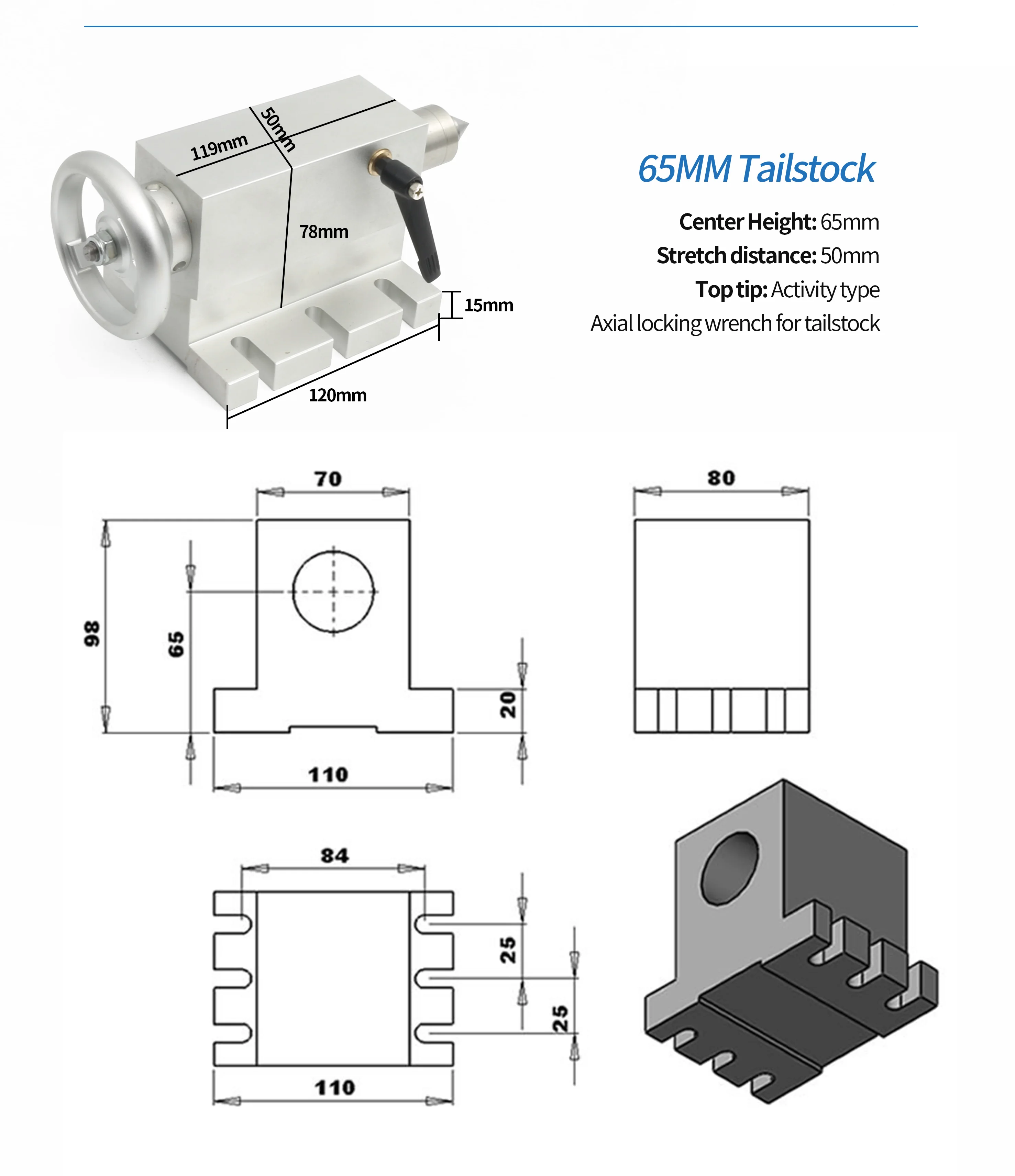

1 x Tailstock 65mm

1) K11-100mm Kit:

Description:

Chuck type: K11-100 (3 jaw centering chuck)

Center height: 65mm

Total height: 115mm

Angle: 0.3°/ step

Gear box output shaft diameter: 20mm

Reducing ratio: 6:1

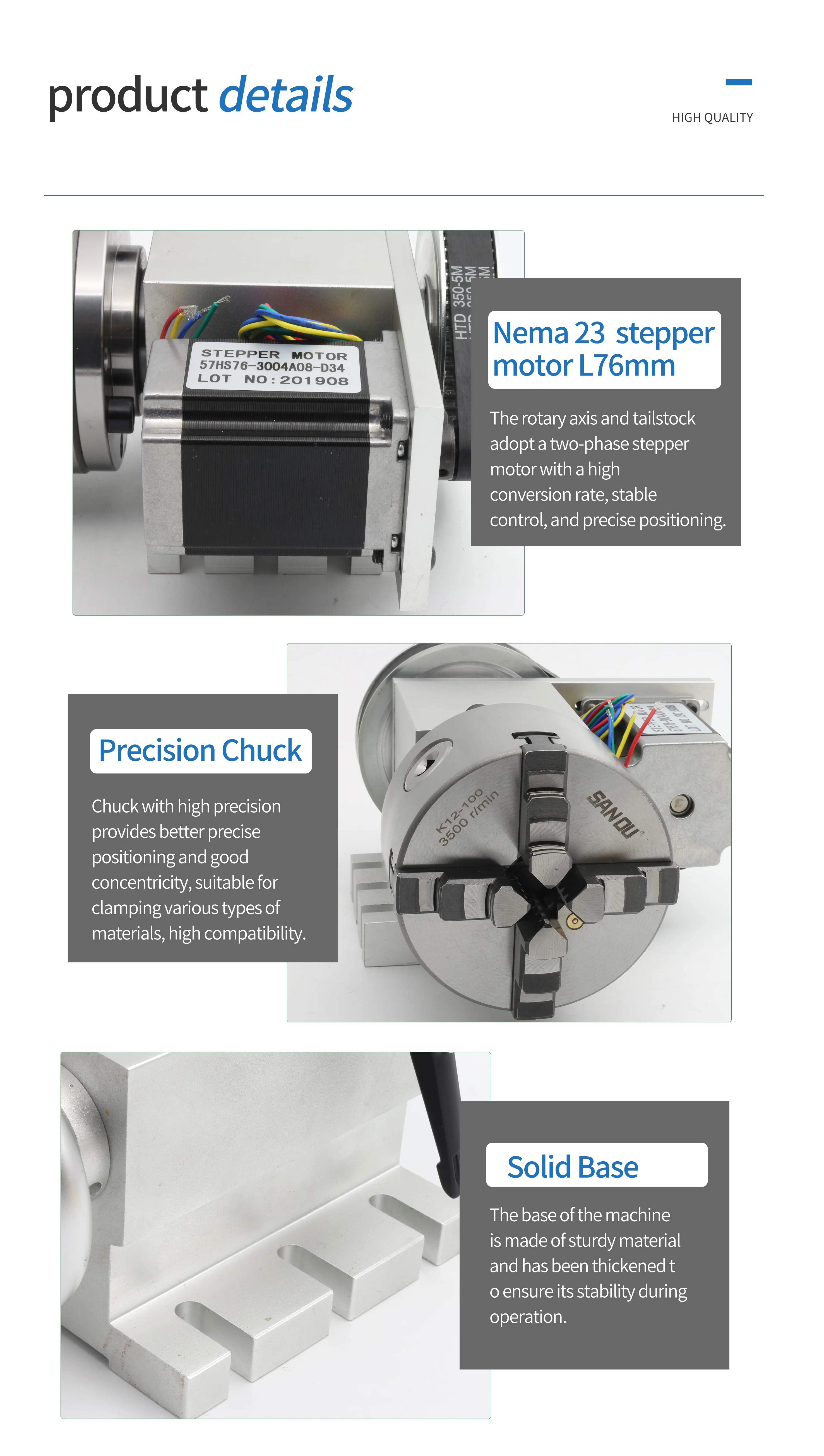

Stepper motor: Nema23 57mm 3A 2-phase 4 wire

Accessories: Set of Anti-claw and wrenches

The fourth axis parameter settings:

Mach3 system settings: the pulses required for 1°(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1(200 x 16 x 100) / 360=888.88888888)

Weihong system settings: 1 pulse along the angle360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1360 / (200 x 16 x 100) =0.001125
