【Waterproof】3.5KW ER20 12A CNC Water Cooled Cooling Spindle Motor Kit For Woodworking Metal Engraving Milling Machine

Package include:

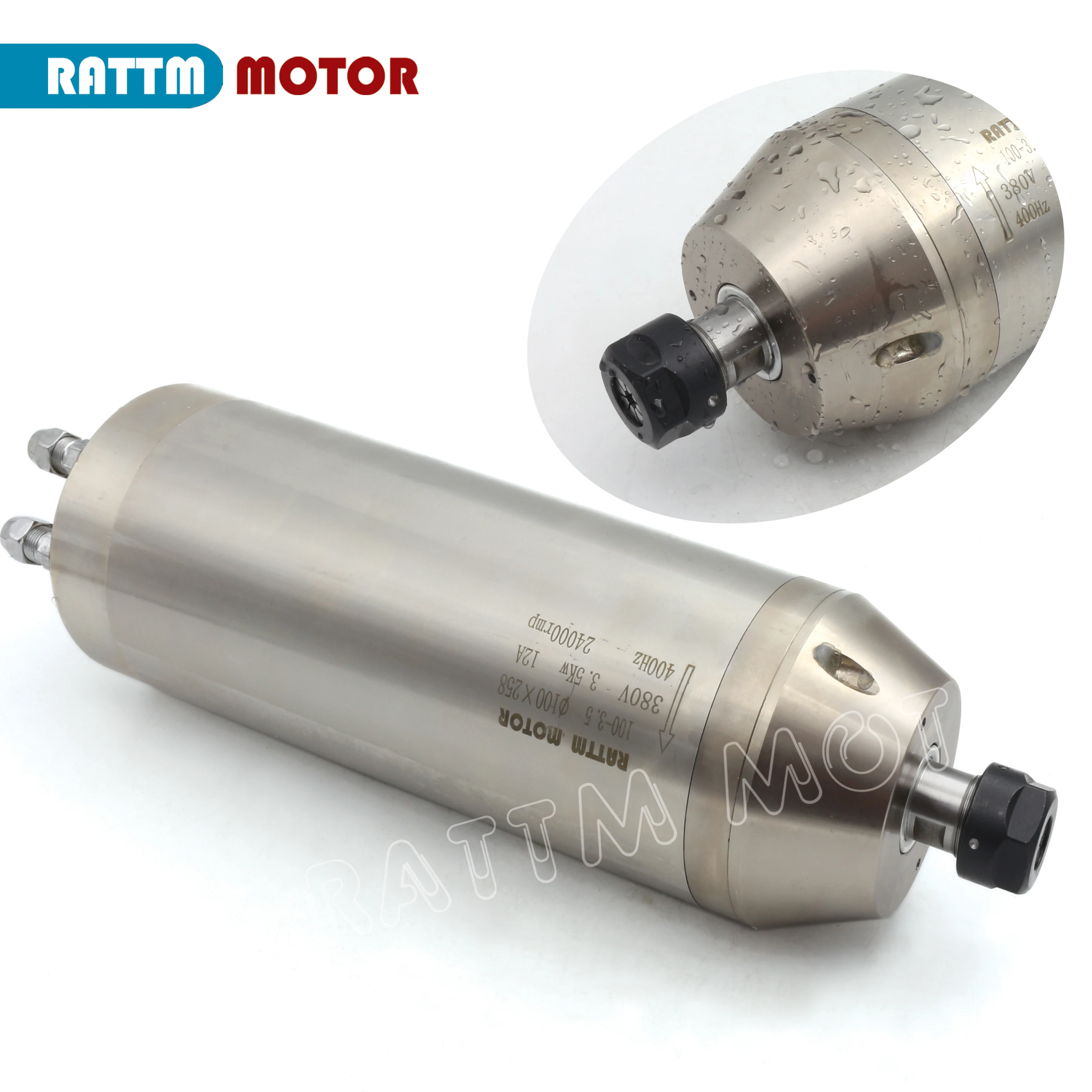

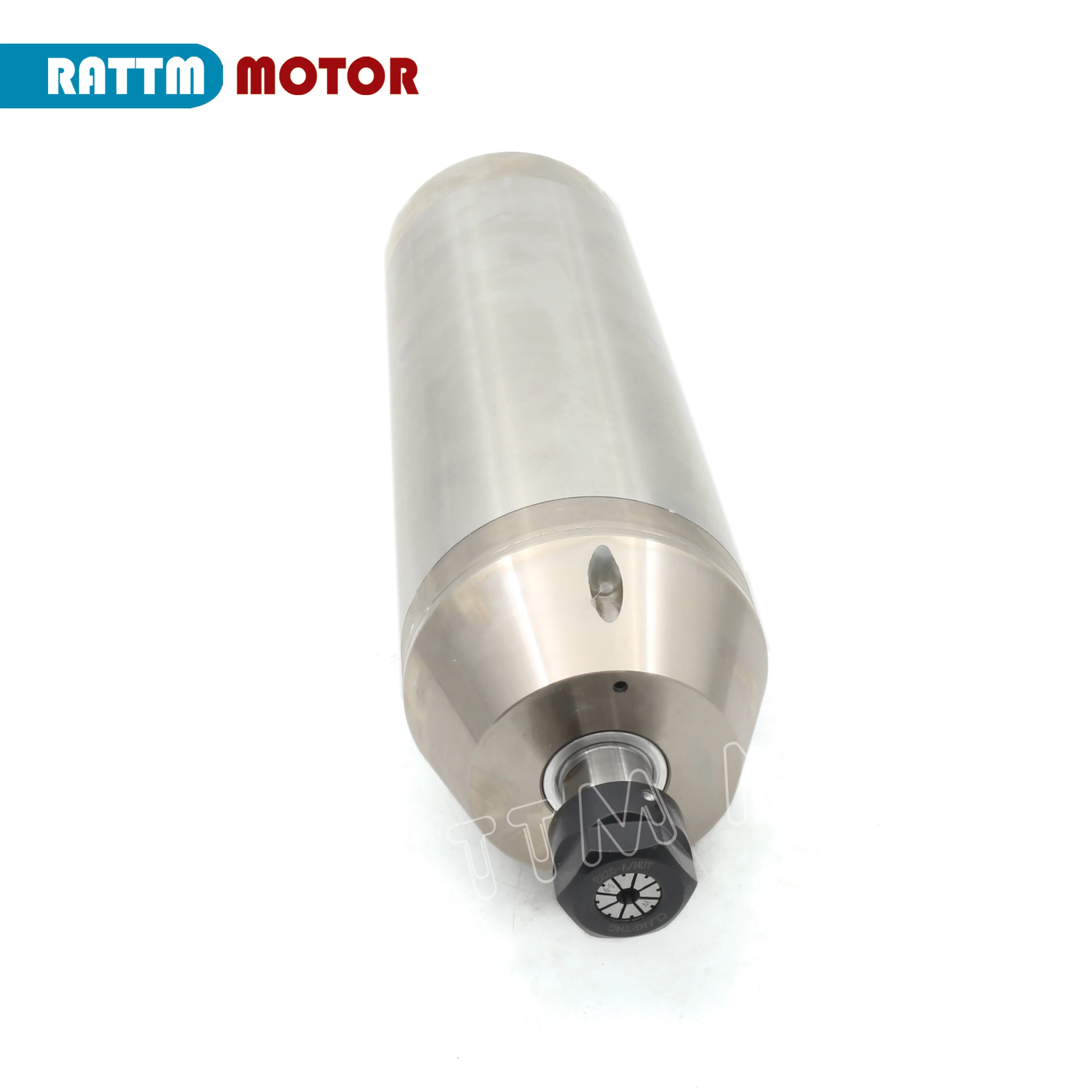

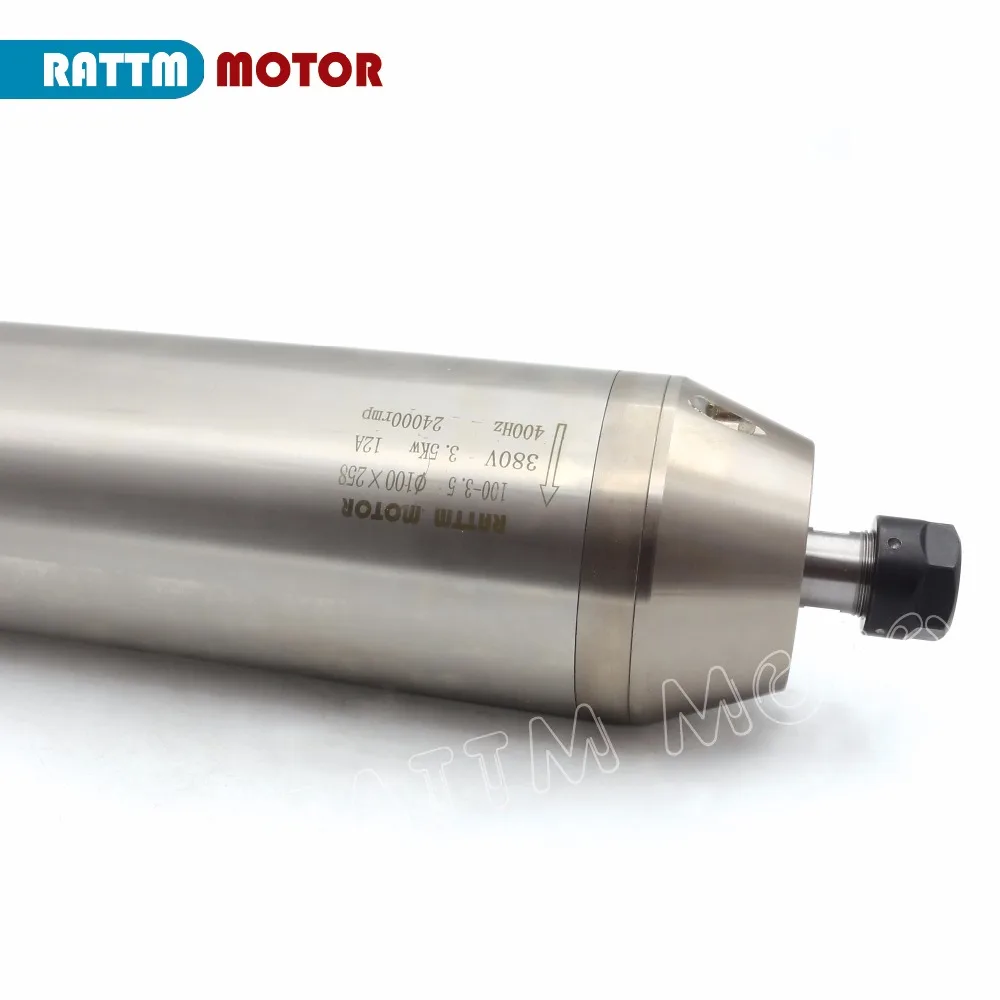

1 x WATERPROOF Water cooled spindle motor 3.5KW ER20 380V / 220V,24000rpm

1 x 4KW HY Inverter VFD 380V / 220V (Optional)

1 x 100mm clamp

Product show:

3.5KW ER20:

1) Waterproof

2) Long life

3) Long length and high torque

4) Can engrave metal,Mold processing

5) 4 Bearings(2x7005+2x7004)

6) High precision

Specification:

Material:Stainless Steel

Size:Φ 100x258mm(long length and high torque)

Power:3.5Kw

Voltage:380VAC

Current:12A

Frequency:0-400Hz

Speed:10-24000rpm

Cooling:Water-cooling

Precision tapered bore:0.01mm

Runout off:Less than 0.01mm

Bearing Lubrication:Grease

Collet size:ER20

Bearings:4 bearings(C7005x2 + C7004x2),P4 class

Net Weight:10.95kg

Power supply interface:Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 is blank to avoid connection wrong to burnt the spindle.

Main application:Wood, Aluminum, Stone, metal, glass, PVC industry

●When the spindle is stored and transported, the bearing condition inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then increase slowly at a speed of 3000 rpm, running for 20 minutes each time. The spindle and inverter should work together. The specifications and parameter settings of the inverter match the spindle parameters.

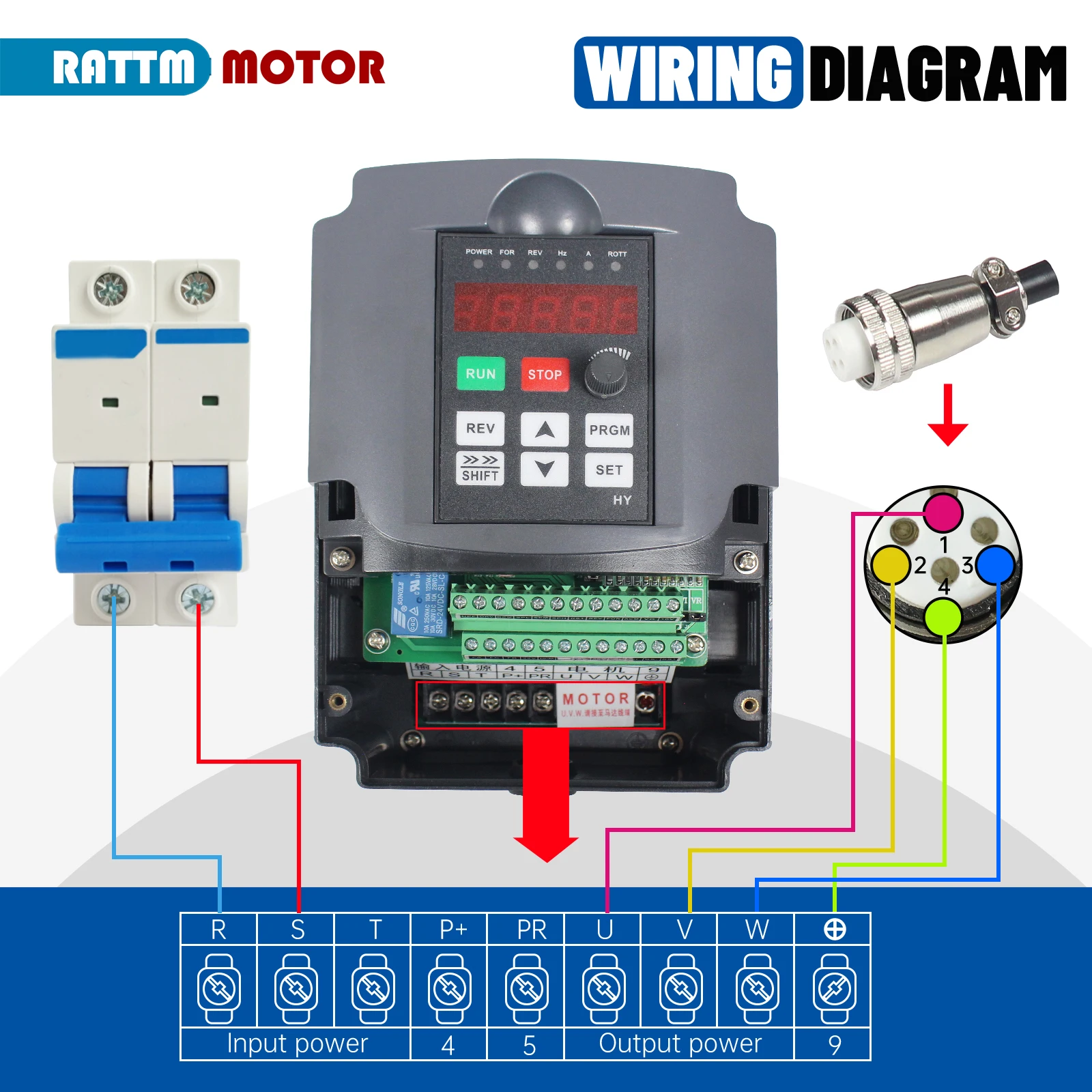

●To connect the inverter main shaft, the three-phase inverter power cord should be welded to the plug 1 (U), 2 (V), 3 (W) pin, and the grounded pin 4. After turning on the power, observe whether the spindle rotation axis always shows the direction. If it is inconsistent, turn it off immediately, and replace the two wires of the three-phase power supply connected to the inverter and the spindle.

●Before using the spindle every day, it must run at low speed for 15-20 minutes. Clamp the cutter on the spindle, the chuck nut, chuck, and cutter must be clean enough. The shank inserted into the chuck must be larger than 15mm.

●The water-cooled spindle must be used together with the water pump. Otherwise, the spindle will quickly break.

●The AC spindle motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the spindle. Before use, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.

●When using the spindle, the noise is different from before, so please stop the spindle immediately. You need to replace the spindle bearing.

1. Different cooling methods: The water-cooled spindle motor uses water circulation to cool the heat generated after the spindle rotates at a high speed, and the spindle motor uses fan cooling for cooling.

2. Noise: The water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very large.

3. Life: water-cooled spindle motor should pay attention to maintenance, often change water or use industrial water cooler, air-cooled spindle fan mainly blows heat to the heat sink by wind to achieve cooling effect.

4. If you need to use metal, hardwood, granite, stone, you can choose metal mandrel. Metal mandrels are much better than wooden mandrels.

●The spindle frequency power supply is connected to the rated voltage, and the frequency should be consistent with the technical parameters of the electric spindle. The spindle speed can be adjusted to change the frequency, and the voltage changes in proportion.

●Do not use the spindle, apply compressed air to blow off the static coolant in the pipeline. To prevent rust, please plug the water hole. The spindle should be oiled. Add anti-wave device and put it in a dry place.

●To replace the spindle bearing, some professional and technical personnel should be replaced. With special tools, the bearings should be cleaned thoroughly without removing the stator coil.

Inverter Type: 380v 9A

Input Voltage: 380V(+/-15%)

Input Frequency: 48-63 Hz

Output Voltage: 380VAC

Output Frequency: 0-400 Hz

Input Phase: 3 phase

Output Phase: 3 phase

Warranty: 1 year from the date you purchased

Inverter Type: 220v 17A

Input Voltage: 220V(+/-15%)

Input Frequency: 48-63 Hz

Output Voltage: 220VAC

Output Frequency: 0-400 Hz

Input Phase: 1 or 3 phase

Output Phase: 3 phase

Warranty: 1 year from the date you purchased
