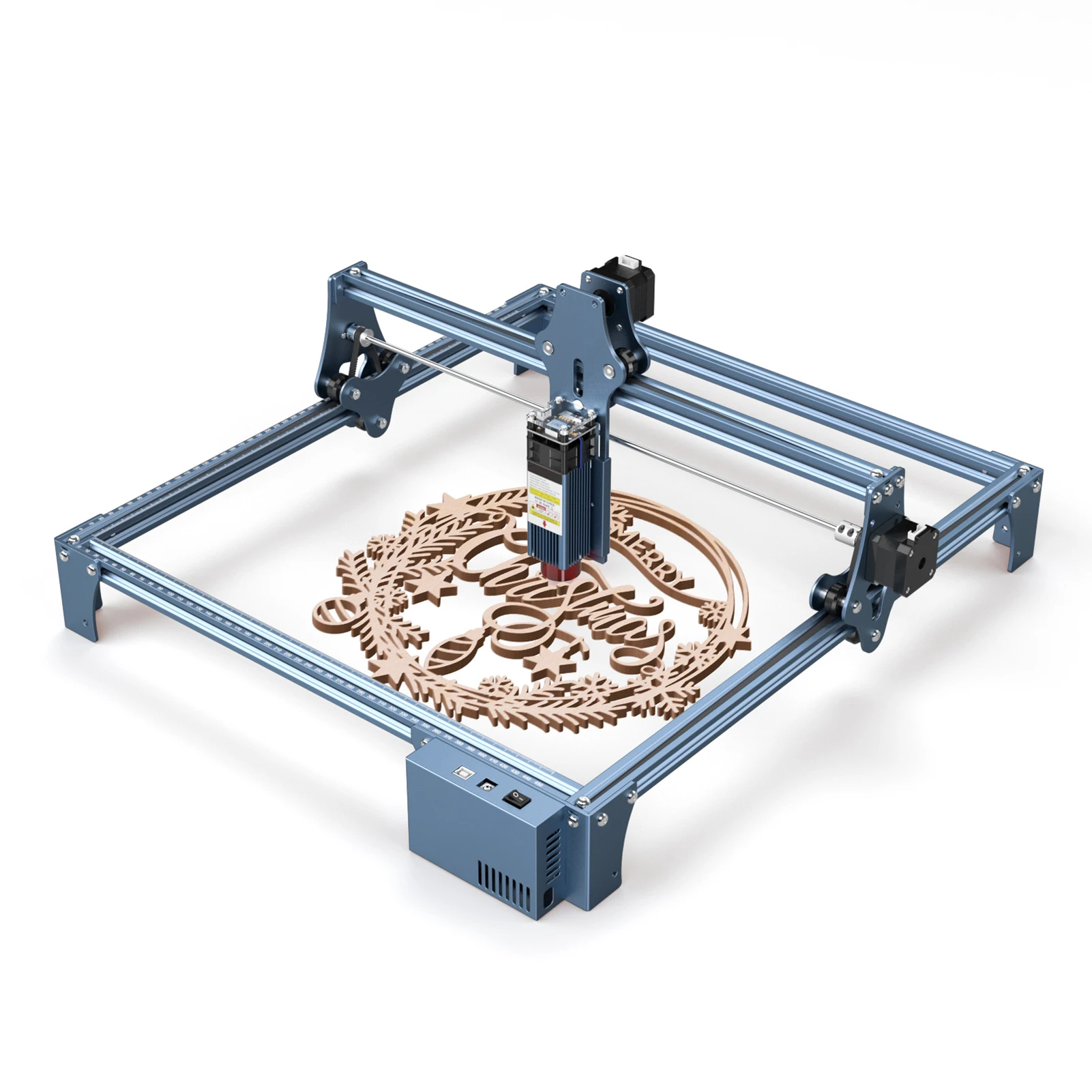

SCULPFUN S9 Full Metal Ultra-fine Laser Engraving Machine Wood Laser Engraver 110-240V(UK Plug) Fast fixed focus design

Features:

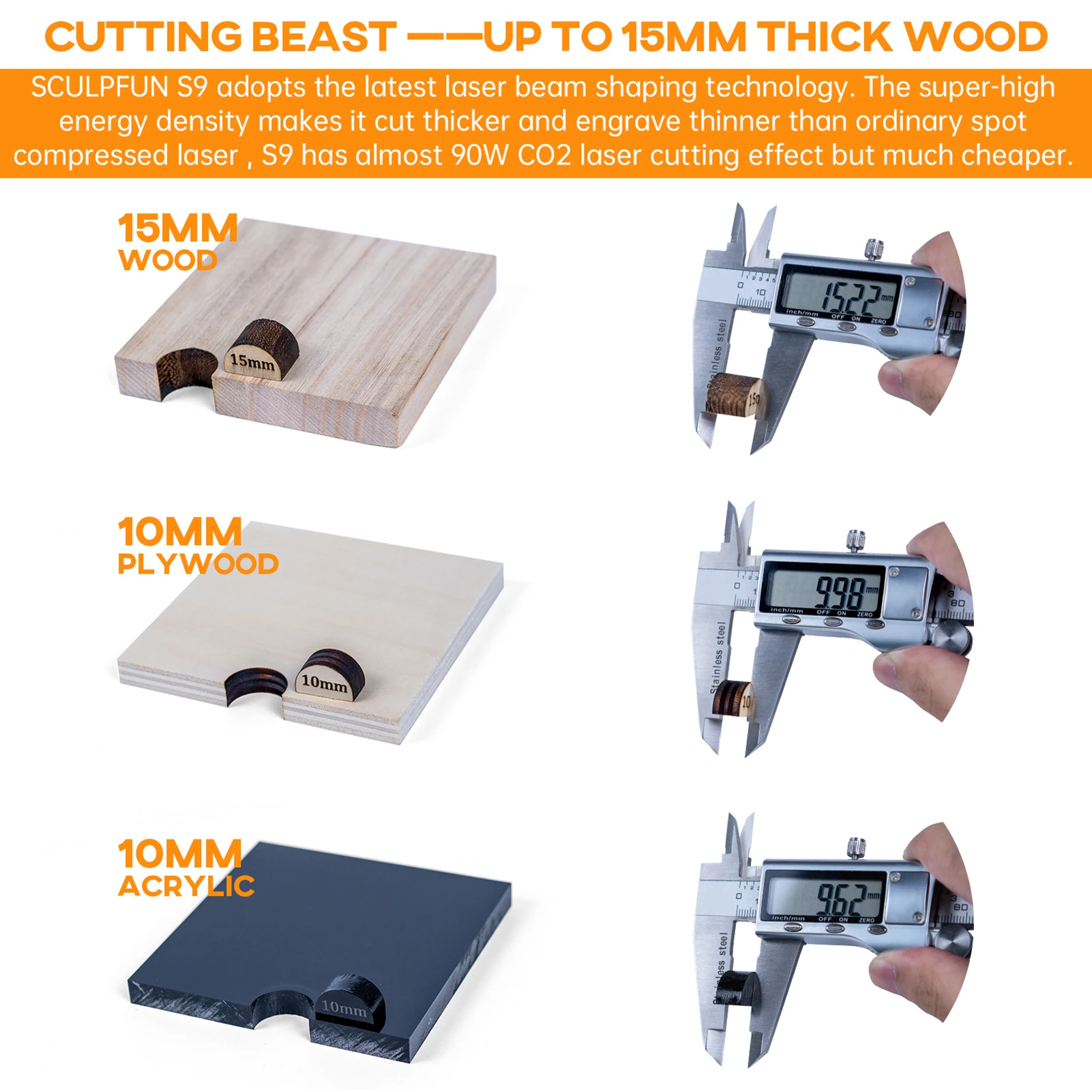

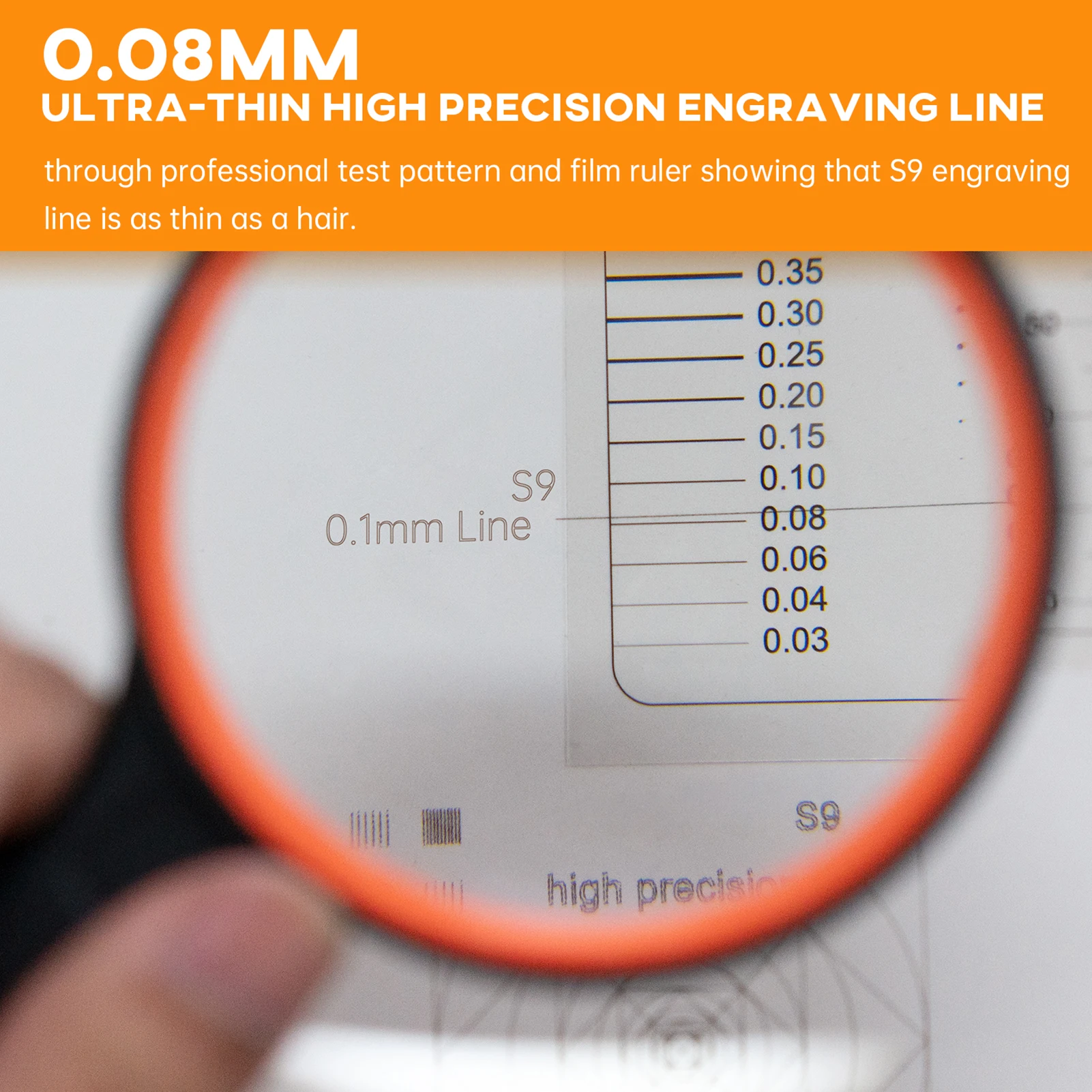

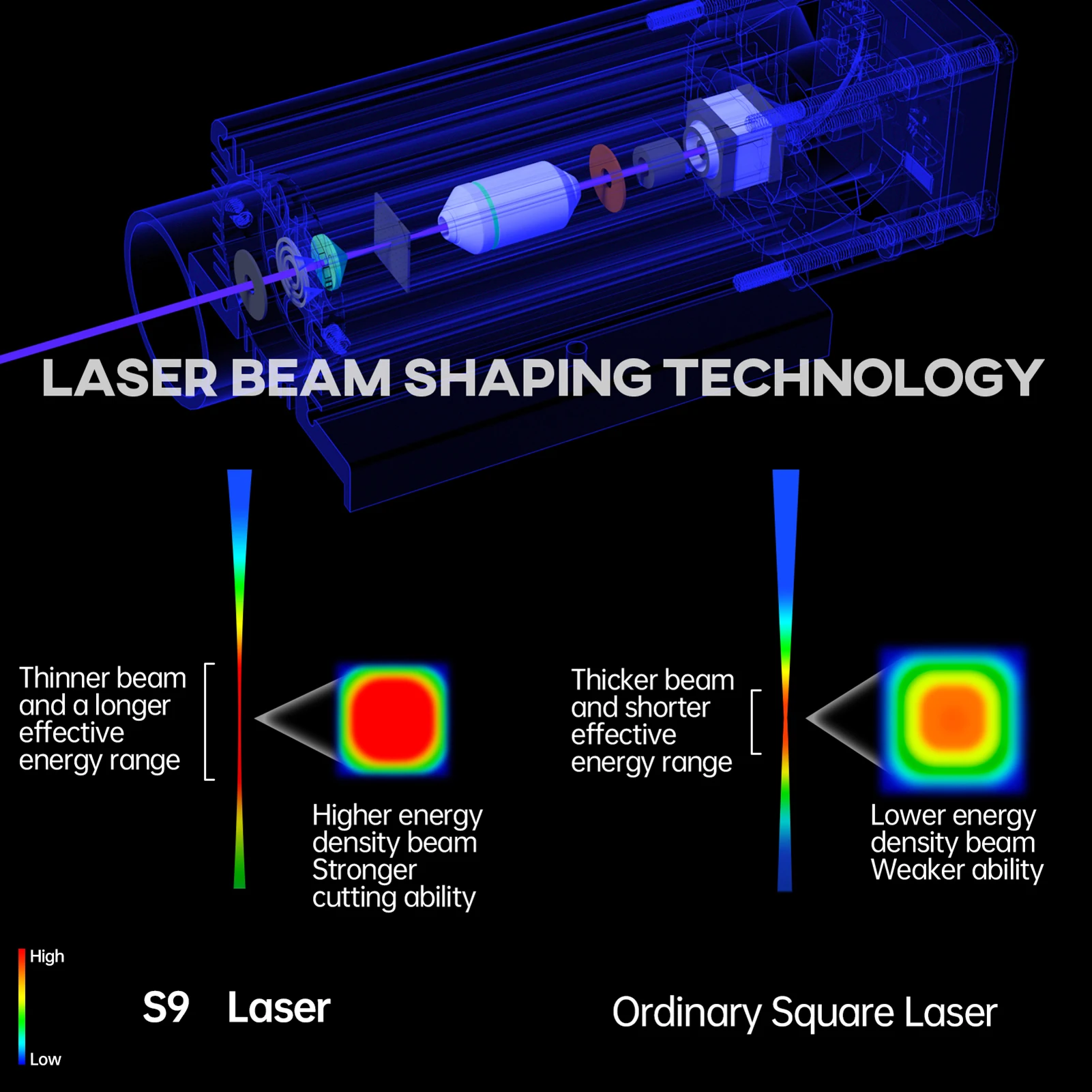

Laser beam shaping technology: S9 adopts the latest 5.5W laser shaping technology diode laser, it has an ultra-fine 0.06mm laser focus, with super cutting penetration and fineness, the thickest can cut 15mm thick wood, 10mm acrylic, carved ceramic and stainless steel.

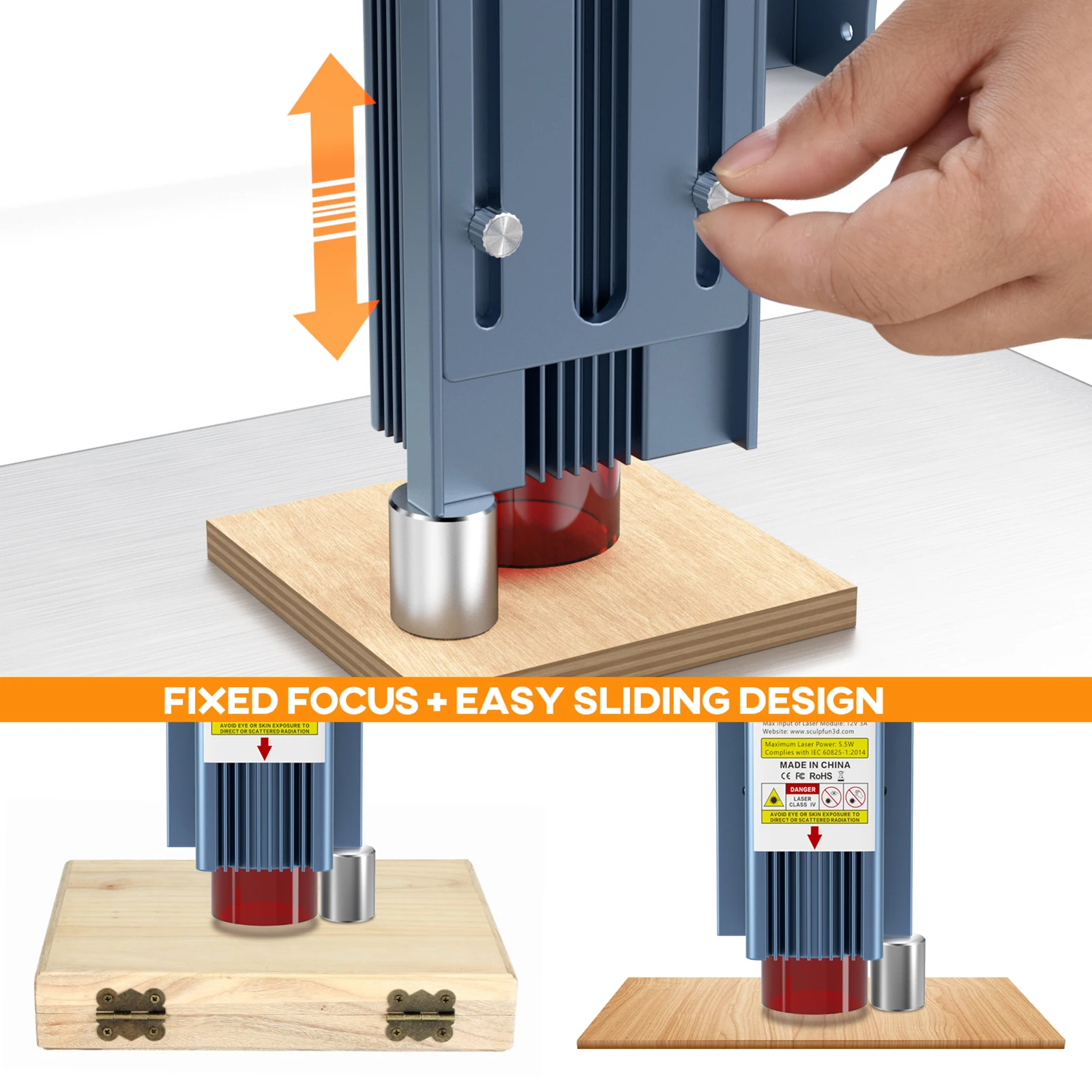

Fast fixed focus design: S9 has the fastest focus design on the market. The S9 laser combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focus. This makes the use of the laser very simple.

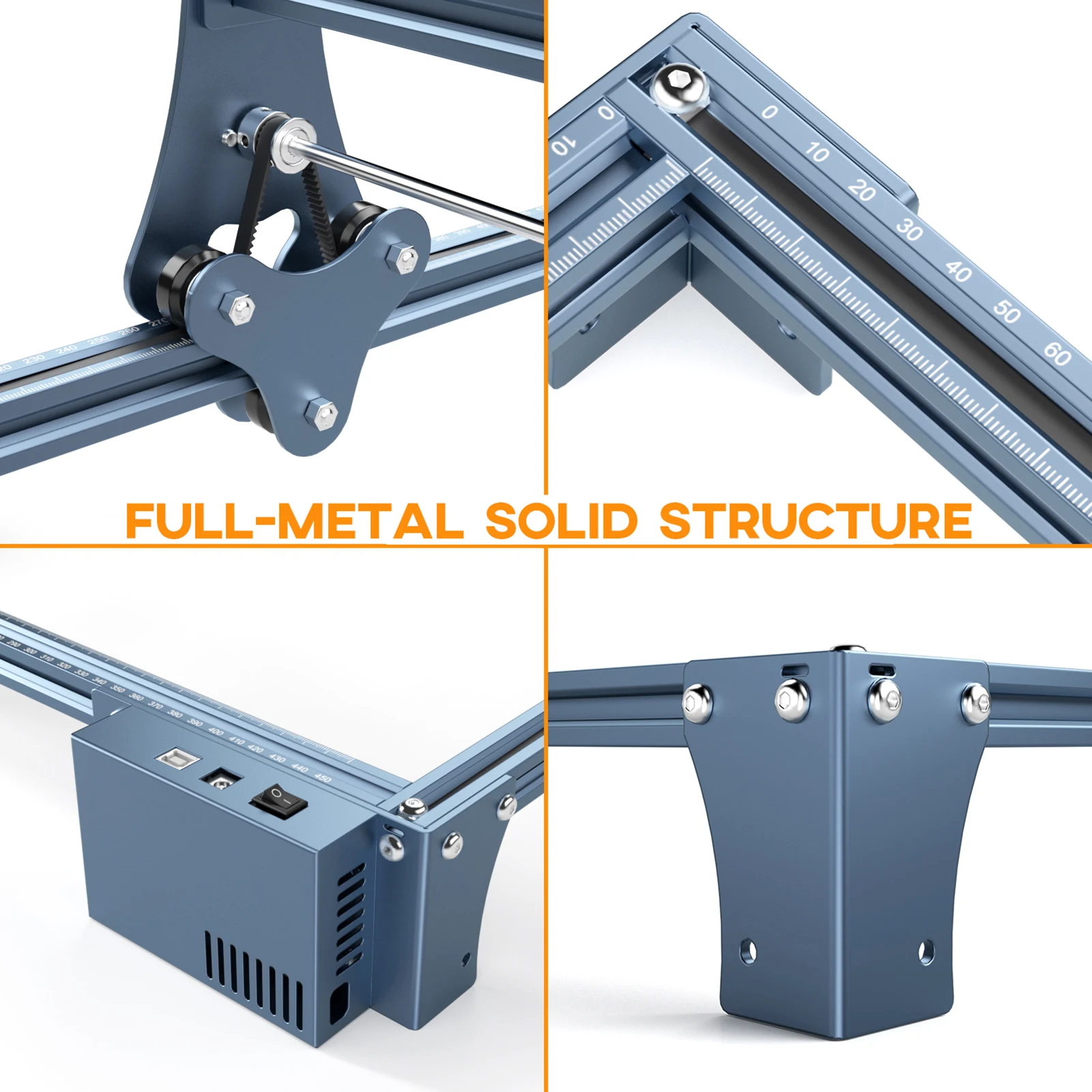

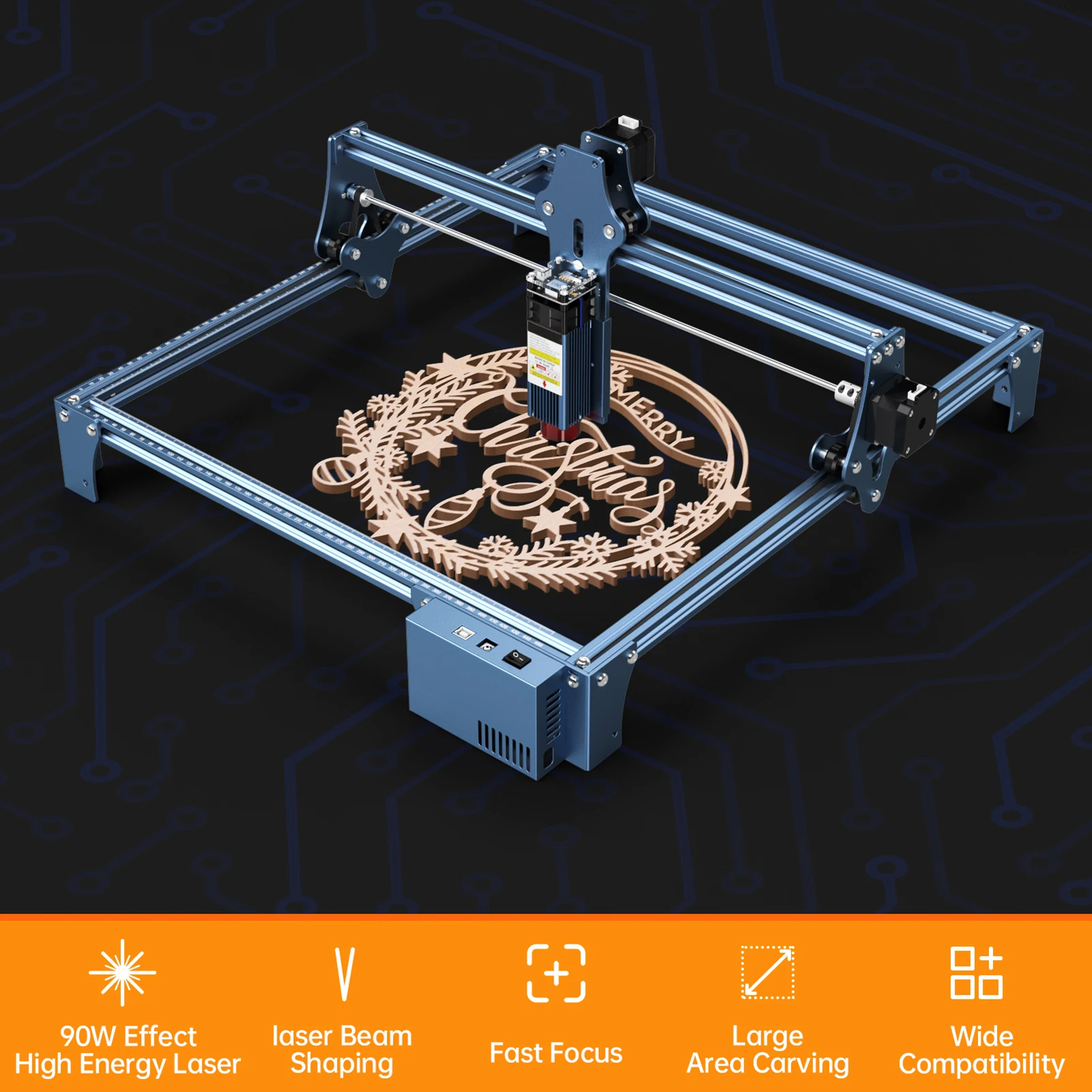

Robust and easy-to-install structure design: The all-metal structure design makes the machine extremely sturdy, and at the same time it improves the accuracy of engraving. The whole structure is designed for quick installation, and the installation can be completed in 10-20 minutes. The structural frame is very durable and remains open. During use, you can keep the frame and replace with other new lasers.

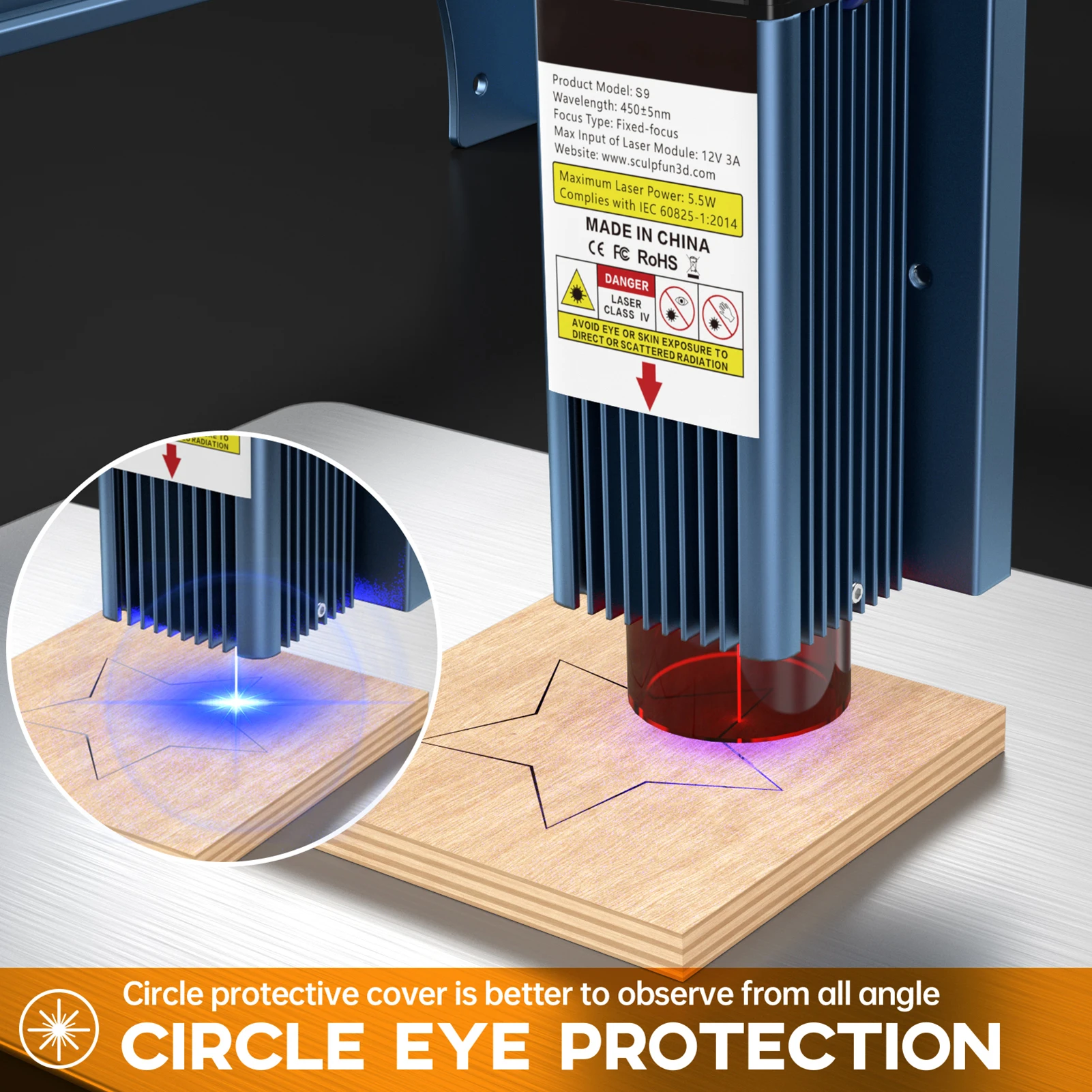

New eye protection design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving without wearing goggles. At the same time, it can prevent animals from catching the laser spot.

Extensive compatibility: The machine is compatible with various mature engraving software, such as for LaserGRBL, for LightBurn, for Benbox, for GrblController, for LiteFire, supports PWM mode engraving, supports Windows system, MAC system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

Safe design: There is a very safe power switch on the machine. Fixing holes are reserved on the four feet and the body structure to facilitate fixing the machine and the data cable.

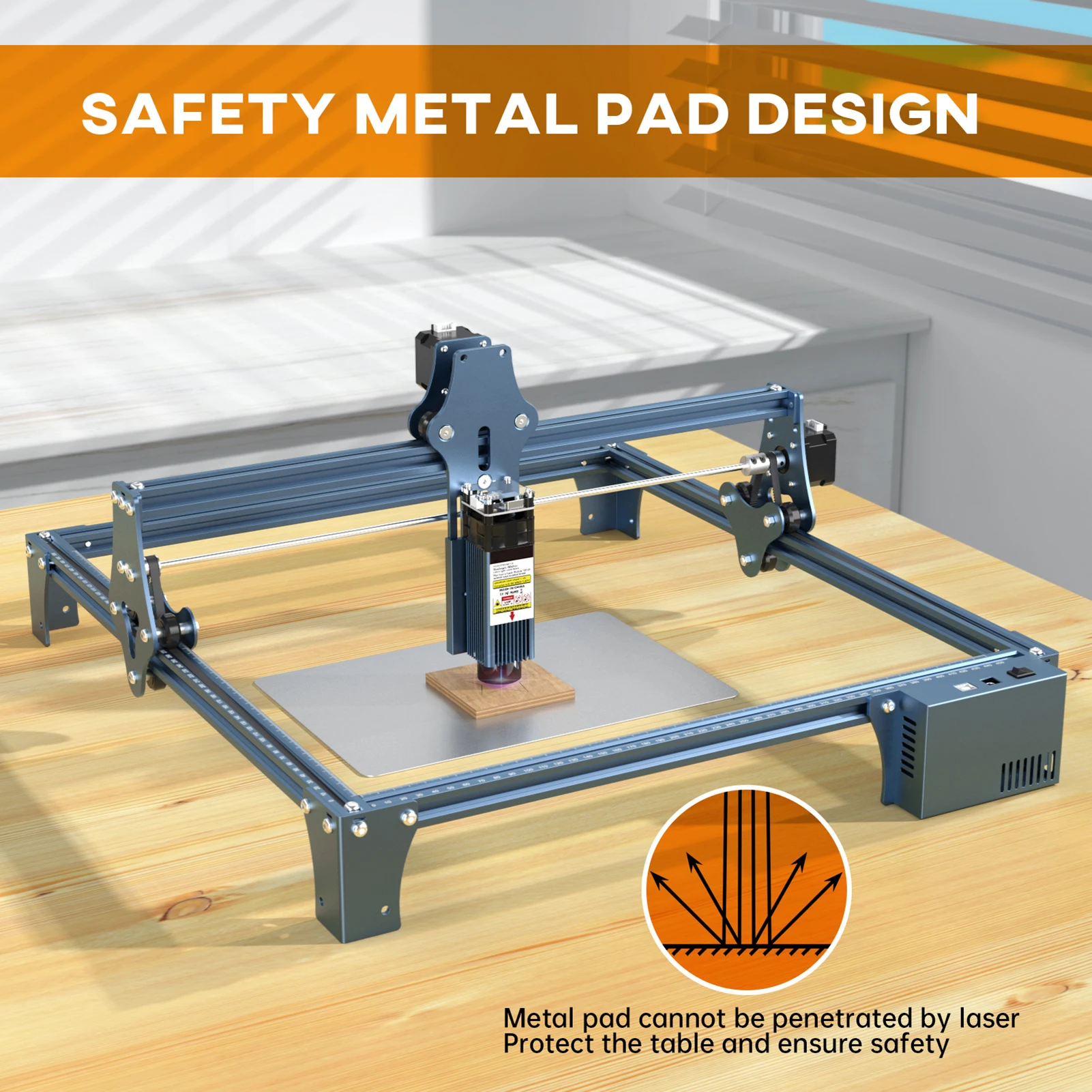

A4 steel pad: The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.

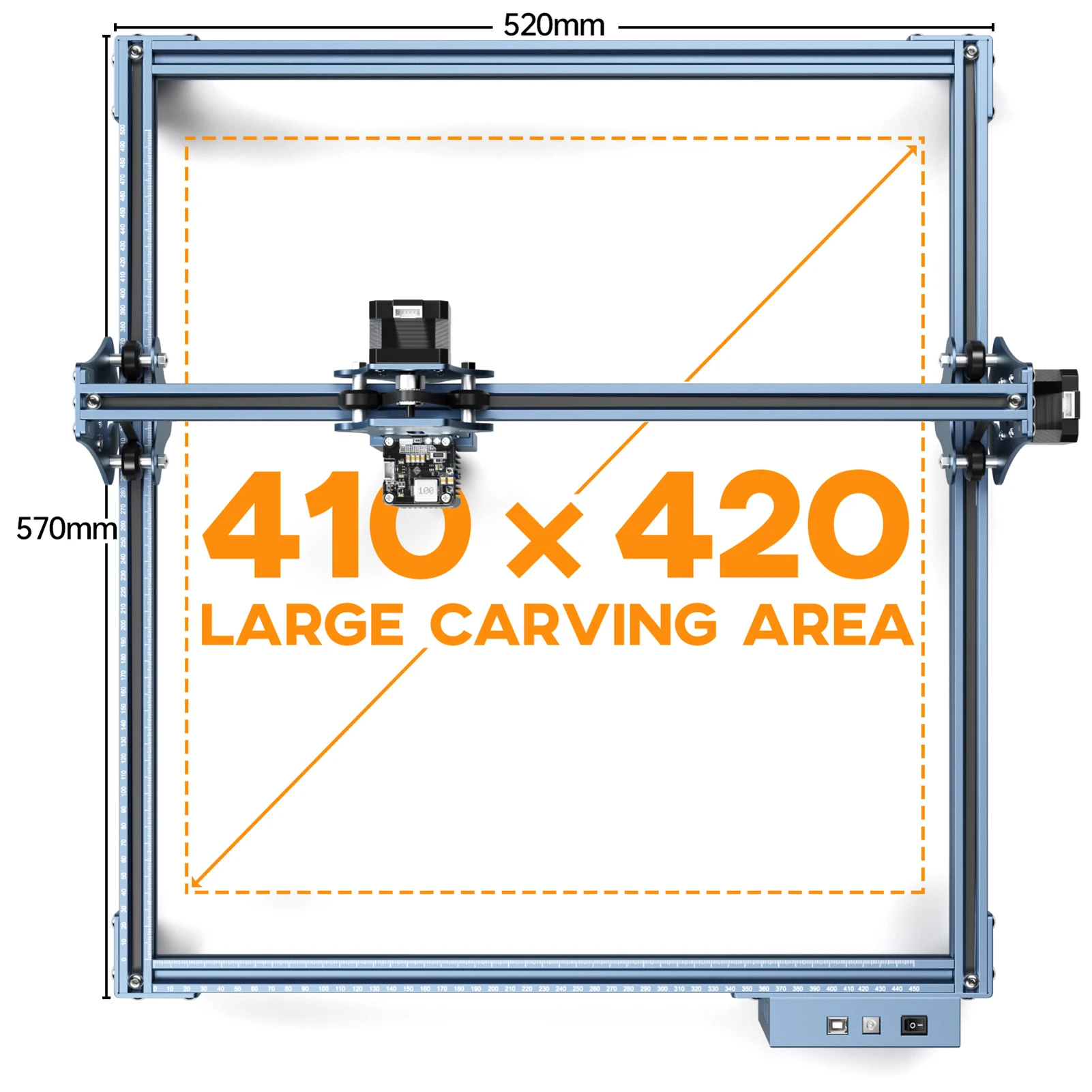

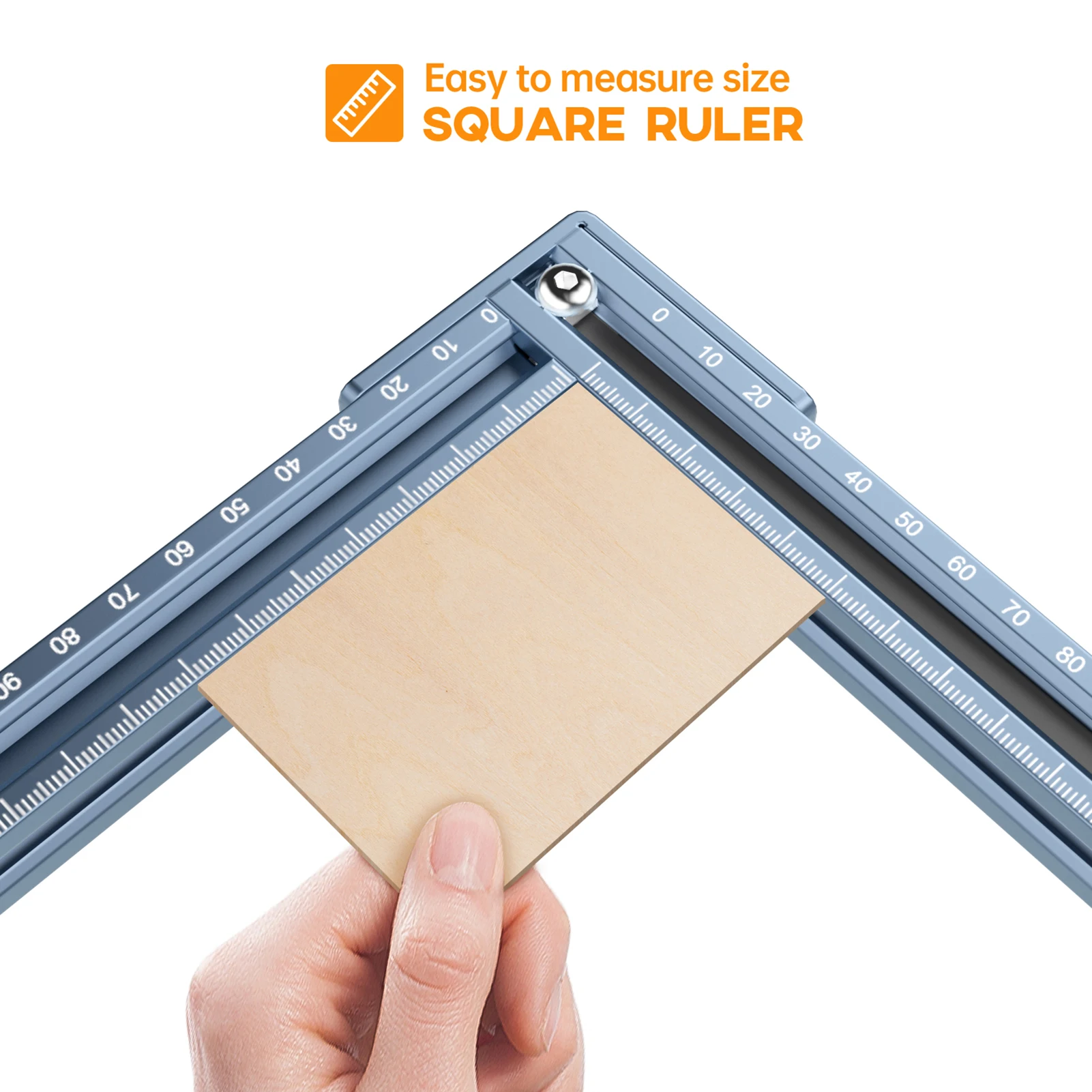

Right-angle measuring ruler: The X-axis and Y-axis contain precise scale lines to form a right-angle measuring ruler, which is convenient for you to measure the size of the engraving object quickly. The 410x420mm large-area engraving interval can meet your various engraving needs.

Specification:

Product model: SCULPFUN S9

Engraving size: 410*420mm / 16.1*16.5in

Color: Blue

Plug mode: UK plug

Engraving material: wood, bamboo, cardboard, plastic, leather, PCB, alumina, 304 stainless steel, ceramic, dark stone.

Cutting material: wood, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board.

Laser effect power: 90W (similar to 90W COz laser cutting effect)

Power consumption: 30W

Diode laser output power: 5.5-6W

Laser wavelength: 455±5nm

Engraving accuracy: 0.01mm

Focusing mode: fixed focus laser + sliding device

Laser protection cover: the purple filter cover on the laser can protect the user's eyes and prevent animals from contacting the laser point.

Operating software: for LaserGRBL, for LightBurn, for LaserGRBL, for LightBurn, for Benbox, for GrblController, for LiteFire, Support Windows and MAC operating systems. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.

Data transfer mode: USB connection

Power supply: International standard power input: 100-240V AC, 50/60Hz Output: 12V 5A

Net weight of equipment: 3.0kg

Packing weight: 4.4kg

Packing size: 615*345*130mm / 24.2*13.6*5.1in

Certification: CE FCC RoHS FDA ICE certification

Matters needing attention:

1. For detailed machine instructions and parameter settings, please refer to the manual.

2. Install laser protective cover when operating laser engraving machine; Wear goggles if not properly installed.

3. Do not touch the laser with your hands. Otherwise, your hands may be burned.

4. Please avoid strong impact on the machine.

5. Children under 14 years of age are not allowed to use this product. Adult supervision is required for children over 14 years of age.

6. Do not apply the laser directly to any specular reflection object, this may cause injury to the operator or burn the laser.

Notes:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-3mm measuring deviation due to manual measurement.

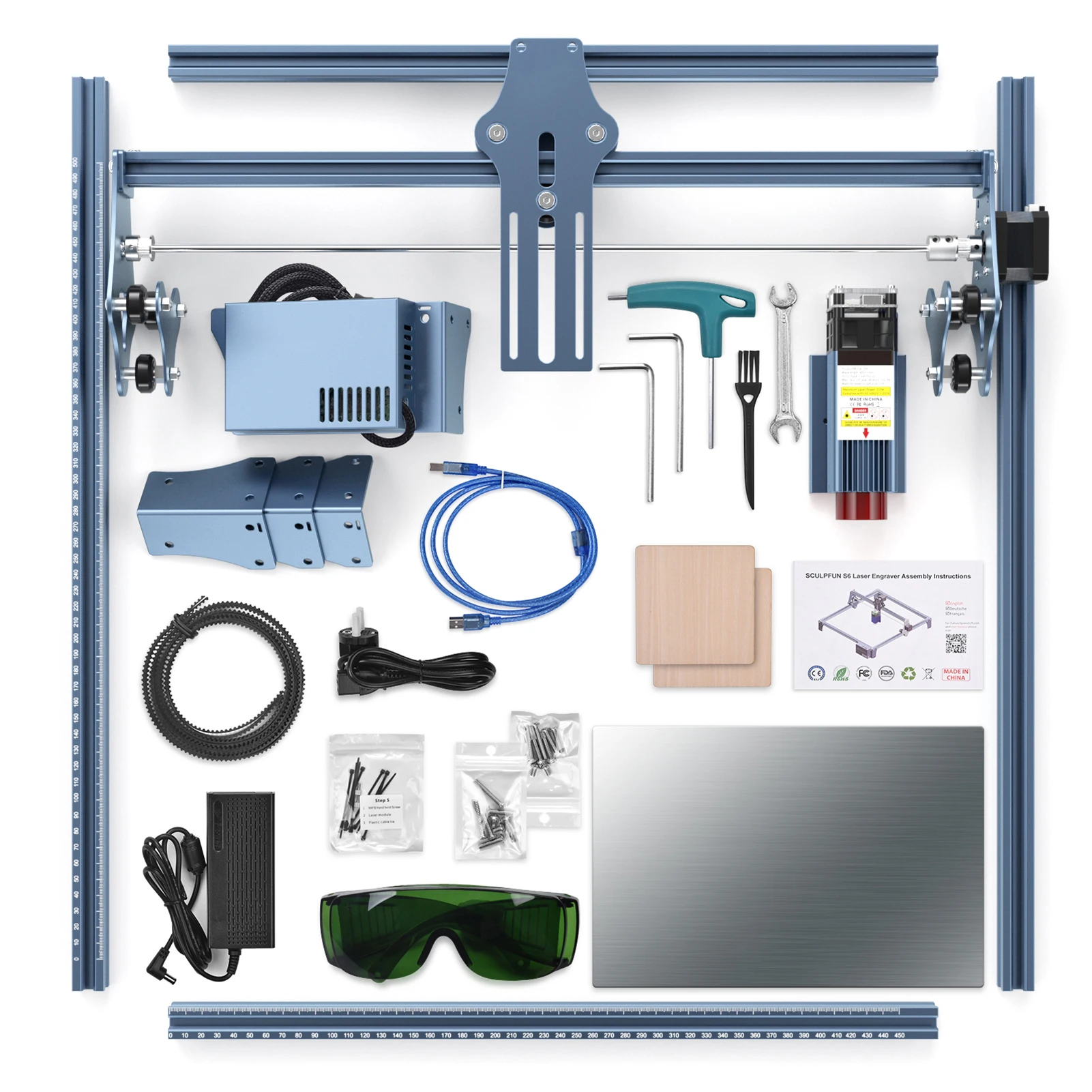

Packing list:

1 x X-axis component

2 x X profiles

2 x Y profiles

1 x Control box component

3 x Supporting leg

1 x Laser component

1 x 12V 5A power adapter

1 x Power cord

1 x USB cable

1 x Step 1-5 screw mounting kit

2 x Belt

1 x T-type M5 Hexagon socket screwdriver

1 x L-type M4 Hexagon socket screwdriver

1 x L-type M3 Hexagon socket screwdriver

1 x 8-10mm screw wrench

10 x Ribbon

1 x Brush

1 x Laser protective goggles

1 x 3mm thick 10x10cm wood chip

1 x 10mm thick 10x10cm wood chip

1 x A4 size steel tabletop protective pad
