【EU Stock】4 Axis CNC Mach3 Controller Nema34 Stepper Motor 98mm + DM860S Driver + A145 breakout board + Switching Power Supply

Good News:

We have warehouse in Germany, Czech Republic, United Kingdom, we can ship to EU countries via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

Package include:

4 x DM860S stepper motor driver

4 x 34HS9801 stepper motor 878oz-in,4A

4 x 400W 48V switching power supply

1 x 5 Axis breakout board

1 x DB25 parallel cable

1 x USB cable

English user manual for breakout board and stepper motor driver will send by email.

1.MACH3 Control board (V2.1)

Features:

1. A special high speed chip is used to process the input and output (I/O) signals. It is capable of making the machine work stably, with the features of correcting and enlarging the signals that removing the unnecessary disturb signals.

2. The computer LPT port supplies the power individually, separating from the power supply of other parts. Therefore, the computer and machine tool isolate effectively. It makes the data more secure, with further insurance of security and stability.

3. There are 5 input signals, communicating with the host computer, which are isolated by the optical coupling. Among the optical coupling isolation, the P11and P12 are high-speed, which can be used for connecting main shaft encoder, or the same demanding signal as hand wheel A, B. 12V-OUT and 5V-OUT power output interface can be used to pick some necessary power, such as the hall sensor switch and theproximity switch. There are 5 input ports, set to limit, origin, knife, start, stop, spindle speed input, MPG input and any other one of the 5 functions.

4. There are 12 output signal, which is allowed to controlling output, supporting as many as 6 axis linkage. Some of the output port is reusable functinality. Meanwhile, one port only can be used as one function.

5. There are 3 replays, P2, P3 and P4, which can support MACH3 control software programming. The relay's on or off can be controlled through the control of MACH3 software. Each relay has attracted indicating lamp, which is more intuitive and convenient. The 3 relays can be used to control the opening and closing of the liquid coolant, mist coolant, liquid state coolant and so on. They can also be used to controlthe electromagnetic valve device power switch. P2 port is for the spindle, P3 port is for the cooling liquid, P4 port can be defined.

6. The high speed optical coupling isolation is used to control the rotational speed of spindle. The output port is parallel port P1, which can output the PWM signal within 2.5KHZ. On the interface board ,there is a D/A circuit, with PWM to a 0-10V. The circuit can output 0-10V level to control the inverter which only has analog speed control in the market. Thus it can control the rotational speed of the spindle. It is important that the PWM output and 0-10V output can only choose one in two. They can’t be used at the same time.

7. Interface board can be connected with the cathode or total output to the stepper drive, or servo drive (servo driver must support the digital signal).The output is the 5Vlevel.

8. Wide input voltage power supply: 15-32VDC. The function of preventing reverse connection protection. 2 groups of output voltage: 5V and 12V voltage, 100MA output capacity.

9. Note: There is an enhanced version. Main strengthening function:

① Power supply voltage has a wider range: 15-50VDC

② Increase isolated power module. Do not insert the USB line to the computer's USB port. Just insert a LPT line. It is more convenient and reliable.

③ The current output ability of 5V and 12V voltage output can upgrade to 200MA.

2.  DMA860S Stepper Motor Driver (2.2-8.2 A, 18-160VDC / 18-110VAC)

3. Stepper Motor

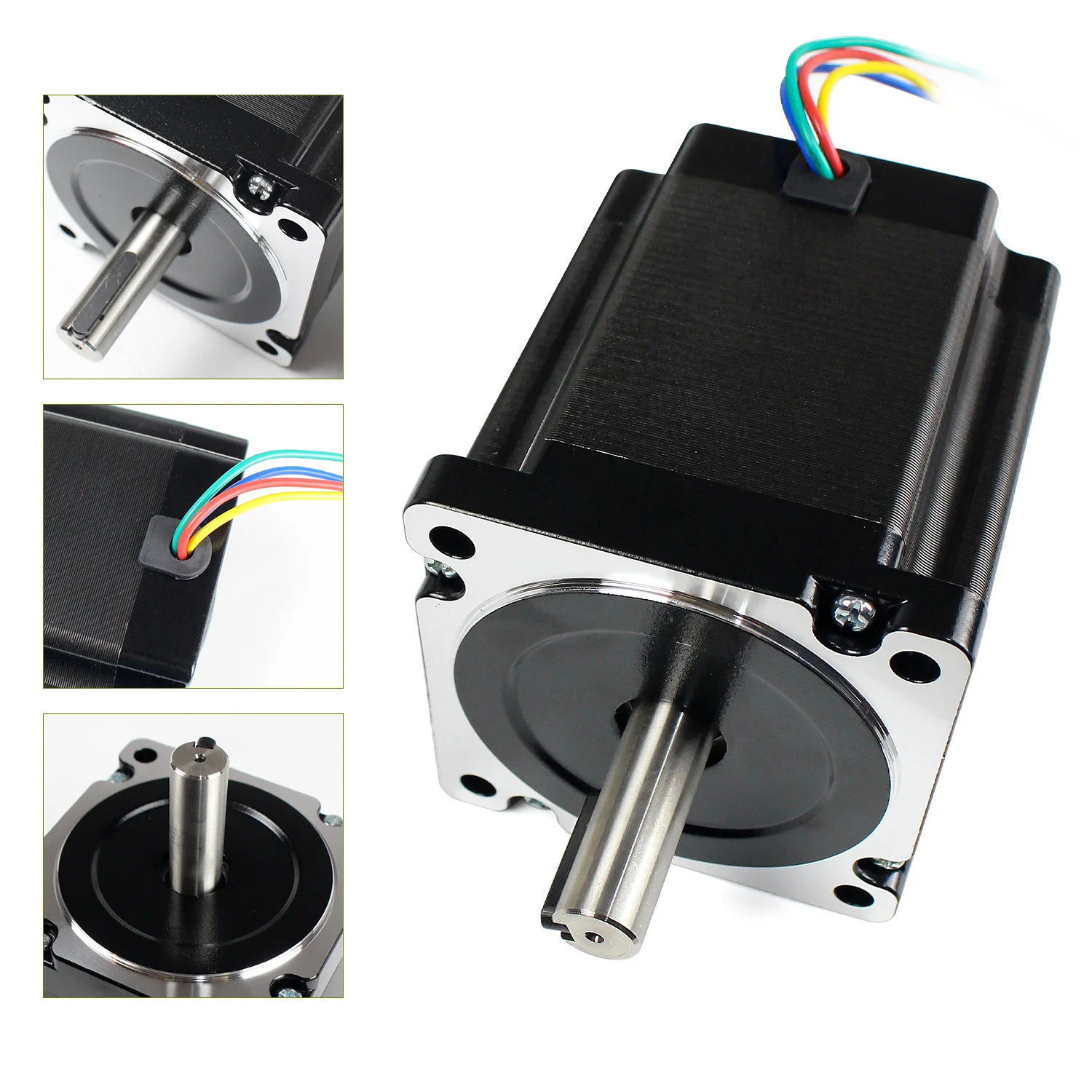

High quality NEMA34 stepper motor:

Datasheet(34HS9801,4A,878oz-in or 5.6kg.cm holding torque,14mm diameter and 37mm length shaft with keyslot ):

Drawing:

Wiring:

Red:     A+

Green:  A-

Yellow: B+

Blue:    B-

4.Switching power supply

400W,Input:100-120VAC or 200-240VAC,50/60Hz,Output:70v/5.8A,single output switching power supply
