【EU/US】CNC Milling Spindle 2.2kw ER20 Water Cooled Spindle 4 Bearings 24000rpm & 2.2kw VFD Inverter 220V & 80mm Clamp & 80W Pump

Good News:

We have warehouse in Germany, Czech Republic, United Kingdom, we can ship to EU countries via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

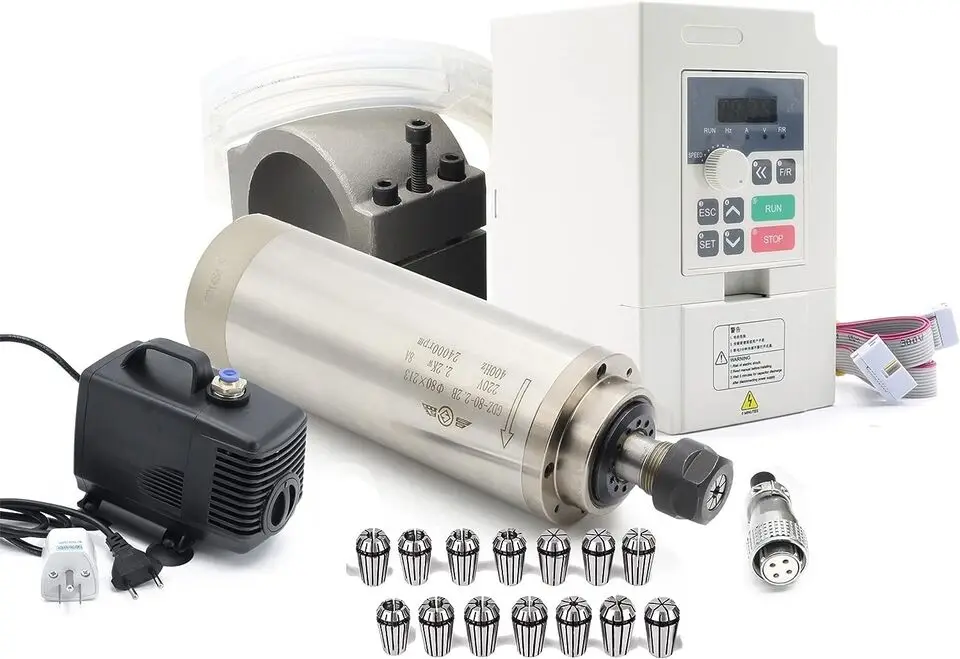

Package include:

1 x 2.2KW ER20 water-cooled spindle motor

1 x 2.2KW Inverter 2HP

1 x 80mm spindle bracket

1 x 80W Water pump

1 x 5M water pipes

1 Set of ER20 collet (14pcs)

The manual for the inverter will send via email.

The package is optional, pls check carefully when you order, thanks in advance.

 Note:we have both 110V and 220V in stock, pls choose the right voltage when you order.

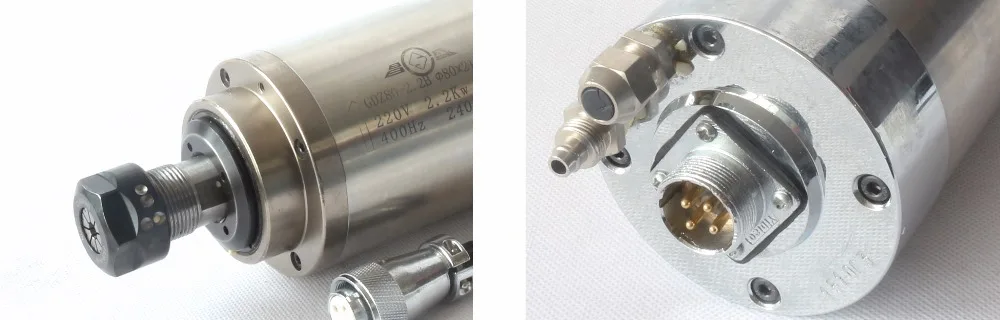

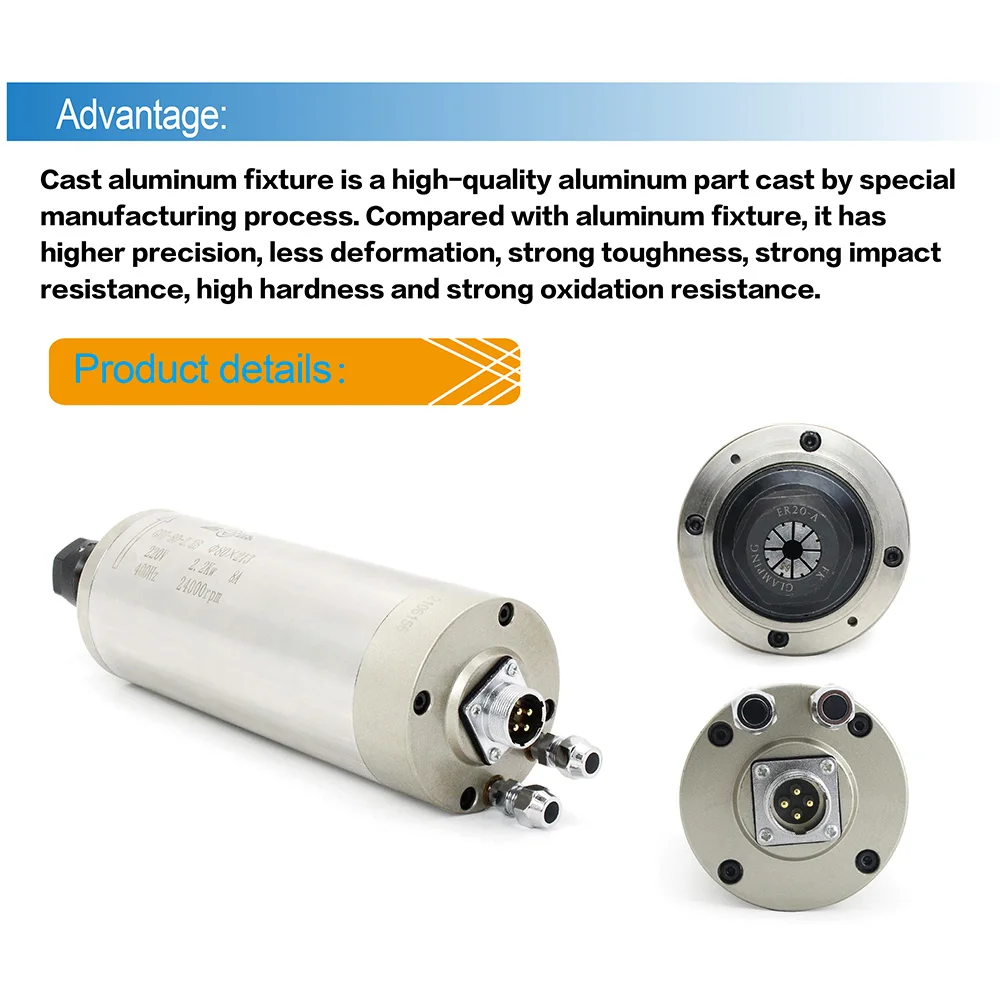

1. 2.2KW ER20 water-cooled spindle motor

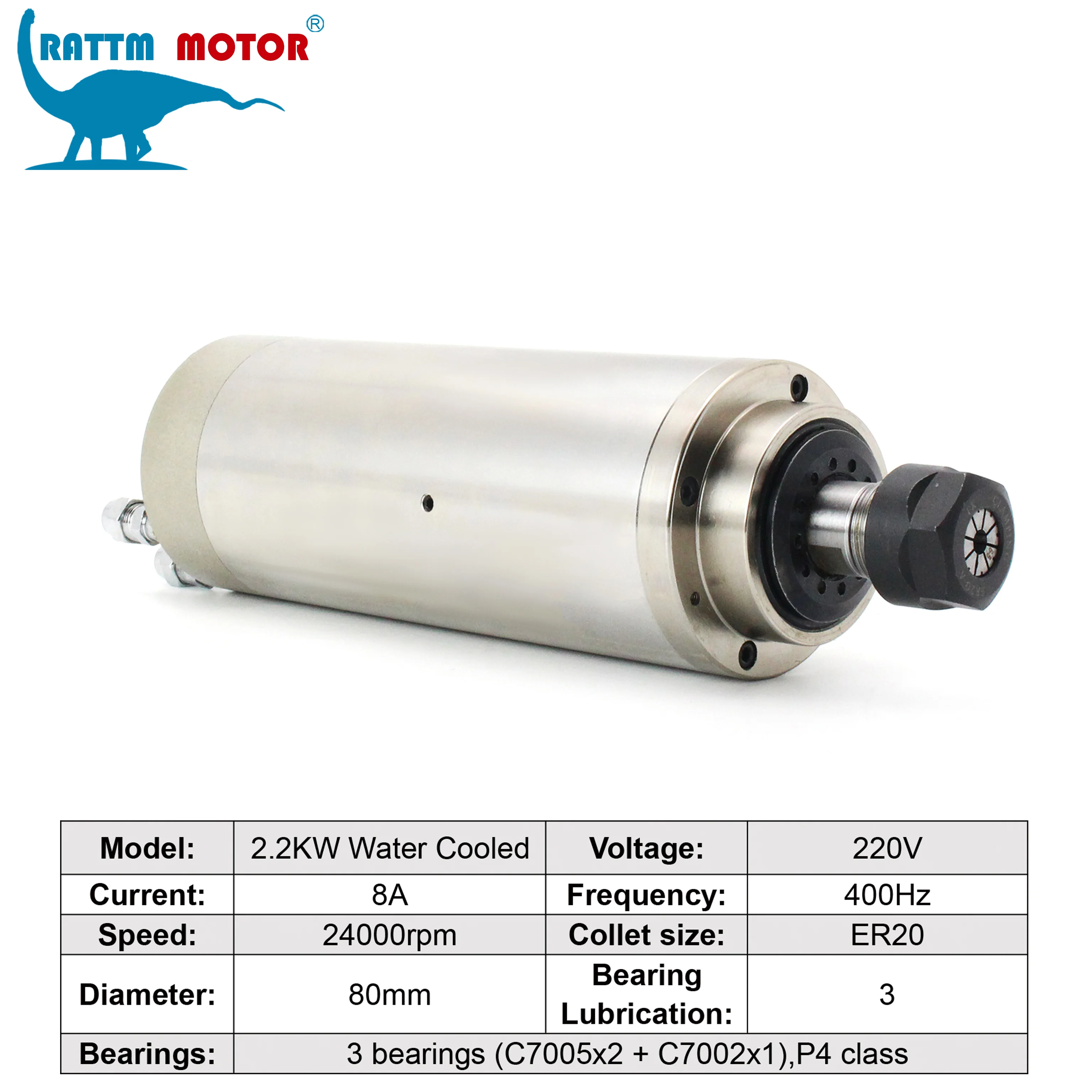

Specification:

Material:Stainless Steel

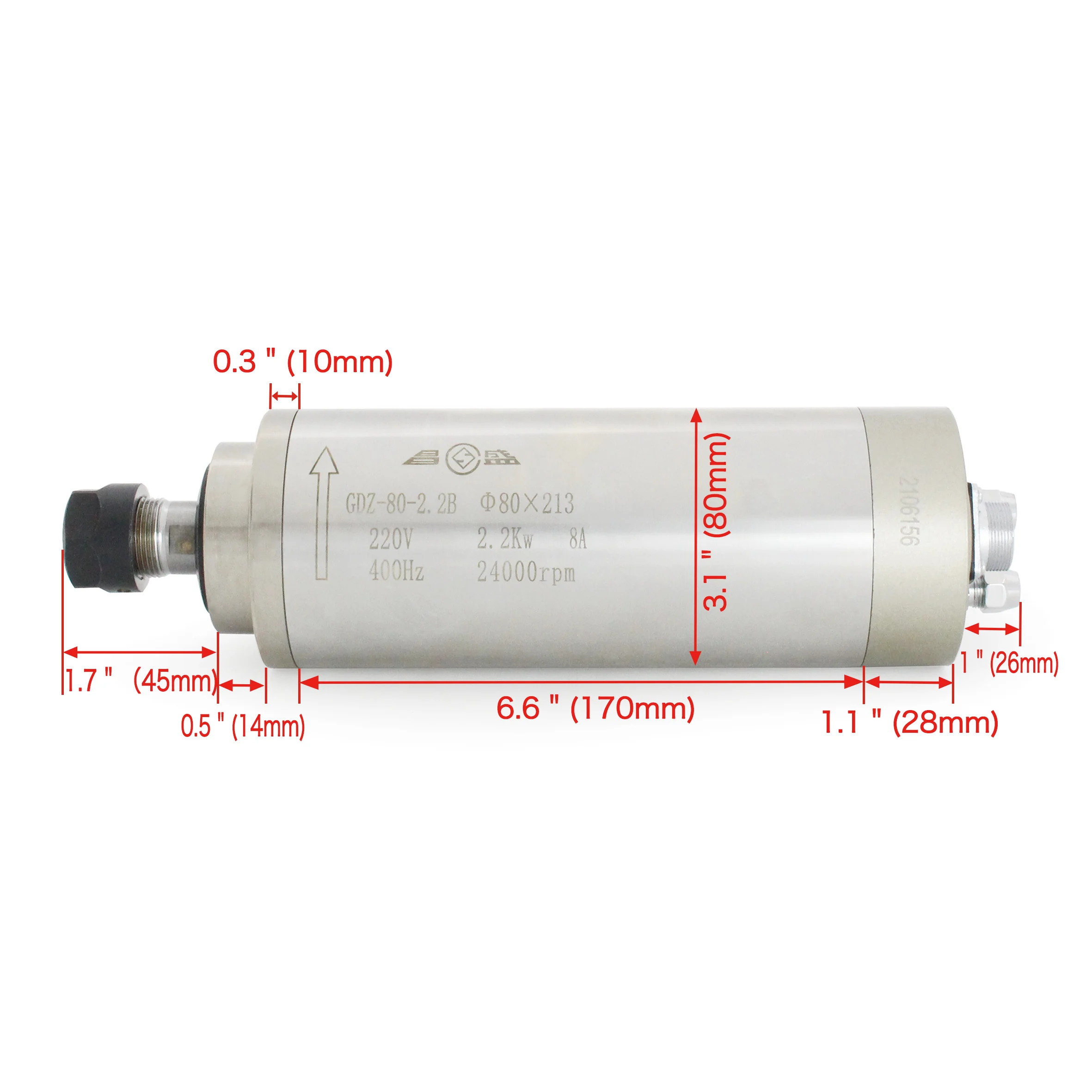

Size:Φ 80x213mm(Middle body diameter:80mmxLength:213mm)

Power:2.2Kw

Voltage:220VAC

Current:8A

Frequency:0-400Hz

Speed:10-24000rpm

Cooling:Water-cooling

Precision tapered bore:0.01mm

Runout off:Less than 0.02mm

Bearing Lubrication:Grease

Collet size:ER20

Bearings:3 bearings(C7005x2 + C7002x1),P4 class

Net Weight:5.1kg

Power supply interface:Professional

aviation Interface, Interface 1234 marked 123 respectively connected to

the inverter output end of the (U, V, W), 4 ground wire this interface

must be safe ground.

Main application:Wood, Aluminum, Stone, metal, glass, PVC industry

II. 2.2KW 220V Variable Frequency Drive VFD Inverter

◆Provide

a variety of fault protection functions: over-current, over-voltage,

under-voltage, over-heat, overload, lack of equal real-time monitoring

and protection to ensure safe operation

◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor

◆ With over torque and under torque detection

◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure

◆With jump frequency control function, it can effectively suppress

mechanical resonance and make the system more stable and reliable.

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.

◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

◆ 8-stage simple PLC function, multi-speed control and PID control

◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%

◆Two speed control modes: no PG vector control (SVC), V/F control

Input Voltage:220V(+/-15%)

Output Voltage:220VAC

Input Frequency:50-60 Hz

Output Frequency:0-1000 Hz

Input Phase:1 phase

Output Phase:3 phase

Warranty:1 year from the date you purchased

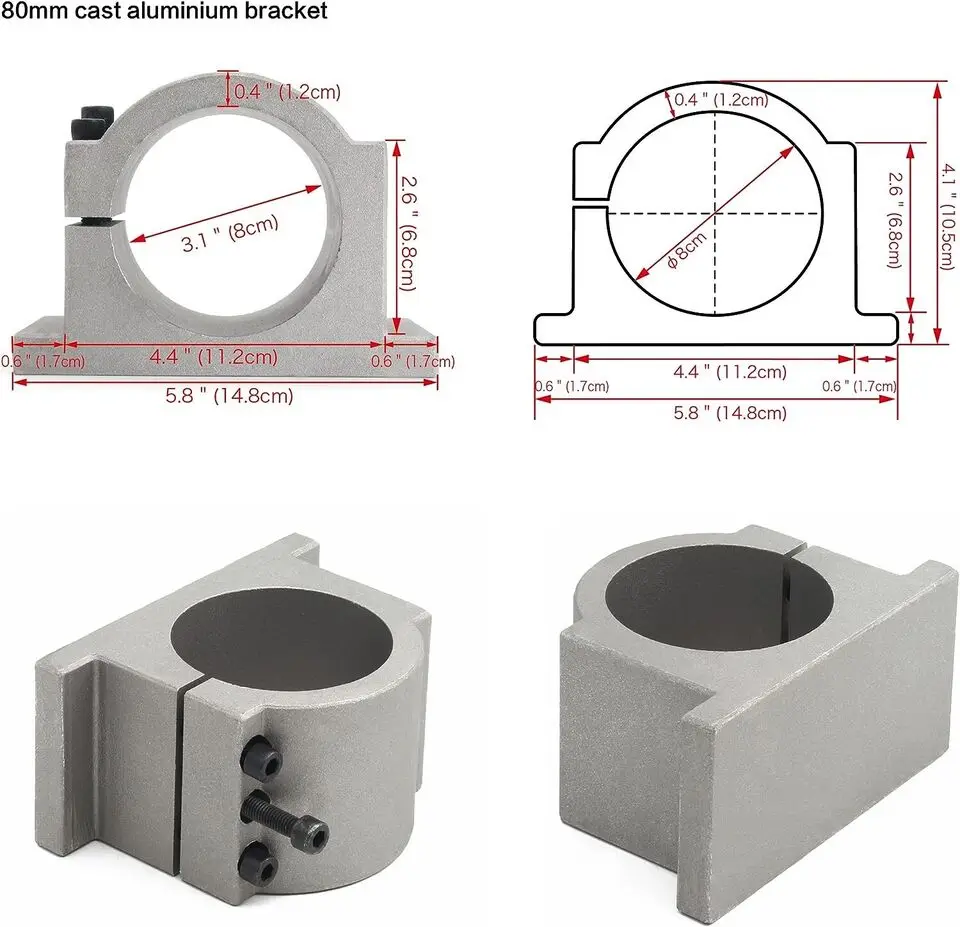

3.80mm cast aluminium bracket

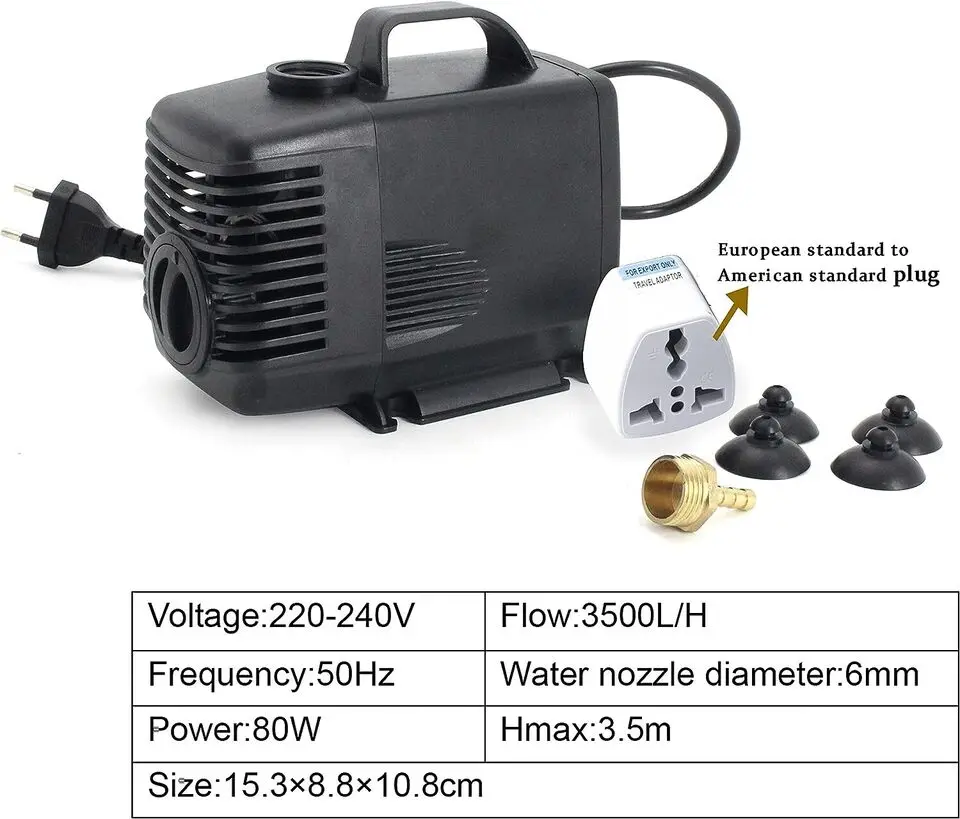

4. 75W CNC spindle motor water pump 3.2m 220VAC

Specification:

Pump length:3.2m

Voltage:220-240VAC

Power:75W

Flow:3000L/H

Size:150x80x140mm

Water nozzlediameter:6mm

Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

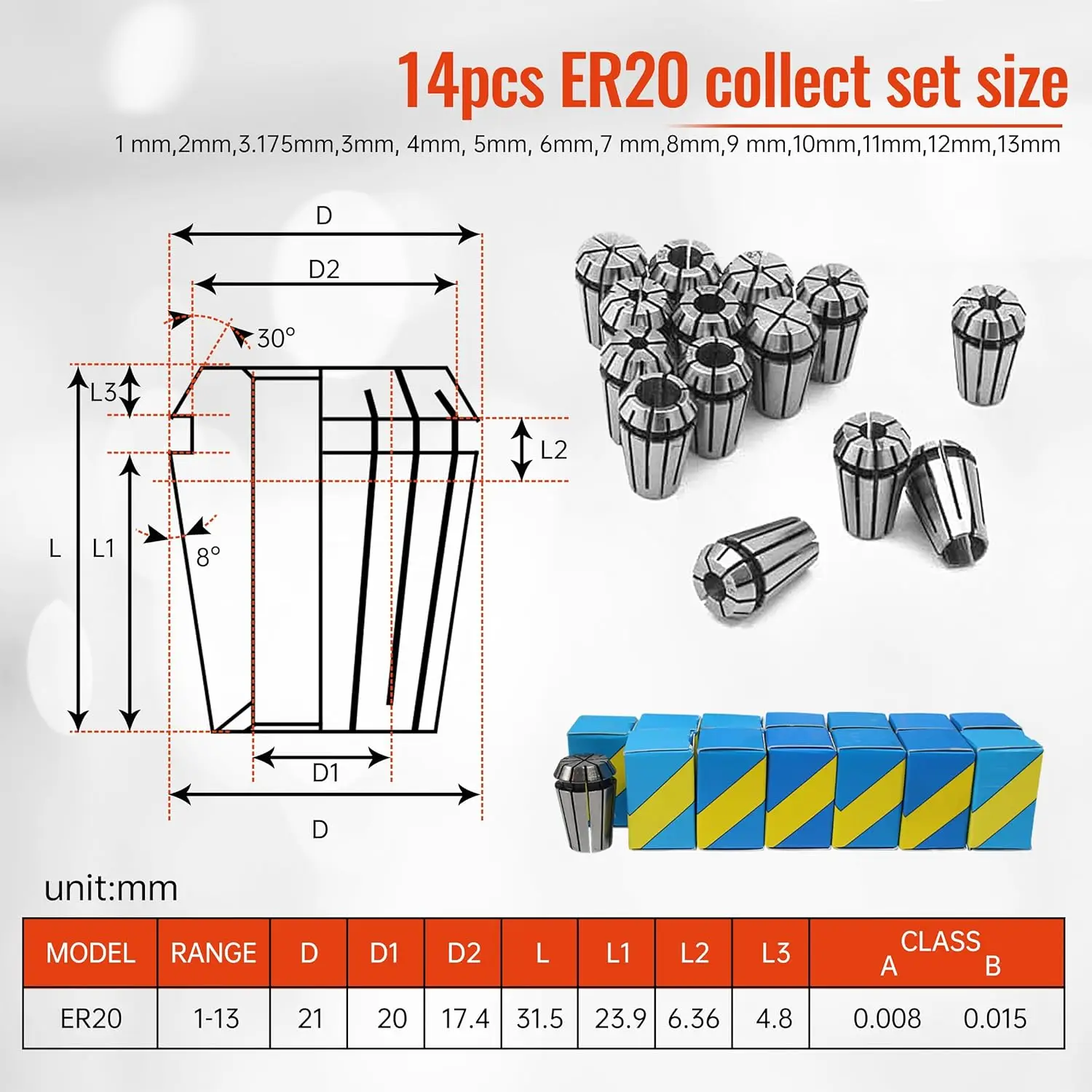

5.1 Set (1-13mm)14Pcs ER20 Collets
