【EU Stock】Hua Jiang CNC Spindle Motor, Air Cooled 220V 2.2KW 2200W 4 Bearings & 2200w Mini VFD / Inverter for wood Milling DIY

Good News:

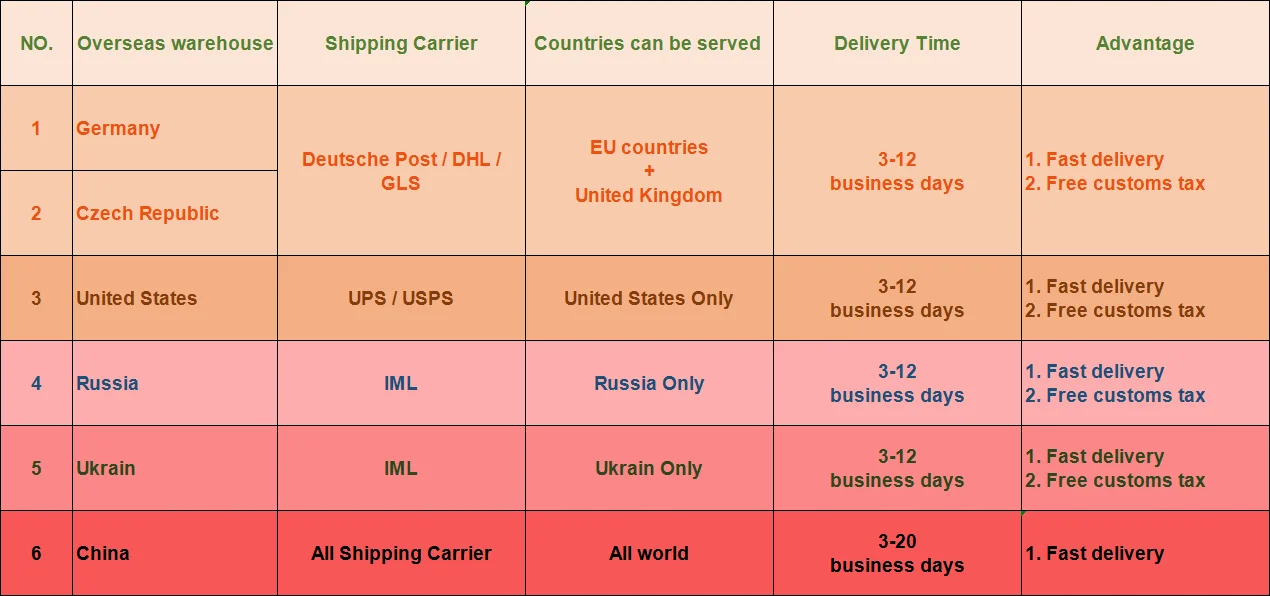

We have warehouse in Germany, Czech Republic, United Kingdom, we can ship to EU countries via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

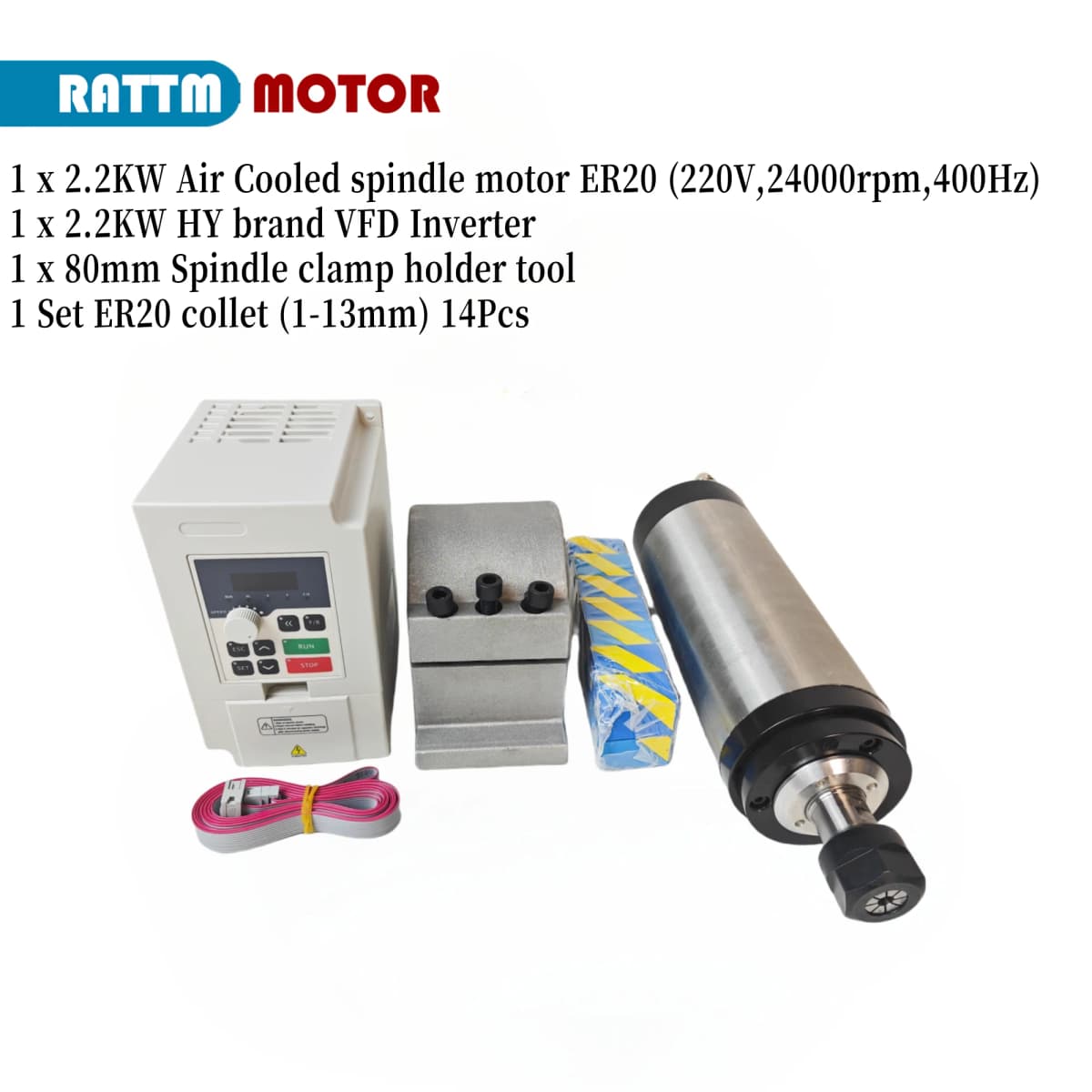

Package include:

1 x 2.2KW ER20 Air-cooled spindle motor( 220V,400Hz,24000rpm,4 bearing)

1 x 2.2KW Mini Inverter 220V

1 x 80mm Spindle clamp holder tool

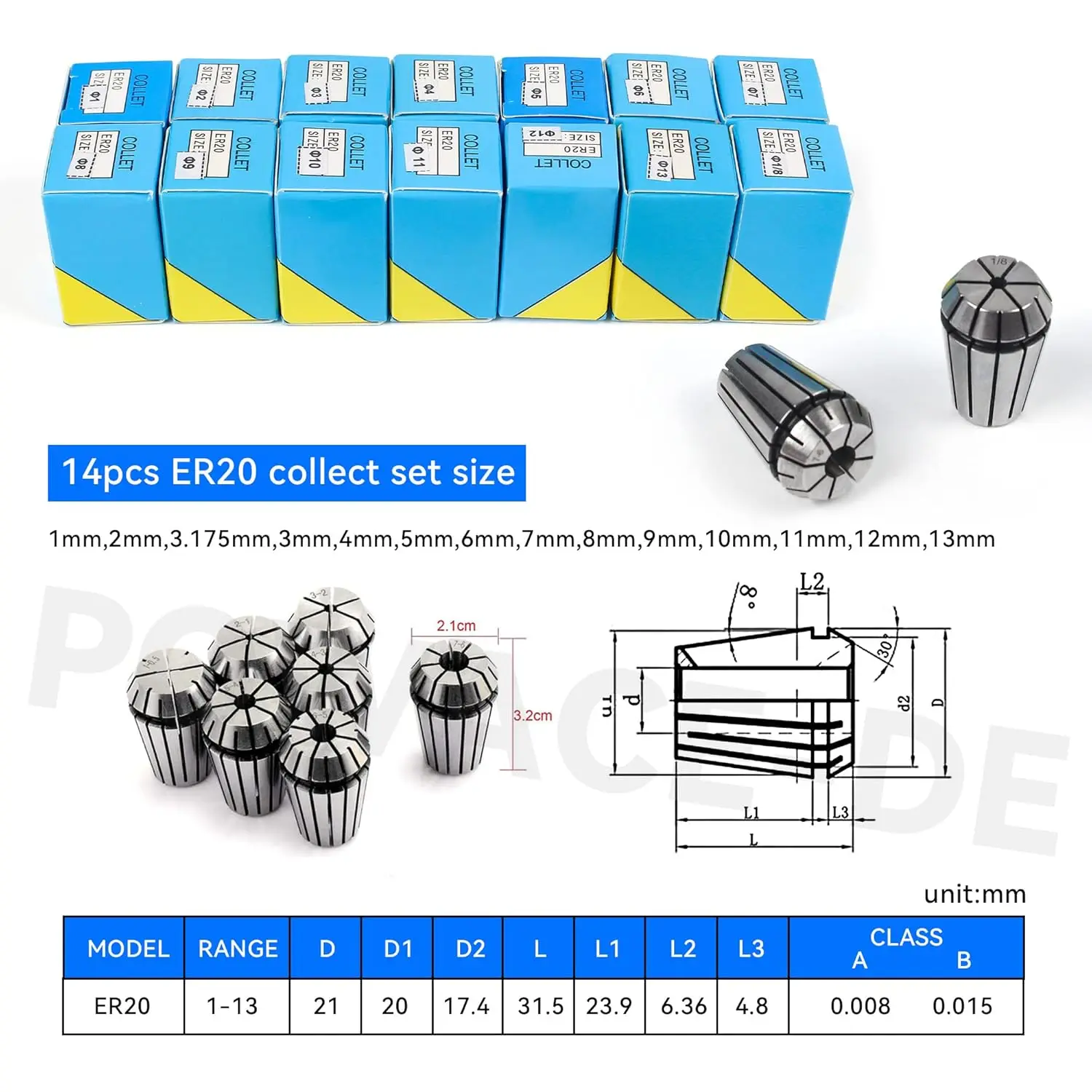

1 Set ER20 collet (1-13mm) 14Pcs

The manual for the Inverter will send via email.

Note:This listing is with several options, so pls check carefully when you place the order, thanks in advance.

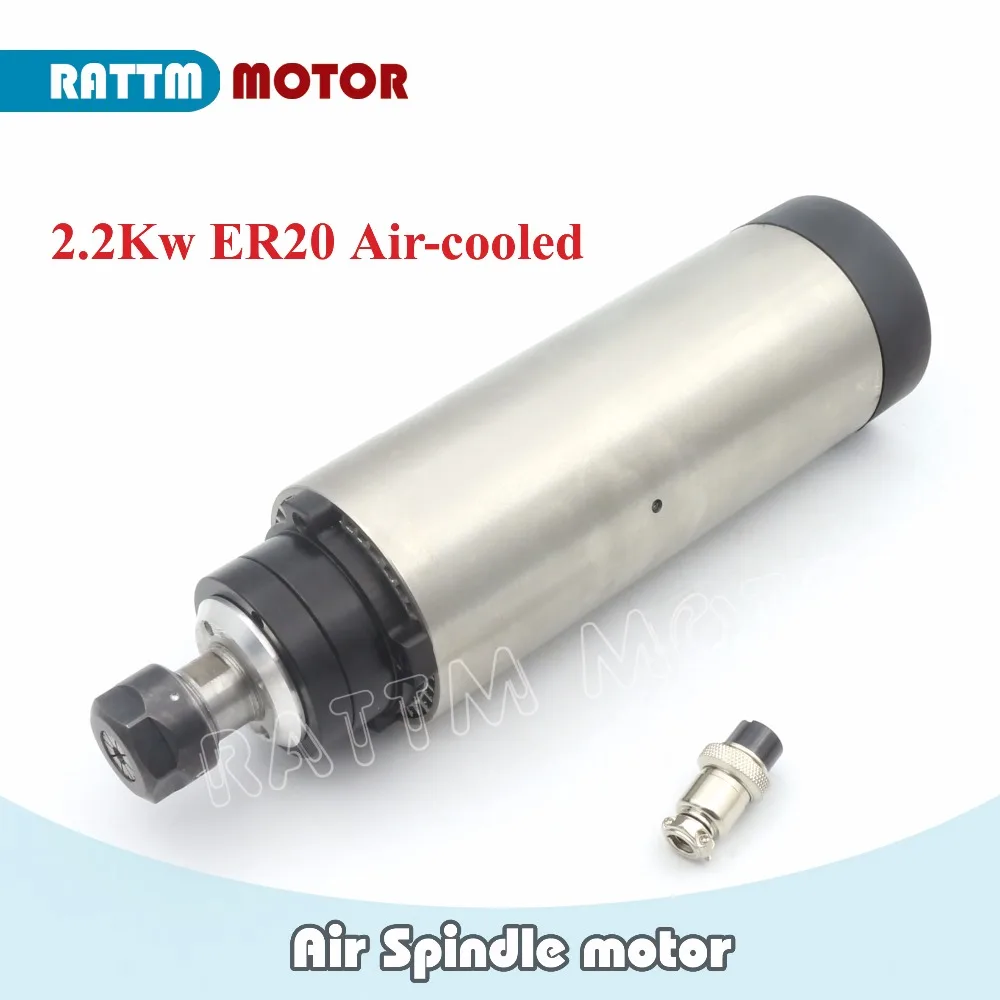

1.  2.2KW ER20 Air-cooled Spindle motor Engraving milling Grind

Specification:

Material:Stainless Steel

Size:80x230mm(Middle body diameter:80mm x Length:230mm)

Power:2.2Kw

Voltage:220VAC

Current:8.5A

Frequency:0-400Hz

Speed:0-24000rpm

Cooling:Air-cooled

Runout off:Less than 0.05mm

Precision tapered bore:Less than 0.025mm

Bearing Lubrication:Grease

Collet size:ER20

Bearings:4 bearings(C7005x2 + C7002x2),P4 class, Angular contact bearings

Net Weight:5.2kg

Power supply interface:Professional

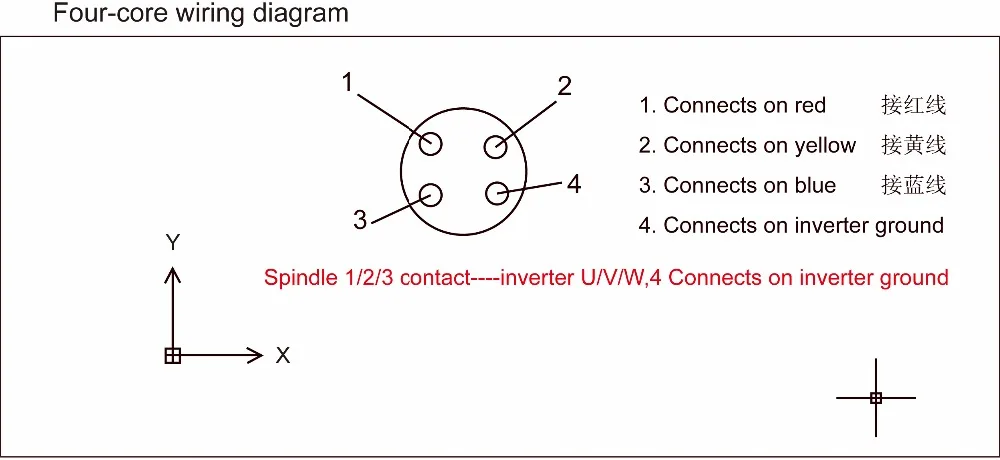

aviation Interface, Interface 1234 marked 123 respectively connected to

the inverter output end of the (U, V, W), 4 ground wire this interface

must be safe ground.

Main application:Wood, Aluminum, Stone, metal, glass, PVC,PCB etc industry

1) Structural features

1) High speed electric main bearing all adopt the C-class high-speed

angular contact ball bearing, axis sets of loading, Improve spindle in

the high-speed rotation supporting stiffness and precision grinding.

2) Before driving, rotation of the shaft by hand.Spindle high speed

rotation caused by temperature rise, use of cooling liquid circulating

system to eliminate.

2) Instructions for use

1) In use, must first connect the cooling water pipe, make spindle connect cooling water and then start.

2) Before driving, turned by hand spindle. If sensory block is not

flexible, you should troubleshoot, and then check the direction of

rotation of the spindle from the spindle end to see if the match should

rotate counterclockwise power wiring should be changed to make it

consistent.

3) Before driving, cooling water for grinding workpiece can’t be in the

front end of the spindle cover, to prevent the front bearing cover slot

inlet burning motor and bearing. the motor must not enter the water,

after turned on of the motor, when you live in grinding the workpiece to

open the grinding of workpieces coolant. First off the workpiece

coolant shutdown, and then close the spindle motor.

3) Maintenance and Service

1) Motorized spindle by medium frequency power supply rated voltage,

frequency should be consistent with electric spindle technology

parameters, motorized spindle rotational speed can change the frequency

to adjust, also directly proportional voltage change.

2) When the spindle is temporarily not in use, should use compressed air

to blow the coolant water,to avoid rusting, plug the hole. Spindle

surface should be coated with anti rust oil. The shaft end protecting

device, placed in dry place.

3) If replacement the spindle of bearings, best professional and technical

personnel from the replacement. Use special tools, stator coil does not

to be removed.

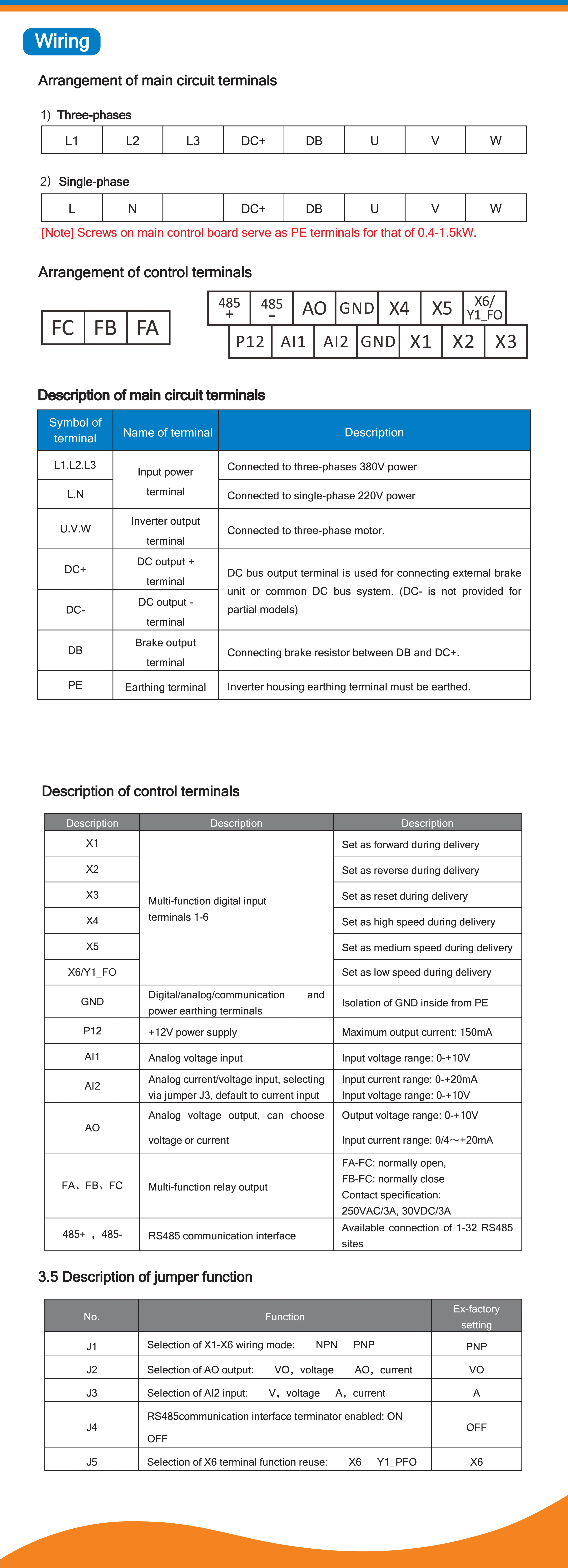

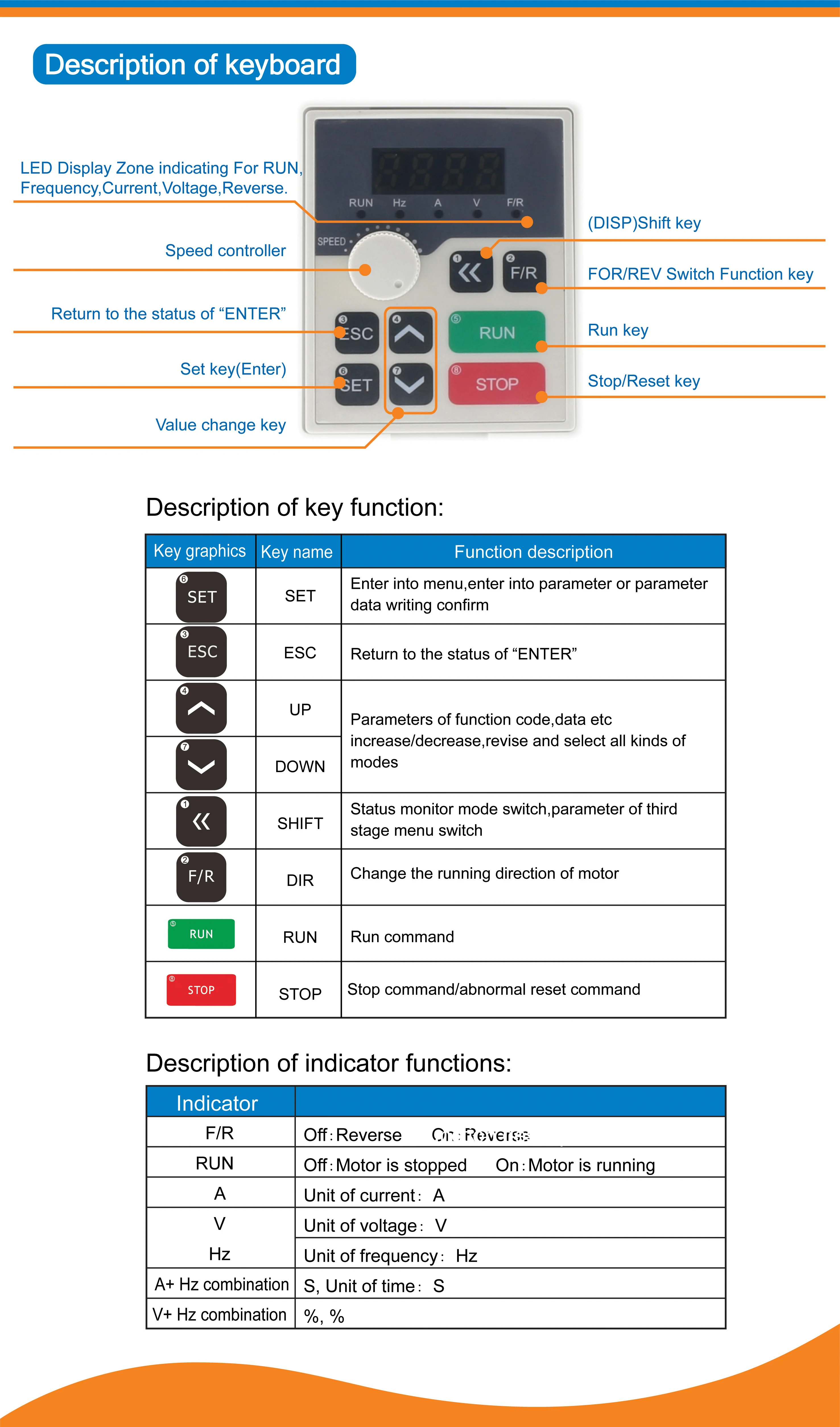

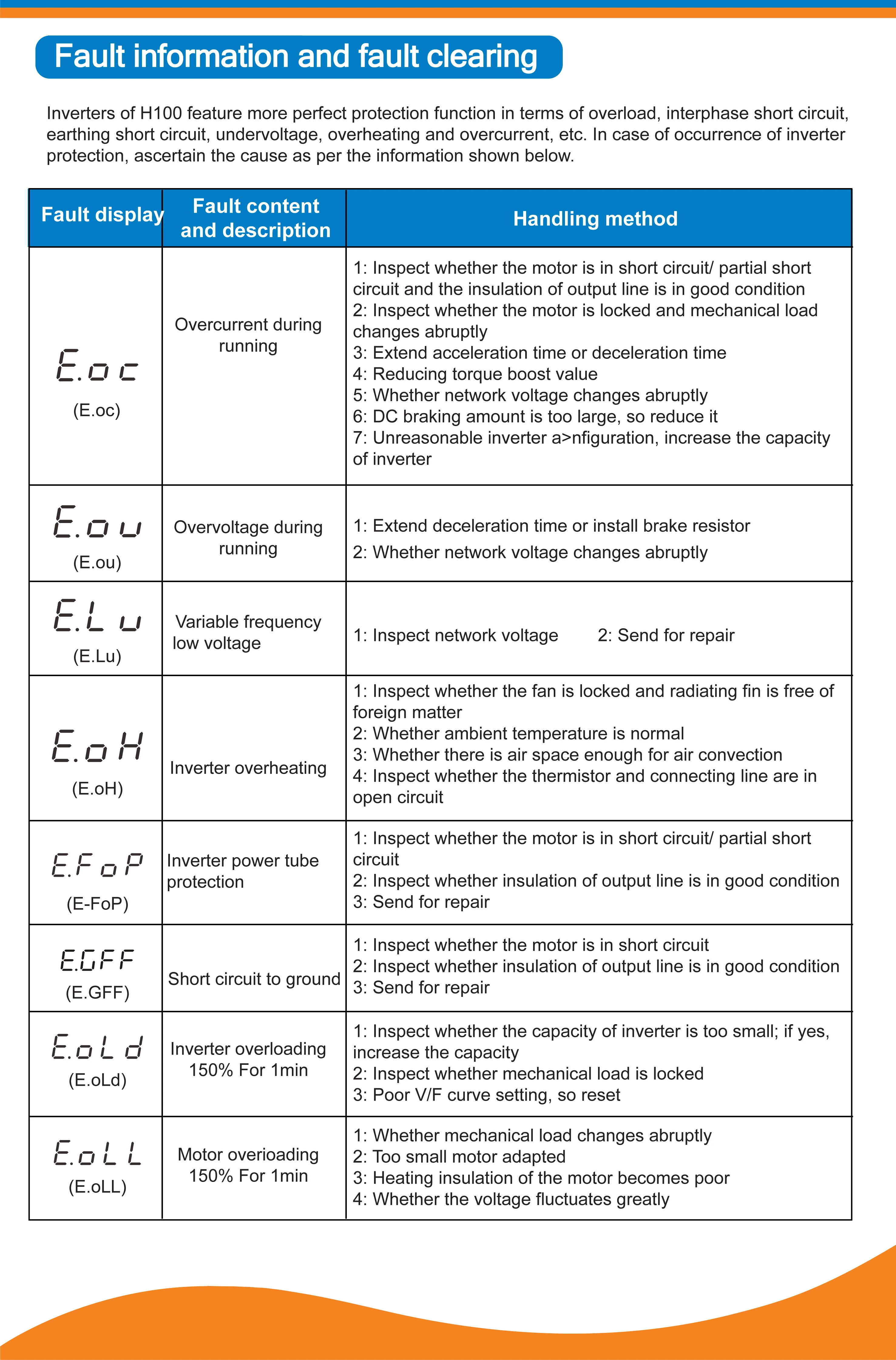

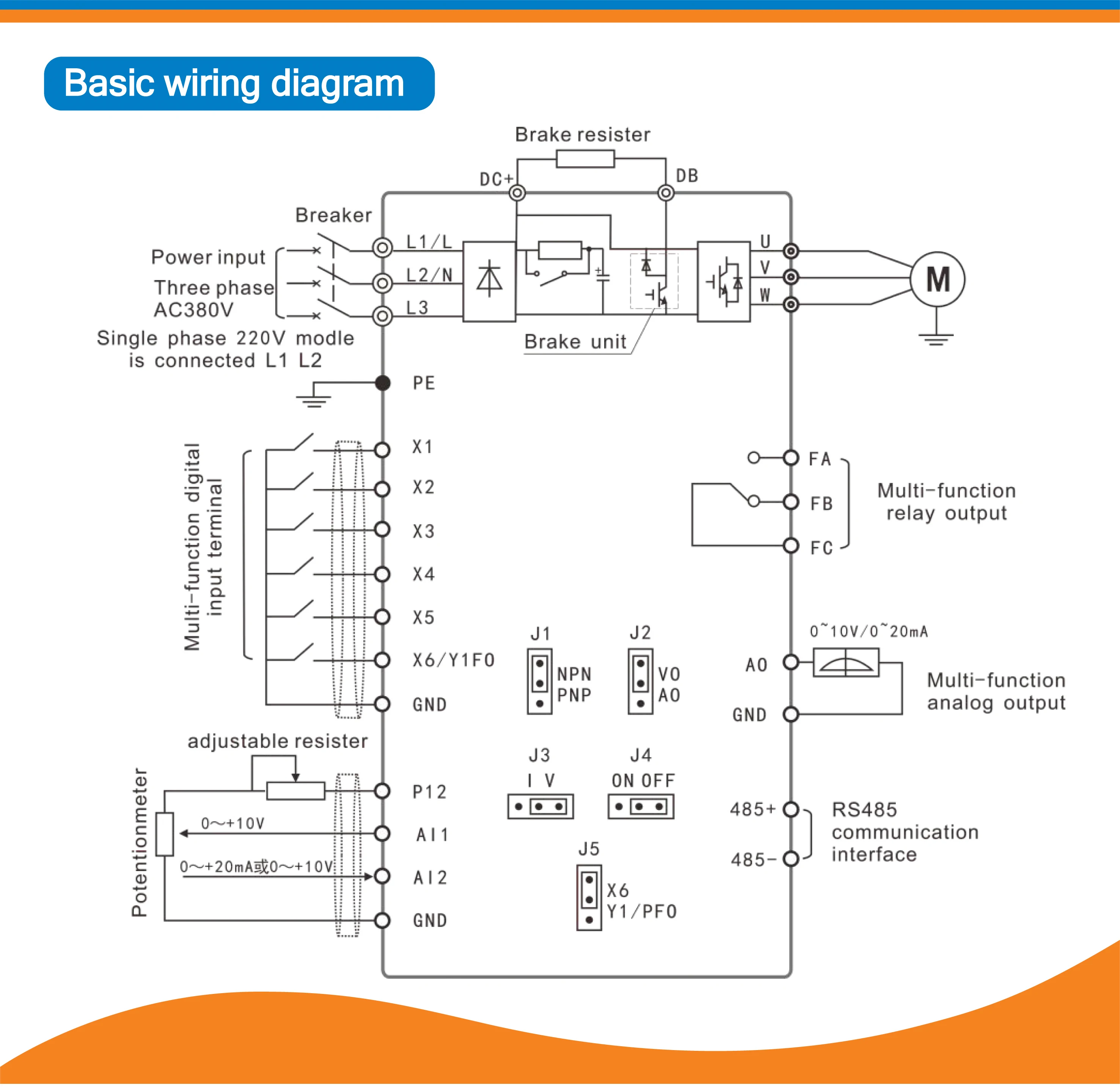

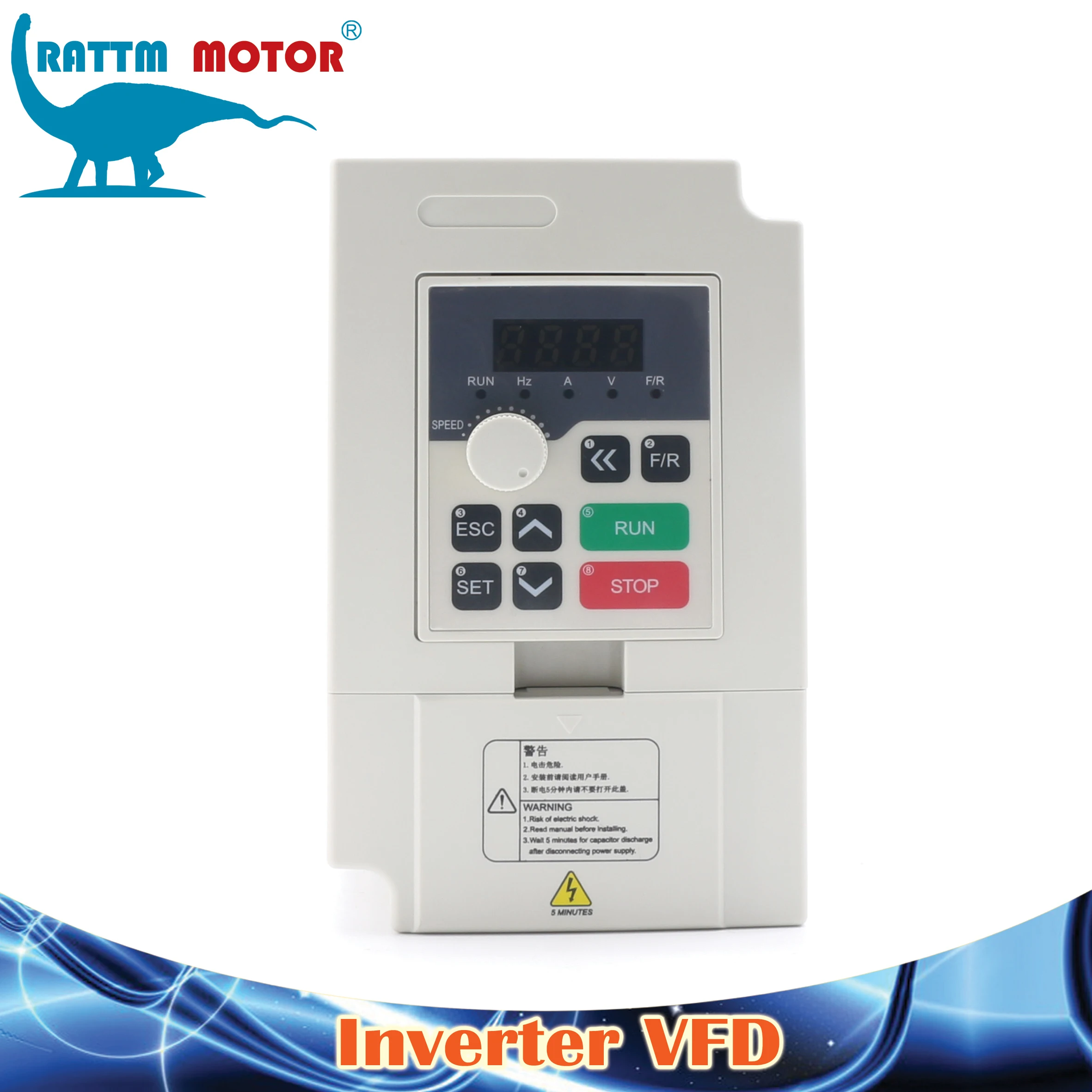

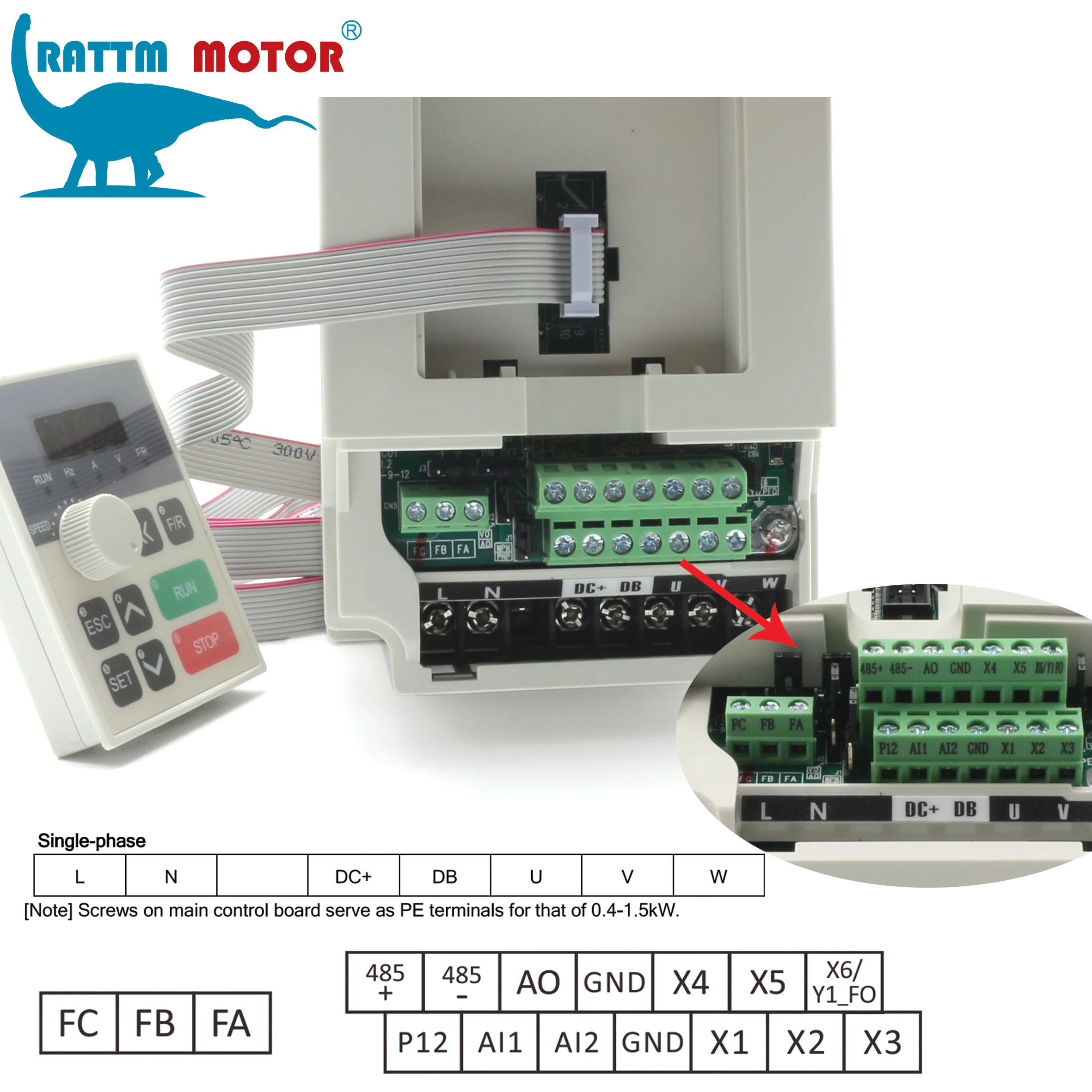

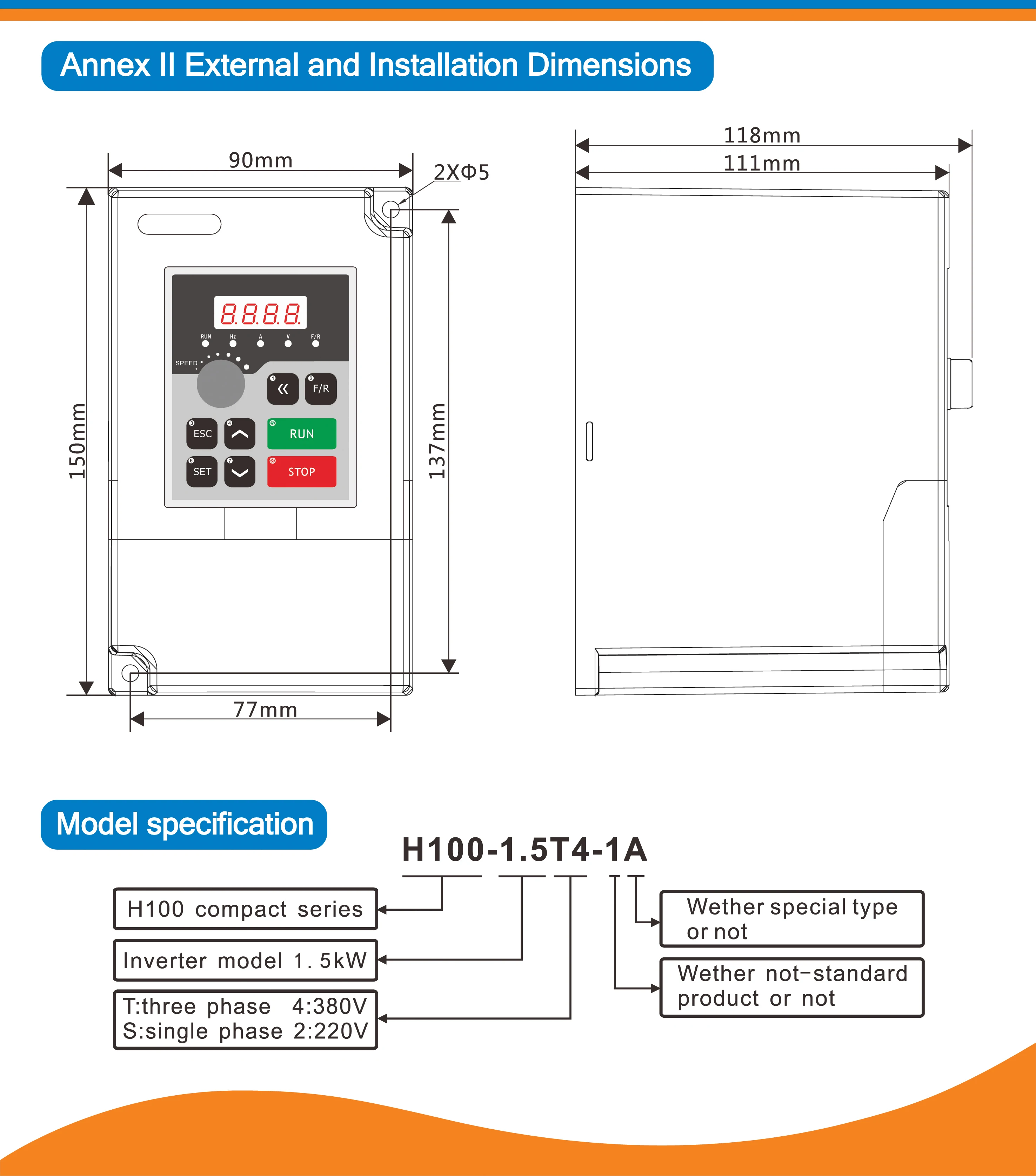

II. 2.2KW HY 220V Variable Frequency Drive VFD Inverter

Input Voltage:220V(+/-15%)

Output Voltage:220VAC

Input Frequency:50-60 Hz

Output Frequency:0-1000 Hz

Input Phase:1 phase

Output Phase:3 phase

Warranty:1 year from the date you purchased

◆Two speed control modes: no PG vector control (SVC), V/F control

◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%

◆ 8-stage simple PLC function, multi-speed control and PID control

◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.

◆With jump frequency control function, it can effectively suppress

mechanical resonance and make the system more stable and reliable.

◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure

◆ With over torque and under torque detection

◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor

◆Provide

a variety of fault protection functions: over-current, over-voltage,

under-voltage, over-heat, overload, lack of equal real-time monitoring

and protection to ensure safe operation

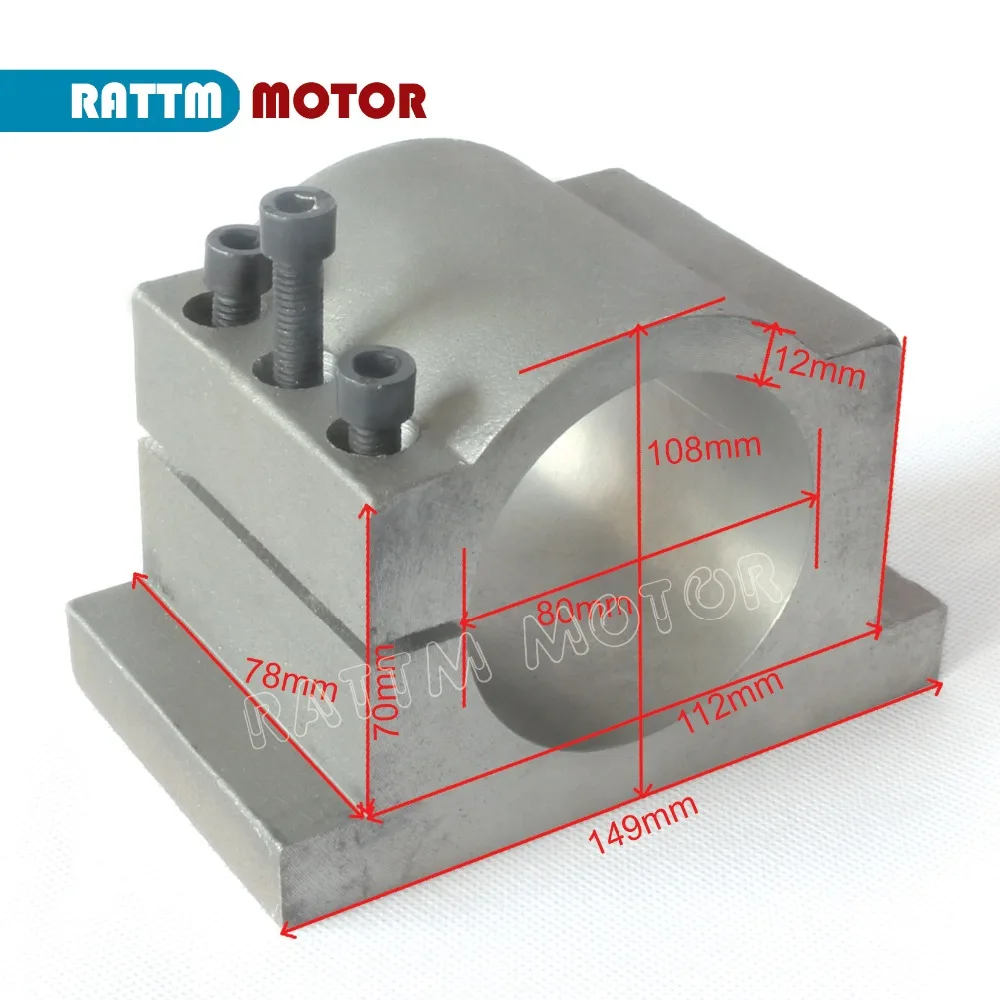

80mm Spindle clamp holder tool

1 Set ER20 Collets(1-13mm) 14Pcs
