Solar Panel 400W 300W 200W 150W Kit Solar Panel Aluminum Frame Photovoltaic Panel 12V Battery Charger for Camper Boat Home RV
170.52$
119.37$
Quantity:
1
Availability:
Color
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Black Protection Corners just protect solar panel during shipping.if protect corner get damaged but solar panel is in good condition,which will not influence power solar panel.pls pay attention before order
Specification of 200w solar panel
Maximum power(Pmax) 200W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Maximum power voltage(Vmp) 18.15V
Cell efficiency 19%
Operating temperature（NOCT) 45±2℃
Temperature range -40℃～+80℃
Weight 3.9kg
Size 1235*680*25mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
Specification of 160w solar panel with aluminum frame
Maximum power(Pmax) 160W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 23.76V
Maximum power voltage(Vmp) 19.80V
Cell efficiency 19%
Operating temperature（NOCT) 45±2℃
Temperature range -40℃～+80℃
Weight 2.78kg
Size 1160*565*25mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
Specification of 150w solar panel with aluminum frame
Maximum power(Pmax) 150W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Maximum power voltage(Vmp) 18.15V
Cell efficiency 19%
Operating temperature（NOCT) 45±2℃
Temperature range -40℃～+80℃
Weight 3.1kg
Size 1045*550*25mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

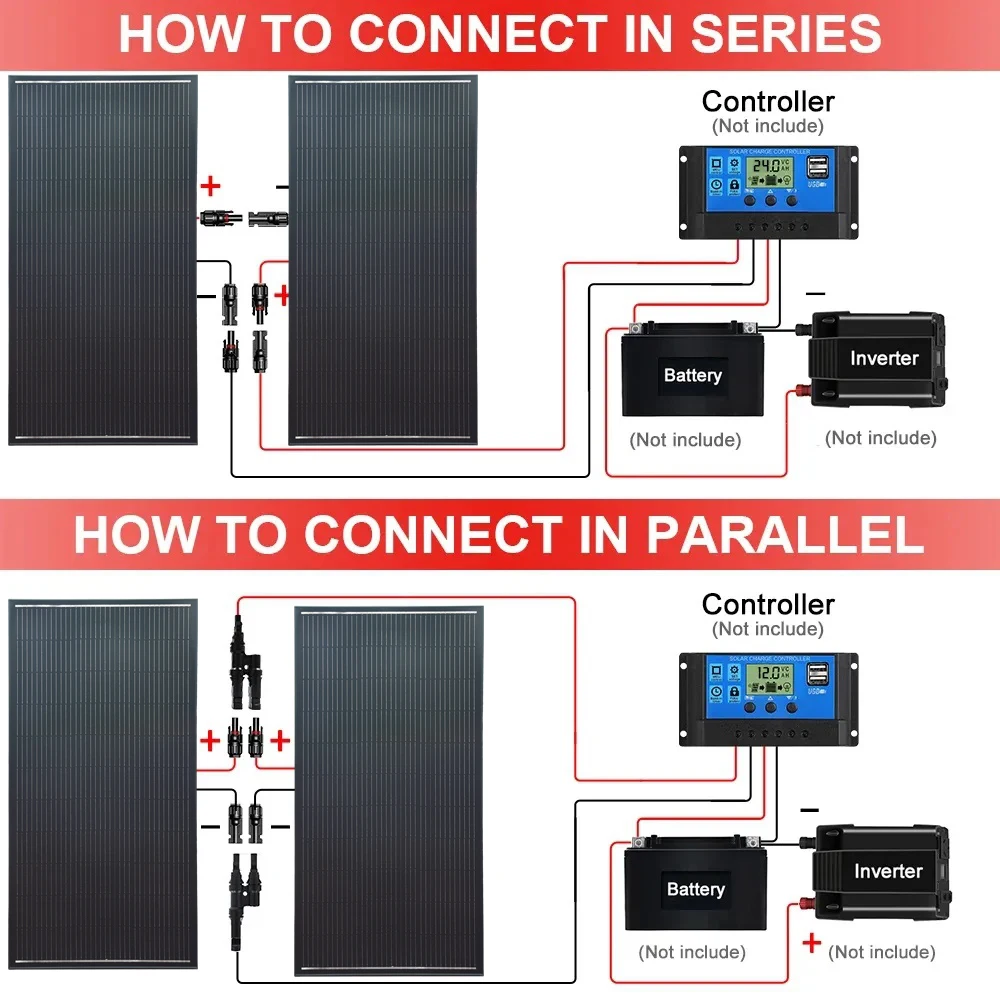

Connection method
connect controller with battery firstly,then connect controller with solar panel
