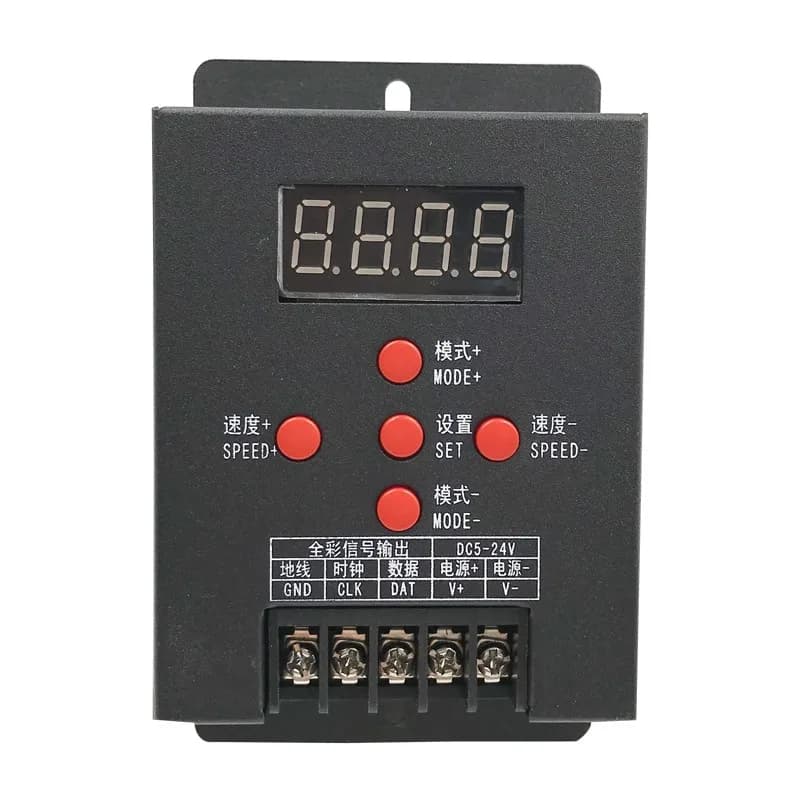

T-500 Full Color LED RGB Controller WS2811 WS2801 LPD6803 2812b Mini Intelligent Magic Dream Color RGB LED Strip Tape

Specifications:

Supply Voltage: DC5-24V

Output Type: TTL/SPI

IC Control Quantity: 512pcs

Working Temperature: -20°C – 60 °C

Dimensions ( L X W X H ):: about 98mm x 62mm x 23m

Connection Instruction:

Connect led light signal wire first, generally single wire IC ( TM1803,TM1804,TM1809 ) just connect DAT and GND, double wire IC ( LPD6803,SM16716 ) connect DAT,CLK and GND;

" Power+" switching power supply DC12V positive, " Power+" switching power supply DC12V negative;

Display when power supple: P-001 P:prepresendt mode 001: represent mode value, total 36 mode
