Package include:

Package 1 include:

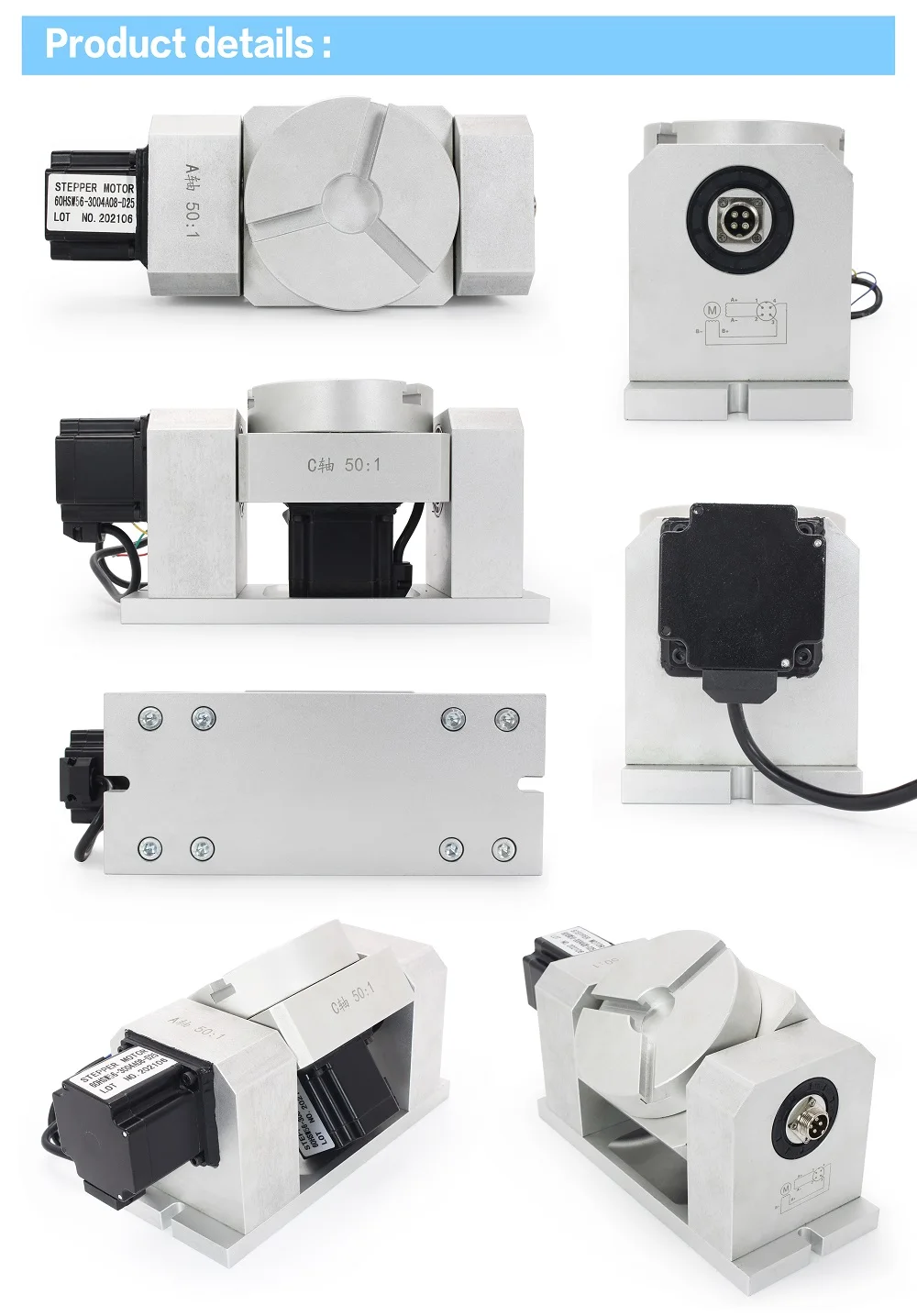

1 * set of 50:1 5th rotary axis(Single support)

1 * DM556S Motor Driver-optional

1 * 400W 36V / 48V Switching Power Supply-Optional

Model: RTM14-A50-C50

Center height: 73MM

Bench Diameter: 60 mm

Total height: 105MM

4th Speed reducing ratio: 50:1

5th Speed reducing ratio: 50:1

Stepper motor: two-phase stepper motor Nema 23( 57mm) waterproof

Size: 170MM*90MM*116MM

Weight: 2.9KG

Package 2 include:

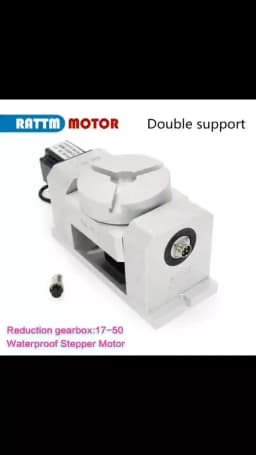

1* set of 50:1 5th rotary axis (Double support)

1 * DM556S Motor Driver-optional

1 * 400W 36V / 48V Switching Power Supply-Optional

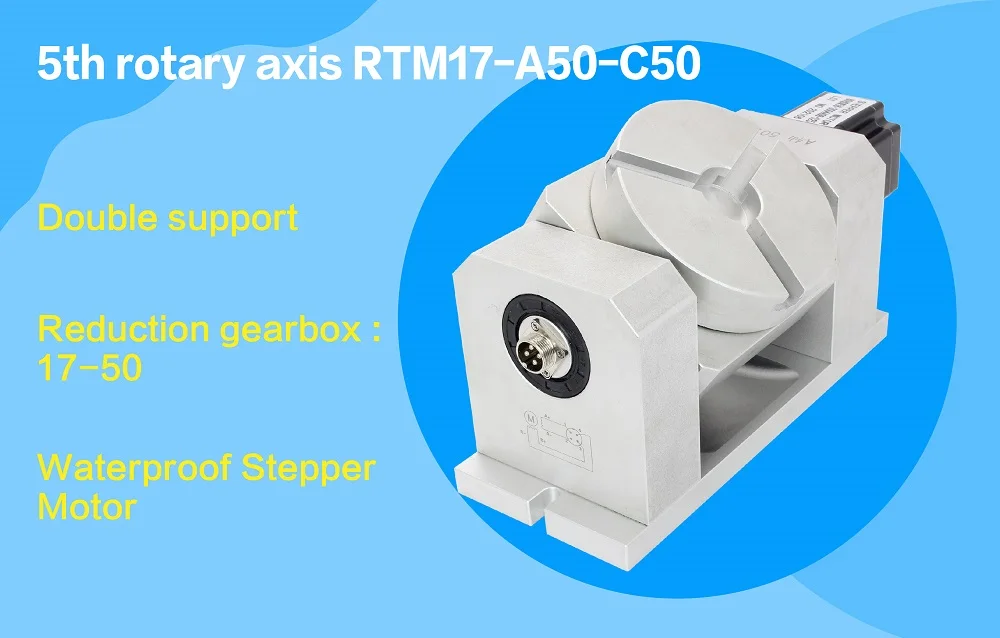

Model: RTM17-A50-C50

Reduction gearbox model: 17-50

Center height: 85MM

Bench Diameter: 109 mm

4th Speed reducing ratio: 50:1

5th Speed reducing ratio: 50:1

Stepper motor: two-phase stepper motor Nema 23waterproof

Size: 274MM*98MM*132MM

Weight: 6.8 KG

DM556S Digital Stepper Motor Driver (20-50VDC, 1.0-6.0A)

Characteristics

●New 32 Bit DSP Technology

●Ultra-low vibration noise

●Built-in high subdivision

●Automatic parameter power-on setting function

●Variable current control greatly reduces the heat generation of the motor.

●Automatic halving of current at rest

●Can drive 4,6,8-wire two-phase stepping motor

●Photoelectric isolated differential signal input

●Photoelectric isolation, alarm output

●Impulse response frequency up to 500KHz (factory default 200KHz)

●Voltage range DC 20-50VDC

●The current setting is convenient and can be selected between 1.0-6.0 A

●sub-set range 200-51200, higher sub-customizable

●It has the protection functions of overvoltage, undervoltage and overcurrent.

●It has rising/falling edge, IO control spontaneous pulse, single/double pulse, high

response/high speed and low vibration, self-measuring function

Application areas：

Suitable for all kinds of small and medium-sized automation equipment and instruments,

such as: lithium battery equipment, 3C electronic equipment, engraving machine, marking

machine, cutting machine, laser phototypesetting, engraving machine, plotter, CNC machine tool,

automatic assembly equipment, etc. It is especially effective in applications where users

expect small noise and high speed。
