1.5kW ER11 220V water-cooled spindle motor 6-piece set (with 1.5KW HY inverter, etc.) for CNC engravers and milling machines

Package include:

1 x 1.5KW ER11 Water-cooled spindle motor (220V,400Hz,24000rpm)

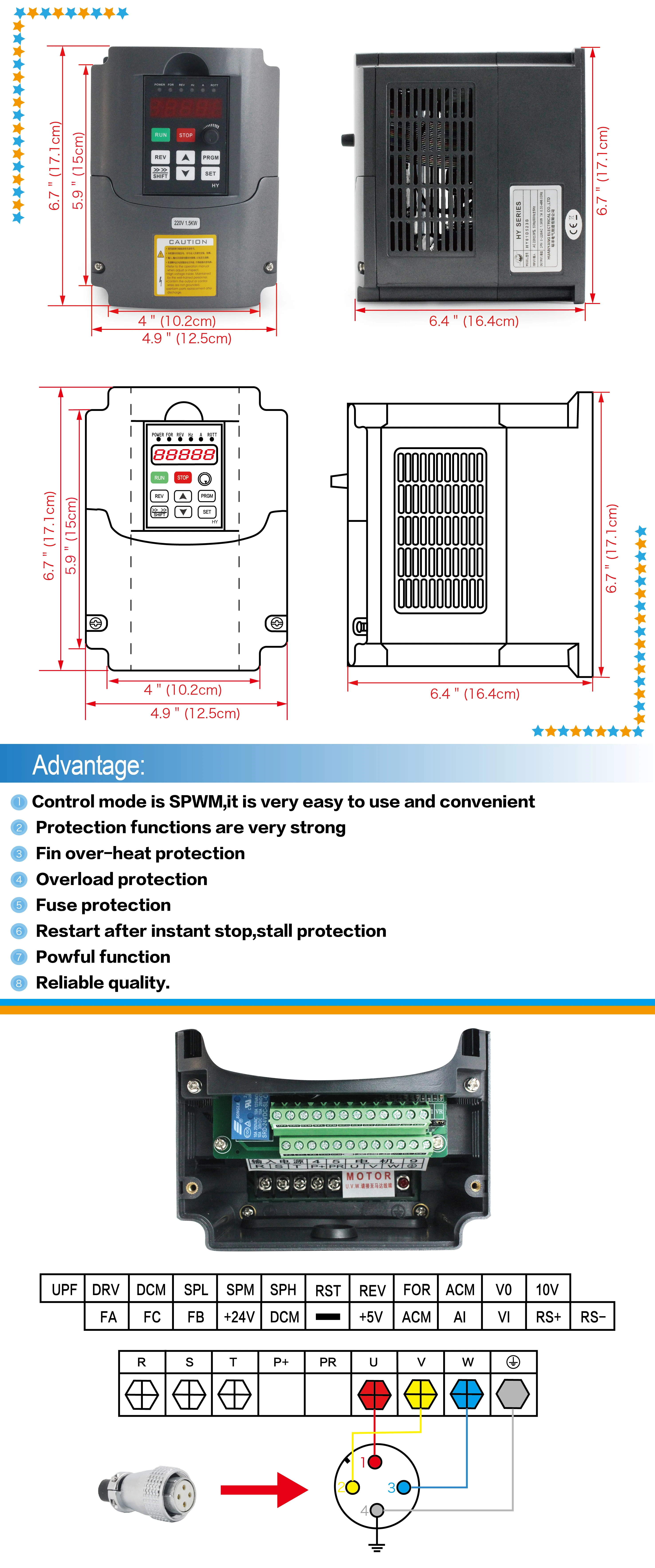

1 x1.5KW HY Inverter VFD

1 x 80mm cast aluminium bracket clamp

1 x 80W Water pump

6M Water pipes

1 set ER11 collet 11Pcs

Specification:

Material:Stainless Steel

Size:Φ80x188mm

Power:1.5Kw

Voltage:220VAC

Current:5A

Frequency:0-400Hz

Speed:10-24000rpm

Cooling:Water-cooling

Accuracy:0.01

Runout off:Less than 0.02mm

Bearing Lubrication:Grease

Collet size:ER11

Bearings:3 bearings (C7002x3),P4 class

Weight:4.6kg

Power supply interface:Professional

aviation Interface, Interface 1234 marked 123 respectively connected to

the inverter output end of the (U, V, W), 4 ground wire this interface

must be safe ground.

Main application:Wood, Aluminum, Stone, metal, glass, PVC industry
