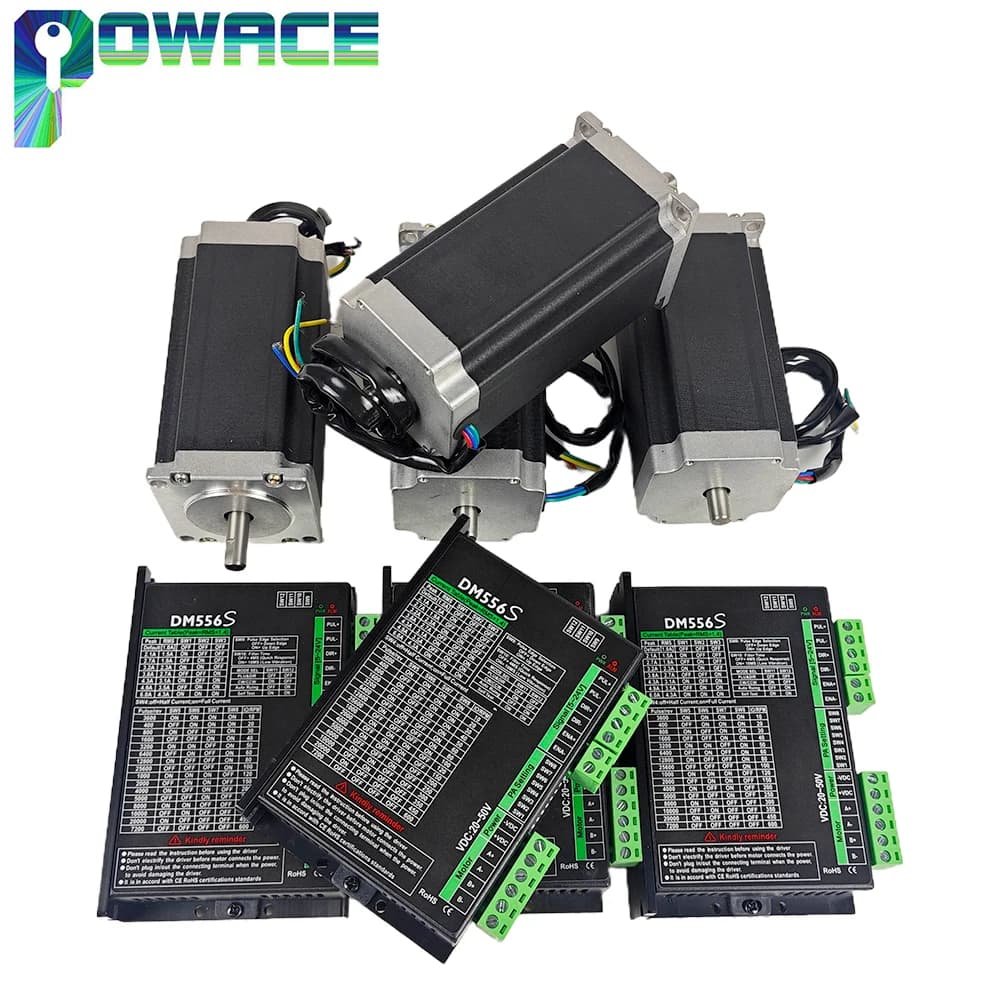

3Pcs 4pcs 23HS2430B 8Daul Shaft Nema23 57 Stepper Motor 112mm 3A 2.8N.m 1.8° + DM556S Motor Driver CNC Controller Kit

3/4pcs x 23HS2430B Nema23 Stepper Motor 112mm (Daul shaft)

3/4pcs x DM556S stepper motor drive (optional)

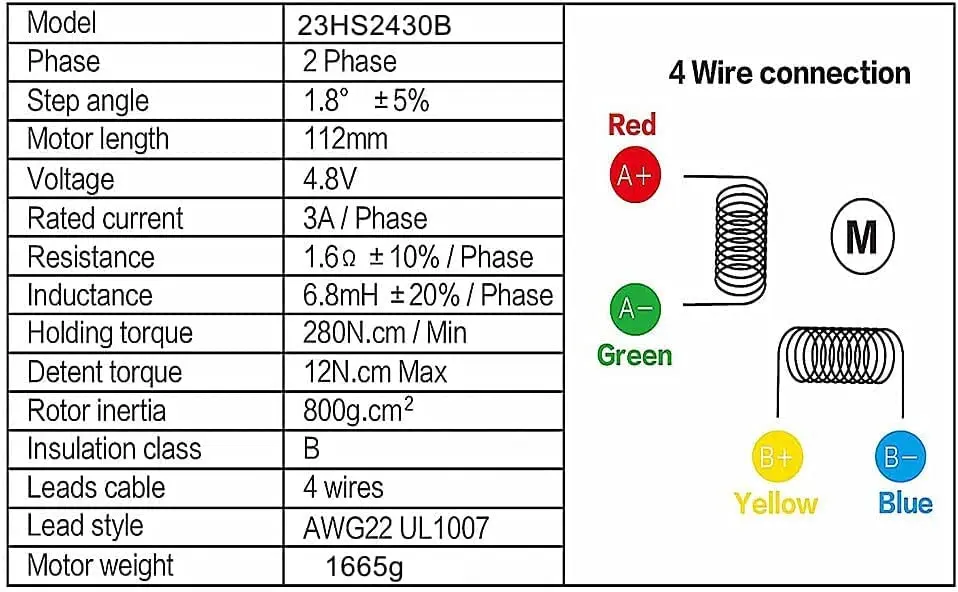

Stepper motor's red wire connect to driver's A+ port

Stepper motor's green wire connect to driver's A- port

Stepper motor's yellow wire connect to driver's B+ port

Stepper motor's blue wire connect to driver's B- port

Advantages

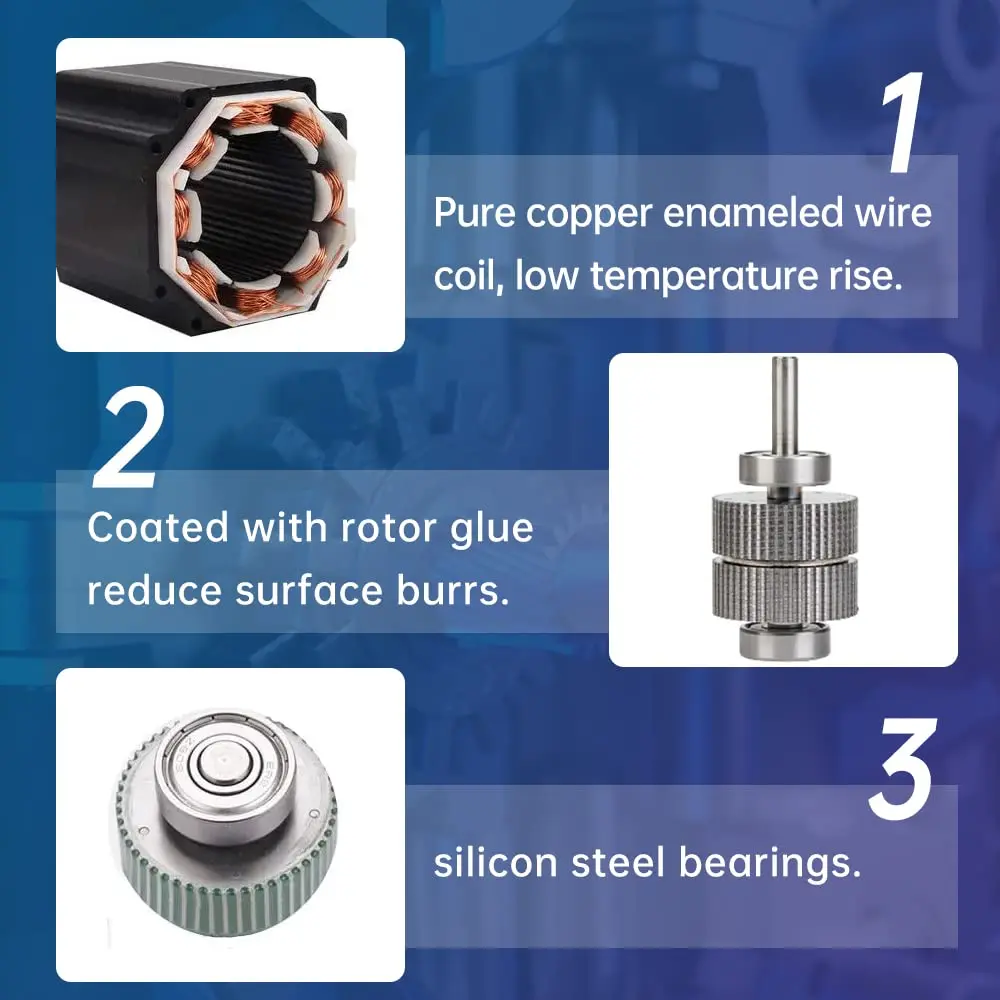

Our motor is made of solid and durable metal. The perfect combination of

rubber and rotor makes the internal structure more stable, and also

reduces the vibration and noise when the engine runs.

The motor runs more quietly, with a high torque of 12Nm.The coil uses pure

copper enamelled wire to ensure that long-term operation will not lead

to excessive engine temperature.

The rotor surface is coated with high-quality epoxy resin adhesive to

isolate the adsorbed burrs on the rotor surface, more stable magnetic

field and longer service life of motor.

Usage or Application

This products are widely used in engraving machine, printer, medical

equipment,embroidery machine, stage lighting, textile automation,

printing,packaging and other industries automation equipment.

Dial Switches

SW1-SW3: Set The Operating Current (1.0A-6.0A)

SW4 is a Half-Current function,when SW4=off,for half-current setttings,when SW4=on,current static state for full-current lock axis

SW5-SW8: Set the speed of subdivision and spontaneous pulses

Function Setting:

SW9:Edge sel,off=fall,on=rise

SW10:S-Filter,off=4ms,on=10ms

SW11-SW12:Mode Sel

Input Voltage: 20-50V DC ( It is recommended to use 24V DC ),Output Peak Current: 1.0A-6A; Impulse response frequency up to 500KHz (factory default 200KHz)

Photoelectric isolation, alarm output

Photoelectric isolated differential signal input

It has rising/falling edge, IO control spontaneous pulse, single/double pulse, high response/high speed and low vibration, self-measuring function.

It has the protection functions of overvoltage, undervoltage and overcurrent.

Variable current control greatly reduces the heat generation of the motor

Ultra-low vibration noise.

It adopts the latest 32-bit DSP digital processing technology.

The driver control algorithm adopts advanced variable current technology and advanced frequency conversion technology.

The auto-tuning function is integrated in the driver, which can automatically generate the optimal operating parameters for different motors and maximize the performance of the motors.

Users can set 200-51200 within the arbitrary subdivision and rated current within the arbitrary current value, to meet the needs of most applications.

Due to the use of built-in micro-subdivision technology, even in the conditions of low subdivision, but also can achieve high subdivision effect, low, medium and high-speed operation is very smooth, ultra-low noise.

Can drive 4,6,8-wire two-phase stepper motor,suitable for Nema 17,Nema23,Nema24 and Nema34 Stepper Motor;Automatic halving of current at rest.
